Feature:
1. 20000 Counts: The multimeter features high resolution, ensures more accurate measurements, widely used in precise measurement industries, especially for miners, photovoltaic systems, and solar panels.
2. Record Mode: The digital multimeter can record voltage changes over time in a graph form, storing up to 5 measurements with a maximum of 10000 data points each.
3. LCD Screen: The digital multimeter features a large 2.8 inch TFT color screen, providing clear test results from a wide angle for comfortable reading experience.
4. Versatile Measurement: The photovoltaic multimeter measures capacitor, diode, temperature, MAXIMUM MINIMUM PEAK, resistor, continuity, and more.
5. 1800mAh Rechargeable Battery: Equipped with a rechargeable 1800mAh lithium ion battery, the digital multimeter ensures you never have to worry about running out of power during measurements.
Specification:

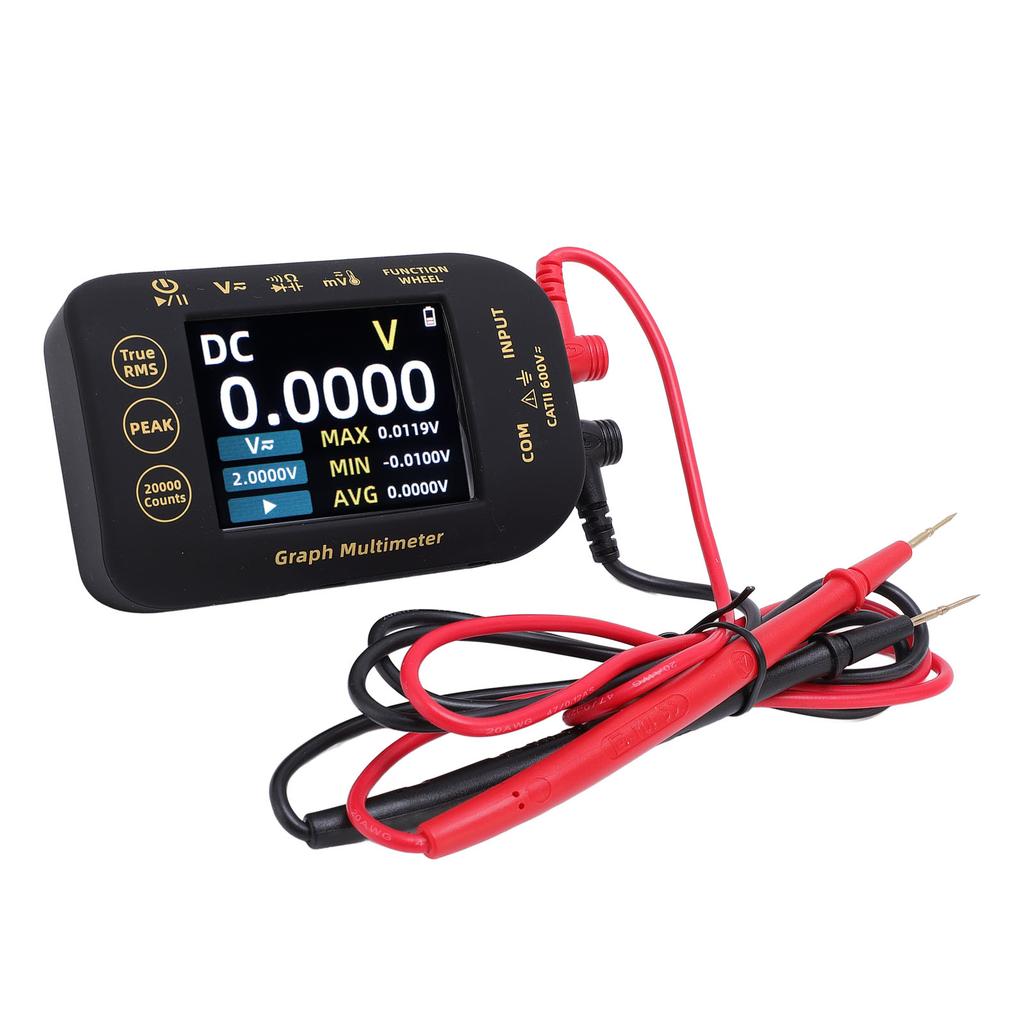

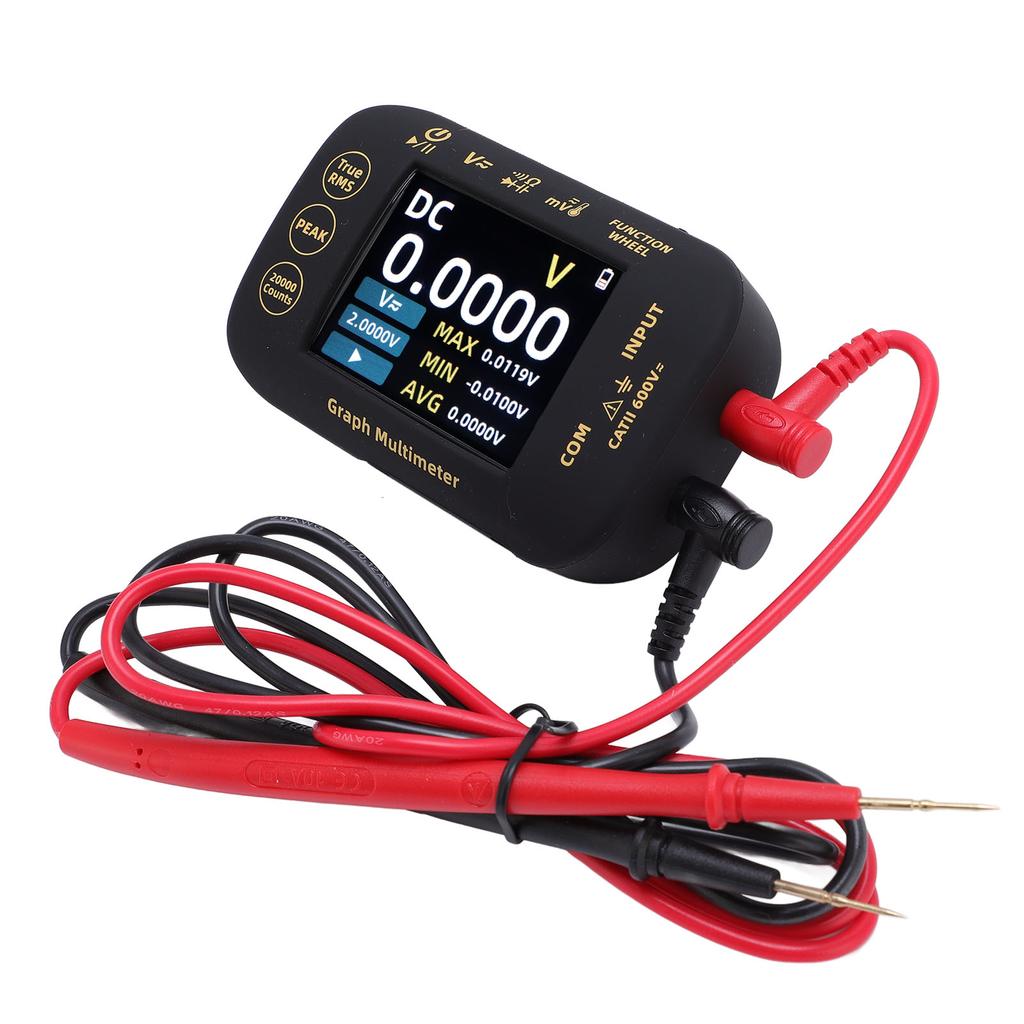

Item Type: PV Digital Multimeter
Material: Silicone, ABS
Model: S450
Power Supply Battery: 1 x lithium ion battery 1800mAh (built in)
Charging Voltage: DC 5V
Functions: Auto range, full range overload guard
Auto Mode: Can automatically identify AC voltage, DC voltage, resistor, continuity

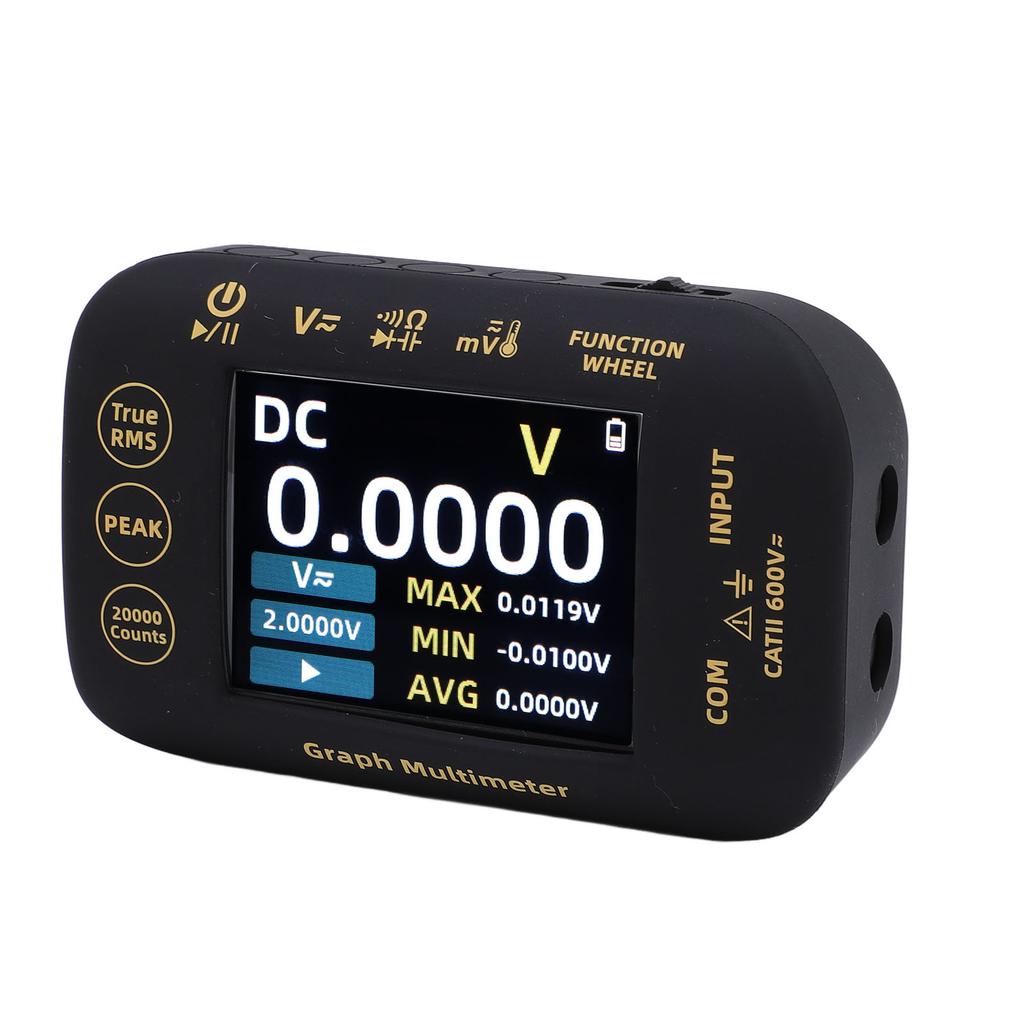

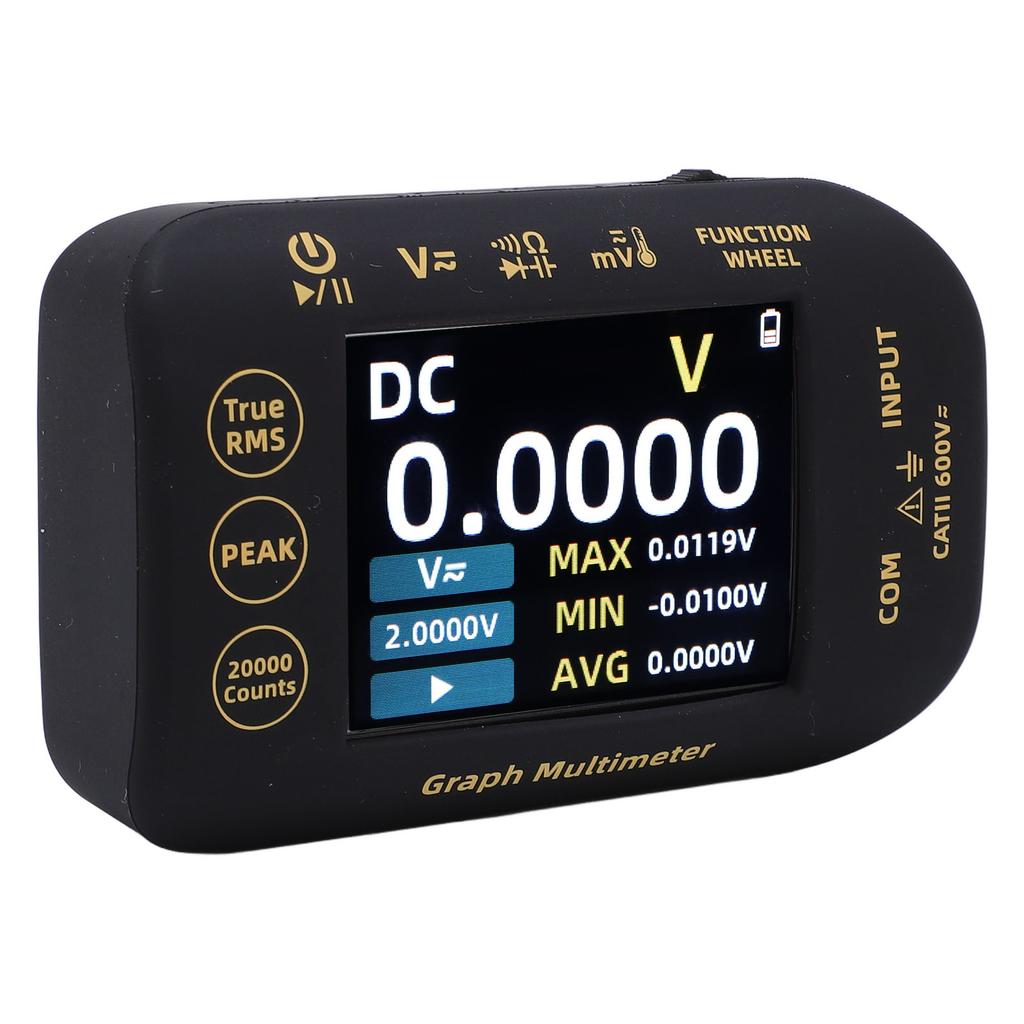

Display: 2.8 inch TFT color screen
Pixels: 320x240
Auto Shutdown Time: 1 minute, 10 minutes, 30 minutes, 60 minutes or off (no automatic shutdown time limit)
Temperature Unit: Celsius, Fahrenheit
Backlit Brightness: 30percent , 50percent , 80percent or 100 percent of screen brightness
Working Mode: Can be set to normal mode and recording mode (graphic mode), only DC, AC, mVDC, and mVAC measurement scenarios support data recording. The record types are divided into maximum value, average value, and minimum value, representing that the data saved at each record point is the maximum value, average value, and minimum value of all data in the record interval
Record Interval: The interval between data sampling and storage
Format: Delete stored record data
Viewing Recorded Data: Connect the device to computer using USB cable, a USB flash drive will appear on the computer, the recorded data is stored in CSV file format on the USB flash drive and can be viewed by opening it
Working Environment: 0 40 celsius , <75percent RH
Storage Environment: 20 celsius +60 celsius , <80percent RH
Working Height: Maximum 2000M
Function
Range
Resolution
Accuracy
DC Voltage (V)
2.0000V
0.0001V
+ (0.05percent +3)
20.000V
0.001V
200.00V
0.01V
+ (0.5percent +3)
1000V
0.1V
DC Voltage (mV)
20.000mV
0.001mV
+ (0.1percent +3)
200.00mV
0.01mV
AC Voltage (V)
2.0000V
0.0001V
+ (0.5percent +3)
20.000V
0.001V
200.00V
0.01V
750V
0.1V
AC Voltage (mV)
20.000mV
0.001mV
200.00mV
0.01mV
AC Voltage Frequency Response: 40Hz 1kHz
Resistor
200.00 Ohm
0.1 Ohm
+ (0.5percent +3)
2.0000K Ohm
0.0001k Ohm
+ (0.2percent +3)
20.000K Ohm
0.001k Ohm
2000.00K Ohm
0.01k Ohm
2.0000M Ohm
0.0001M Ohm
+ (1.0percent +3)
20.000M Ohm
0.001M Ohm
200.00M Ohm
0.01M Ohm
+ (5percent +5)
Capacitor
999.99nF
0.01nF
+ (0.5percent +20)
9.999uF
0.001uF
+ (2percent +5)
999.99uF
0.01uF
99.999mF
0.001mF
+ (5percent +10)
Temperature
( 20 1000) celsius
1 celsius
+ (2percent +5)
( 4 1832) Fahrenheit
1 Fahrenheit
Diode
Support
Continuity
Support
.

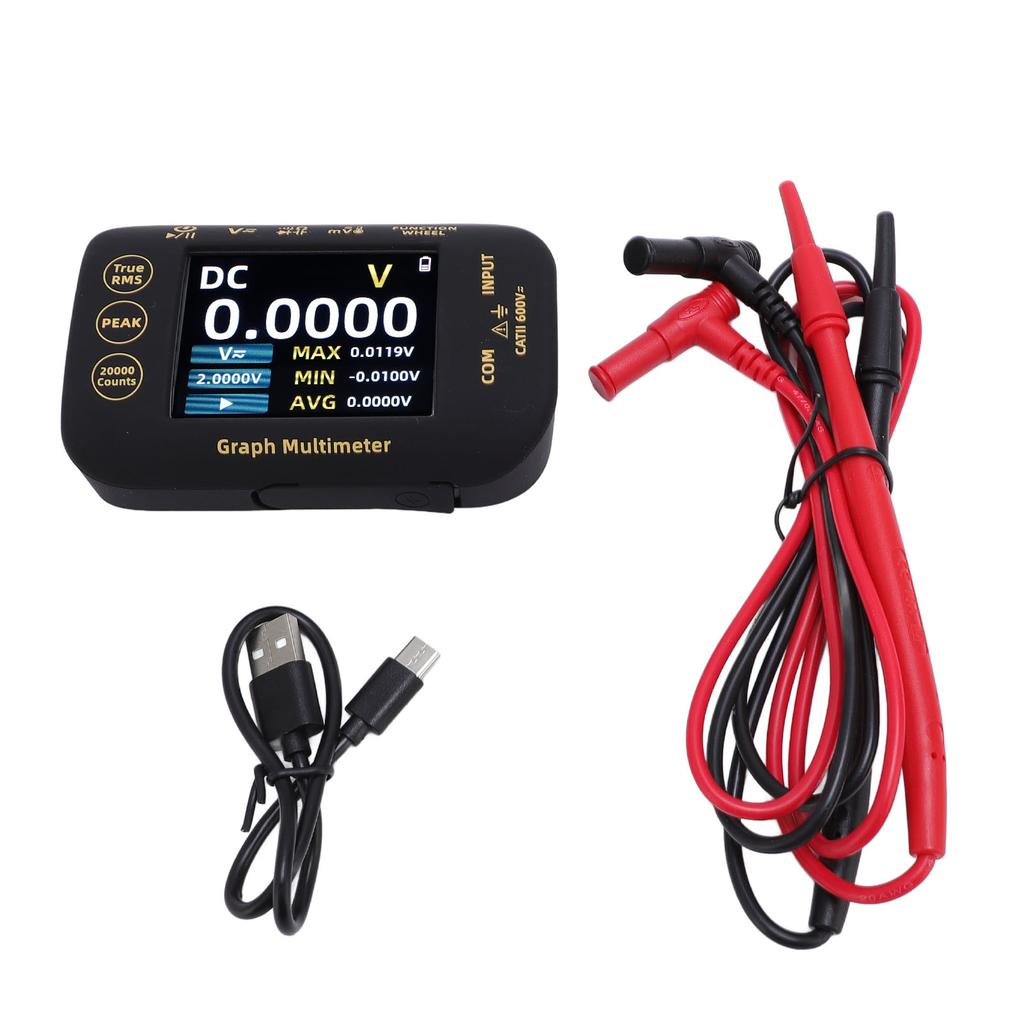

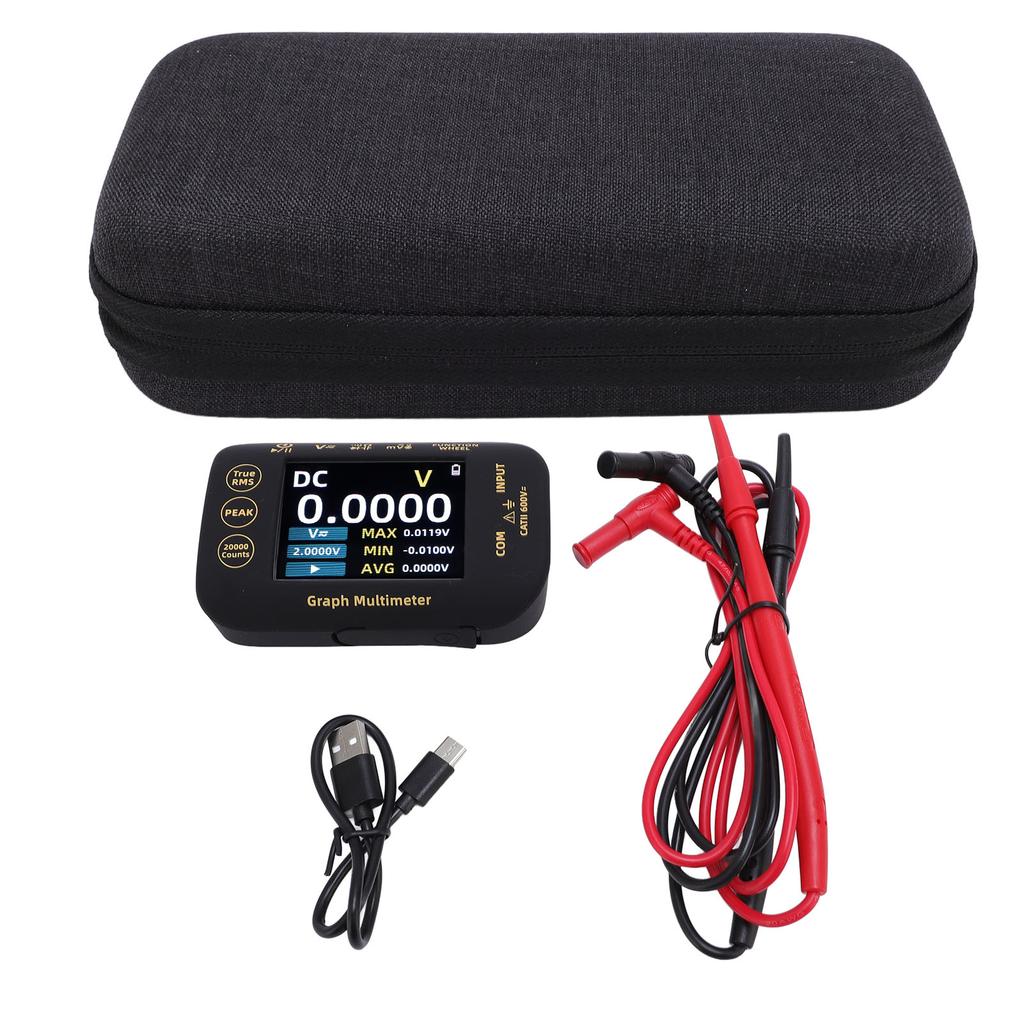

Package List:
1 x PV Digital Multimeter
1 x Charging Cable
2 x Test Pens
1 x User Manual

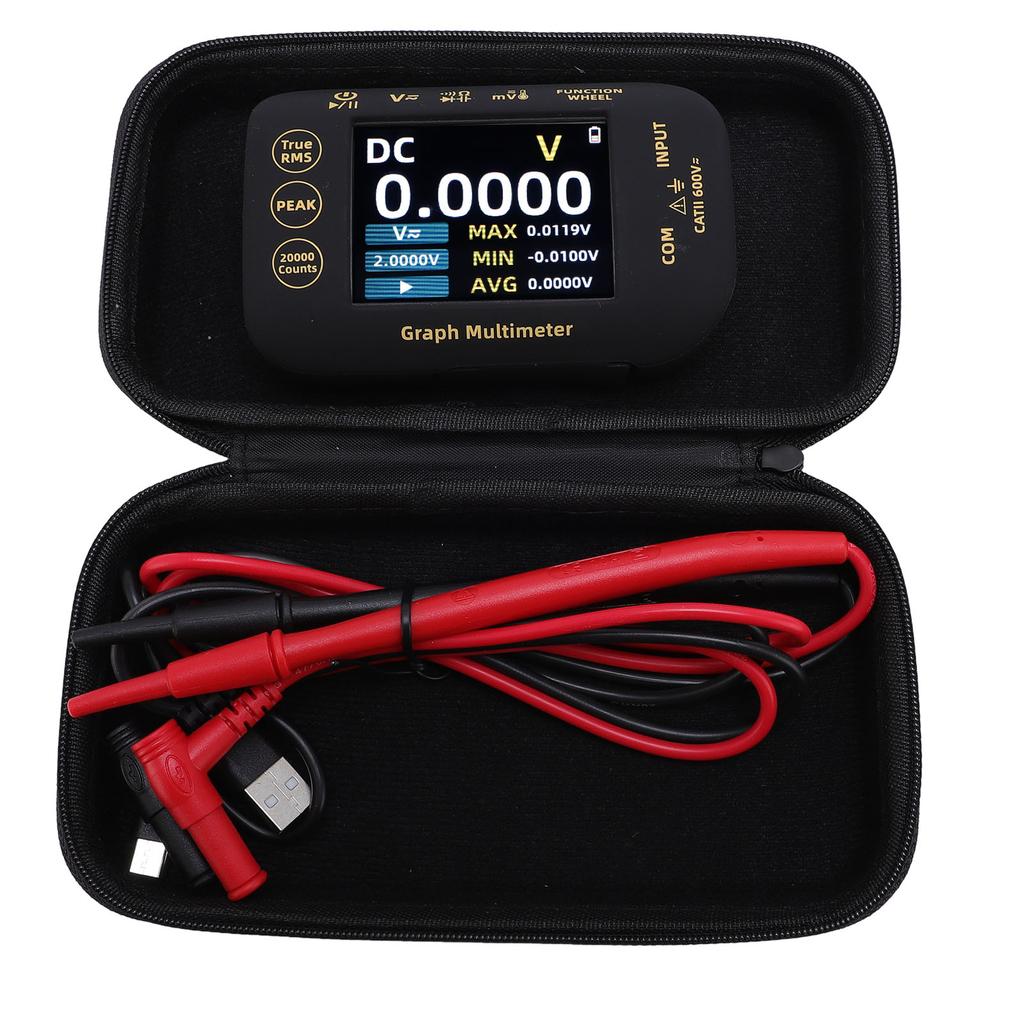

1 x Carrying Case
