Feature:
1. Constant current and constant voltage design, this boost converter has DC9 60V input and DC10 120V output voltage, 85percent high conversion efficiency and with the max current of 15A.
2. 1.77 inch TFT digital display screen, clearly displays real time output voltage, real time output current, real time output power, trigger mode, input voltage, etc.
3. When the input is turned on, the output end has power output all the time, and the voltage is equal to the real time output voltage displayed in the interface.
4. The module has output voltage after connecting to the input all the time, ON and OFF only indicate whether the boosting program is running or not, not the on off of output voltage.
5. Two kinds of power on program trigger modes design, AUTO mode: power on boosting program runs automatically; : power on boosting program does not run; long press \ SET\ button for 6 seconds to switch the trigger mode.
6. Multi parameter setting, support voltage setting, current setting, data group setting, double click \ SET\ button to enter parameter setting mode.
7. Support call the data group, click \ +\ or \ \ to switch data group, only call, not starts boost.
8. Starts Stop running the boosting program, click \ ok\ button in OFF state to run the program, the output voltage will rise to the set voltage. Click \ ok\ to stop the program in the ON state, and the output voltage will drop to the input voltage.
Specification:

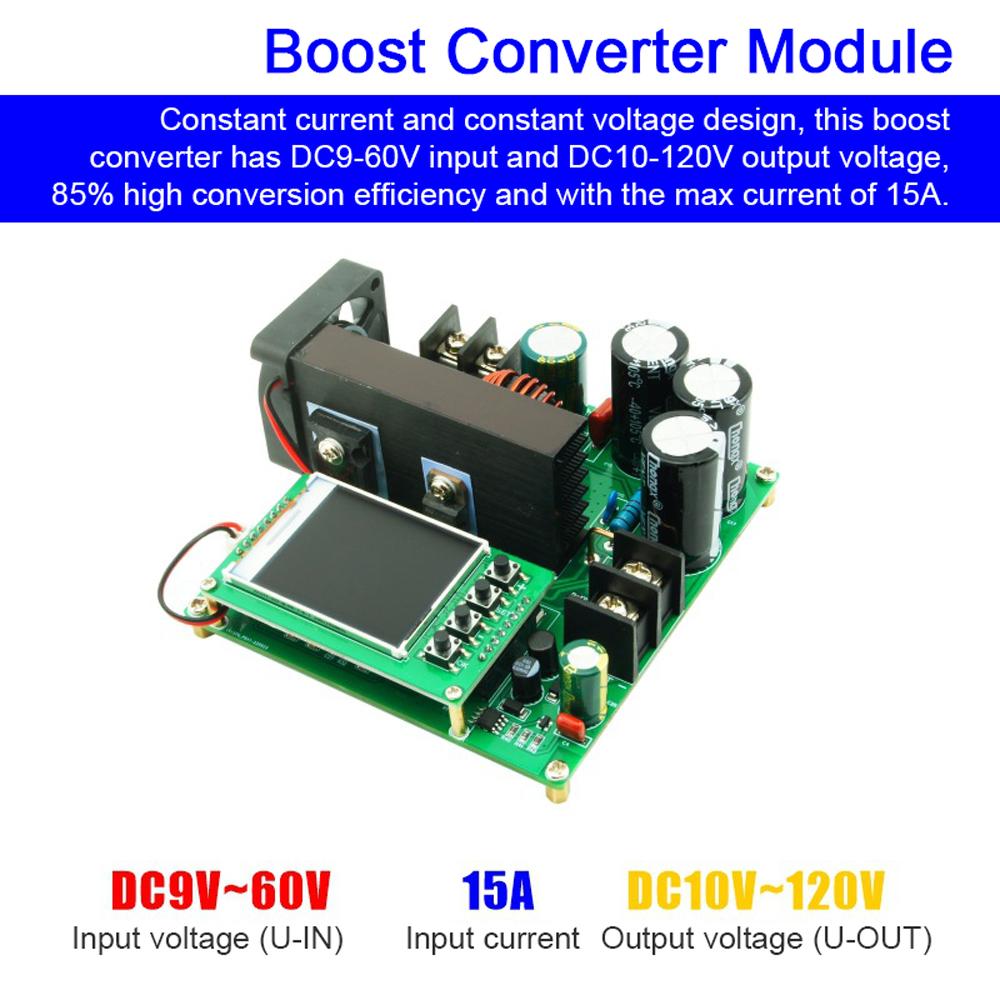

Constant current and constant voltage design, this boost converter has DC9 60V input and DC10 120V output voltage, 85percent high conversion efficiency and with the max current of 15A. 1.77 inch TFT digital display screen, clearly displays real time output voltage, real time output current, real time output power, trigger mode, input voltage, etc. Two kinds of power on program trigger modes design, support multi parameter setting, reliable and practical to use.
Features:
Constant current and constant voltage design, this boost converter has DC9 60V input and DC10 120V output voltage, 85percent high conversion efficiency and with the max current of 15A.
1.77 inch TFT digital display screen, clearly displays real time output voltage, real time output current, real time output power, trigger mode, input voltage, etc.
When the input is turned on, the output end has power output all the time, and the voltage is equal to the real time output voltage displayed in the interface.
The module has output voltage after connecting to the input all the time, ON and OFF only indicate whether the boosting program is running or not, not the on off of output voltage.
Two kinds of power on program trigger modes design, AUTO mode: power on boosting program runs automatically; : power on boosting program does not run; long press SET button for 6 seconds to switch the trigger mode.
Multi parameter setting, support voltage setting, current setting, data group setting, double click SET button to enter parameter setting mode.
Support call the data group, click + or to switch data group, only call, not starts boost.
Starts Stop running the boosting program, click ok button in OFF state to run the program, the output voltage will rise to the set voltage. Click ok to stop the program in the ON state, and the output voltage will drop to the input voltage.

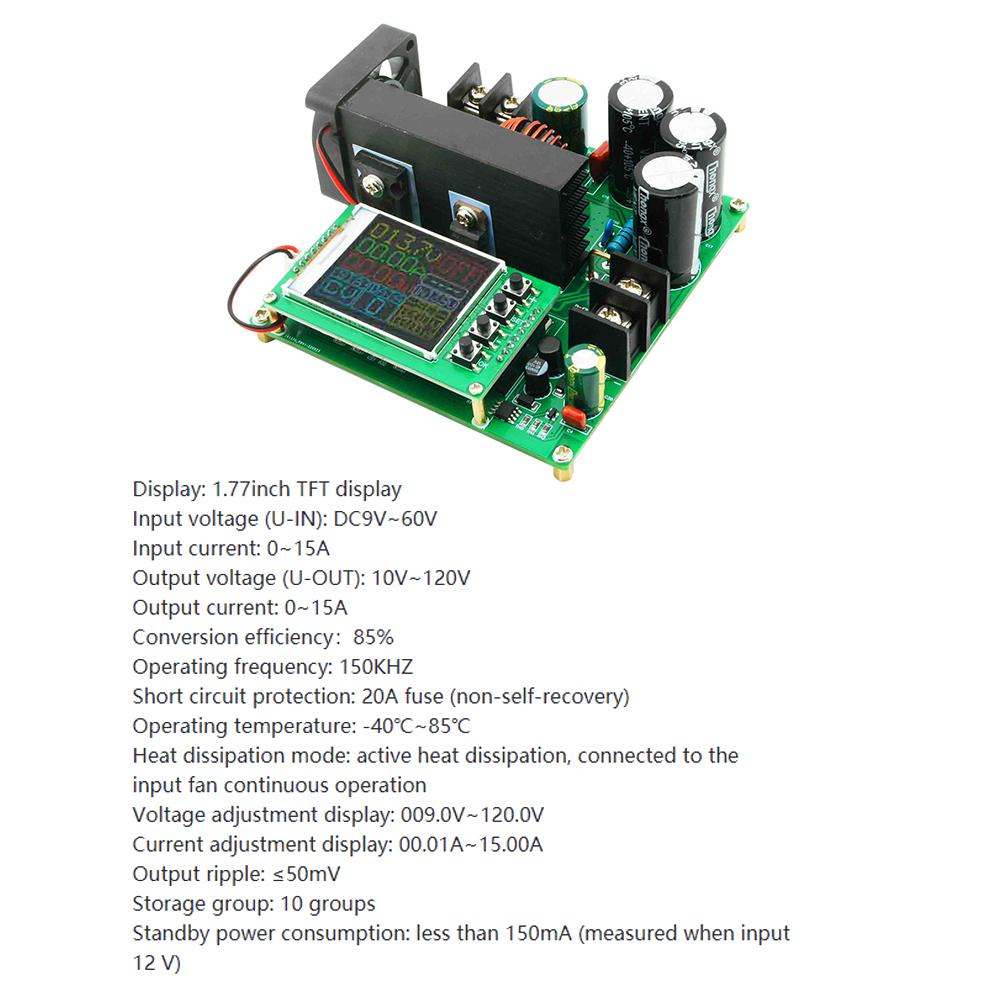

Specifications:
Name: Boost Converter Module
Material: printed circuit board
Display: 1.77inch TFT display
Input voltage (U IN): DC9V 60V
Input current: 0 15A
Output voltage (U OUT): 10V 120V
Output current: 0 15A
Conversion efficiency:85percent
Operating frequency: 150KHZ
Short circuit conservation: 20A fuse (non self recovery)
Operating temperature: 40 celsius 85 celsius
Heat dissipation mode: active heat dissipation, connected to the input fan continuous operation
Voltage adjustment display: 009.0V 120.0V
Current adjustment display: 00.01A 15.00A
Output ripple: less than 50mV
Storage group: 10 groups
Standby power consumption: less than 150mA (measured when input 12 V)
Item size: 110 * 105 * 48mm 4.33 * 4.13 * 1.89in
Item weight: 235g 8.29ounce
Package size: 90 * 110 * 120mm 3.54 * 4.33 * 4.72in
Package weight: 280g 9.88ounce
Packing List:
1 * Boost Converter Module
Package List:
1 * Boost Converter Module
