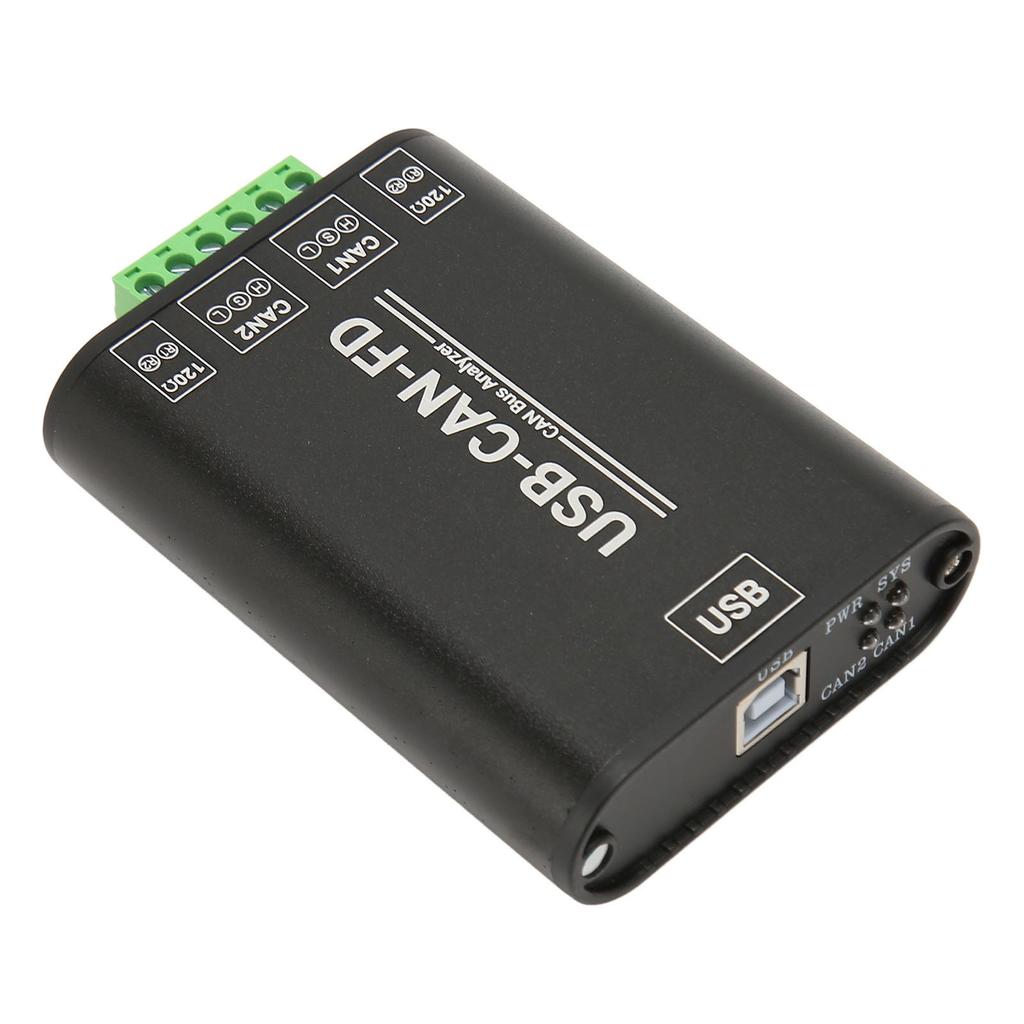

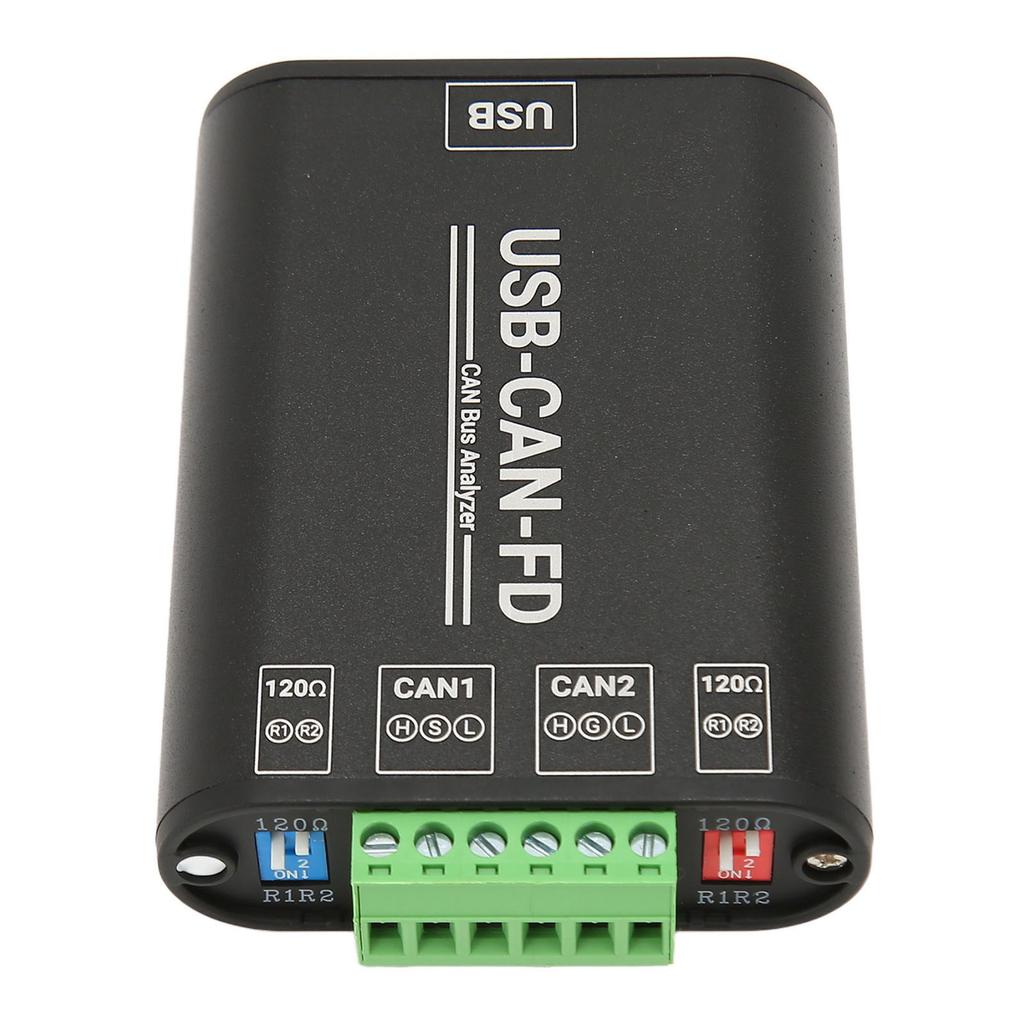

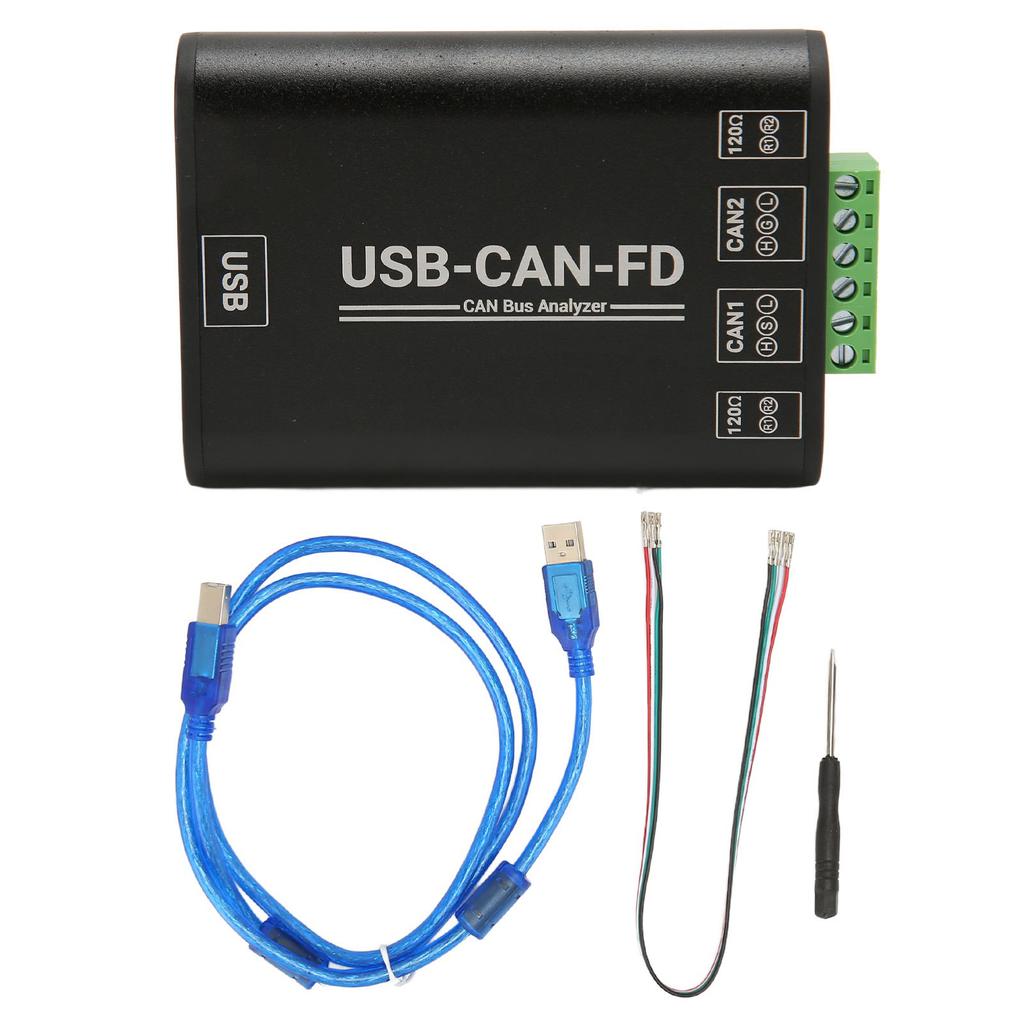

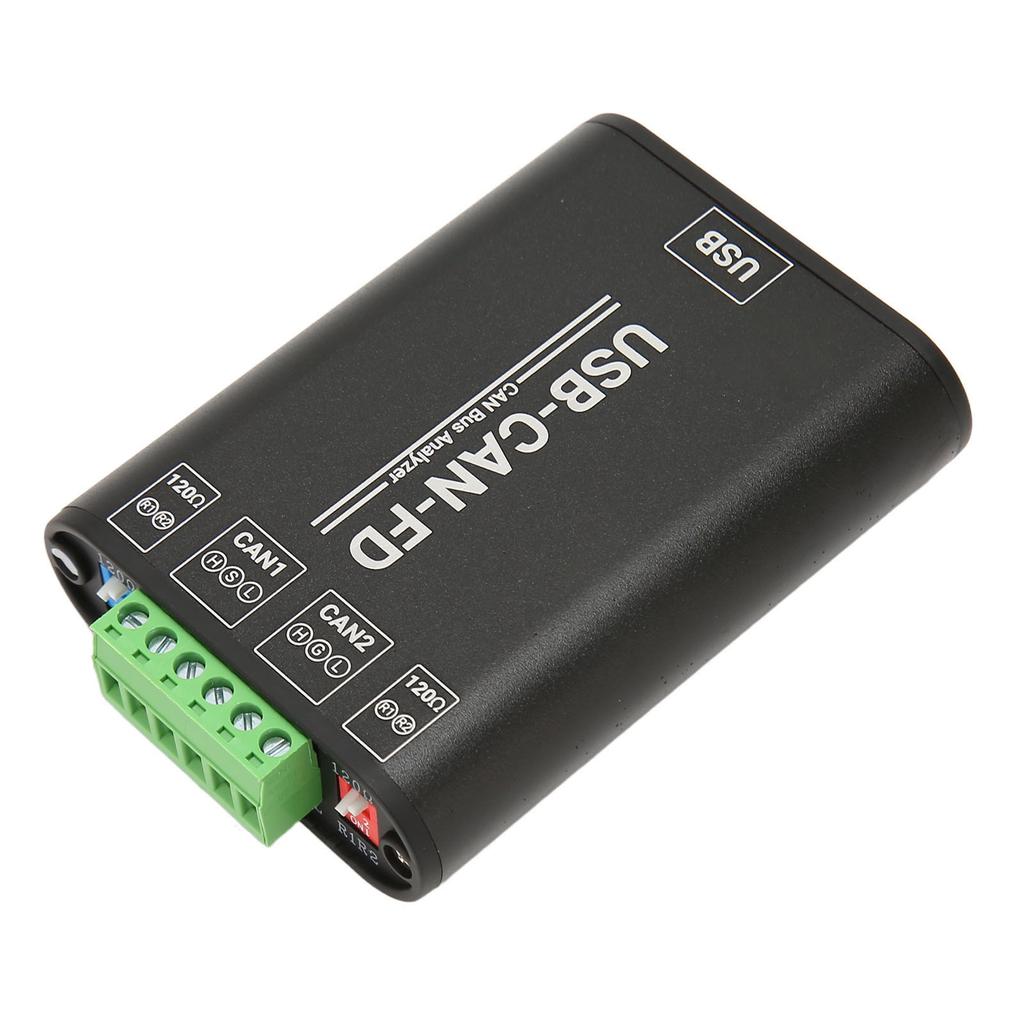

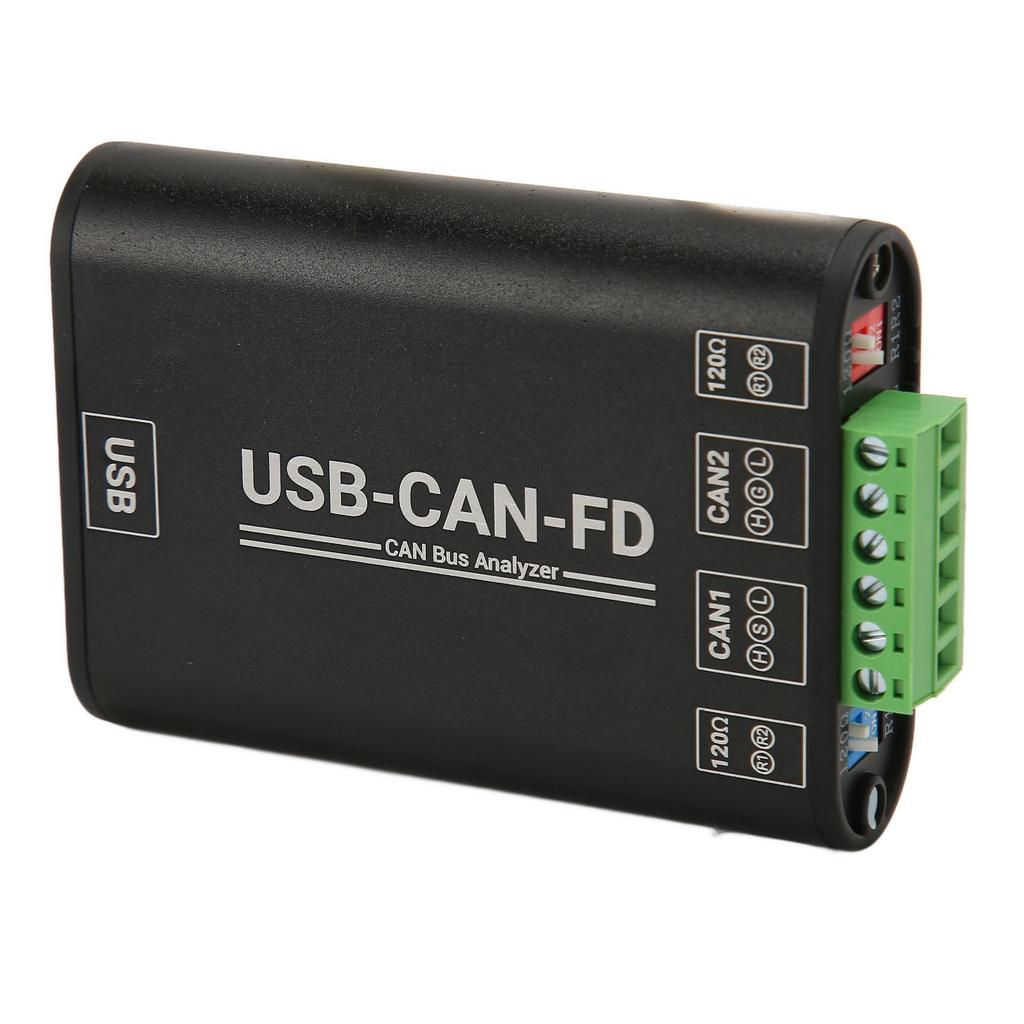

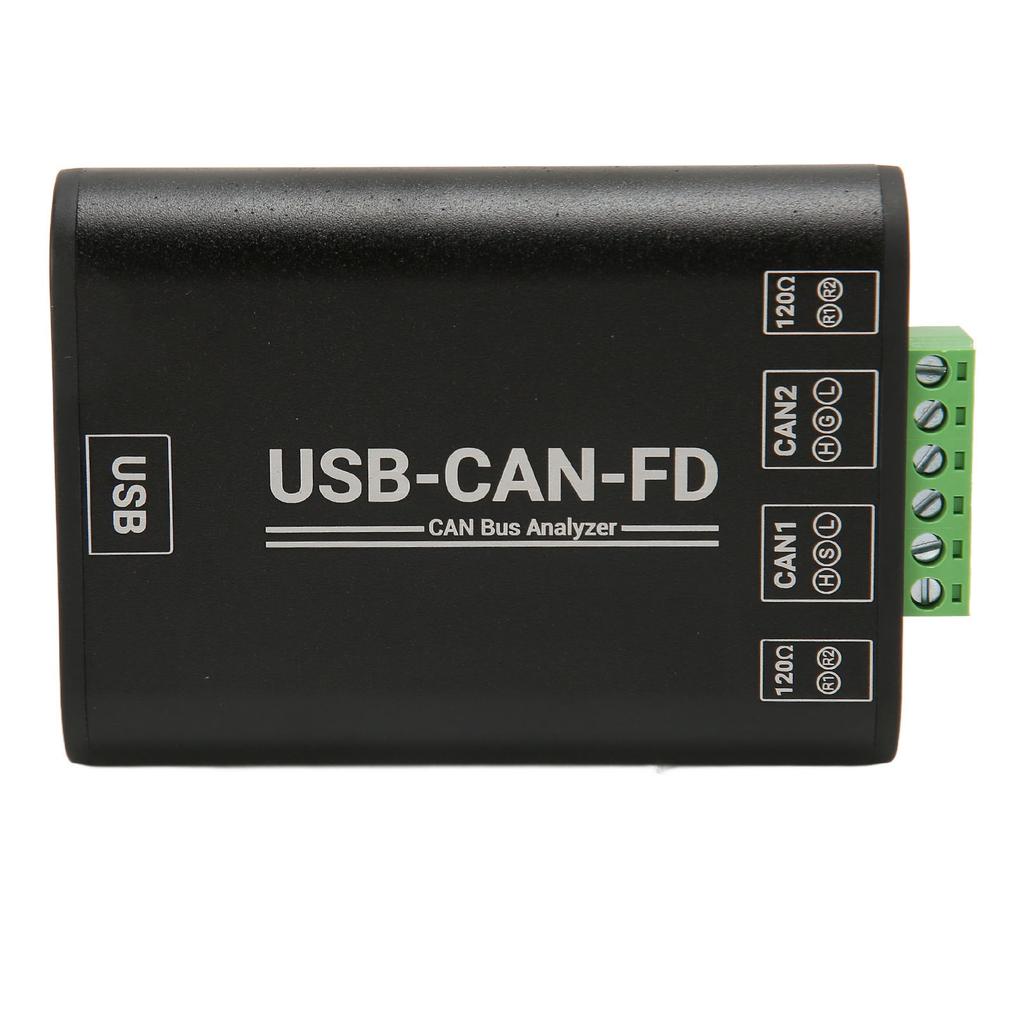

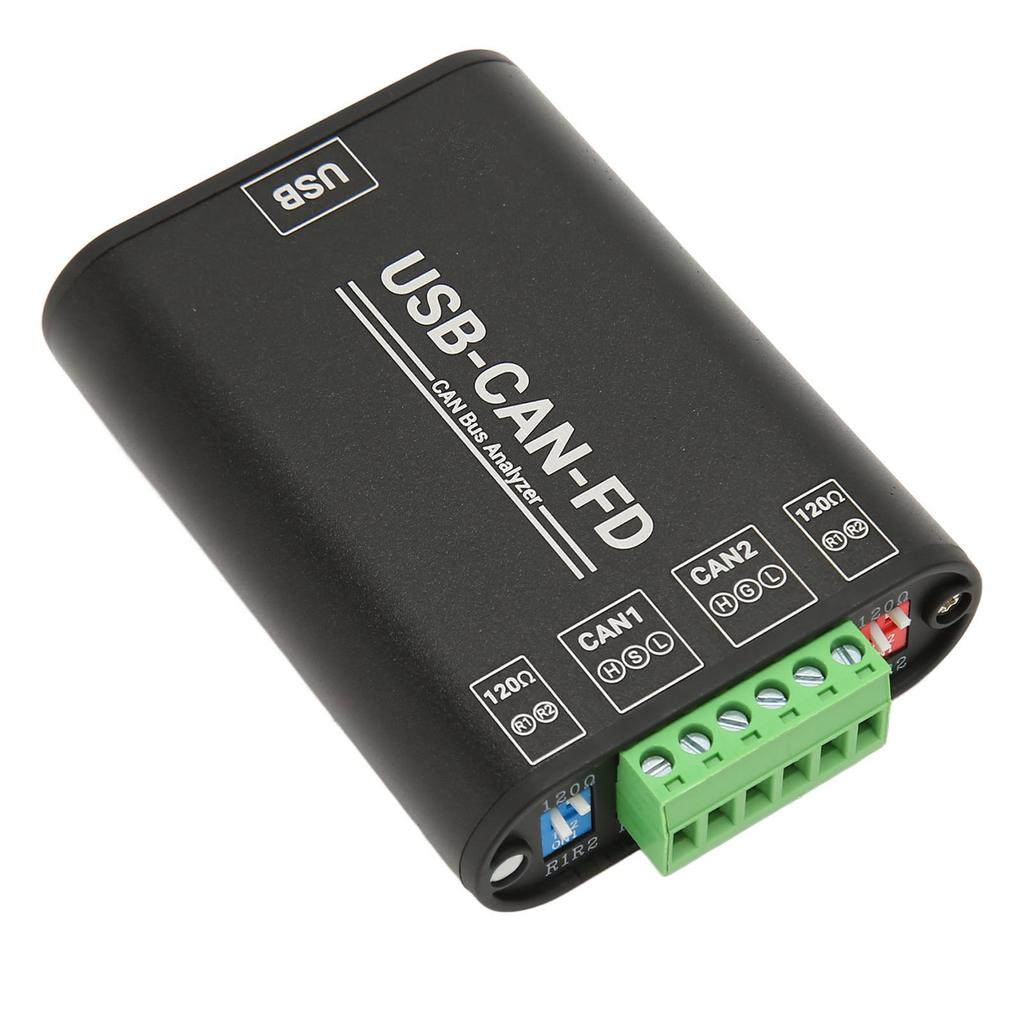

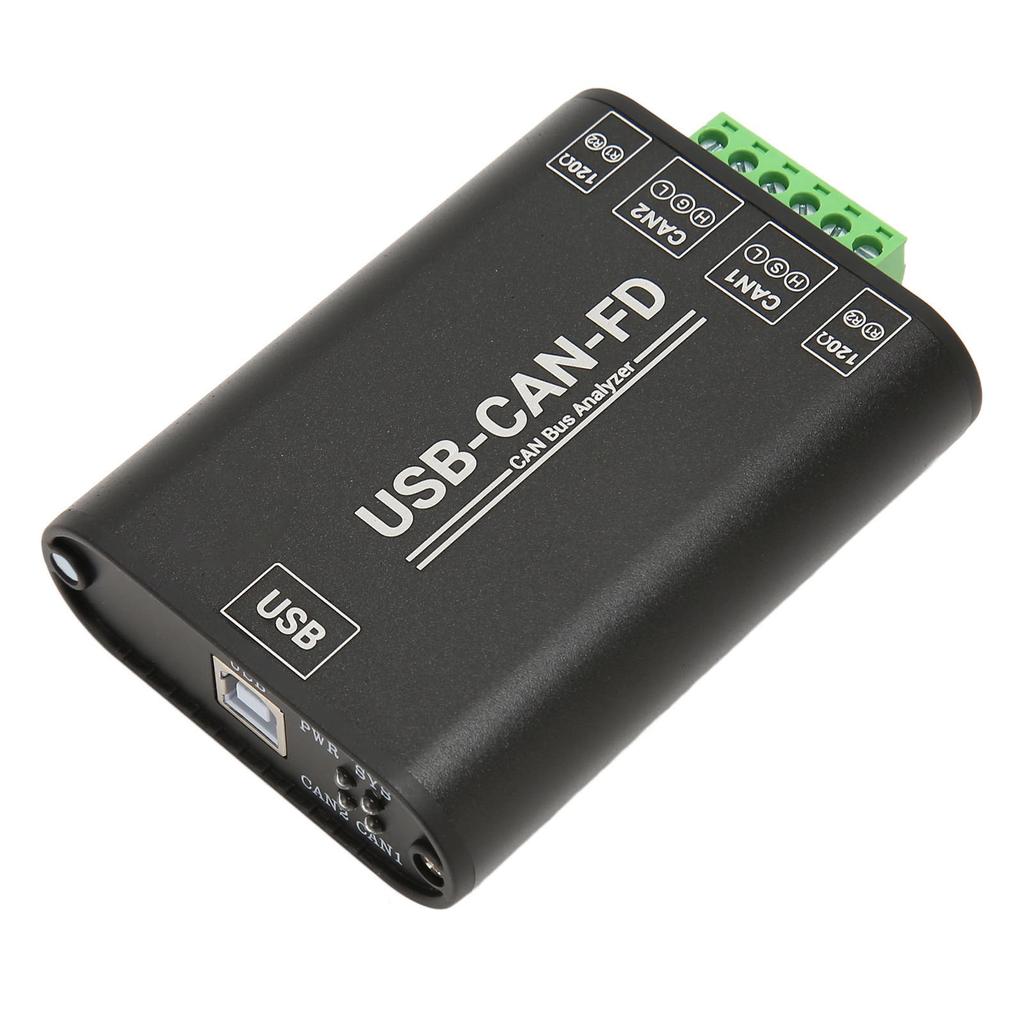

Industrial Grade USB to CAN FD Adapter CAN CAN FD Bus Communicate Interface Convertor CAN CAN FD Protocol Data Analyzer

Feature: 1. INDUSTRIAL GRADE USB TO CAN FD ADAPTER: CAN CAN FD Bus Communicate Interface Card and CAN CAN FD Protocol Data Analyzer with two independent CAN FD interfaces, galvanic isolation and multiple protection circuits. 2. SUPPORT OPERATING SYSTEM: USB to CAN FD adapter supports for Windows XP 7 8 10 11 system, providing drivers, CAN FD Tools related software, secondary development call examples and tutorials. 3. DATA ANALYSIS ACQUISITION: Industrial USB to CAN FD converter can be connected to PC or industrial control host via USB to realize sending and receiving control, data analysis and acquisition and monitoring of CAN CAN FD bus network. 4. APPLICATION: CAN FD bus communicate interface card can be used for CAN CAN FD bus introductory learning debugging, can also be secondary development and integration into a variety of needs to use CAN CAN FD bus communicate industrial, power communicate and intelligent control and other application scenarios. 5. ALUMINUM ALLOY: CAN CAN FD protocol data analyzer is compact, easy to use, made of aluminum alloy, not easy to be damaged and can be used for a long time. Specification: Item Type: Industrial Grade USB to CAN FD Adapter Material: Aluminum Alloy USB Interface: 5V (Direct Power Supply Via USB Port, No Additional Power Supply Required) CAN CAN FD Interface: Number of CAN CAN FD Channels: Two: CAN1 and CAN2 (Independent and Unaffected, Fully Isolated, Isolation Voltage 3000V DC) Interface: Terminal (OPEN6 Pitch 5.08mm) Matching Resistors: Two 120 Ohm Termination Resistors Are Built In for Each CAN CAN FD, Which Can Be Enabled by a Switch. Communicate Rate: 100Kbps to 5Mbps (Configurable via Software) Protocol Support: CAN2.0A and 2.0B, ISO 11898 1 CAN FD Protocol Specification V.1.0 Protocols Data Transceiver Capacity: 20000 frames sec for Each CAN CAN FD Receive, 5000 frames sec for Each CAN CAN FD Transmit Data Transceiver Buffer: 1500 Frames Per CAN CAN FDReceive Buffer, 64 Frames PerCAN CAN FD Transmit Buffer (Automatic Retransmission in Case of Transmission Failure) Indicator Light: WR: Power Indicator SYS: System Status Indicator, Normally Off; When There Is an Error on the Bus, It Is Always On. CAN1: CAN1 Channel Indicator (Blinking When Sending and Receiving Data) CAN2: CAN2 Channel Indicator (Blinking When Sending and Receiving Data) Supported Systems: For Windows XP 7 8 10 11 (32bit and 64bit), Not Supported for Linux Systems. Size: Approx. 96 x 104 x 70 x 25mm 3.8 x 4.1 x 2.8 x 1.0in. Package List: 1 x Communicate Module1 x USB Cable1 x Connection Cable1 x Screwdriver Note: Not Supported for Linux Systems.
