FLUKE True RMS Digital Multimeter CAT III 1500V / CAT IV 1000V [Domestic Genuine Product] FLUKE-283FC/APAC

The Fluke 283 FC True RMS Digital Multimeter, rated CAT III 1500 V/CAT IV 1000 V, sets a new standard for technicians in DC environments up to 1500 V.

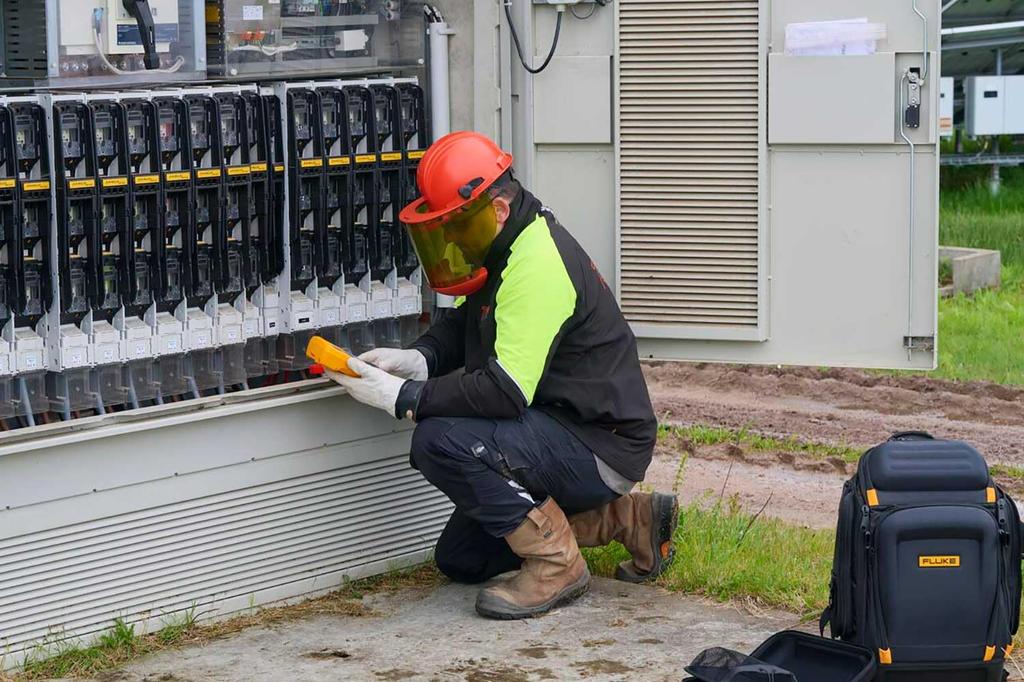

When working in plant-scale solar photovoltaic (PV) arrays, wind farms, railroads, or data centers, the Fluke 283 FC is designed to deliver accurate, reliable, and repeatable results while improving safety and productivity.

The 283 FC comes with TL175-HV silicon TwistGuard test leads with CAT III 1500 V/CAT IV 1000 V safety ratings, allowing you to work safely in high-voltage environments without compromising safety.

It offers greater flexibility when testing voltage, millivolts, resistance, continuity, or capacitance.

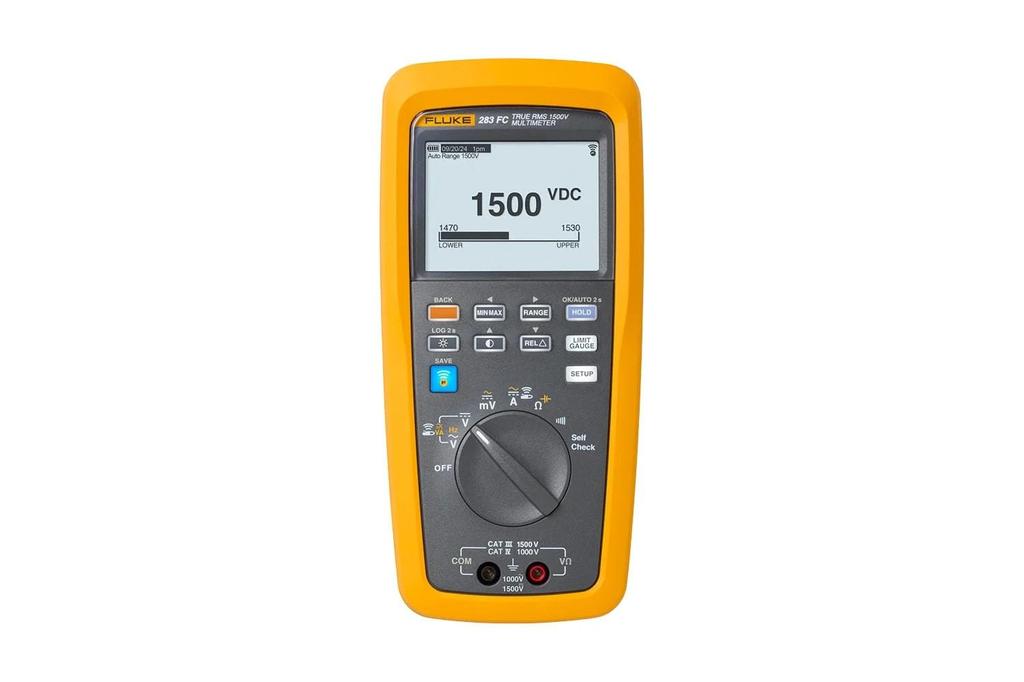

The bright backlit LCD screen and illuminated keypad make it easy to use in both direct and low-light conditions.

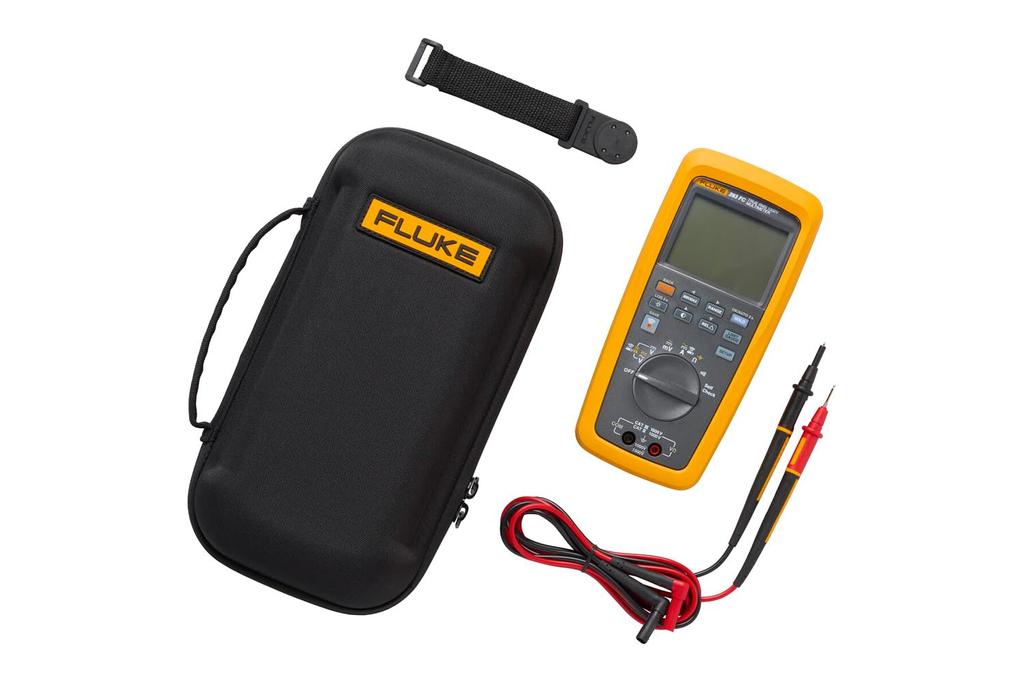

The included magnetic hanging kit frees up both hands, and the dedicated carrying case protects the equipment during transport.

Additional Features:

• High-accuracy voltage measurement for precise troubleshooting on the front lines

• Current measurement up to 60 A AC/DC for safe and highly accurate troubleshooting of individual module strings (when using a283 FC wireless current clamp)

• Visible and audible polarity indicator with on/off function helps prevent accidental module wiring problems

• User-defined limit gauge function for quick determination of normal/abnormal troubleshooting

• Unique multimeter ready self-check function ensures the meter is ready for testing

• Saves measurements and records them in internal memory for Fluke Display on mobile devices using Connect

■【Function】[1] No specification for values ​​less than 1% of the range■ ・AC Voltage[1] 【Range】___6.000V____60.00V/＿__600.0V__＿1000V 【Resolution】___0.001V_____00.1V/______0.1V_＿＿＿1V 【Accuracy】1.0%+3(45Hz～500Hz)/2.0%+3(500Hz～1kHz) ・DC Voltage 【Range】6.000V＿_60.00V___600.0V/＿＿＿1500V 【Resolution】0.001V＿__0.01V_＿＿0.1V/___＿＿_1V 【Accuracy】＿___＿_0.09%+3＿＿＿___/0.15% +2 • ACmV[1] 【Range】600.0mV 【Resolution】0.1mV 【Accuracy】1.0%+3 (45Hz～500Hz)・2.0%+3 (500Hz～1000Hz) • DCmV 【Range】600.0mV 【Resolution】0.1mV 【Accuracy】0.09%+2 • Continuity 【Range】600Ω 【Resolution】1Ω • Resistance [Range] 600.0Ω__6.000kΩ__60.00kΩ__600.0kΩ__6.000MΩ_/50.00MΩ [Resolution] 0.1Ω＿＿0.001kΩ___0.01kΩ____0.1kΩ__0.001MΩ_/_0.01MΩ [Accuracy]＿＿＿＿＿＿＿＿0.5%+4＿＿＿＿＿＿＿＿_＿＿＿＿_ /__1.5%+4 • Capacitance [Range] 1000nF__10.00μF__100.0μF/_＿9999μF [Resolution] ＿1nF__＿0.01μF_＿_0.1μF/____＿1μF [Accuracy] ＿＿＿＿＿_1.2%+2＿_＿＿＿/10% (Typical Value) • Frequency [Range] 99.99Hz__999.9Hz__9.999kHz__99.99kHz [Resolution] _0.01Hz____0.1Hz__0.001kHz___0.01kHz [Accuracy]____________0.1%+2 • ACVA (45～500Hz)[1] [Range] _360.0VA/＿3.600kVA/_36.00kVA/__60.00 kVA [Resolution] 0.1VA/0.001kVA/0.01kVA/0.01kVA [Accuracy] 2%+1.0VA/2%+0.01kVA/2%+0.1kVA/2%+0.15kVA • DCVA[1] [Range] 360.0VA/3.600kVA/36.00kVA/90.00kVA [Resolution] 0.1VA/0.001kVA/0.01kVA/0.01kVA [Accuracy] 2%+1.0VA/2%+0.01kVA/2%+0.1kVA/2%+0.25kVA • Min/Max/Avg The accuracy of the DC function is ±12 counts of the specified accuracy of the measurement function for changes that last for 350ms or more. The accuracy of the AC function is ±40 counts from the specified accuracy of the measurement function for changes lasting 900ms or more.

■Environmental Specifications■ 【Operating Temperature】-10℃ to 60℃ 【Storage Temperature】-30℃ to 70℃ 【Humidity (non-condensing)】 _0% to 90% (10℃ to 30℃) _0% to 75% (30℃ to 40℃) _0% to 45% (40℃ to 60℃)

■Warranty and Protection■ 【Electromagnetic Compatibility】IEC61326-1, IEC61326-2-2, Portable, Group 1, Class A 【Overvoltage Category】CATIII 1500V, CATIV 1000V 【Certification】ETL (AMER and EMEA), C SA (APAC), CE, UKCA [Drop Test] 2-meter drop test [IP Protection Rating] IP52 [Warranty Period] Limited Lifetime Warranty

■Machine/General Specifications■ [Count] 6000 [Dimensions] 22.5cm x 10.5cm x 5.7cm [Weight] 0.7kg [Battery Life] >>150 hours (typical), without backlight (3 x AA alkaline batteries) >>100 hours (typical), with wireless current clamp connected (3 x AA alkaline batteries) When working in power plant-scale photovoltaic (PV) arrays, wind farms, railways, or data centers, the Fluke 283 FC is designed to deliver accurate, reliable, and repeatable results while improving safety and productivity.
