DAIDOHANT YAIBA (JIS Standard) Stainless Steel Self-Drilling Screws, Pan Head, Nominal Diameter d 4.2mm x Length L 19mm x Head Diameter D 7.8mm (50 pi

Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.

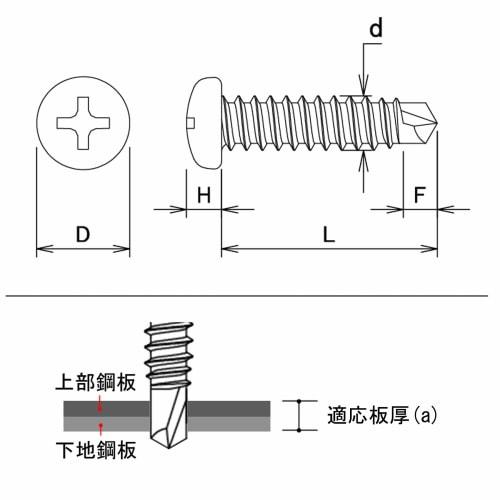

1. KEY FEATURES: - Safe and secure JIS standard product!Outstanding workability and excellent fastening power! - Applicable plate thickness (a): Can be screwed into steel plates up to 1.6 to 3.2 mm thick without a pilot hole.Material: Stainless steel (SUS410).Surface treatment: fine passivate. - Bit type: H type (cross No.2).(JIS symbol) JIS B1124 JQ058073.Nominal diameter (d) 4.2mm.Length (L) 19mm.Head diameter (D) 7.8mm.Head height (H) 3mm.Drill tip (F) 5mm. - Features of pan head: Pan bottom shaped head with good cold formability and cross recess.Most common for drill screws. - Please use drill screws suitable for the fasteners.When using, please tighten to the appropriate torque to avoid insufficient screwing, screw damage, and head popping.Drill screws should be installed perpendicular to the fastener.Wear safety goggles when driving screws.

2. PRODUCT DESCRIPTION: It is a safe and secure JIS standard product.Excellent workability and excellent fastening strength.Applicable plate thickness (a): Can be screwed into steel plates up to 1.6 to 3.2 mm thick without a pilot hole.Material: Stainless steel (SUS410).Surface treatment: fine passivate.Bit type: H type (cross No.2).(JIS symbol) JIS B1124 JQ058073.Nominal diameter (d) 4.2mm.Length (L) 19mm.Head diameter (D) 7.8mm.Head height (H) 3mm.Drill tip (F) 5mm.Features of pan head: Pan bottom shaped head with good cold formability and cross recess.Most common for drill screws.Please use drill screws suitable for the fasteners.When using, please tighten to the appropriate torque to avoid insufficient screwing, screw damage, and head popping.Drill screws should be installed perpendicular to the fastener.Wear safety goggles when driving screws.

3. PRODUCT DIMENSIONS & WEIGHT: - Weight: 0.1 kg - Dimensions: 10.2 x 7.4 x 2.1 cm

4. SPECIFICATIONS:
