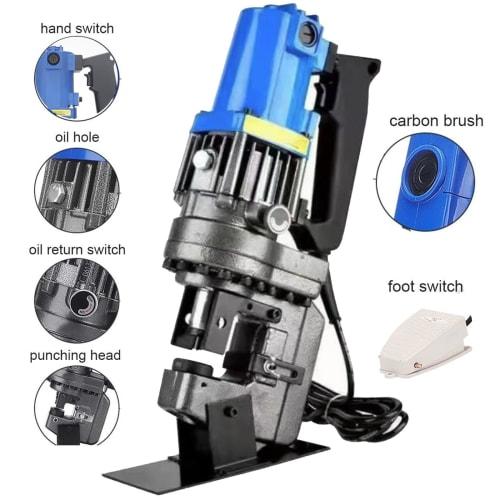

Electric Hydraulic Hole Punch, 1300W Angle Channel Steel Punching Tool, Hydraulic Hole Punch with 5 Dies for Iron, Copper, Aluminum Plate, and Angle S

Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.

1. KEY FEATURES: - Hydraulic hole punching machine: Electric hydraulic punching tool 1300W high power all copper movement, strong hydraulic pressure, stable output, burr-free punching, quick demolding, one button start. - Applicable: The steel punching machine comes with 5 sizes of molds (Φ6.5/9/13/17/20.5mm), suitable for 3~8mm thick copper/aluminum plate, 3~6mm thick iron/steel plate, 4~6# angle iron, channel steel up to No.10. - Positioning: The punching throat depth can be adjusted with the hole digger adjustment bolt, and the positioning is accurate and has no offset.The ring nut distribution design makes the blade more firmly fixed and has better sealing, making your work stable and safe. - Foot switch: The channel steel punching machine has both manual pedal and foot pedal, metal foot switch, automatic rebound, lift and push back, free your hands, more convenient to use.Safety valve switch design, oil can be added through the hole on the top. - Easy to carry: The metal hole punch is equipped with a portable plastic box and industrial gloves, which is easy to carry and use anytime and anywhere.It can also be attached to the base for working on a platform.

2. PRODUCT DESCRIPTION: The channel steel punching machine can not only punch holes in various angle steels, angle steels, copper, aluminum, and iron bars, but also perform 3-sided processing of channel steels/U-shaped steels.The machine head size has been increased, the throat depth has been increased, and the punching range has been increased.Punching speed 2-3 seconds, output strength 10T, accurate positioning without deviation Ring nut distribution design, more sturdy cutter head, better sealing property Fine steel drill bit, fast punching, long service life Safety valve switch, easy and quick switching, you can add oil at any time Specifications: Name: Electric hydraulic drilling machine Rated voltage: 110V Motor power: 1300W Maximum power: 10T Cutting thickness:1/4" Angle Steel Throat Depth: 40mm/1.57" Channel Steel Throat Depth: 50mm/1.96" Punching Speed: 2-3 seconds Copper/Aluminum Plate: Max. 8mm/0.3" Iron/Steel Plate: Max. 6mm/0.2" Angle Steel: Max. 6mm/0.2" Channel Steel: Max. No.10Mold size: Φ6.5, Φ9, Φ13, Φ17, Φ20.5mm ✉If you have any problems with the package you received, please contact us.

3. PRODUCT DIMENSIONS & WEIGHT: - Weight: 15.0 kg - Dimensions: 10.0 x 10.0 x 10.0 cm

4. SPECIFICATIONS:
