WOYO PL015 For Land Rover Diagnostic Power Window Control Switch Tester

Description Report Item

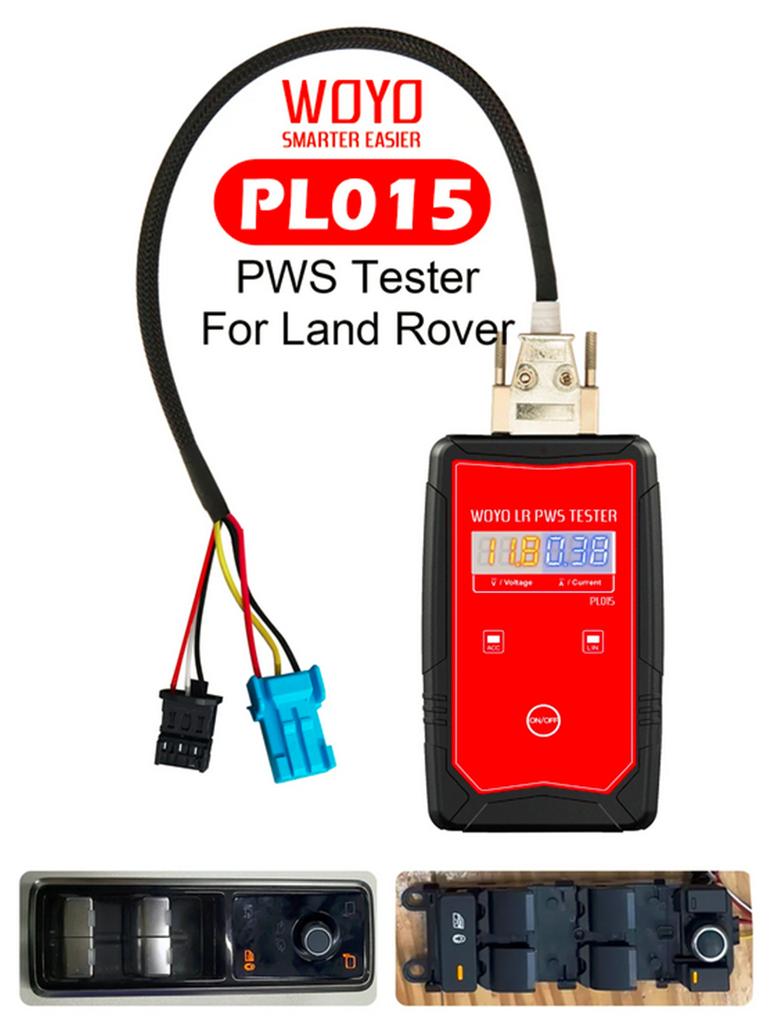

​WOYO PL015 For Land Rover Power Window Switch Tester

Description:

1. One-click activation: automatic module identification.

2. Plug and Test: Standard Plug to connect the different module, really easy to use.

3. Double detection: If the First Gear or Second Gear is normal to work, you can hear the different frequency of beeping sounds and see the LIN Signal Light will be flashed red and green color.

4. Support window Double Gear detection, one-click auto lift/manual lift.

5. Power supply: 12V 2A.

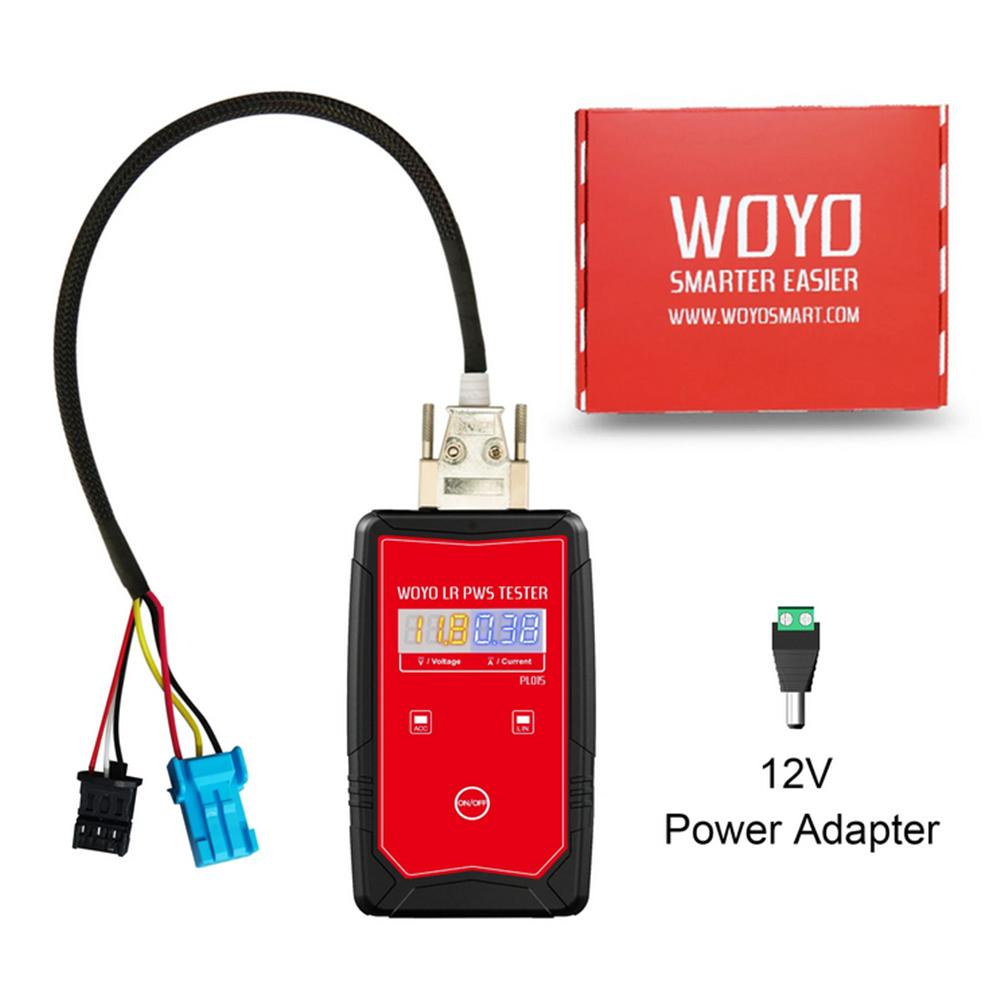

Package:

Tester * 1

12V Power Adapter * 1

Support Model:

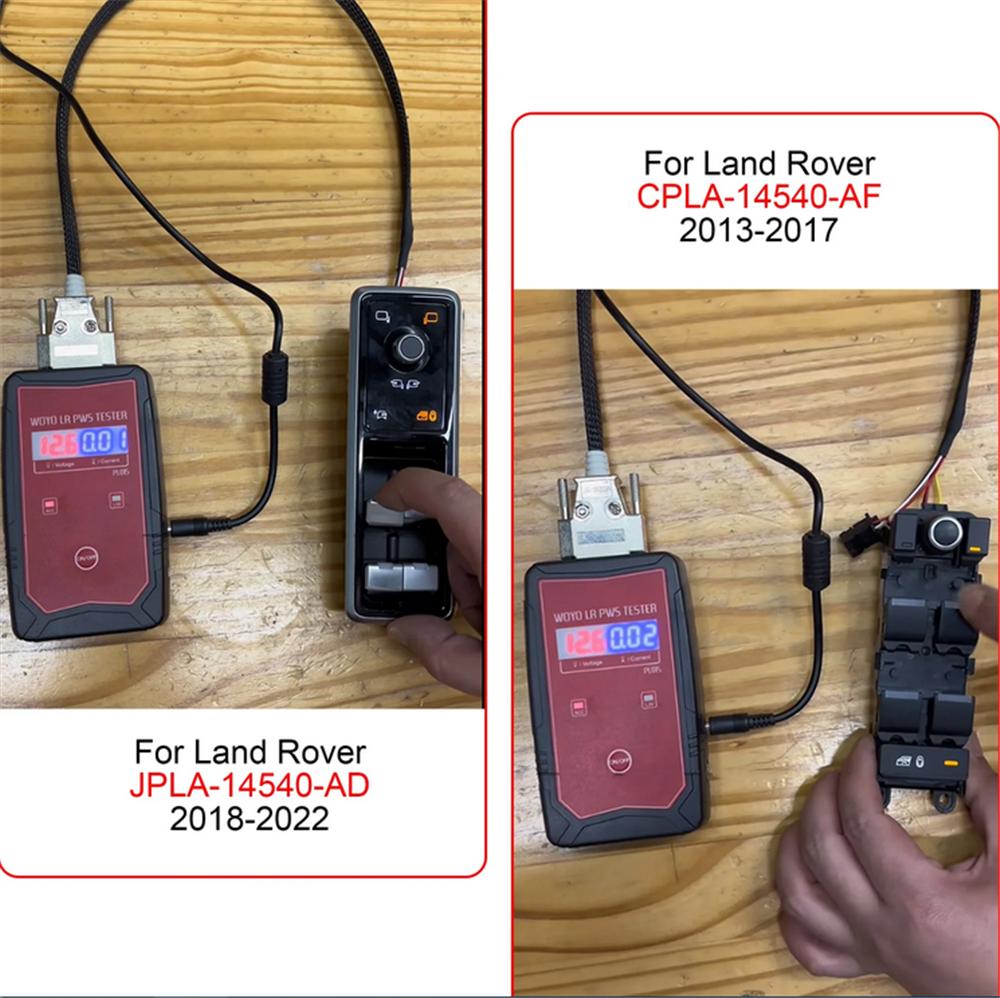

For Range Rover:

JPLA-14540-AD 2018-2022 (Black Plug)

CPLA-14540-AF 2013-2017 (Blue Plug)

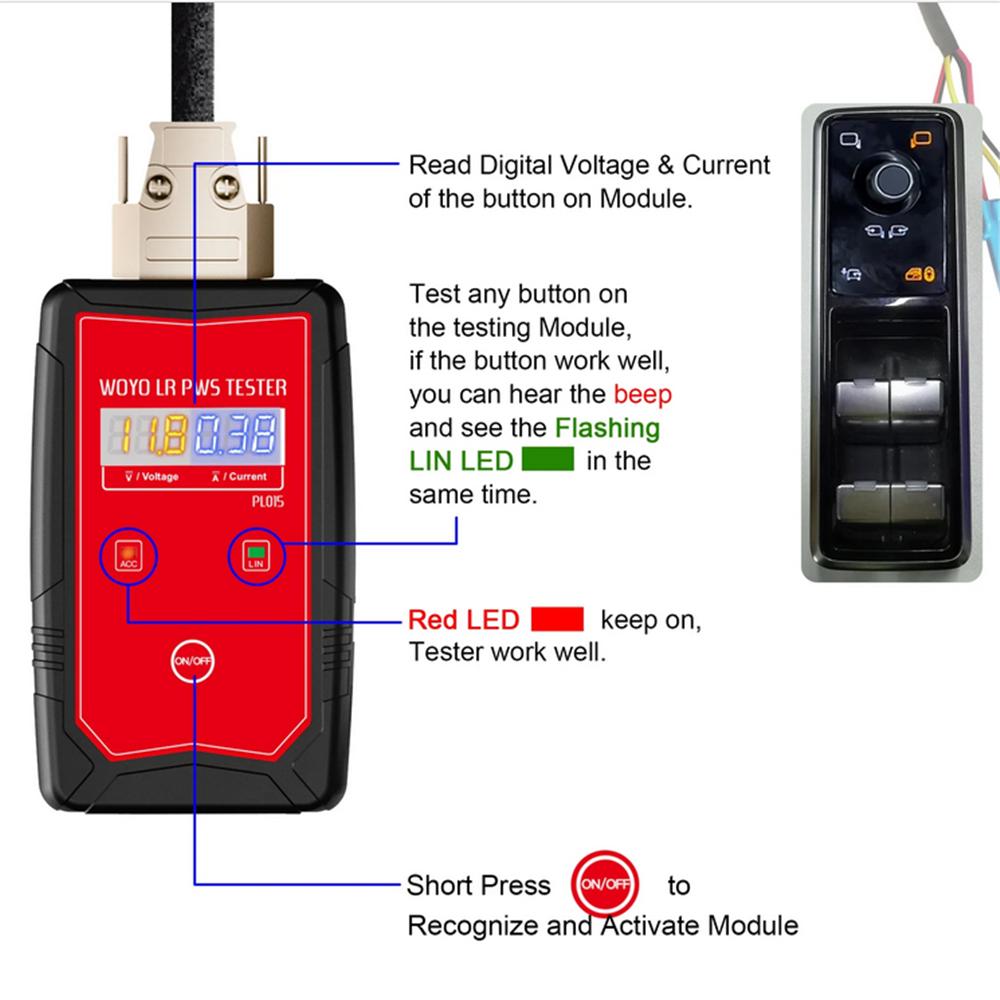

Function:

1. Test the gear and button on the Window Control Switch Module:

If the button or gear work well, you can hear the beeping sound and see the flashing LIN Light on Tester in the same time.

2. Double Gear will show different frequency beeping sound or flashing LIN light.

3. ACC Light keep the red all the time, means the tester is normal.

4. ON/OFF button: One-click activation and automatic recognize the module.

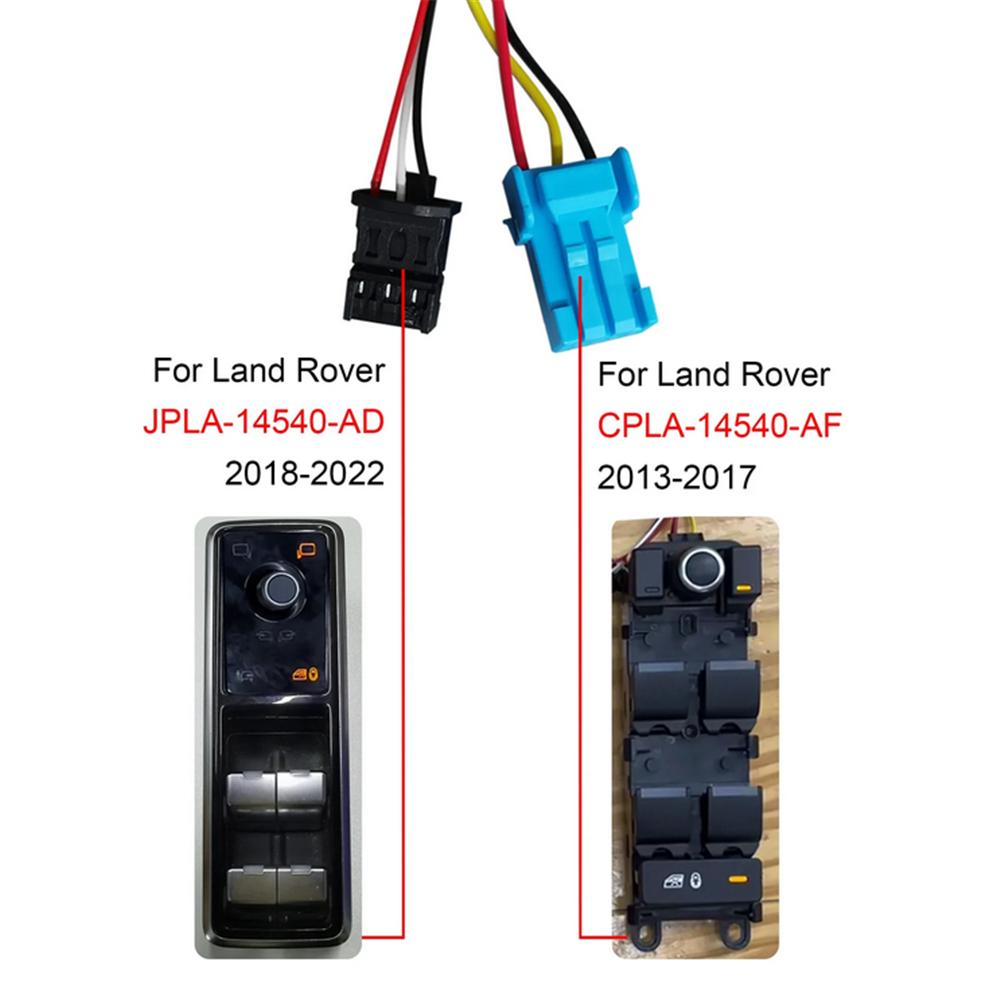

Connection:

Black plug: JPLA-14540-AD 2018-2022

Blue plug: CPLA-14540-AF 2013-2017

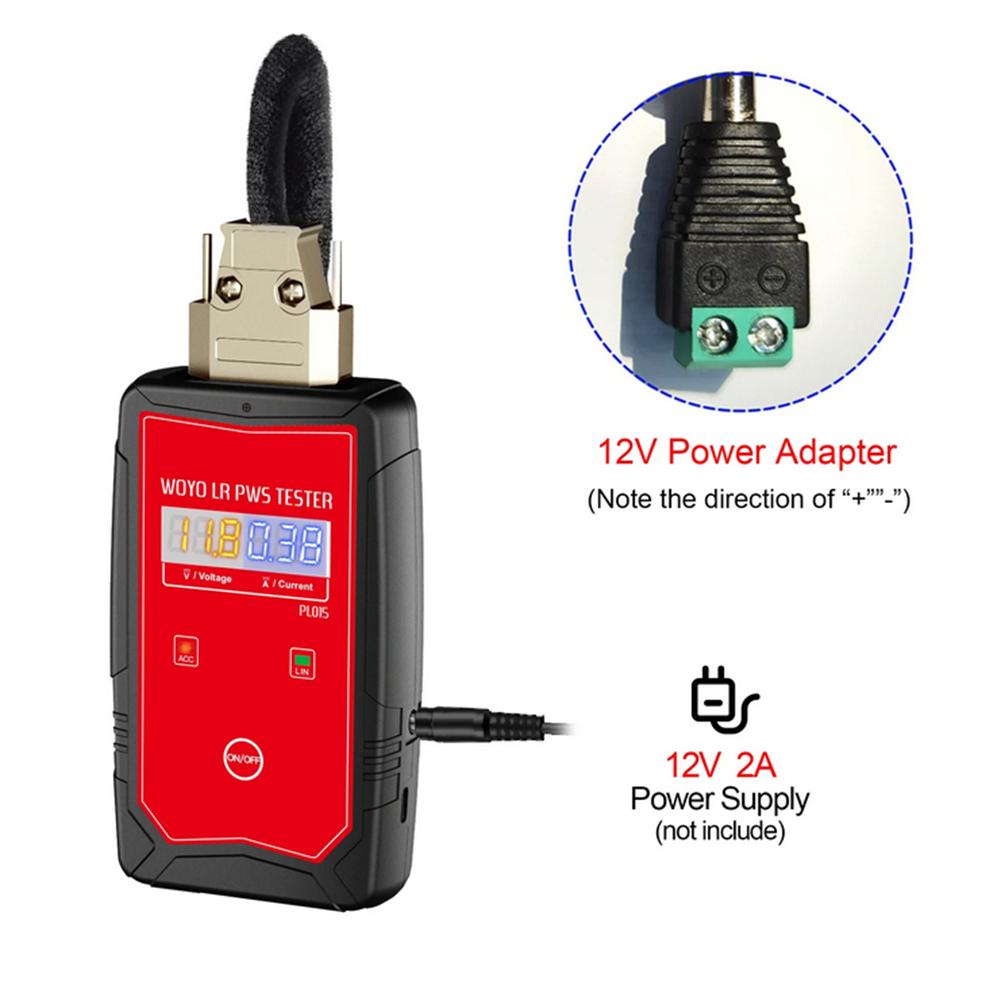

12V Power adapter:

Please notice the direction about negative and positive.
