1Set Sg90 Mg90S 9G Steering Gear Pan Tilt Two Axis Ptz Ultrasonic Aerial Model Camera Mount Fpv Gimbal Camera Support Fittings… Ещё

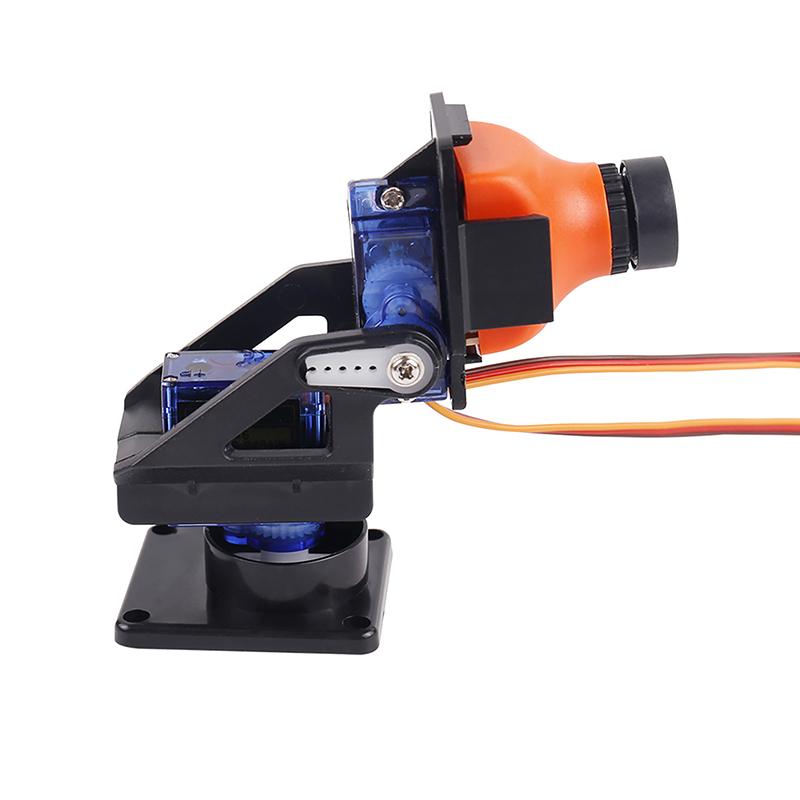

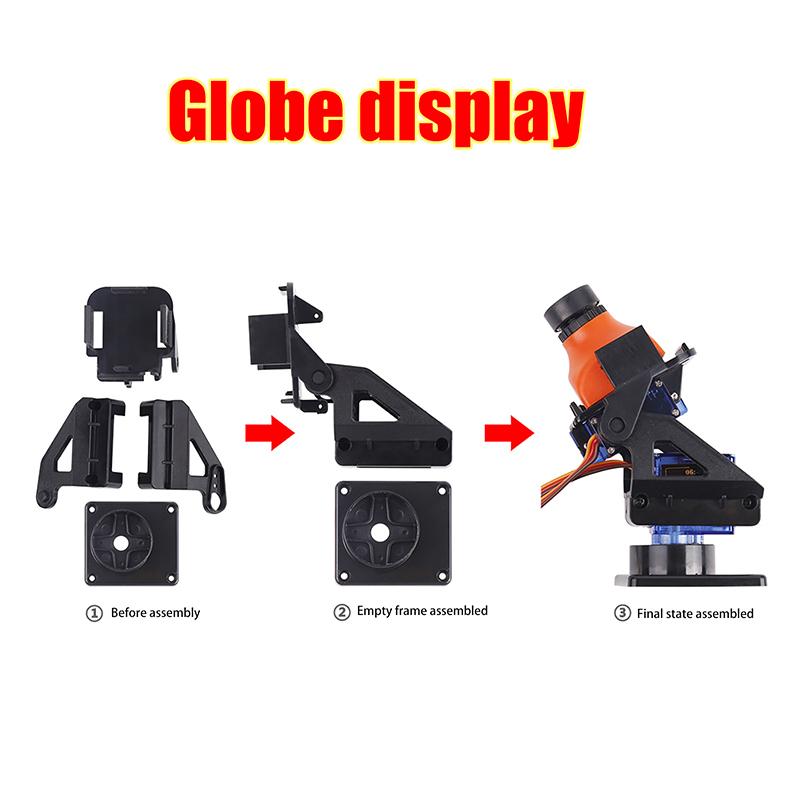

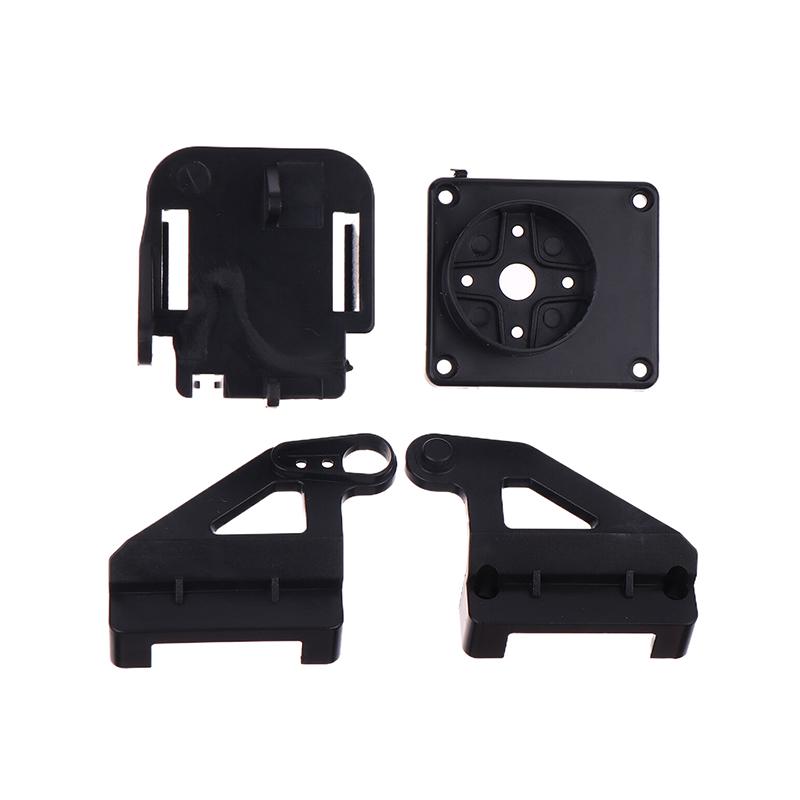

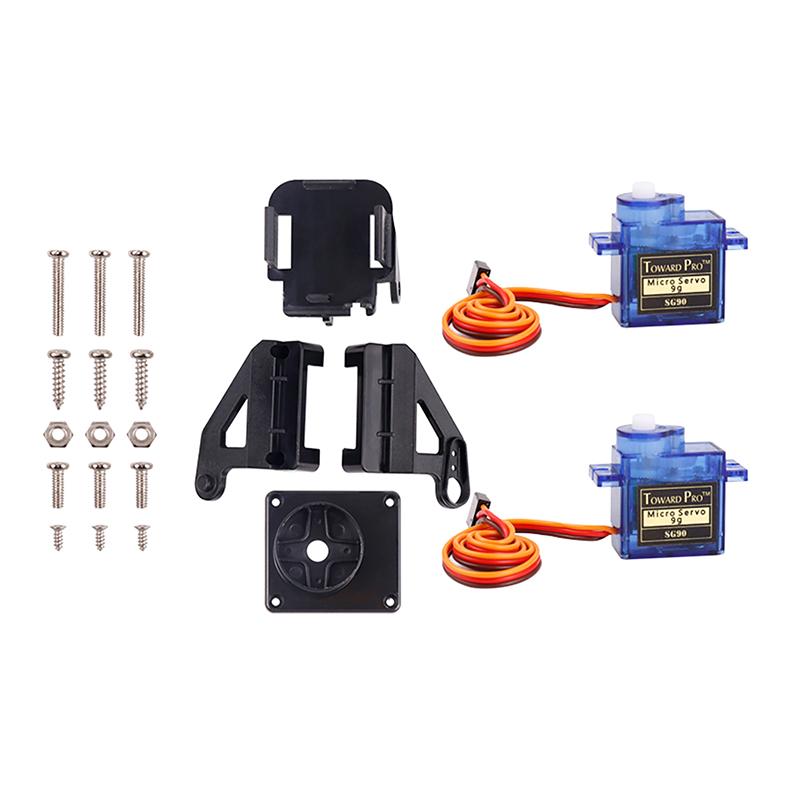

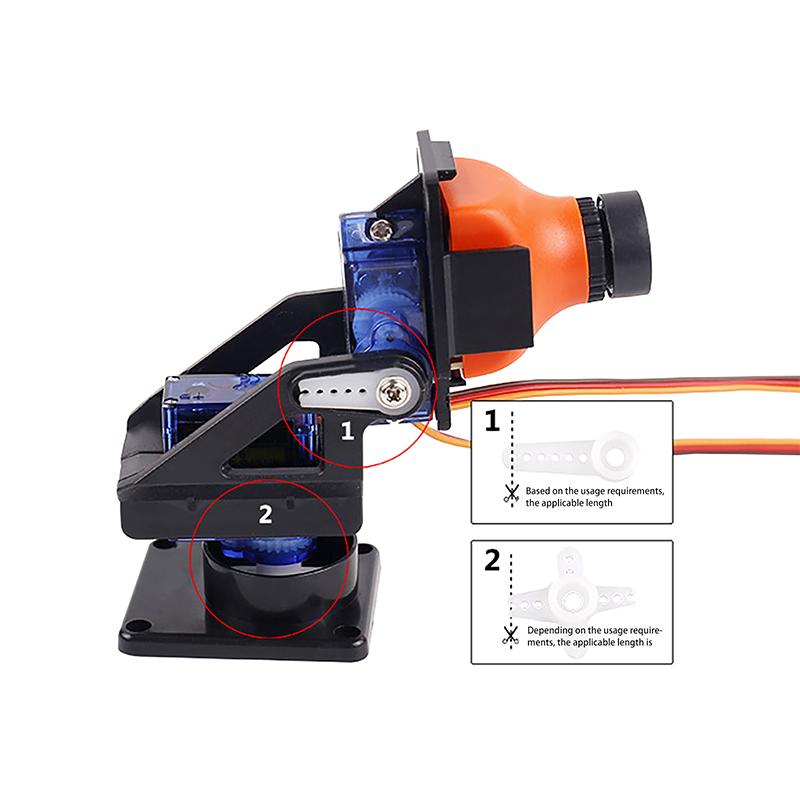

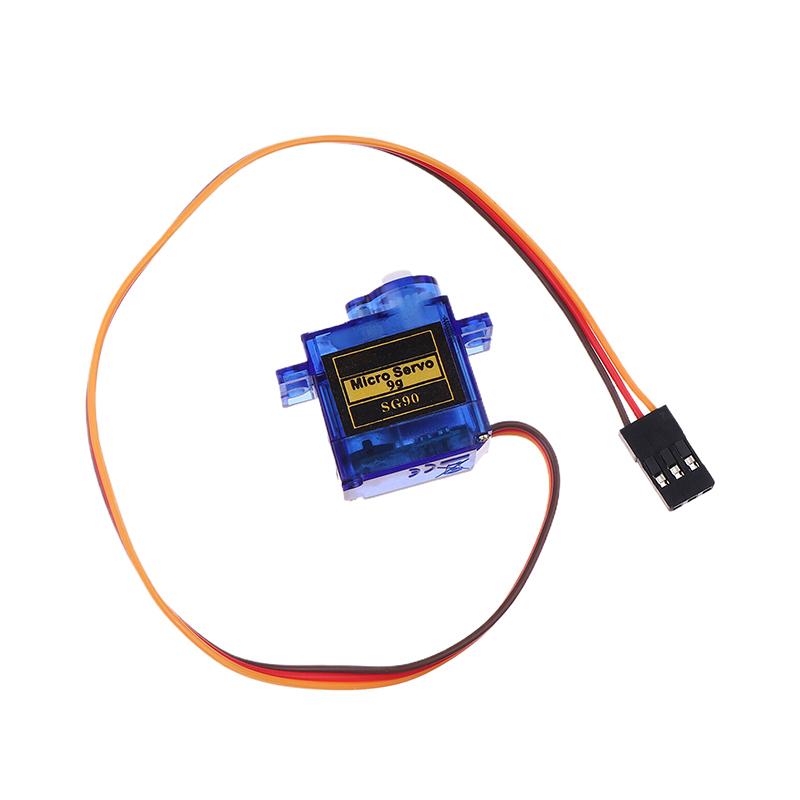

Description: Product name:9g small servo (S version) Material:Plastic , Metal Color:as the picture Product size:37.5*33.2*11.2mm Product torque:1.6kg/cm (4.8V) Response speed:0.1sec/60degree(4.8v) Operating voltage:4.8V Operating temperature:0-55 degrees Operation dead zone:10us Gear media:Nylon Operating mode:Analog The use of ordinary micro-motor, tension is second only to the 9g standard version of the servo, is currently a super good cost performance of the servo! Due to the reduced tension, the manufacturer recommends only for ordinary small electric aircraft model, not recommended for larger fixed-wing and electric helicopter use! Note:the pictures show the complete installation effect. The steering gear and camera need to be purchased separately. They are available in our store. This pan tilt is in bulk and can only be assembled with steering gear and camera. With SG90 type steering gear, plastic gear 9g servo: The rocker arm of the steering gear needs to be cut off a little before installation, and the installation of the steering gear on the base also needs to modify the rocker arm (remove the edge of the round hole, and then put the rocker arm in or trim the steering gear arm)! At present, this kind of PTZ can only be installed with 28*28 camera modules, not 32 or 38 size cameras. (please know that the rudder arm of the steering gear needs to be trimmed.) The 2-axis plastic pan tilt weighs 17 grams, which is suitable for 9g-12g steering gear. It has beautiful appearance, precise manufacture, no virtual position and no shaking. It has a steering gear wire winding clamp. The product is shown in the figure, 4 nylon plastic parts, including screws. Self assembly is required. Package Included: 1Set x PTZ with 2 Servo Note: 1. Please note that the photo does not show actual size please refer to Description for size details. 2. Please allow differences due to manual measurement thanks. 3. Due to the difference between different monitors the image may not reflect the actual color of the item. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
