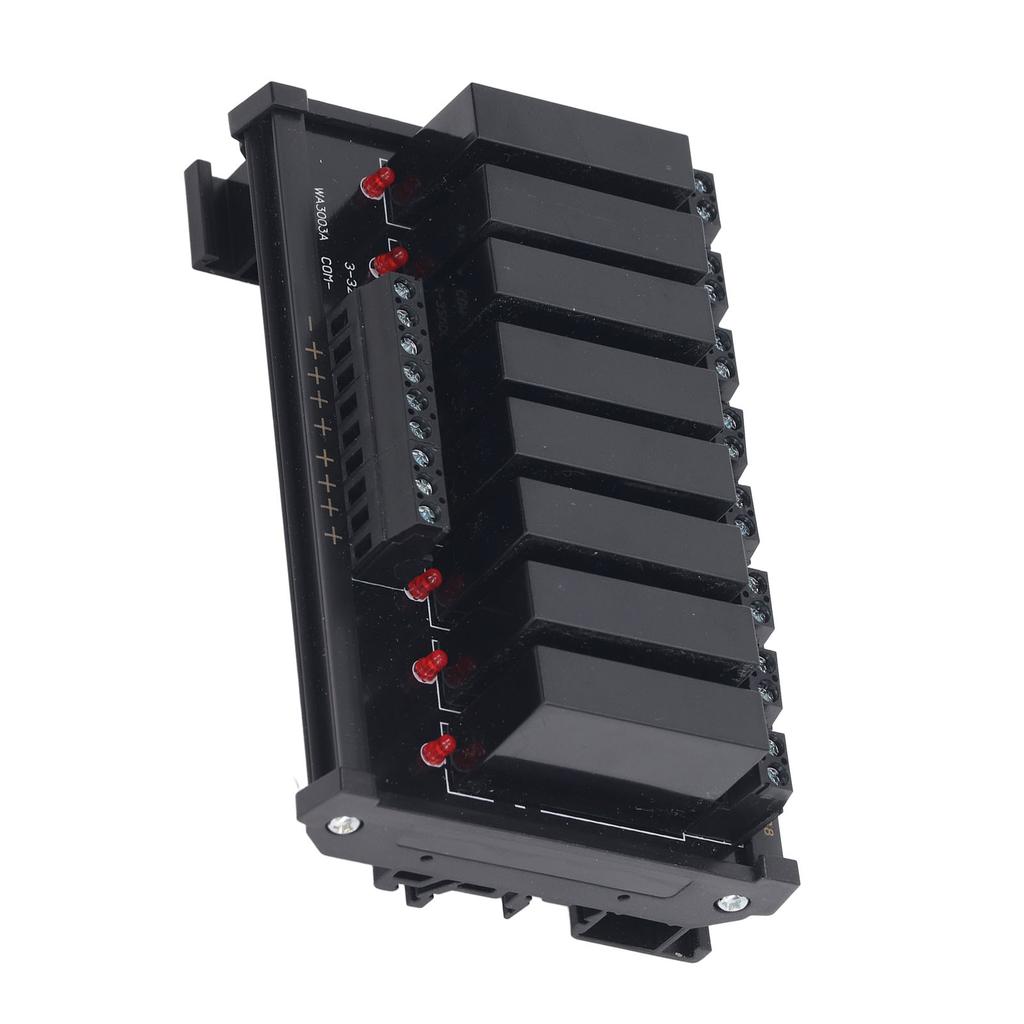

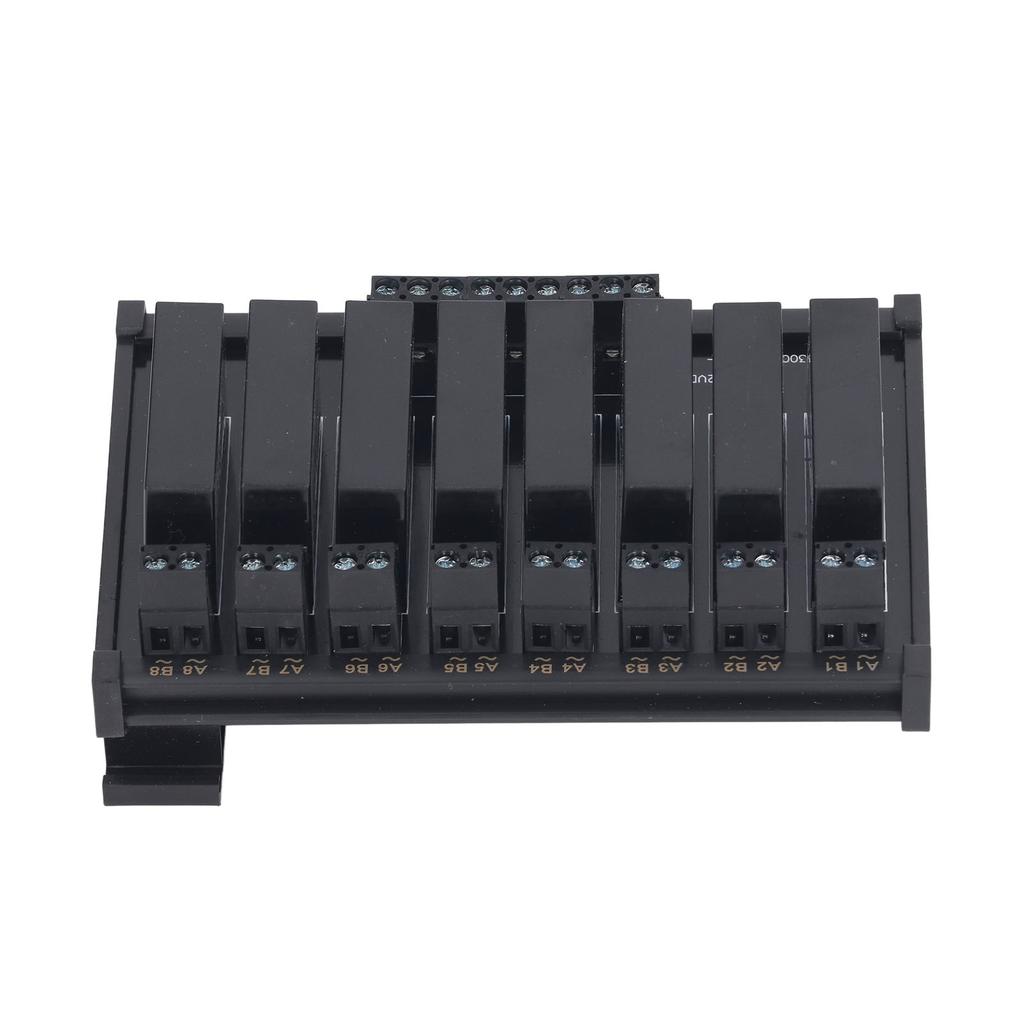

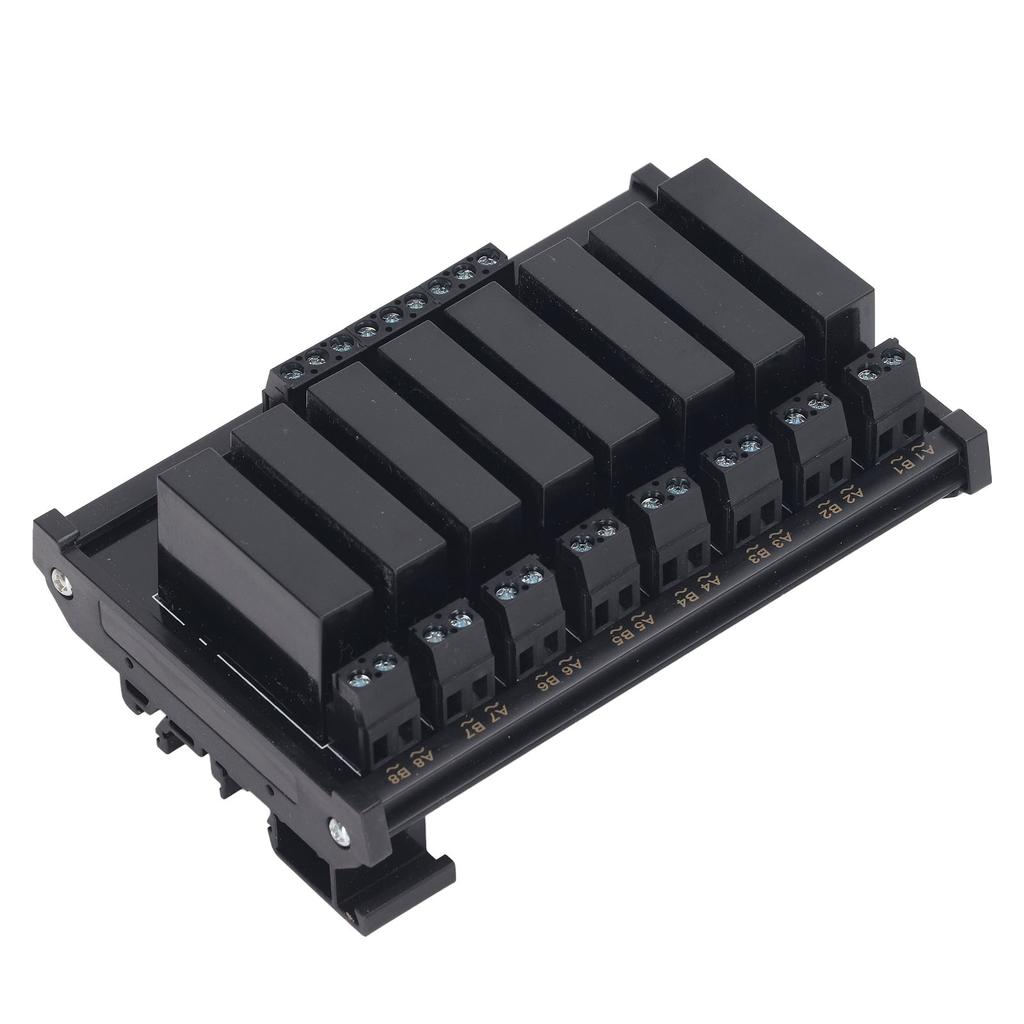

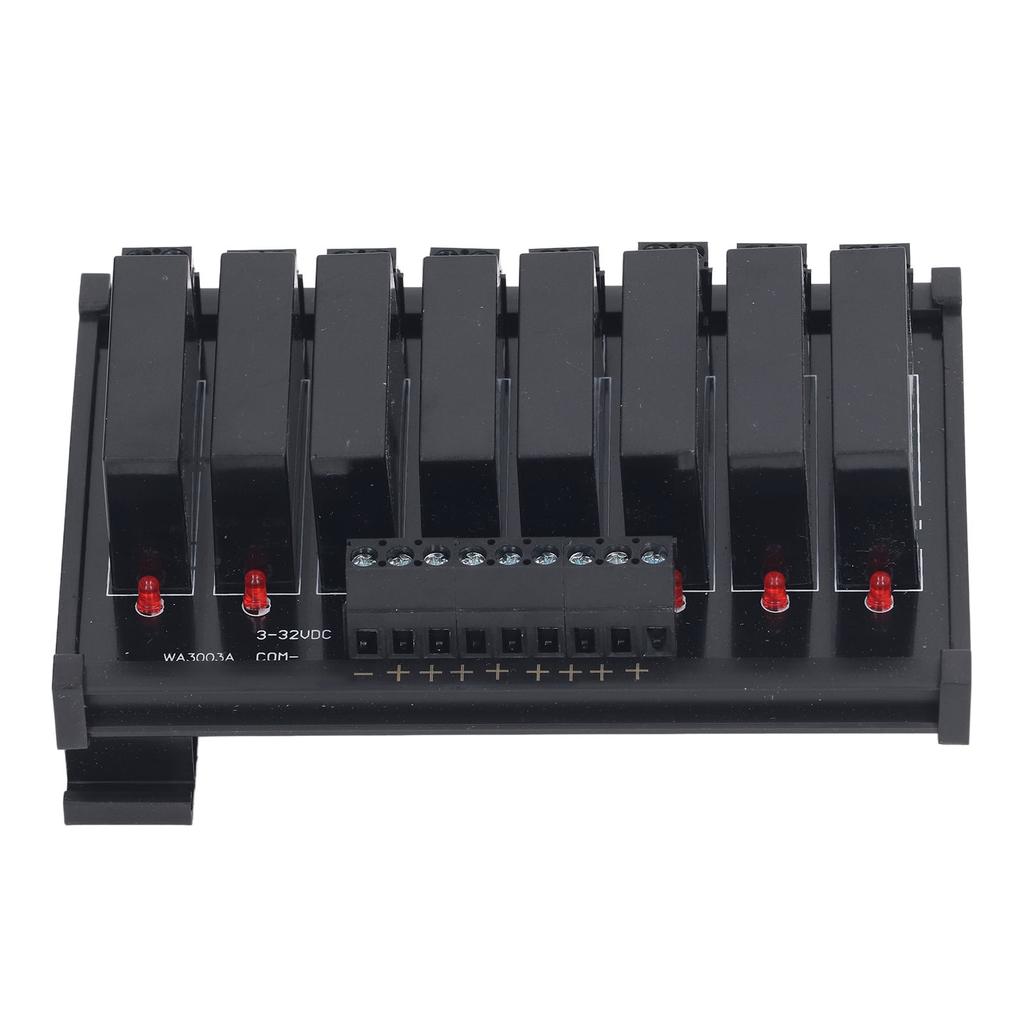

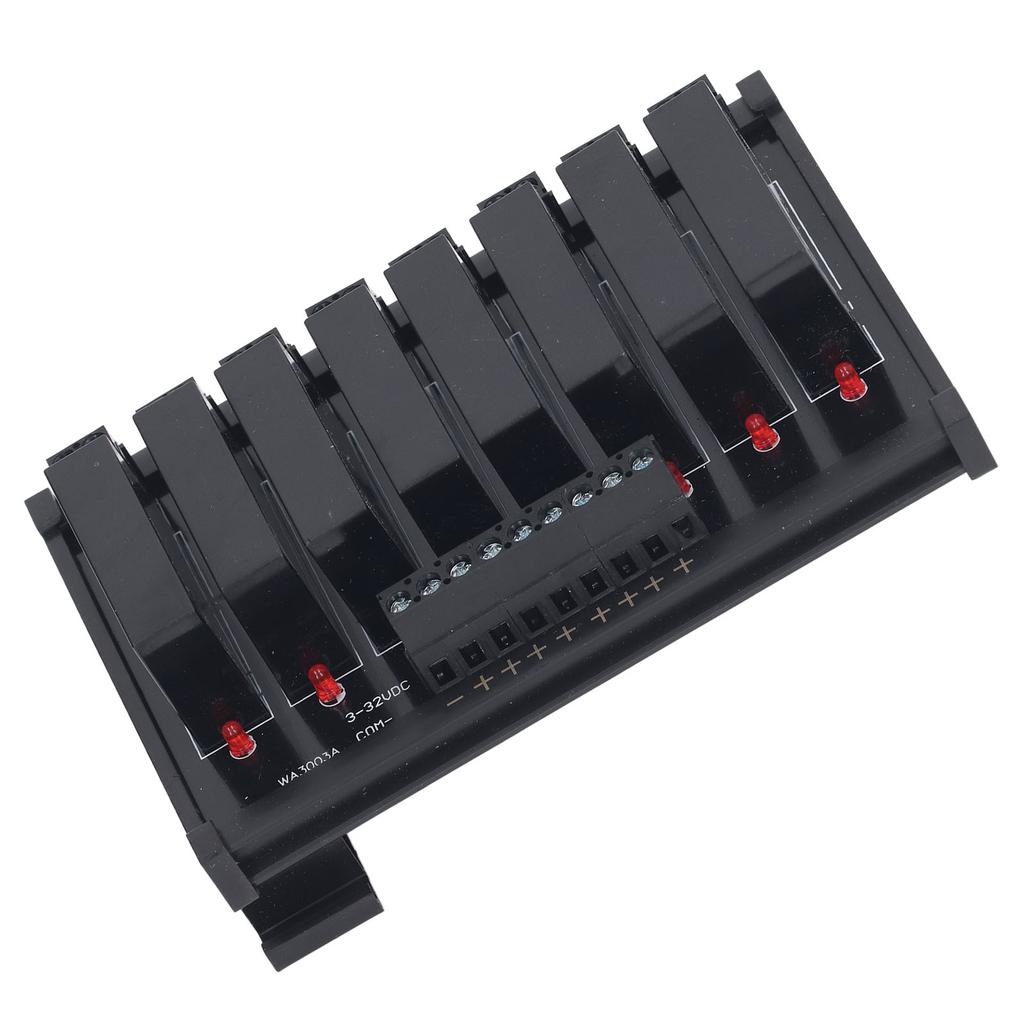

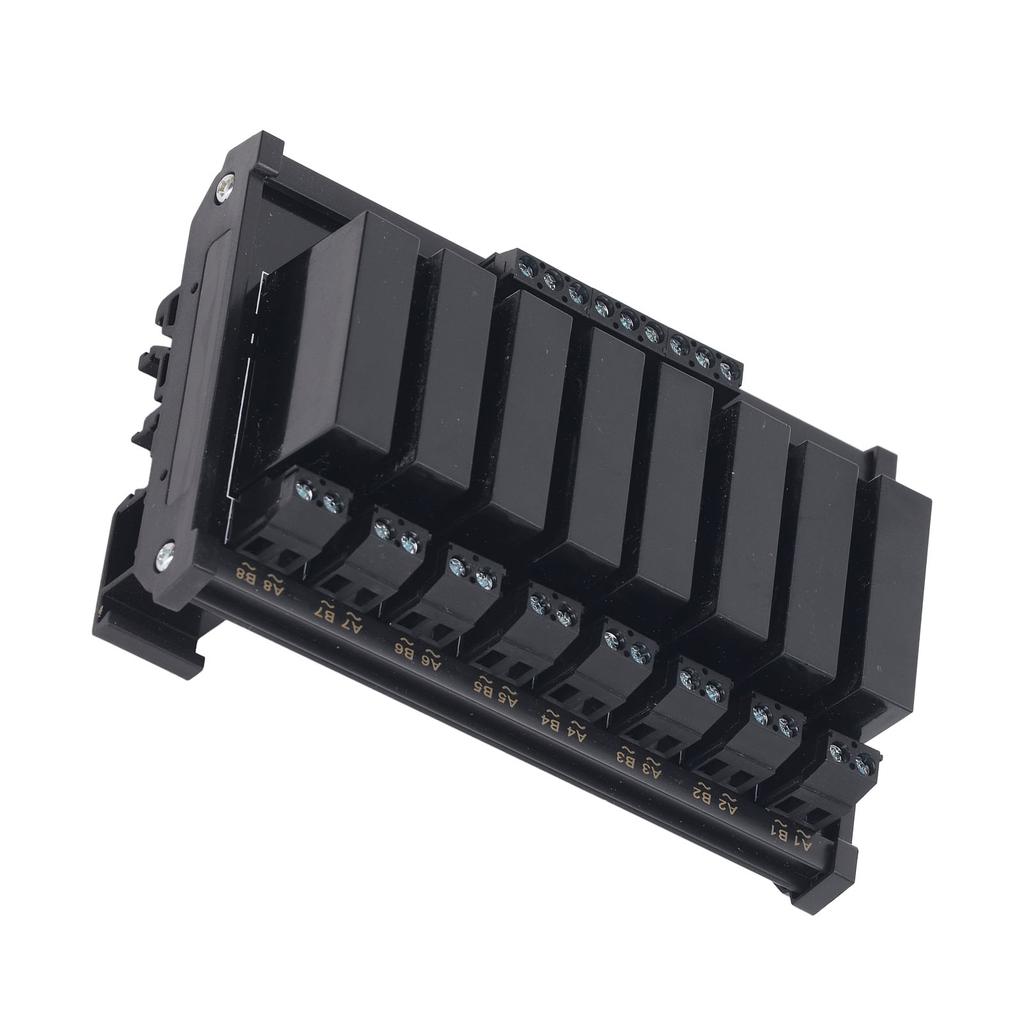

Solid State Relay Module DIN Rail Installation 8 Channel Solid State Relay 3‑32VDC Input 5‑8A 24‑480VAC Load… Ещё

Feature: 1. COMPLETELY SEALED: The solid state relay module is fully sealed with epoxy resin, making it damp proof, explosion proof, corrosion prevention. 2. DC TO AC: Built in transformer, the solid state relay board supports 3 to 32VDC input and 5 to 8A 24 to 480VAC load output. 3. ADVANCED TECHNOLOGY: This relay module uses IR magnetic driving MOS tube, which ensures reliable performance. 4. INDICATOR LIGHT: The relay board has signal indicator light, allowing for easy operation, clear at a glance. 5. DIN RAIL MOUNTING: The SSR Module is the perfect solution for DIN rail installation, making it easy to use in a variety of electrical applications and control settings. Specification: Item Type: Solid State Relay Module Material: ABS, Resin Model: BEM 8P GF5DA Input: 3 32VDC Load: 5 8A 24 480VAC On State Voltage Drop: less than 1.5V On State Leakage Current: less than 2mA Off State Time: less than 10mS Dielectric Withstand Voltage: 2500VAC Insulation Resistance: 1000MQ Environmental Temperature: 30 celsius to +75 celsius Placement Method: Guide Rail Installation Work Indicator: Indicator Light. Package List: 1 x Solid State Relay Module
