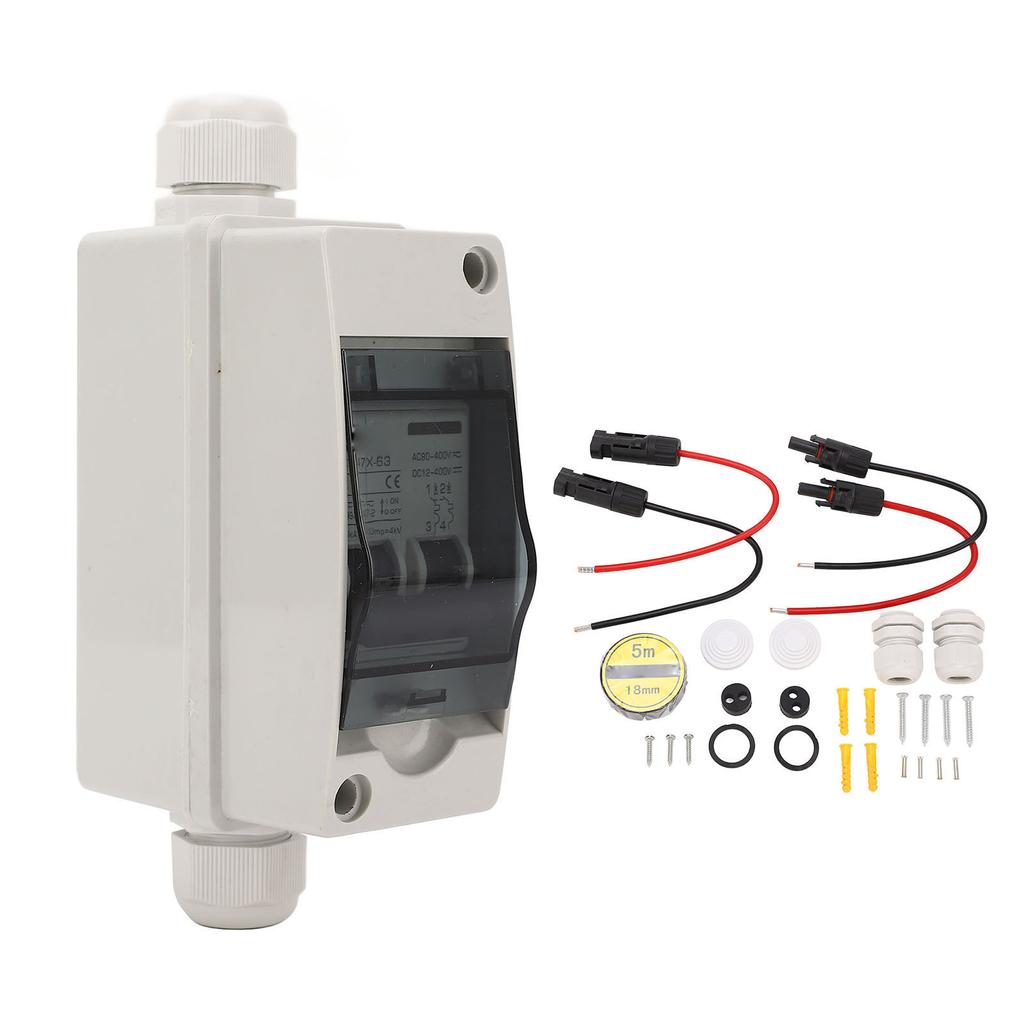

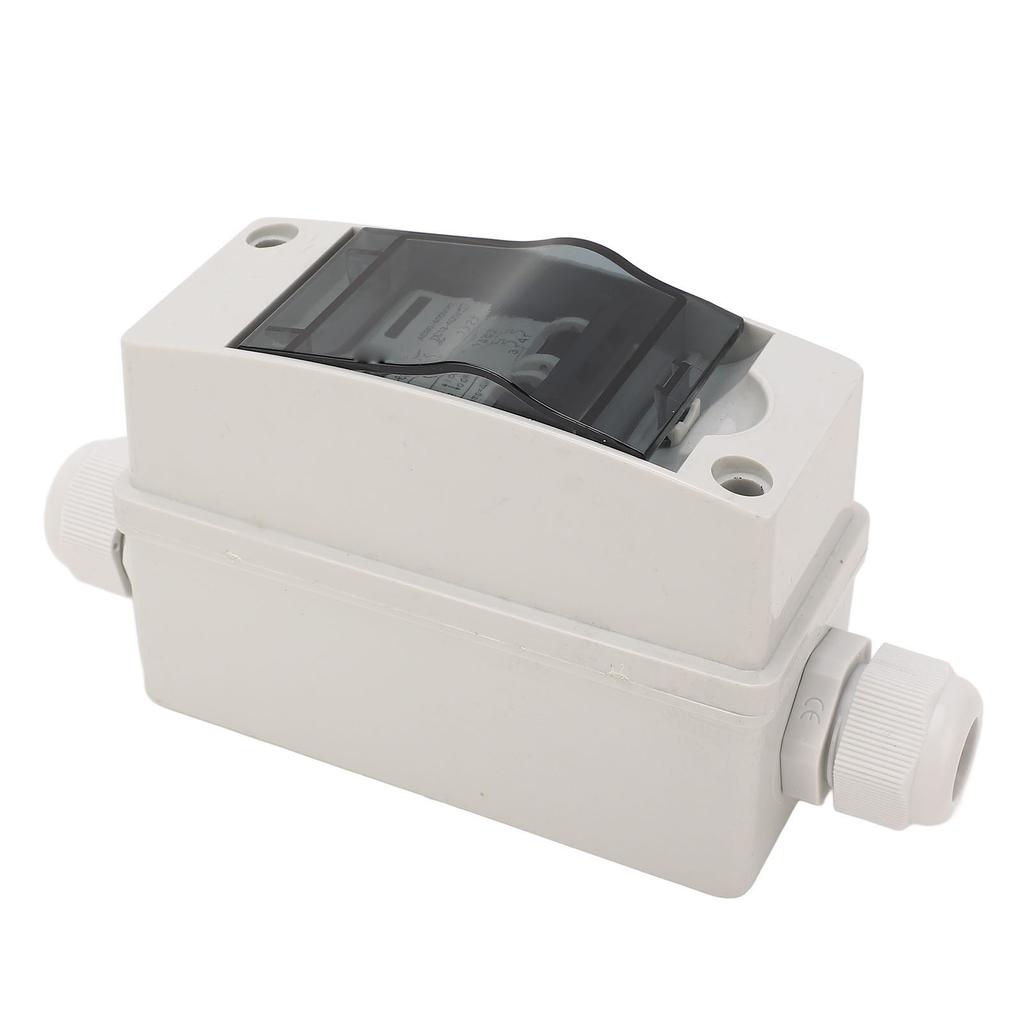

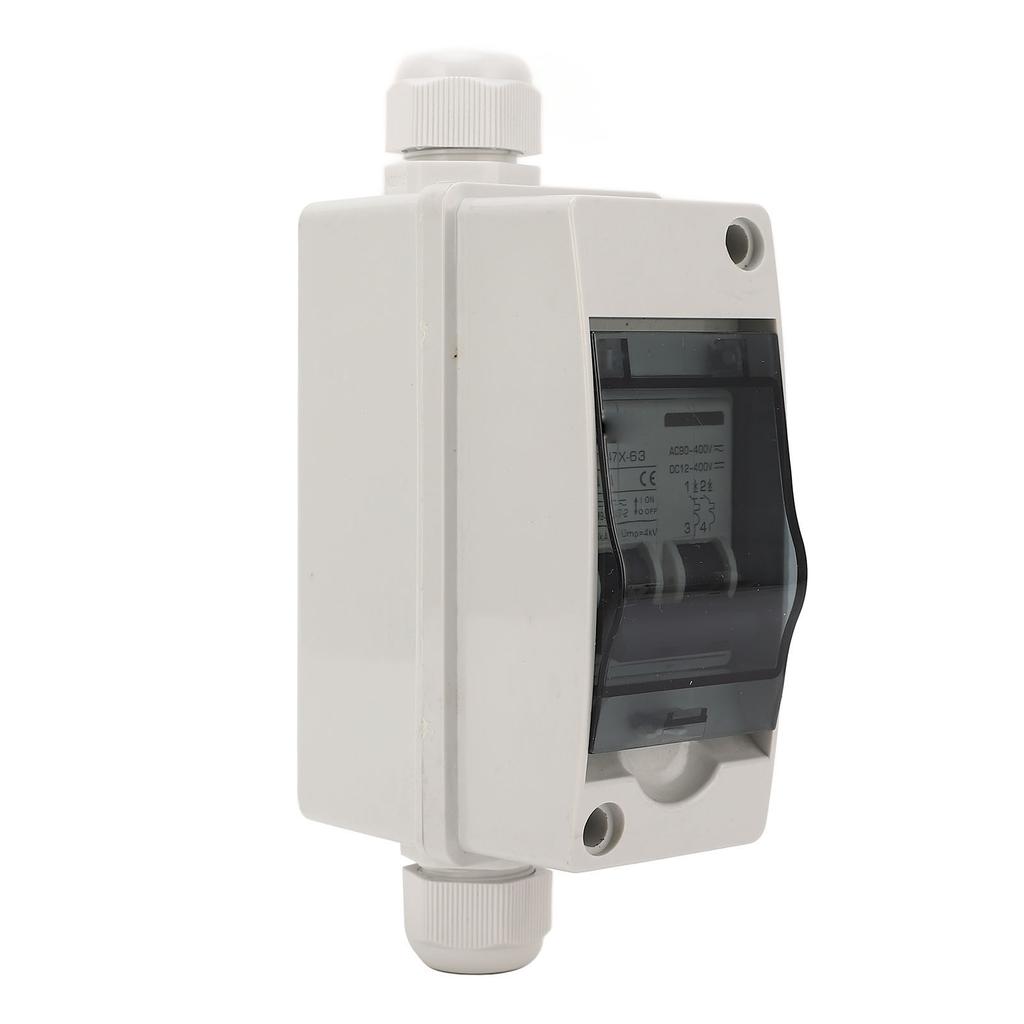

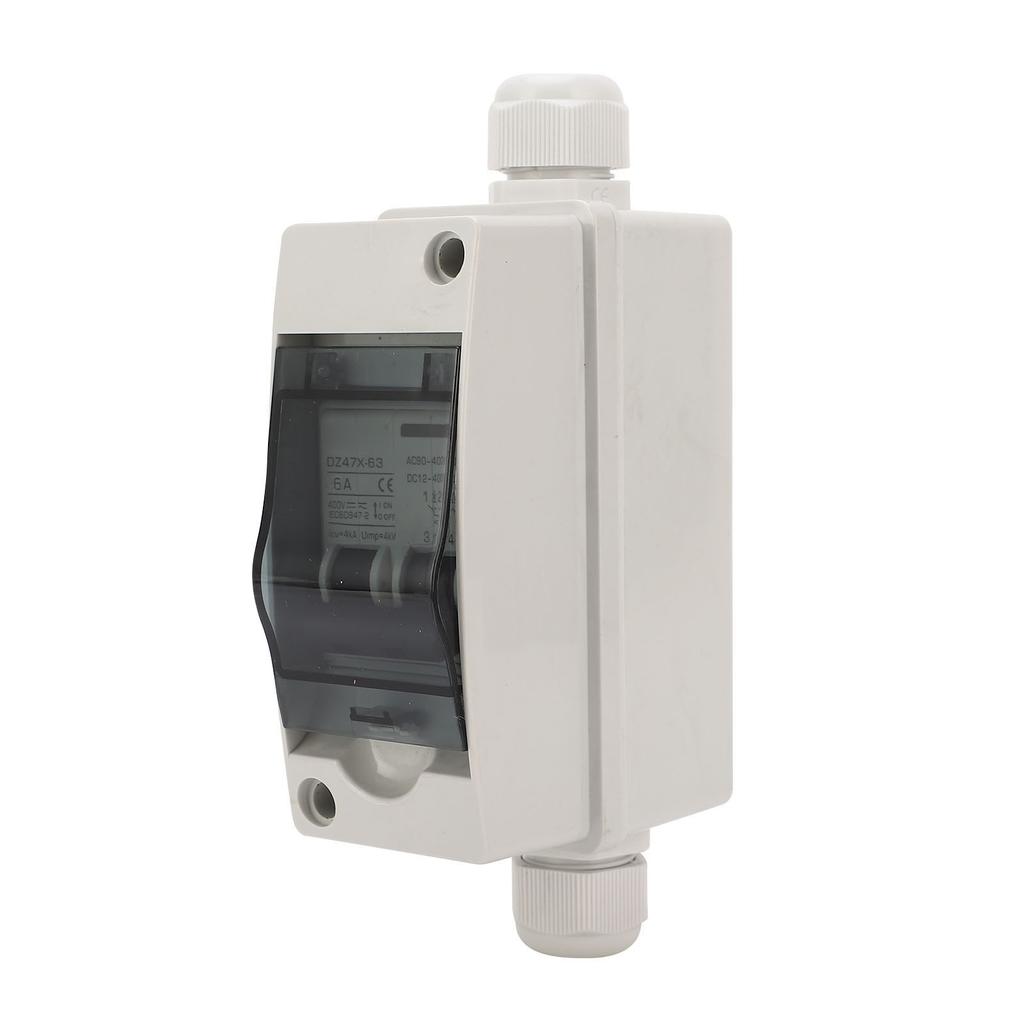

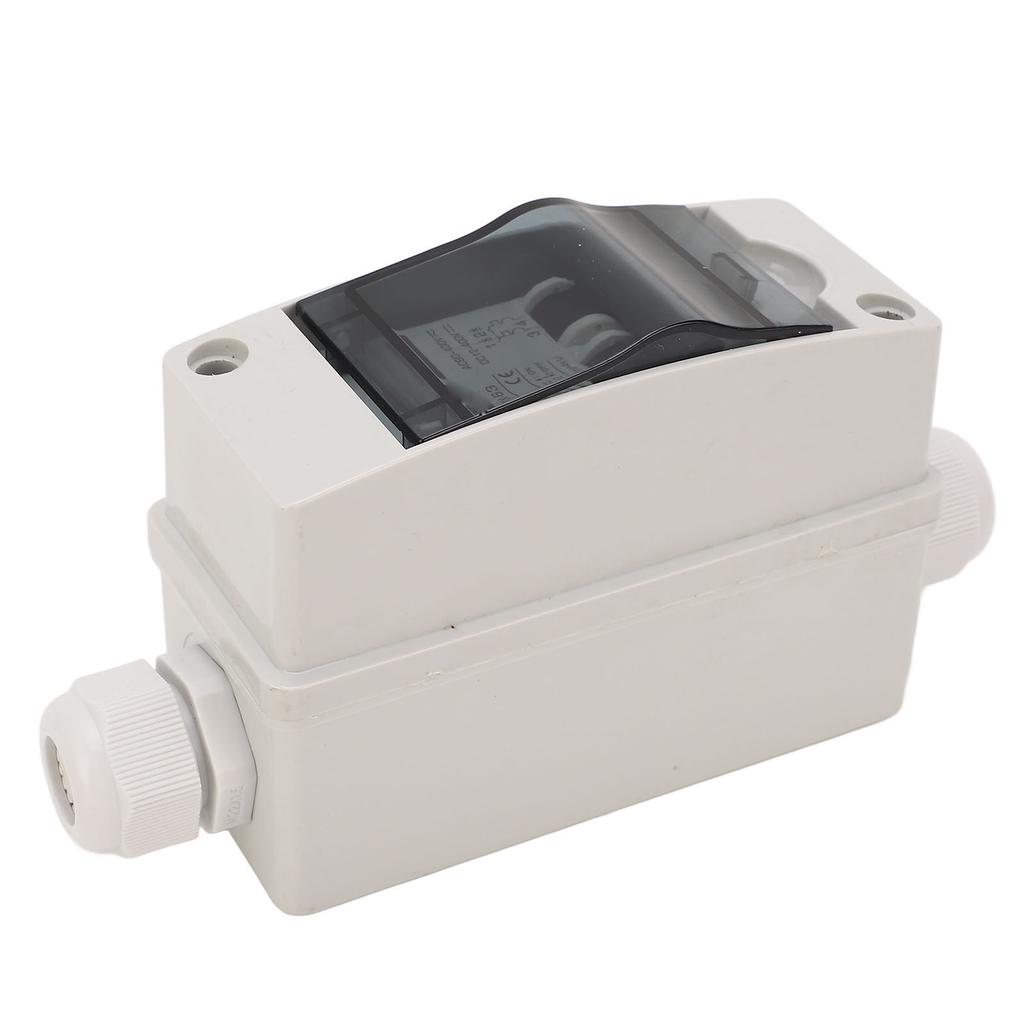

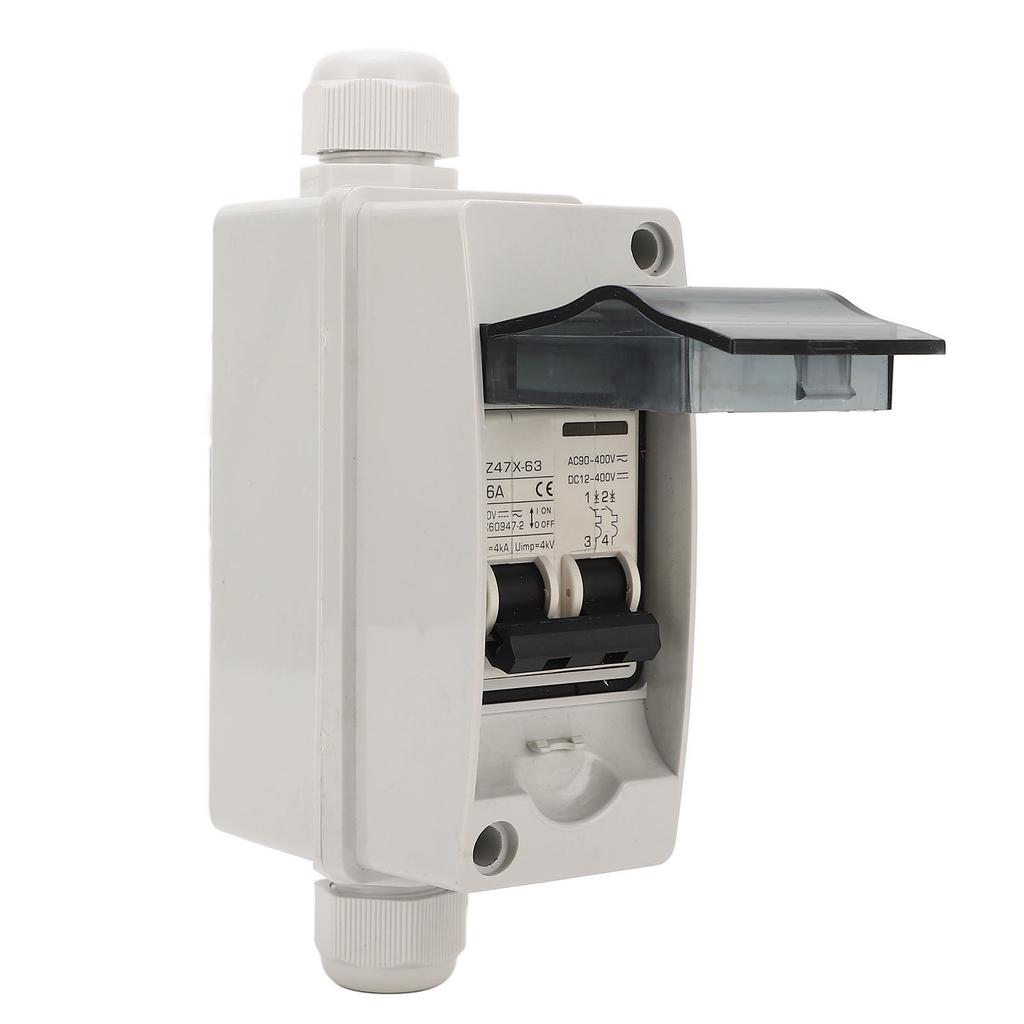

Solar Disconnect Switch 6A IP65 Outdoor Small Miniature Circuit Breaker with Din Rail Enclosure DC12‑400V AC90 400V

Feature: 1. APPLICABLE SCENES: Miniature circuit breaker is applicable to photovoltaic solar panel grid connected system and solar off grid system, solar power system, photovoltaic array, RV 2. EASY INSTALLATION: Disconnect switch can use the solar connector for a faster, safer installation, plug and play 3. WATERPROOF AND PRACTICAL: Circuit breaker is IP65 waterproof and easy to install, transparent cover is also easy to check the status 4. STRONG PA66 MATERIAL: Miniature circuit breaker adopt PA66 material, possess high mechanical strength and hardness, rigidity, strong and durable 5. TECHNICAL PARAMETERS: Rated current of solar disconnect switch for 6A, rated voltage is DC12‑400V AC90 400V, Icu for 4kA, stable and reliable Specification: Item Type: Solar Disconnect Switch Model: DZ47X 63 Material: PA66 Waterproof Grade: IP65 Rated Current: 6A Rated Voltage: DC 12 400V AC 90 400V Icu: 4kA Uimp: 4kV Trip Curve: B (3 5 I In) Electrical Life: 4000 Times Mechanical Life: 10000 Times Standard: IEC60947 2 Operating Temperature: 30 celsius to +70 celsius . Package List: 1 x Miniature Circuit Breaker Box(divided into upper and lower 2 parts)1 x Electric Tape2 x Waterproof Cap2 x Waterproof Joint2 x Rubber Ring2 x Waterproof Ring7 x Screw4 x Wall Plug4 x Connection Terminal4 x PV Line
