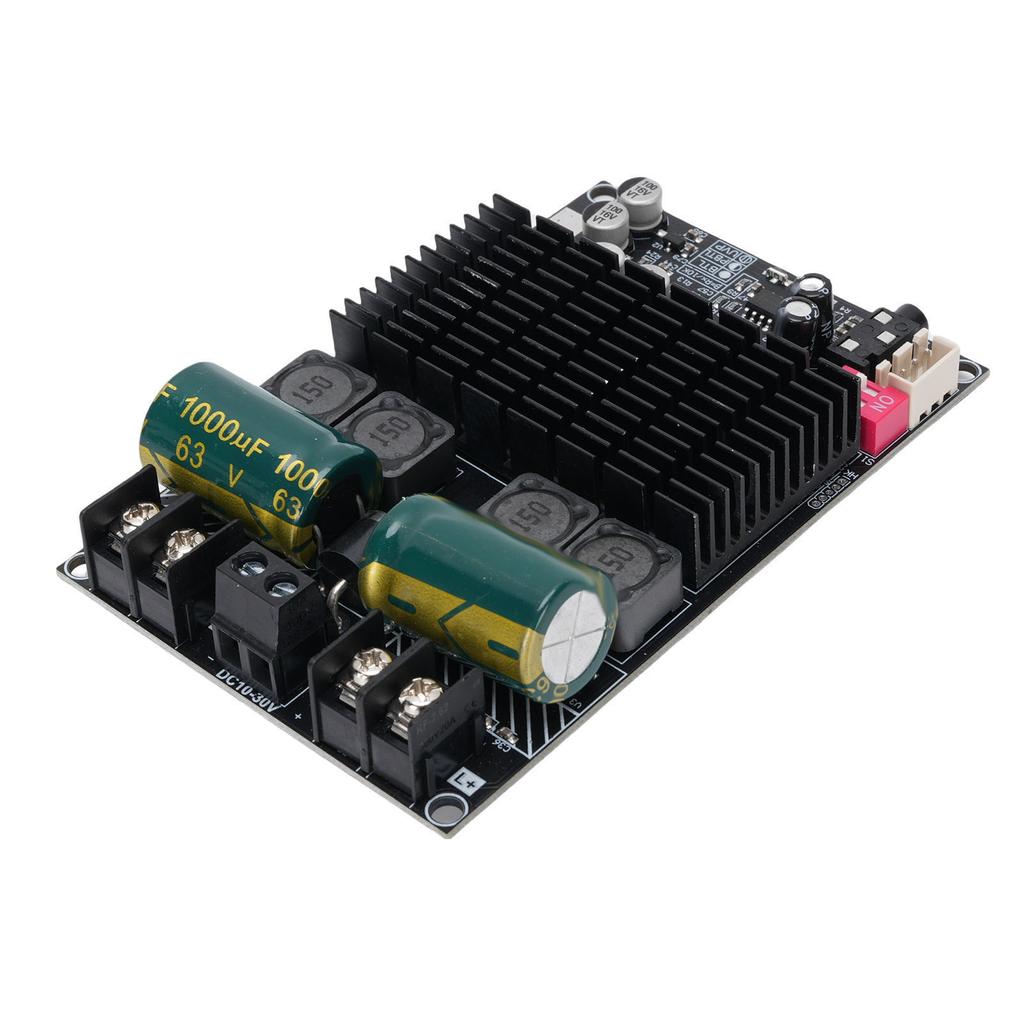

Feature:
1. Applicable Speaker: In BTL dual channel mode, it is suitable for 3 8 Ohm , 20 100W speaker; in PBTL single channel mode, it is suitable for 2 8 Ohm , 50 200W speakers, to ensure dependable running
2. Product Features: It boasts high current, low magnet loss, small parasitic capacitance, and less heat generation. It uses OFC wire to enhance sound quality, and has strong anti electromagnetic interference performance

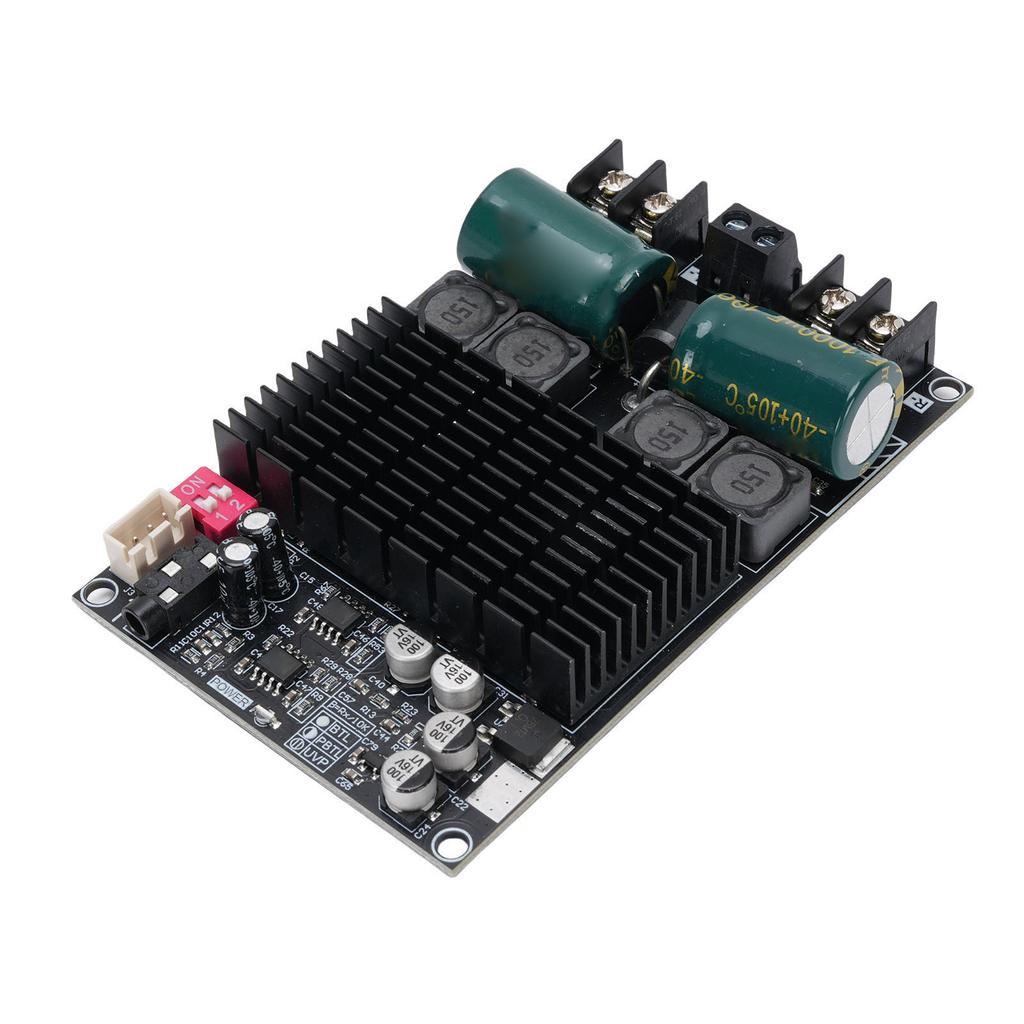

3. Heat Sink: The rear stage amplifier board incorporates a thickened heat sink for quiet and long lasting heat dissipation. It delivers clear sound with fast low frequency response, strong mid frequency texture, high smoothness in high frequencies, and minimal tangent loss
4. Multiple Guards: This rear stage amplifier board offers multiple protective mechanisms, including reverse polarity guard, under voltage guard, overheating guard, over current guard, and short circuit guard to ensure security during use

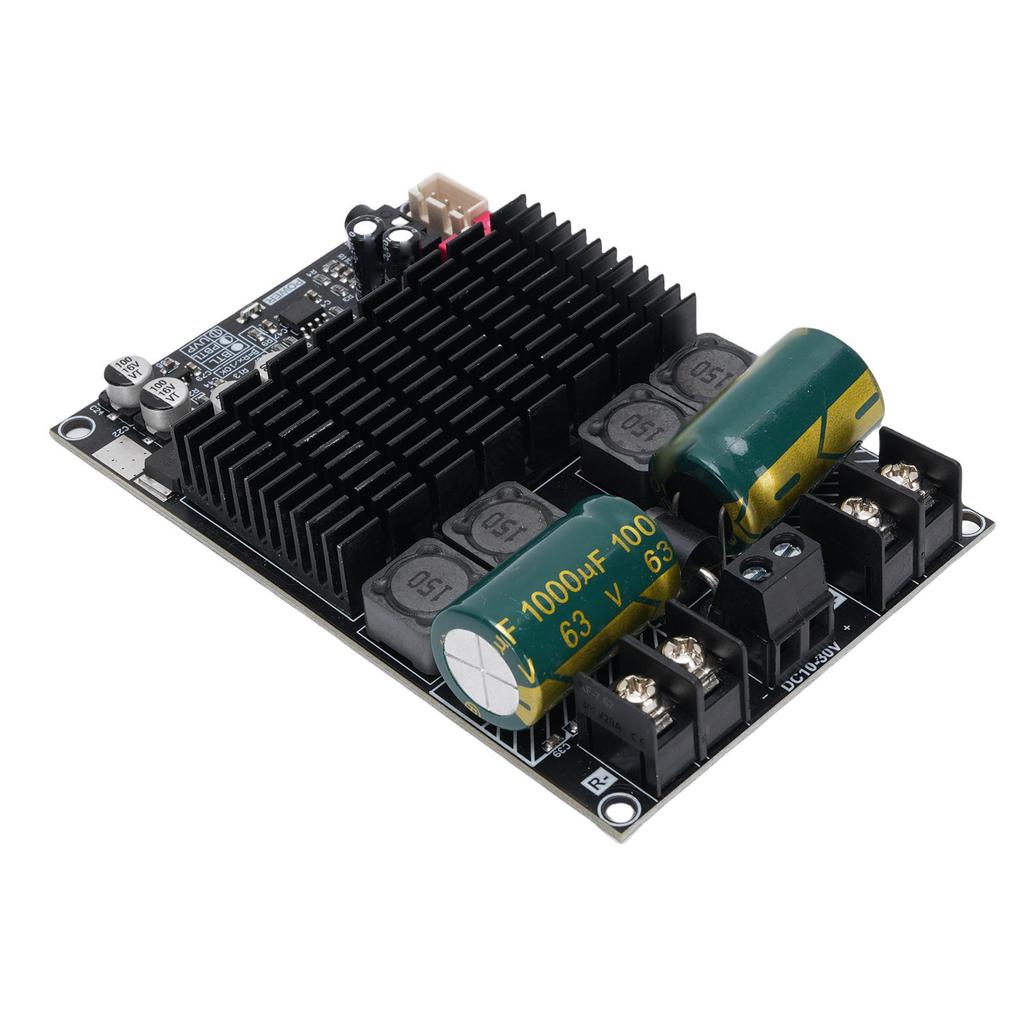

5. Compact and Practical: This power amplifier board features a compact size and reasonable structure, equipped with a 3P double ended shielded cable to ensure stable connections, making it suitable for various audible system
Specification:
Item Type: Pure Post Amplifier Board
Product Material: PCB
Power Amplifier Chip: Support for TPA3221
Applicable Speaker: BTL Double Channel Mode: 3 8 Ohm , 20 100W; PBTL Single Channel Mode: 2 8 Ohm , 50 200W

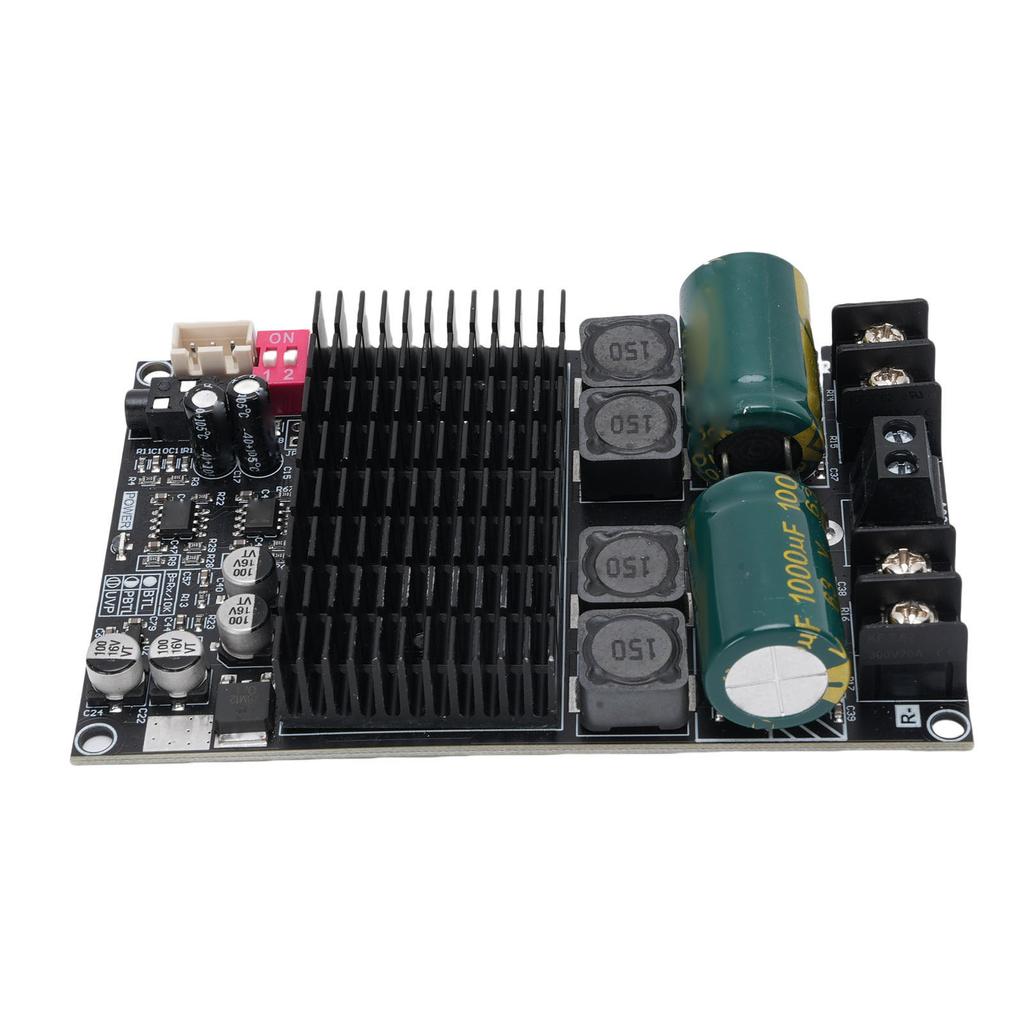

Heat Dissipation: Multi Fin Heat Sink

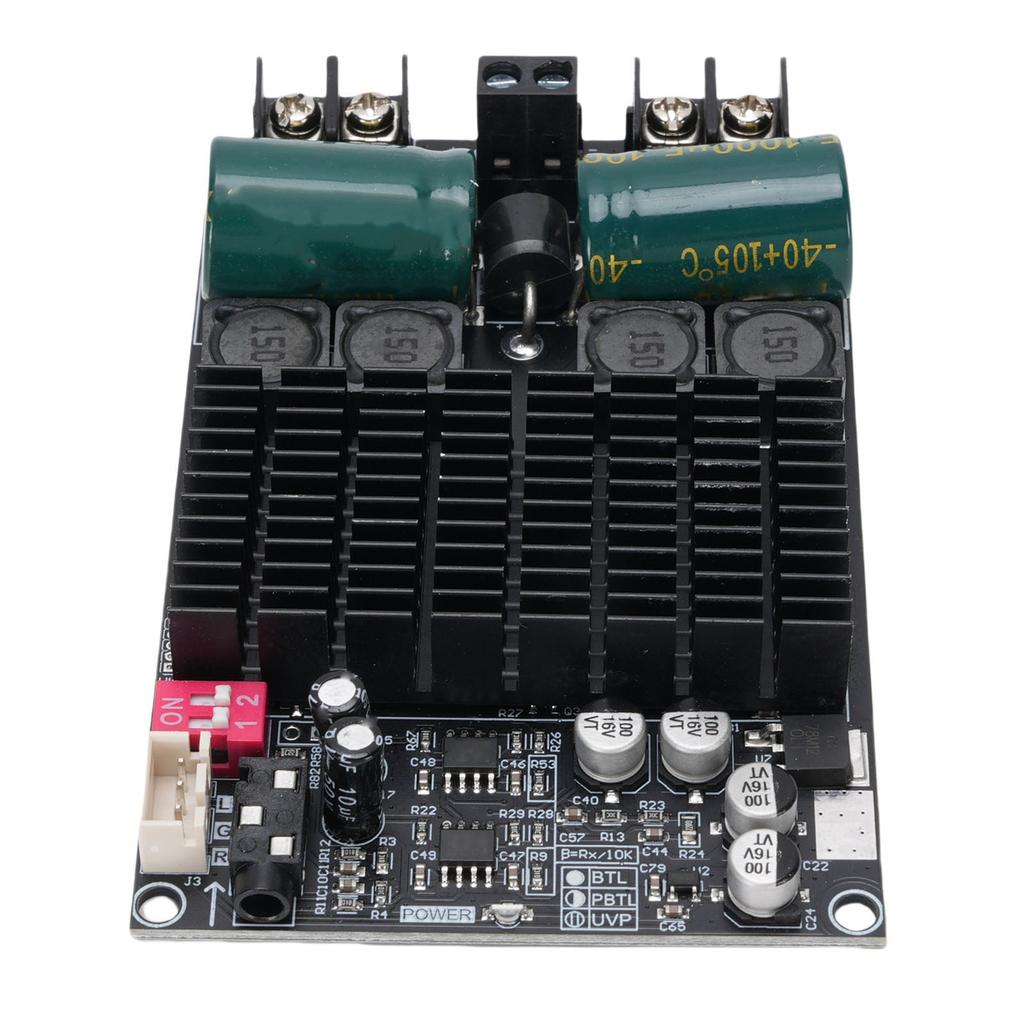

Gain Selection: Toggle Switch 2, 28dB 38dB 2 Gears

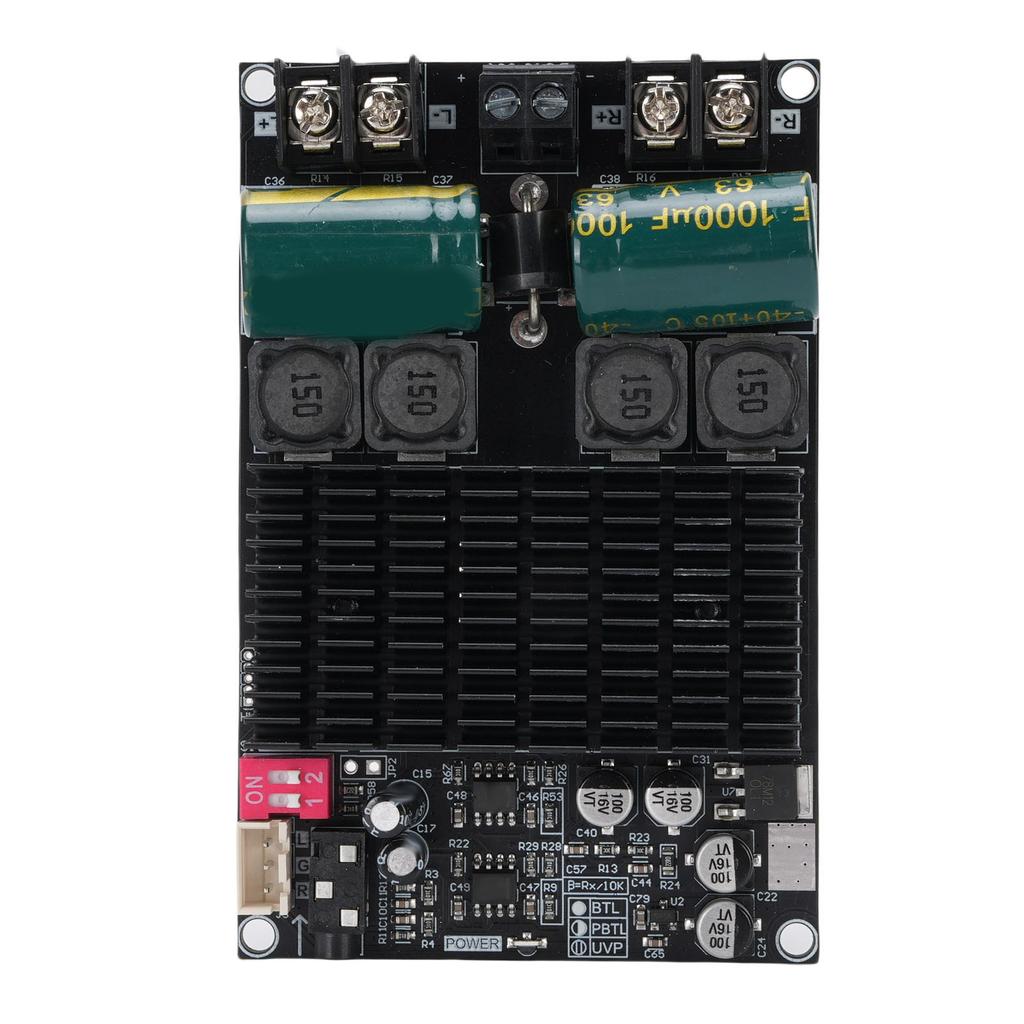

Bridge Configuration: Power off first. Set toggle switch 1 to ON position, R+L+ short circuit parallel output, R L short circuit parallel outputMaximum Power: BTL Mode: 2x70W at 24V 4 Ohm , 2x100W at 30V 4 Ohm ; PBTL Mode: 150W at 30V 3 Ohm , 200W at 30V 2 Ohm , 110W at 30V 4 Ohm Guards: Under Voltage, Overheat, Over Current, Short Circuit, Reverse Polarity Guard

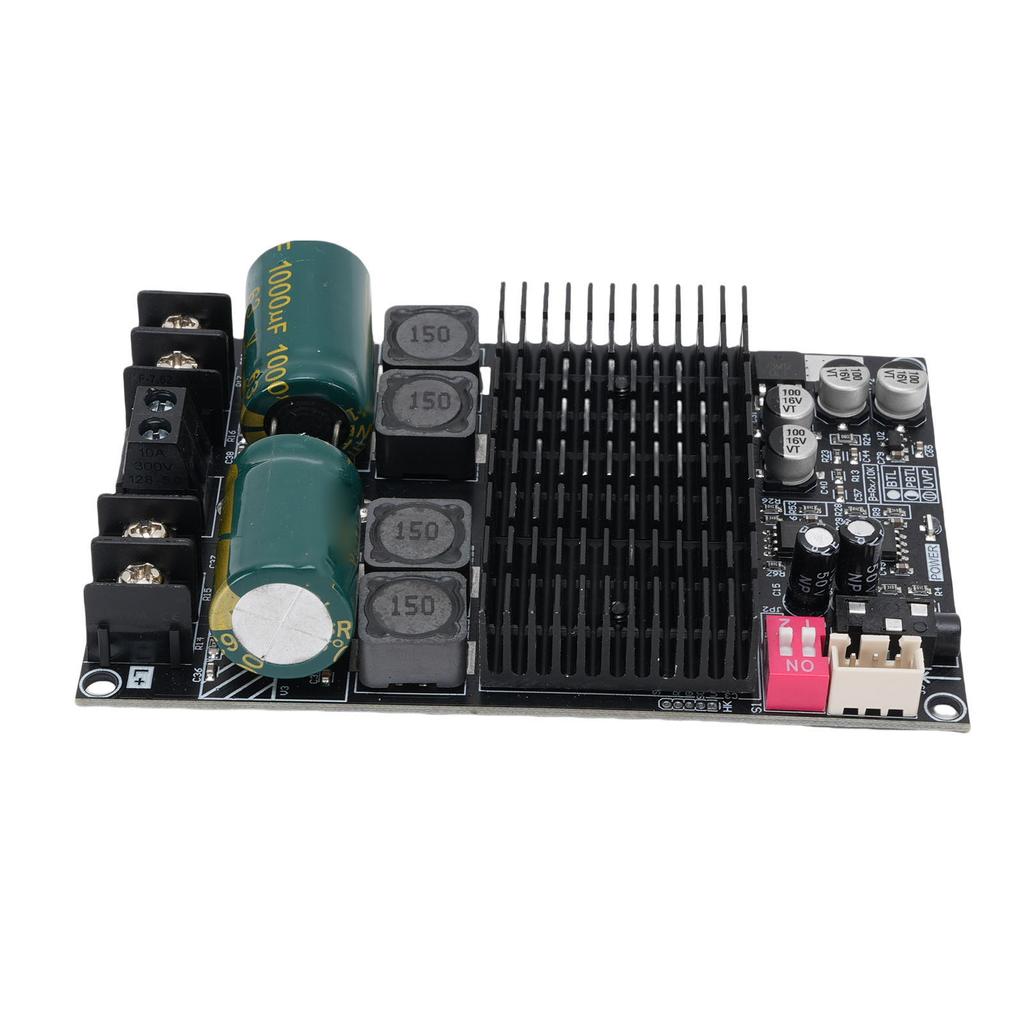

Product Size: Approx. 100 x 65 x 18mm 3.9 x 2.6 x 0.7in.
Package List:

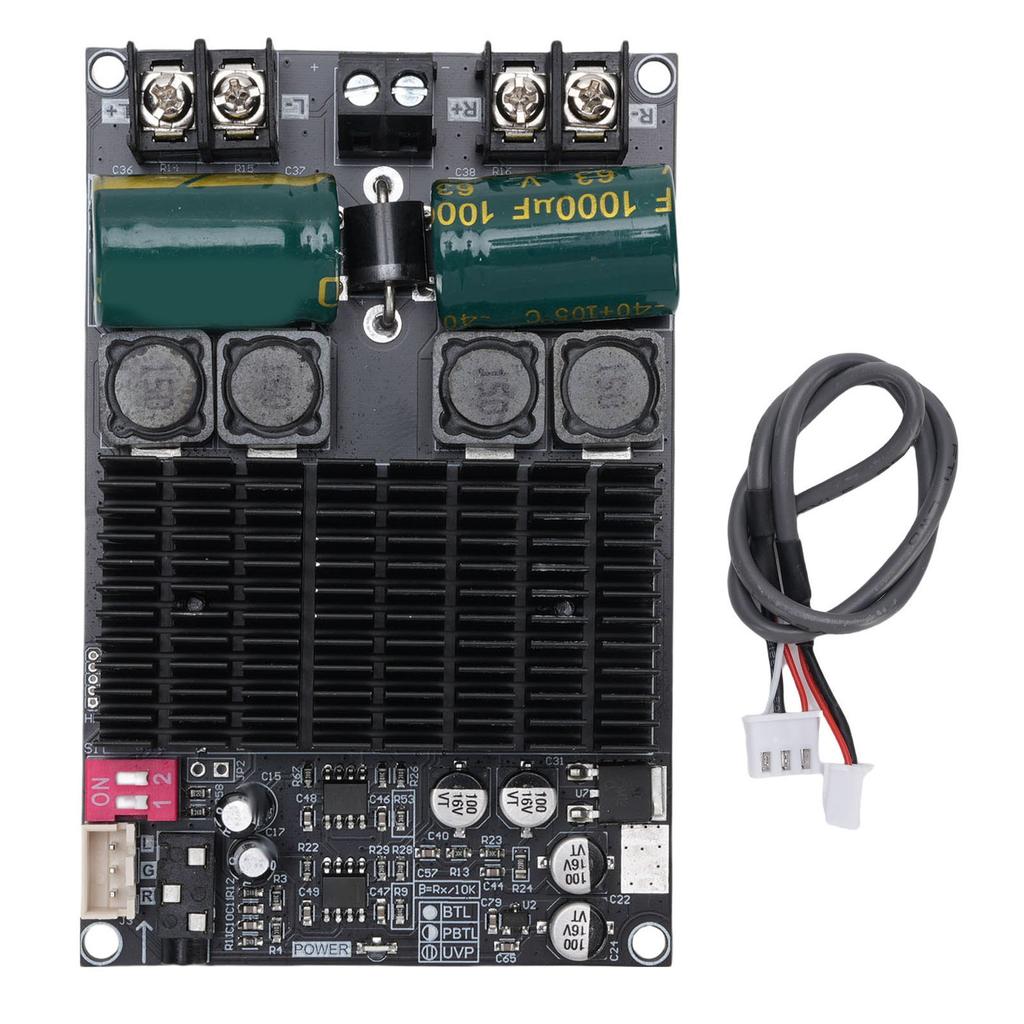

1 x Amplifier Board1 x 3Pin Dual End Shielded Cable1 x User Manual
Note:
The higher the voltage, the higher the output power. Do not connect to an alternating current power supply, or it will be burned out.
