FLUKE Digital Multimeter, Digital Tester, Digital Multimeter, True RMS, High Precision, Voltage, Current, Resistance Measurement, Compact Design, 113/

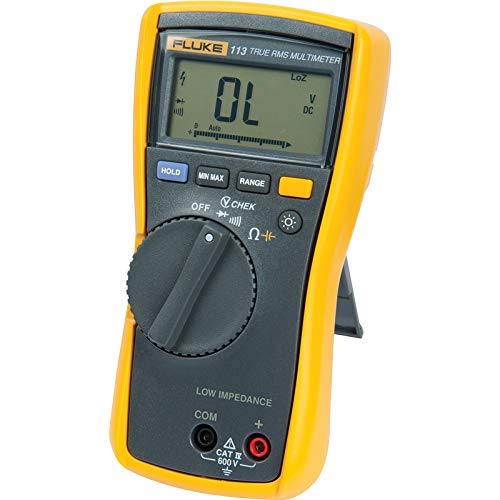

The Fluke 113 digital multimeter allows for quick and easy basic meter setup and reconnection testing. This meter is easy to use and has the features needed to solve most electrical problems.

The VCHEK LoZ low impedance measurement function allows you to test voltage and continuity.

The LoZ low impedance measurement function also blocks ghost voltages caused by adjacent conductors. *LoZ low impedance measurement may trip the RCD by applying a low current to the RCD's protection circuit.

The minimum/maximum value function allows you to record signal fluctuations.

The Fluke 113 can perform diode testing and also features automatic and manual range selection.

With features such as compliance with the latest safety standards, backlighting, and a large, easy-to-read display, this meter is an essential item for your toolbox.

□ Main Features □ • VCHEK LoZ Low Impedance Measurement Function for Testing Voltage and Continuity* • True RMS for Accurate Measurement of AC with Non-linear Loads • Large Backlit Display for Easy Viewing in Dim Light • Minimum/Maximum Function for Recording Signal Variations • Diode Test for Testing General-Purpose Germanium, Silicon, and Power Diodes • Integrated Holster with Probe Holder for Easy Storage • Enhanced User Functionality with Automatic and Manual Range Selection • Higher Level of Safety Compliant with Measurement Categories CAT III 600 V and IV 300 V • Optional TPAK Magnetic Hanger for Hands-Free Operation

□ Specifications □ 【VCHEK】*1, 2, 3 _Range/Resolution: 6.000 V/0.001 V _Range/Resolution: 60.00 V/0.01 V _Range/Resolution: 600.00 V/0.1 V _Accuracy: DC, 45 ~ 500Hz: 2.0% + 3 | 500Hz to 1kHz: 4.0% + 3 [Diode Test] *4 _Range: 2.000V _Resolution: 0.001V _Accuracy: 2.0% + 3 [Continuity *4] <20Ω for beep sound on, >250Ω for off. Detects open circuit or short circuit of 500μs or more.

[Resistance *4] _Range/Resolution: 600.0Ω/0.1Ω | Accuracy: 0.9% + 2 _Range/Resolution: 6.000kΩ/0.001 kΩ | Accuracy: 0.9% + 1 _Range/Resolution: 60.00kΩ/0.01 kΩ | Accuracy: 0.9% + 1

[Capacitance *4] _Range/Resolution: 1000nF/1nF | Accuracy: 1.9% + 2 _Range/Resolution: 10.00μF/0.01μF | Accuracy: 1.9% + 2 _Range/Resolution: 100.0μF/0.1μF | Accuracy: 1.9% + 2 _Range/Resolution: 100～1000μF/1μF | Accuracy: 1.9% + 2 _Range/Resolution: 1000μF or higher / 1μF | Accuracy: 5% + 20

Note: *1. All VChek voltage ranges are specified from 60 counts to 100% of the range. Inputs below 60 counts are not specified; therefore, if the test leads are disconnected from the circuit or shorted to each other, it is possible, and commonly, for Fluke 113 and other True-rms meters to display non-zero readings. *2. At 4000 counts, the crest factor is ≤ 3. It decreases linearly to 1.5 at full scale. *3. The minimum input voltage measurable with VCHECK's automatic range is 3V DC. For measurements below 3V DC, press the [Range] button twice to switch to the 6V DC manual range.

*4. After measuring voltage, a 1-minute wait is required to maintain the accuracy of resistance, capacitance, diode tests, and continuity tests.

□ Machine/General Specifications □ 【Maximum Voltage between Any Terminal and Ground】600 V 【Display】3 3/4 digits, 6,000 counts, 4 updates per second 【Operating Temperature】-10°C to 50°C 【Battery Type】9V Alkaline Battery (ANSI 1604A/IEC 6F22) 【Battery Life】Alkaline Battery: 300 hours under normal conditions without backlight 【Dimensions】167 x 85 x 46 mm 【Weight】404g 【Warranty Period】3 years The VCHEK LoZ low impedance measurement function allows you to test voltage and continuity. The LoZ low impedance measurement function also blocks ghost voltages caused by adjacent conductors. *LoZ low impedance measurement may trip the RCD by applying a low current to the RCD's protection circuit.

True RMS allows for accurate measurement of AC under nonlinear loads. Measurement functions: Voltage, continuity, resistance, capacitance, diode test.
