KRATKI MBN Right BS 10 kW Fire Insert with 200 mm Flue for Wood
The MBN Left 10 kW fire insert with a 200 mm flue is an excellent solution for those who value modern design, efficiency, and user comfort. Nominal power of 10 kW effectively heats rooms with an area of up to 120 m², and the high thermal efficiency of 80% ensures maximum use of energy from seasoned hardwood.
The model is made of the highest quality steel, features a decorative Glass type window, and has an aesthetic steel front – combining functionality with an elegant look. The clean glass system, ash pan, and grate significantly facilitate daily use and maintenance of cleanliness in the hearth.
Thanks to compliance with the Ecodesign requirements, the BImSchV 2 standard, and adaptation to recuperation, the fire insert meets the highest ecological standards and can be used in energy-efficient homes. Furthermore, the ability to heat without electricity guarantees energy security, regardless of the situation.
Left-side door opening, 200 mm flue diameter, and compact dimensions make the MBN 680 perfectly fit into various interior arrangements.
Steel wood-burning fireplace MBN – heats from 50 m² to 130 m²
Ecodesign
Ecodesign is a European initiative aimed at improving energy efficiency and reducing emissions of pollutants.
BImSchV 2
BImSchV 2 is a German law concerning air pollution control, including requirements for fireplaces and stoves. Devices meeting the BImSchV 2 standard must have low emissions of harmful dust and gases.
Recuperation
Recuperation is the process of recovering heat from the air being expelled from the building and transferring it to the incoming air. With recuperation, heating costs can be significantly reduced.

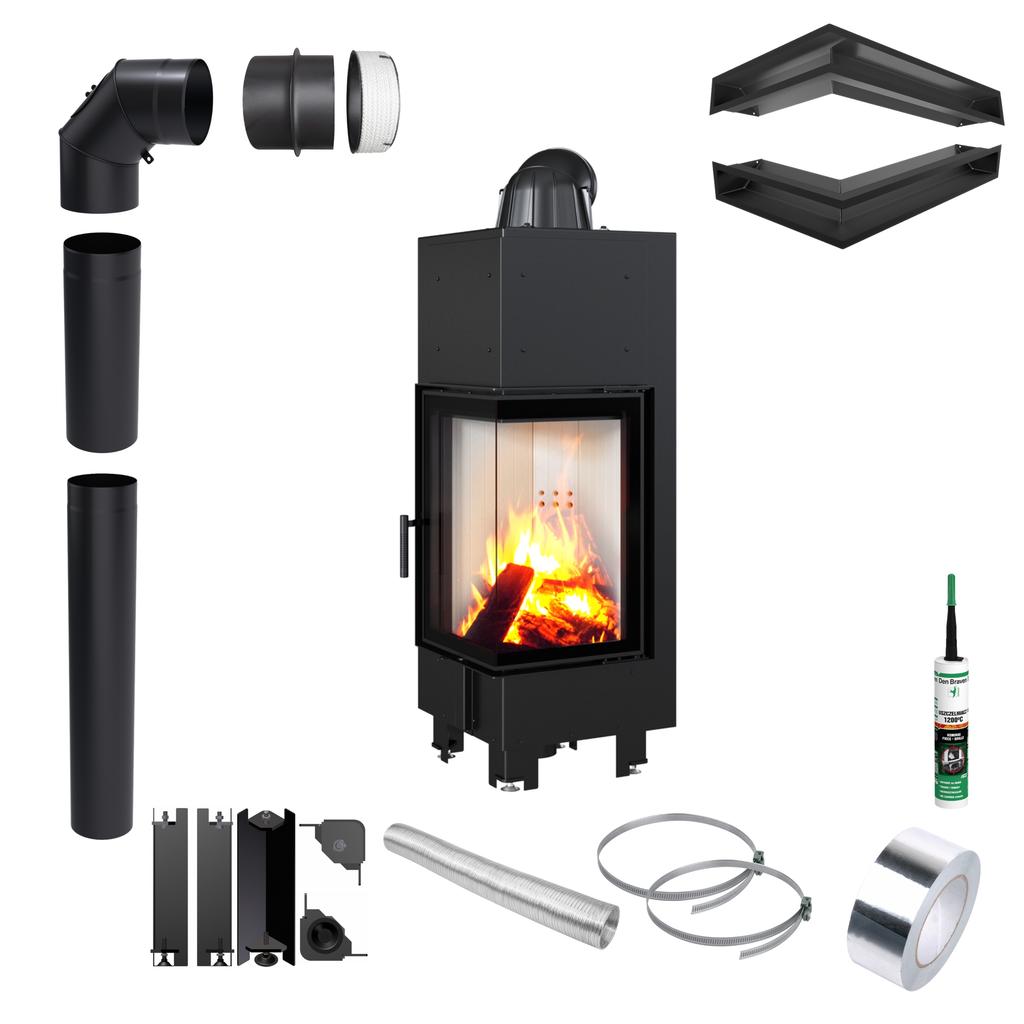

The set includes:
MBN Right 10 kW fire insert with 200 mm flue
Flex pipe fi 125 - 1 piece
Clamp - 4 pieces
Insulating tape - 1 piece
Steel pipe 200/0.5m x 1 piece
Steel pipe 200/1m x 1 piece
Adjustable steel elbow 200/90° x 1 piece
Ceramic chimney transition 200 x 1 piece
Floki base for fireplace - 1 piece
Silicone 1200 - 1 piece
LUFT 6 x 60 x 40 - 1 piece (Black)
LUFT 6 x 60 x 40 SF - 1 piece (Black)
General
Fuel type: seasoned hardwood (moisture ≤20%)
Nominal power (kW): 10
Heating power range (kW): 5.0 - 13.0
Material: steel
Thermal efficiency (%): 80
Flue gas temperature (°C): 261
Max log length (cm): 30
Minimum required active area of intake grilles (cm²): ≥700
Minimum required active area of exhaust grilles (cm²): ≥500
Window type: Corner
Door opening: Right
Self-closing: NO
Physical parameters
Weight (kg): 177
Flue diameter (mm): 200
Width (cm): 54.7
Height (cm): 160
Depth (cm): 54.7
Intake diameter (mm): 125
Certifications/Compliance
Meets Ecodesign criteria: YES
Designed for recuperation: YES
Compliance with BImSchV 2 standard: YES
Energy Efficiency
Energy Class: A+
EEI coefficient: 108.5
CO emission (at 13% O2) ≤ listed in %: 0.1
CO emission (mg/m³): 1166
Dust emission (mg/m³): 28
NOx emission (mg/m³): 103
OGC emission (mg/m³): 79
Flue gas mass flow (g/s): 11.8
Seasonal energy efficiency (%): 70
Equipment
Air intake
Ribbed combustion chamber lining
Decorative Glass type window
Adjustable feet
Quick-release grate handle
ROTATING FLUE GAS OUTLET
The ability to change the flue outlet setting, making it easier to connect the insert. The 360° adjustment allows the flue outlet to be connected from the back or the top of the insert.
INNOVATIVE HANDLE
The special perforated handle design protects against excessive heating, ensuring high comfort while using the fireplace.
ASH COMBUSTION
The insert has no grate, the fuel burns to fine ash, leaving minimal residue. The energy obtained in this way from wood is fully utilized.
BUILT-IN AIR INTAKE ADJUSTMENT
The external air intake is regulated via an integrated damper located below the door. The entire mechanism works inside the fireplace, very quietly and reliably.
FLUE PIPES FOR SYSTEM CONNECTION
The flue pipe is designed to connect wood-burning fireplace inserts to existing chimney systems. It meets all Polish and European standards, ensuring safety and maximum performance and comfort.
Connecting the pipes involves inserting one element into the other. The transition from the flue system to a ceramic chimney allows for a safe connection of the steel flue pipe to the ceramic chimney.
CHARACTERISTICS:
Sheet thickness: 2 mm
Diameter: 200 mm
Temperature resistance: 1000°C
Material: steel sheet
Coated with black heat-resistant paint
Plasma welded
VENTILATION SYSTEM
The fireplace grille is an aesthetic finish to the channels that distribute warm air from the fireplace. It is installed in the wall or in the flue collar of the fireplace enclosure.
The grille features a modern, minimalist design, and its elongated shape makes it perfect for contemporary-style interiors.
The LUFT 45S model is characterized by: a concealed air intake – made at a 45-degree angle, and a front without visible joints.
LUFT 6 cm x 60 cm x 40 cm - 1 piece (Black)
LUFT 6 cm x 40 cm x 60 cm SF - 1 piece (Black)
made in: Poland
