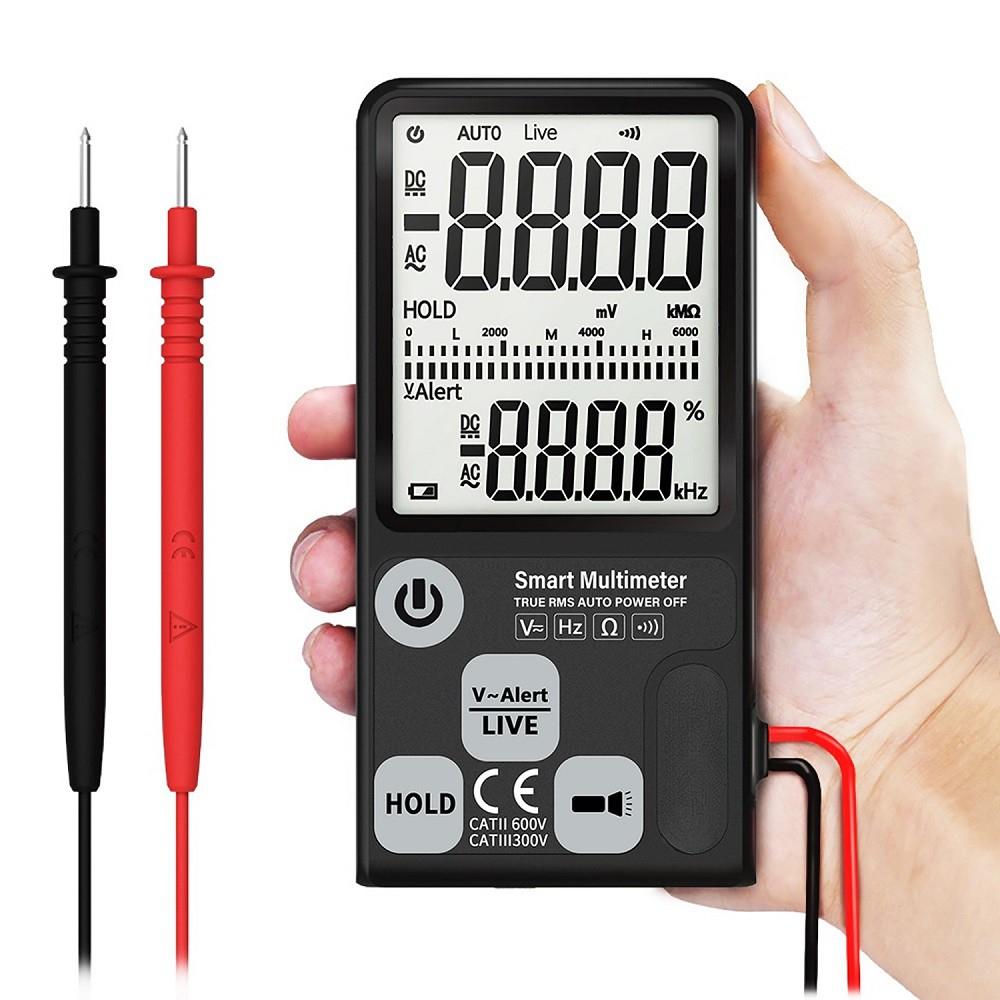

Electric Circuit Tester MT77 Digital Multimeter Voltage Tester 3-Line Display Fully Auto-Range True RMS 6000 Counts DMM

Features:

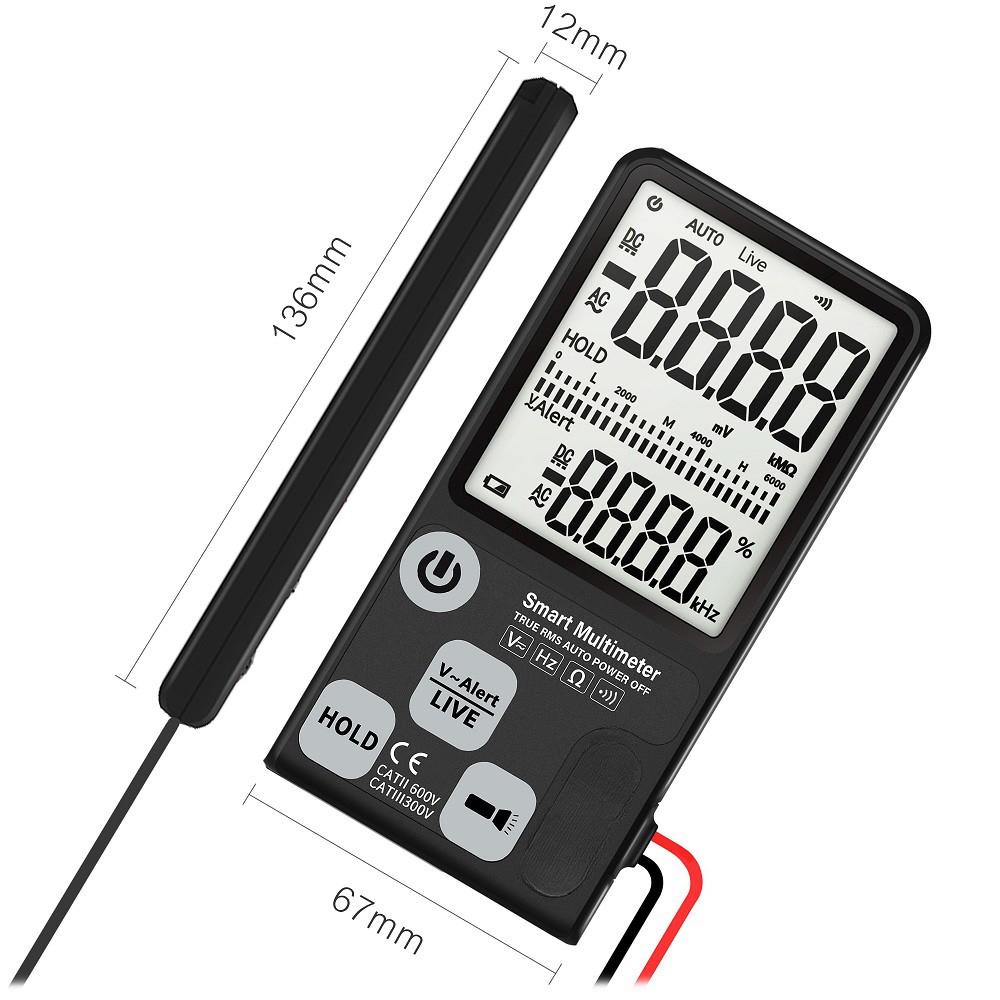

Phone Size Design: Super-thin body and pocket size design make it looks ike a real phone. Ideal for daily diy use,

teachal use, or fashion use.

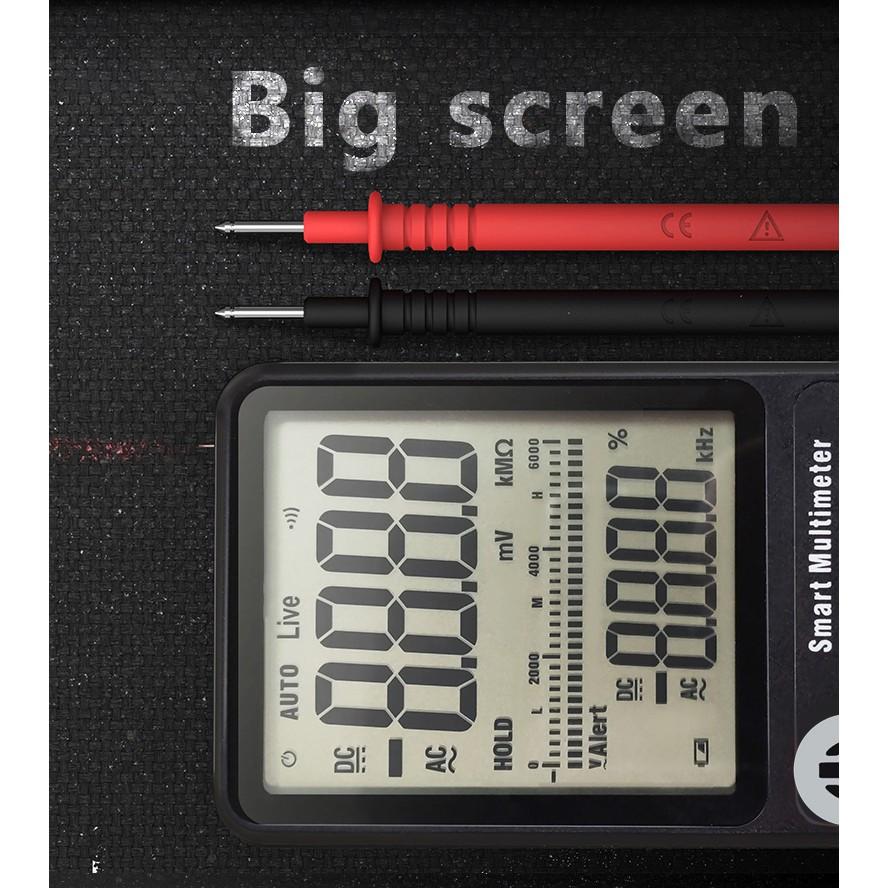

? Large Screen 3 Line Display: Large screen triple line display can show 3 test results on the screen, such as voltage,

frequency and analog bar.

Automatic Identification Design: Automatic identification design allows for no-switching when testing AC/DC voltage,

Hz, continuity and resistance.

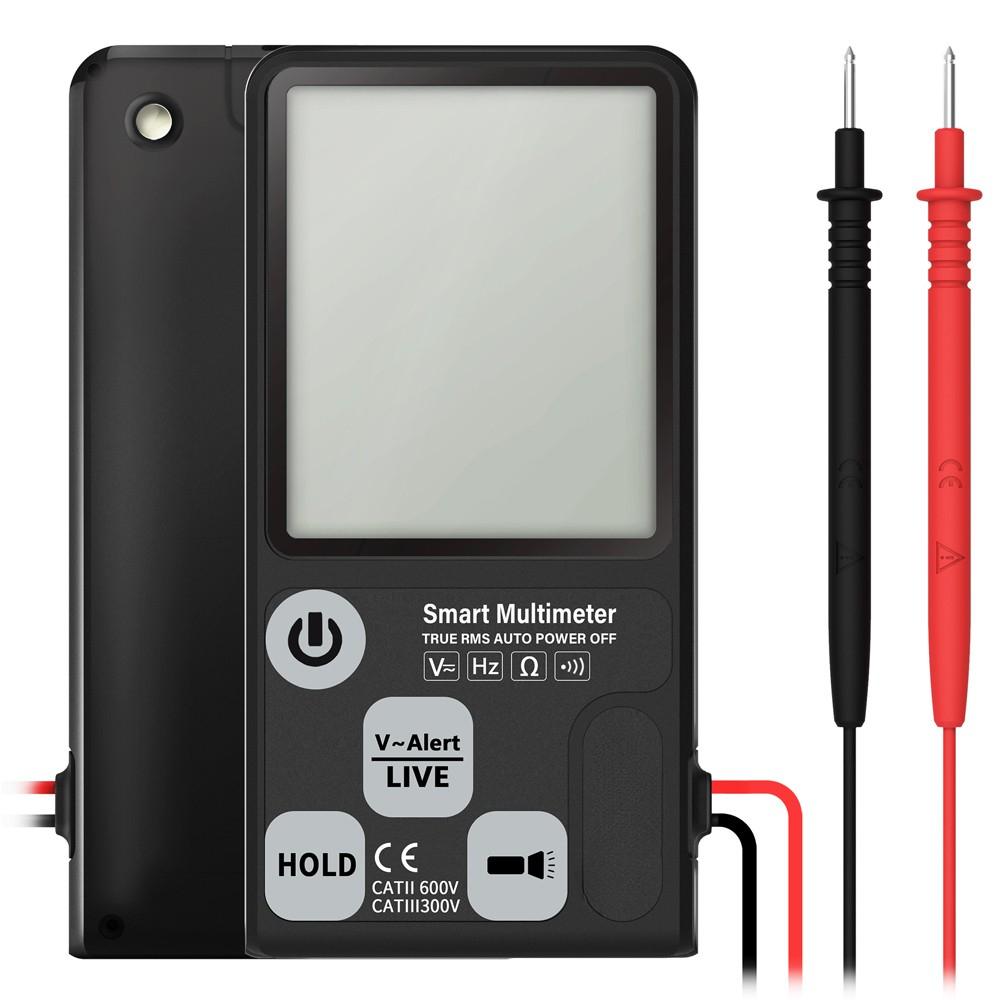

Unibody Design: Unibody design, no need to plug in and out probes, which not only can save learning and test time,

but also prevent wrong insertion of ports, which may burn out the multimeter.

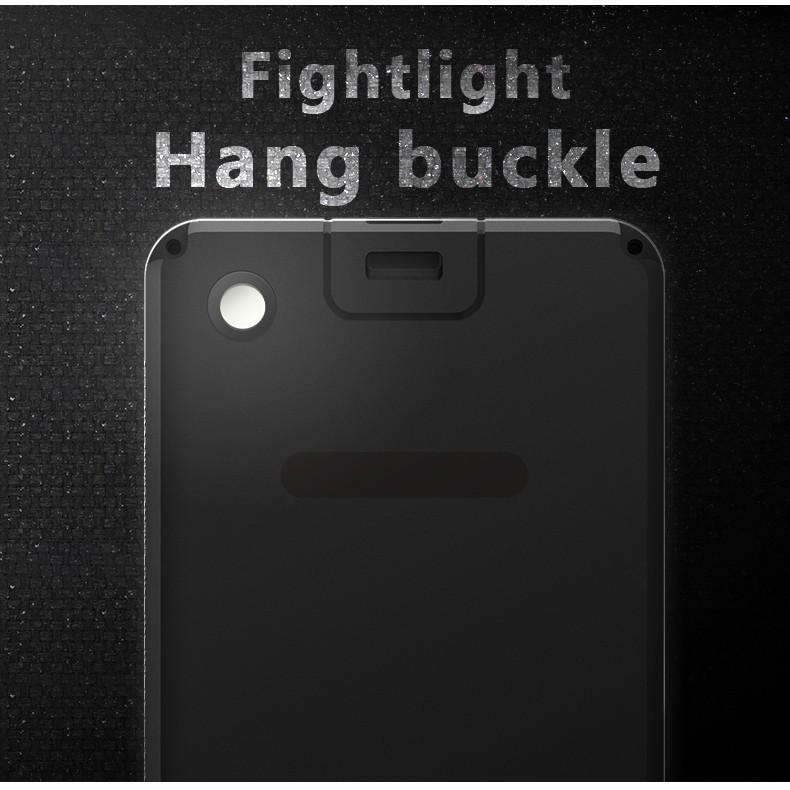

Flashlight Design: Flashlight design makes measurement more efficient. Hang hole design make it more portable.

Specification:

Display: 6000 counts

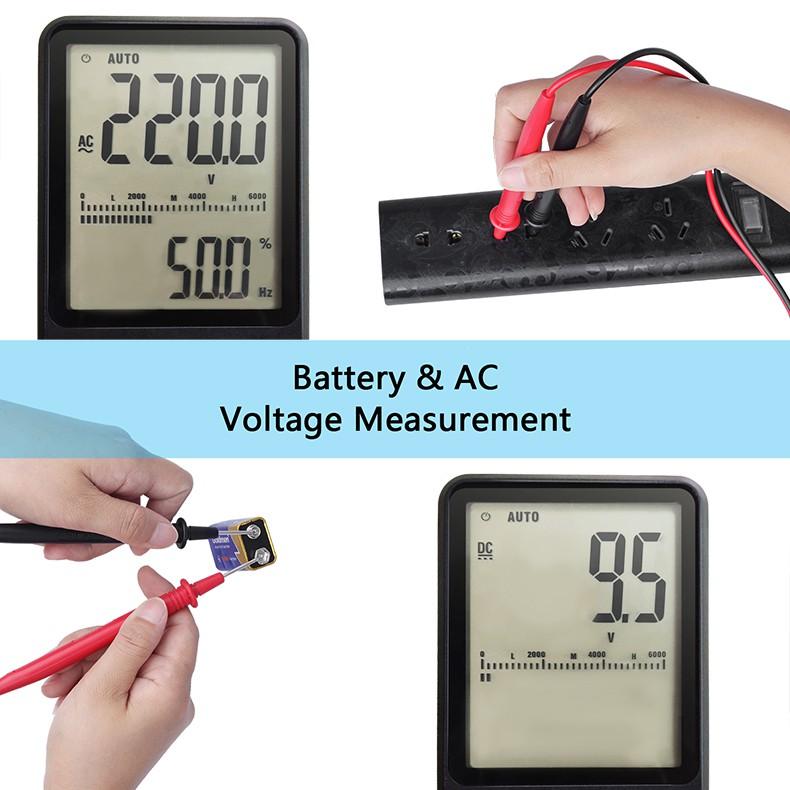

DC Voltage: 60mV/600mV/6V/60V/600V ±(0.8%+3)

AC Voltage: 60mV/600mV/6V/60V/600V ±(1.2%+5)

Resistance: 0.006Ω/0.06Ω/0.6Ω/6Ω/60Ω/600Ω/6kΩ ±(1.2%+3)

Frequency: 10Hz/100Hz/1KHz ±(1.0%+5)

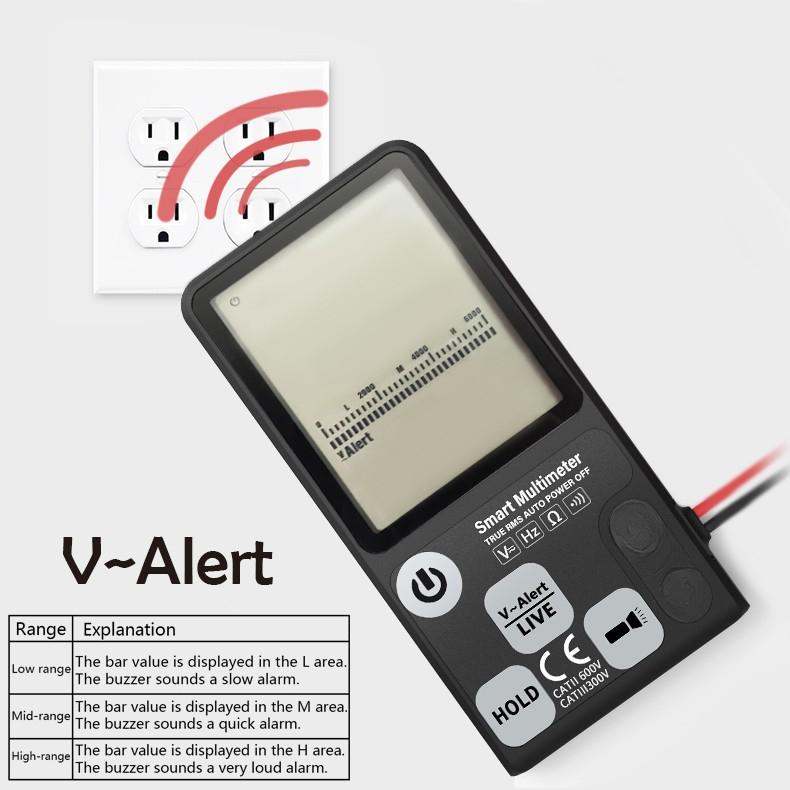

V-Alert(non-contact voltage detection):

[Low-range]: The bar value is displayed in the L area.
