Product Introduction

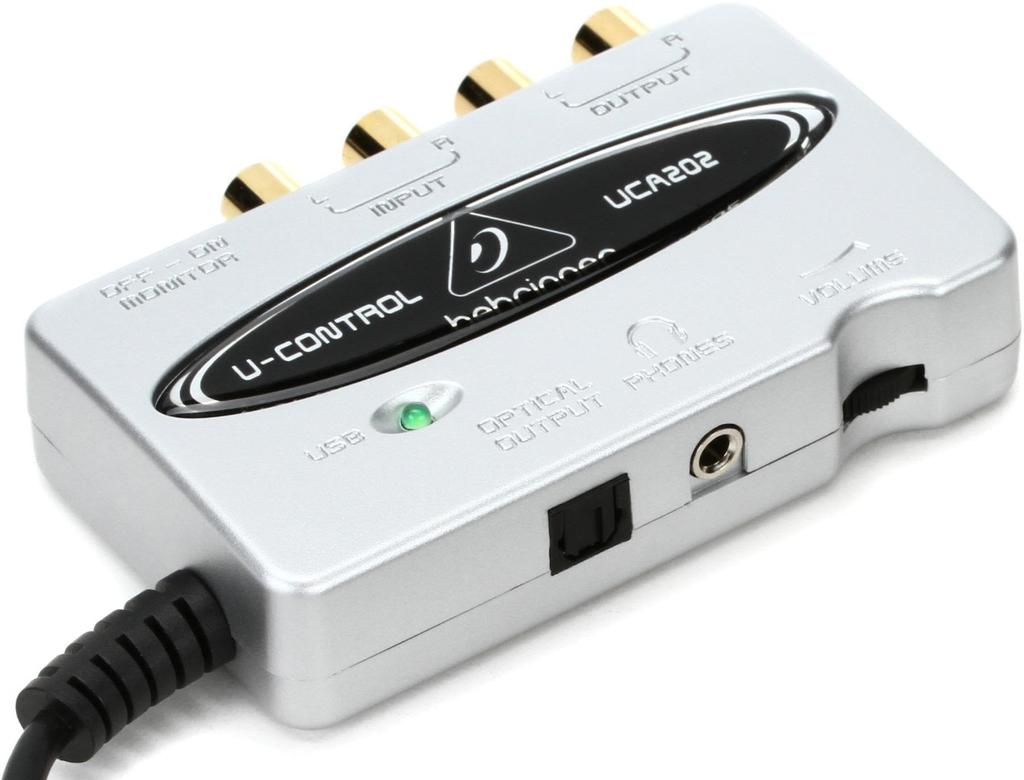

Ultra-low-cost. 2-in/2-out USB/Audio Interface with Ultra-Low Latency Digital Output
Specifications
◆Audio Interface
Simultaneous Inputs/Outputs: 2 in/2 out
Line Input: Connectors: RCA x 2 (LR), Unbalanced
: Impedance: 27 kΩ
: Maximum Level: 2 dBV
Line Output: RCA x 2 (LR), Unbalanced
: Impedance: 400 Ω
: Maximum Level: 2 dBV
Digital Output: Connectors: Toslink, Optical x 1
: Format: S/PDIF Optical
Headphone Output: Connectors: Stereo Mini Jack (3-pin) x 1
: Impedance: 50 Ω
: Maximum Level: -2 dBu (2 x 3.7 mW, 100 Ω)
Connection: USB 1.1, Type A
AD-DA Conversion: 16-bit, 32.0kHz/44.1kHz/48.0kHz
Frequency Response: 10Hz–20kHz (±1dB, 44.1kHz sampling rate)
THD: 0.05% (-10dBV, 1kHz)
Signal-to-Noise Ratio: A/D 89dB, D/A 96dB (1kHz, A-weighted)
Power Supply: USB bus power 5V (100mA)
Dimensions (W×H×D): 88×22×60mm
Weight: 120g
Minimum System Requirements (Windows): OS: Windows XP SP2 or later, CPU: 1GHz or faster Intel or AMD, RAM: 512MB or more, USB 2.0
Minimum System Requirements (Mac): OS: OS X 10.3.9 or later, CPU: G4/G5 800MHz or faster, RAM: 512MB or larger, USB 2.0
*The UCA222 and UCA202 are different colors. There is no difference in functionality. *Software and drivers are available via download.
Caution (Disclaimer) > Please Read
We usually ship within 3 business days. If we are unable to ship within 3 business days, we will contact you by email. Also, please note that if the item is sold out due to other products being sold elsewhere, we will refund you separately.
Simple connection between your computer and your music store mixer for recording and playback.
48 kHz D/A converter.
Works with your PC or Mac computer - no setup or drivers required. Free audio recording and editing software available for download from the Behringer website.
Stereo headphone output with dedicated level control allows you to monitor both input and output.
S/PDIF optical output for direct digital output.
