11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
1 analog input(3.3V max input)
Product features:
1. Based on ESP-8266EX
2. rduino compatible, programming with rduino IDE
3.11XI/O pin
4.1 XADC pin (input 0-3.3V)
5. Support OTA online
6. On board 5V 1A switching power supply (input 24V)
Delivery list (electrostatic bag packaging):
1. Long busbar X2PCS
2. Short busbar X2PCS
3. Ordinary pin X2PCS
4. D1-MINI development board X1PCS
Configure the arduin for esp8266 development environment (select D1-MNI)
DI MINI V3. 0.0
New features in V3.0. 0:
Optimized circuit
Added deep sleep jumper.
characteristic:
11 digital input/output pins, all supporting
interrupt/pwm/I2C/one-wire(except D0)
1 analog input(3.2V Max input)
A Micro USB connection
Compatible with Micropython, Arduin, Nodemcu
More backboard matches
D1 MINI V4.0 TYPE-C:
1 . 11 digital input / output pins , all supportinginterrupt / PWM / 12C / single wire ( except 1016 )
2 . 1 analog input ( 3 . 2V Max input )
3 . Type-c USB port
4 . LOLIN I2C port
Product Parameters
1 . Working voltage : 3 . 3V
2 . Number 1 / 0 Pin : 11
3 . Analog input pin : 1 ( Max . 3 . 2V )
4 . Clock speed : 80 / 160MHZ
5 . Flash memory : 4M bytes
S2 MINI V1 TYPE-C:
Based on ESP32-S2FN4R2 WIFIIC
2 . TYPE-C USB
3 . 27 digital input / output pins , all of whichsupport interrupt / pwm / 12C / single wire
4 . ADC,DAC,12C,SPI,UART,USB OTG
Product Parameters:
1 . Working voltage : 3.3V
2 . Number 1 / 0 Pin 27
3 . Clock speed : 240MHZ
4 . Flash : 4M bytes
5 . Static Random access memory : 2M bytes

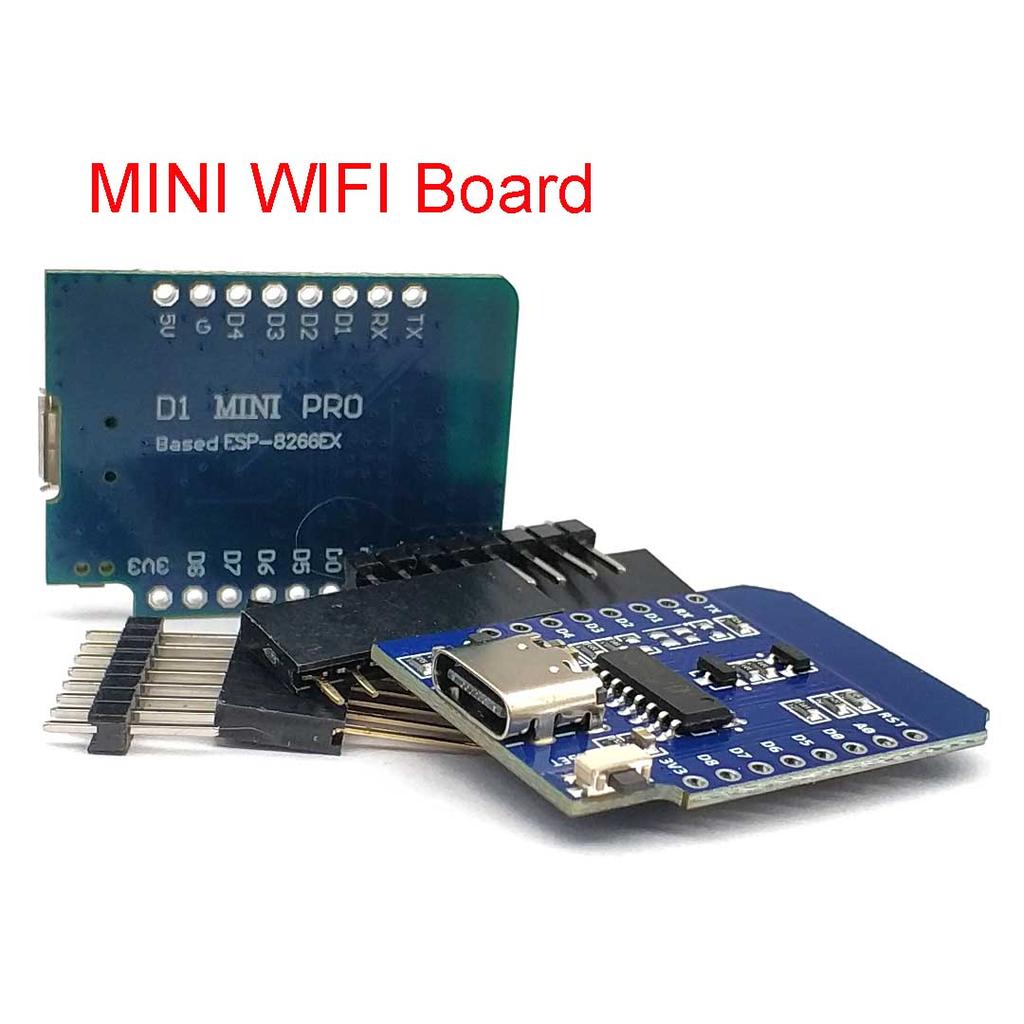

D1 MINI PRO:
External antenna connector
Built-in ceramic antenna
New CP2104 USB-TO-UART IC
Same size as D1 mini, but more light
Package Included
1 Set WeMos D1 Mini WIFI Development Board
