Feature:
1. As for the safety, with builtin screwtype connection, and for safer function, the XB2B(E) series has powerful functions and can form a complex multifunction control system, which is very convenient to operate.
2. Permanently, control button XB2 series mechanical life is up to 10,000 times, which refers to the electrical life.
3. About solidity, it is an allmetal structure of the operating head and the fixed middle plate.
4. Its ruggedness and reliability are unmatched by any similar products. And antismashing operation may be removed from the front.
5. For reliability, all contacts have the dual function of switching circuit and selfcleaning. When the switch is working, the contact surface is wiped cleanly by sliding closure, so it is still used in low voltage and low current (5V, 5mA). And it can ensure the reliability of contact.
Specification:
Item Type: Switch
Options: XB2EA131(Green, 1 normally open); XB2EA142 (Red, 1 normally closed)
Technical Parameter
A)
10A
Electrical life: more than 600,000 times, other 100,000 times
Rated Capacity
AC15
220V6A
380V4A
660V2A
Recommended Torque: 0.9Nm
DC13
440V0.3A220V0.5A110V1A
Power Frequency Withstand Voltage
2500V 60S
Terminal: Suitable for IEC standard No. 2 screwdriver (+ wordshaped) and screw for DIN gasket
Contact Resistance
less than 25M Ohm
Temperature: 25+55 degrees C
Short Circuit Protection
When the maximum shortcircuit current is 1kA, the fuse 16A (common), 10A (delay)
.
Package List:

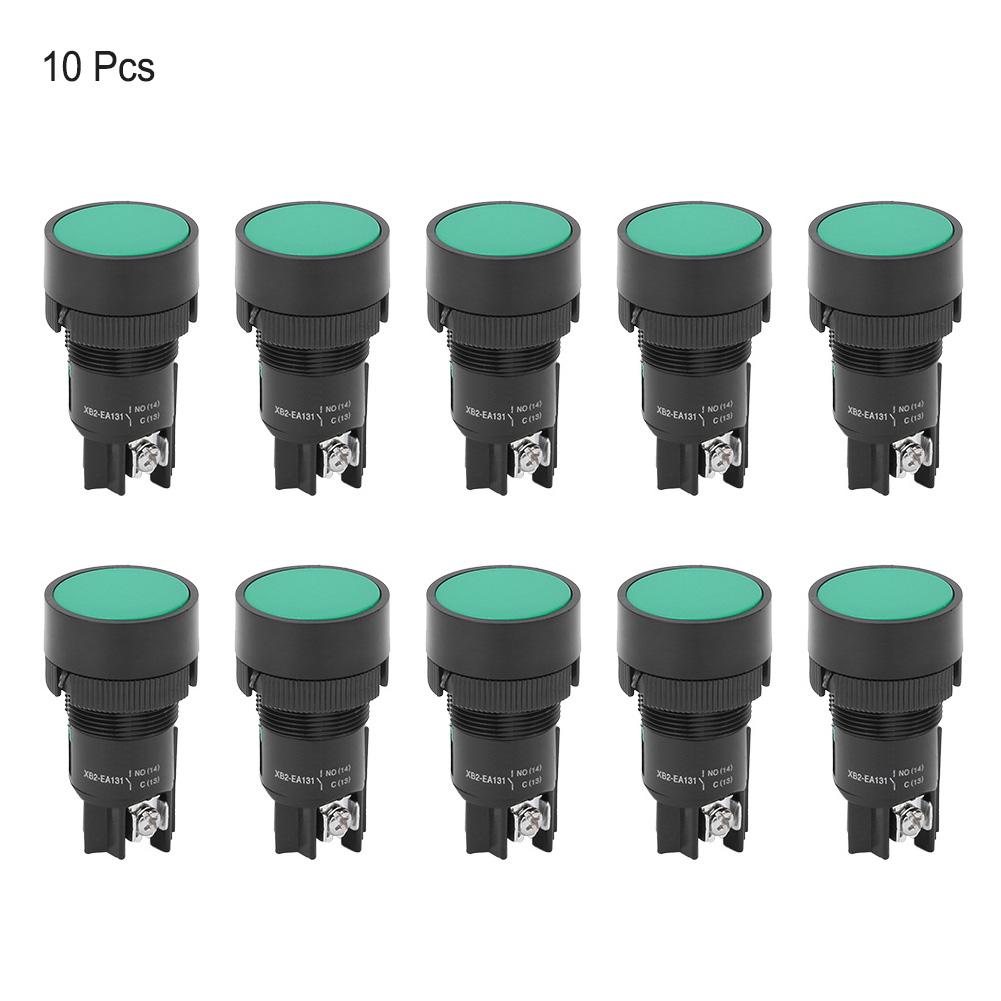

10 x XB2 SwitchAs for the safety, with builtin screwtype connection, and for safer function, the XB2B(E) series has powerful functions and can form a complex multifunction control system, which is very convenient to operate.
Permanently, control button XB2 series mechanical life is up to 10,000 times, which refers to the electrical life.
About solidity, it is an allmetal structure of the operating head and the fixed middle plate.
Its ruggedness and reliability are unmatched by any similar products. And antismashing operation may be removed from the front.
For reliability, all contacts have the dual function of switching circuit and selfcleaning. When the switch is working, the contact surface is wiped cleanly by sliding closure, so it is still used in low voltage and low current (5V, 5mA). And it can ens
