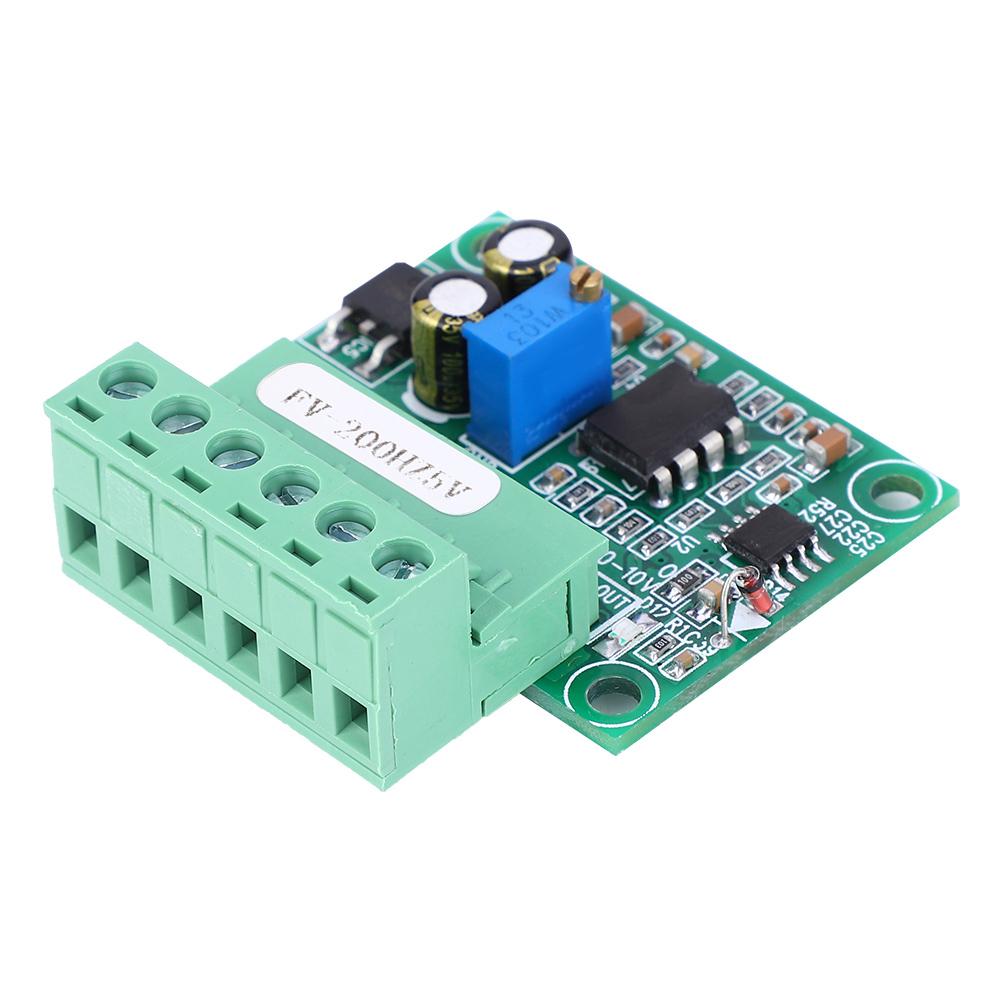

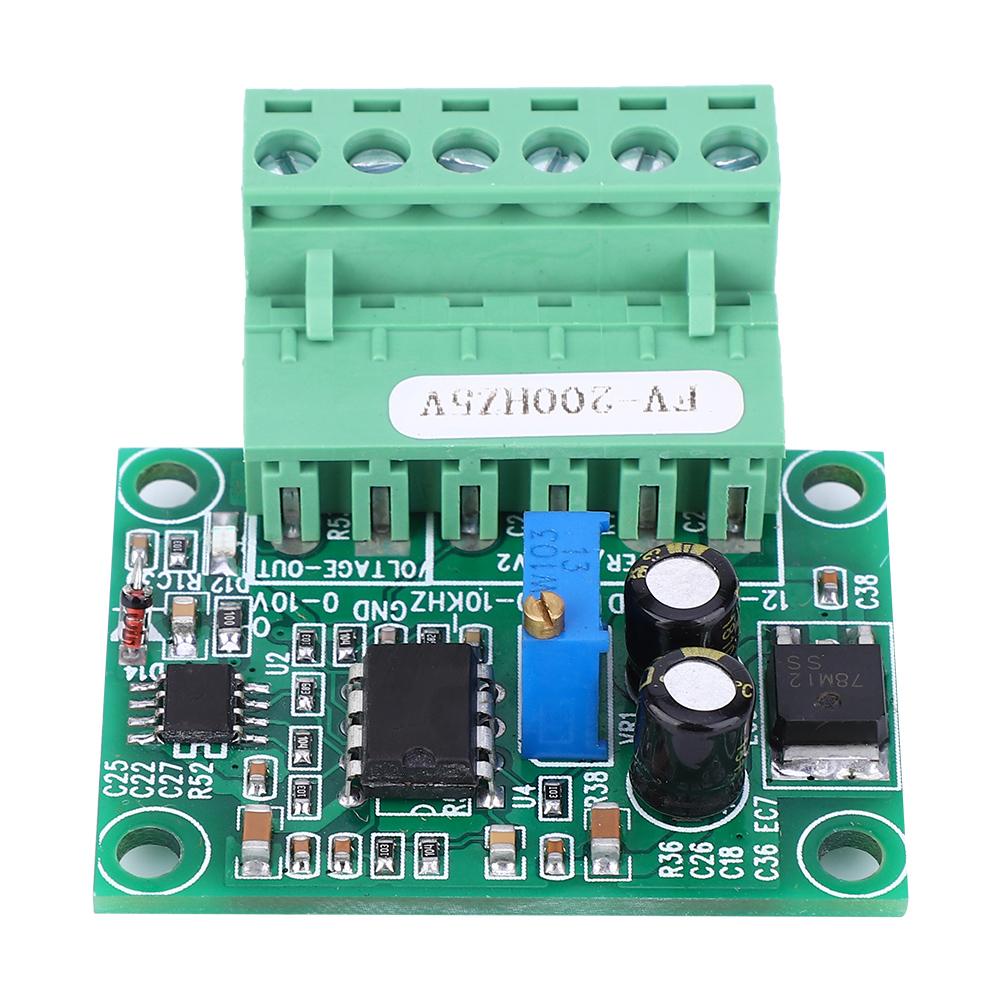

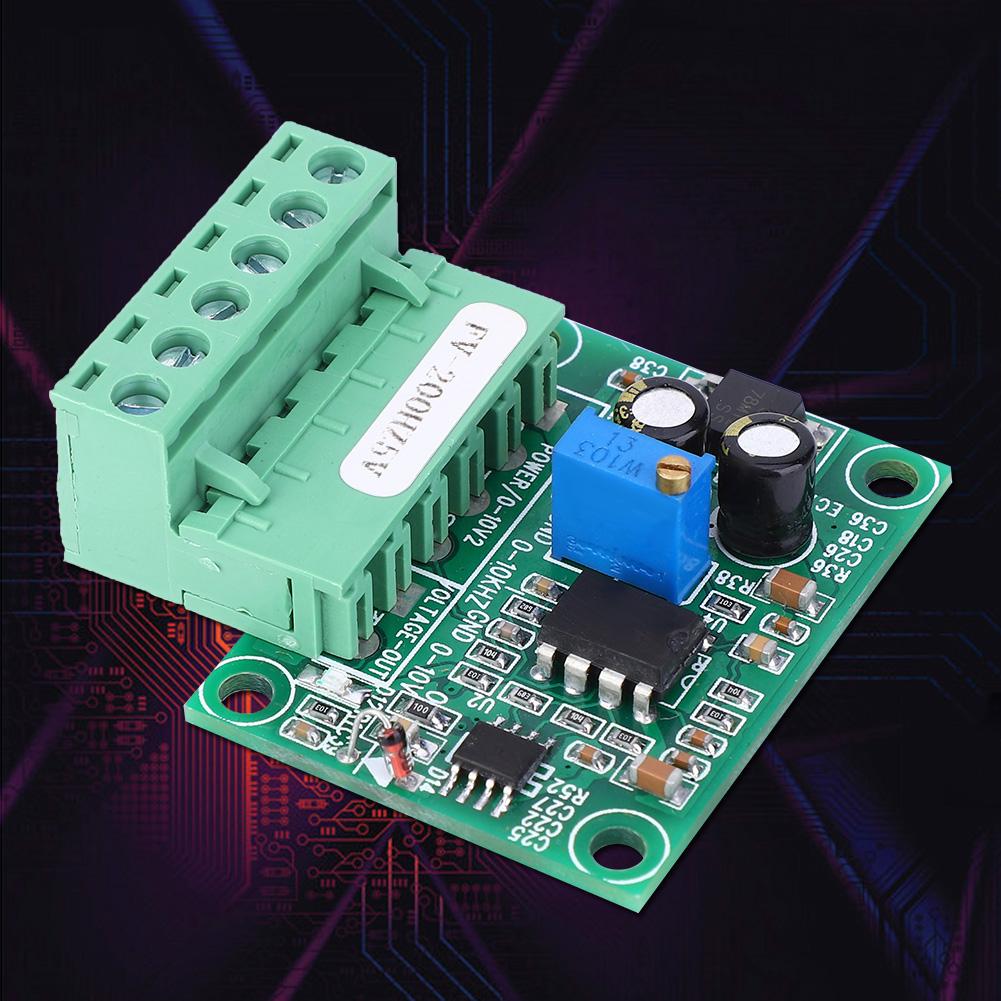

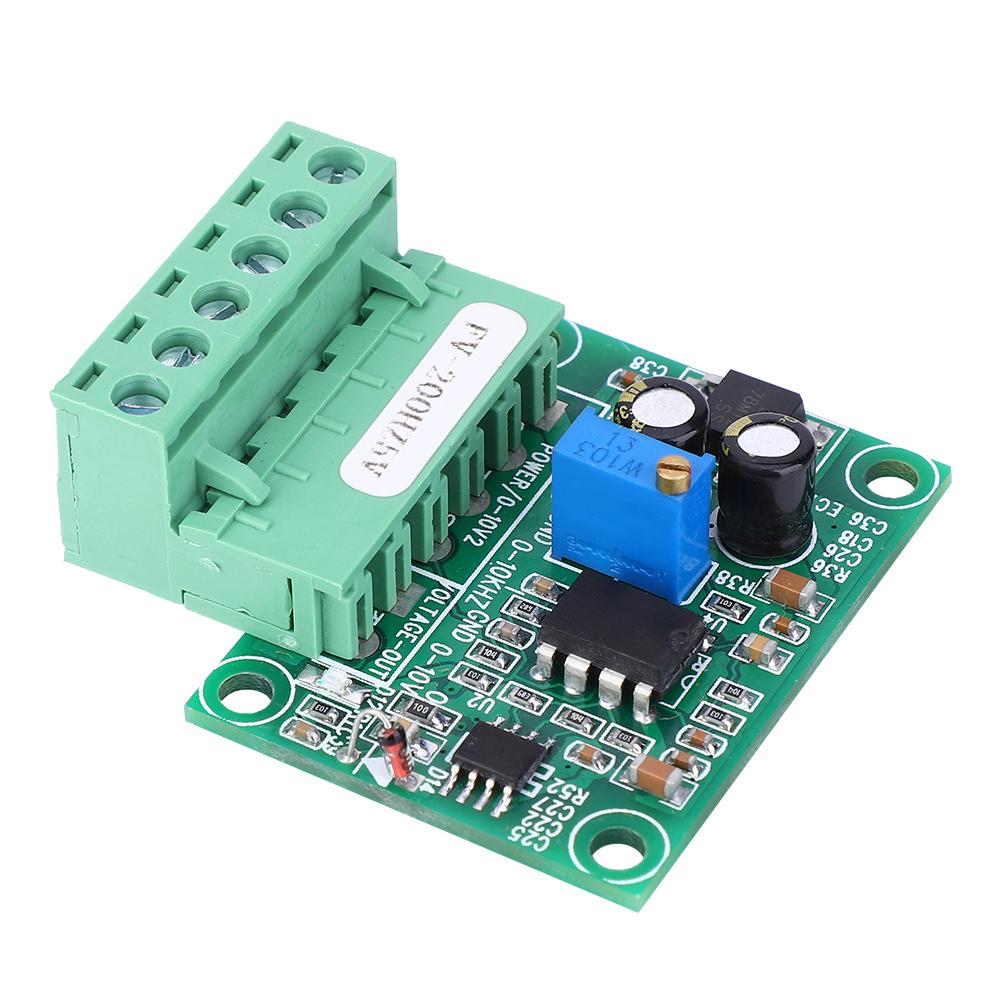

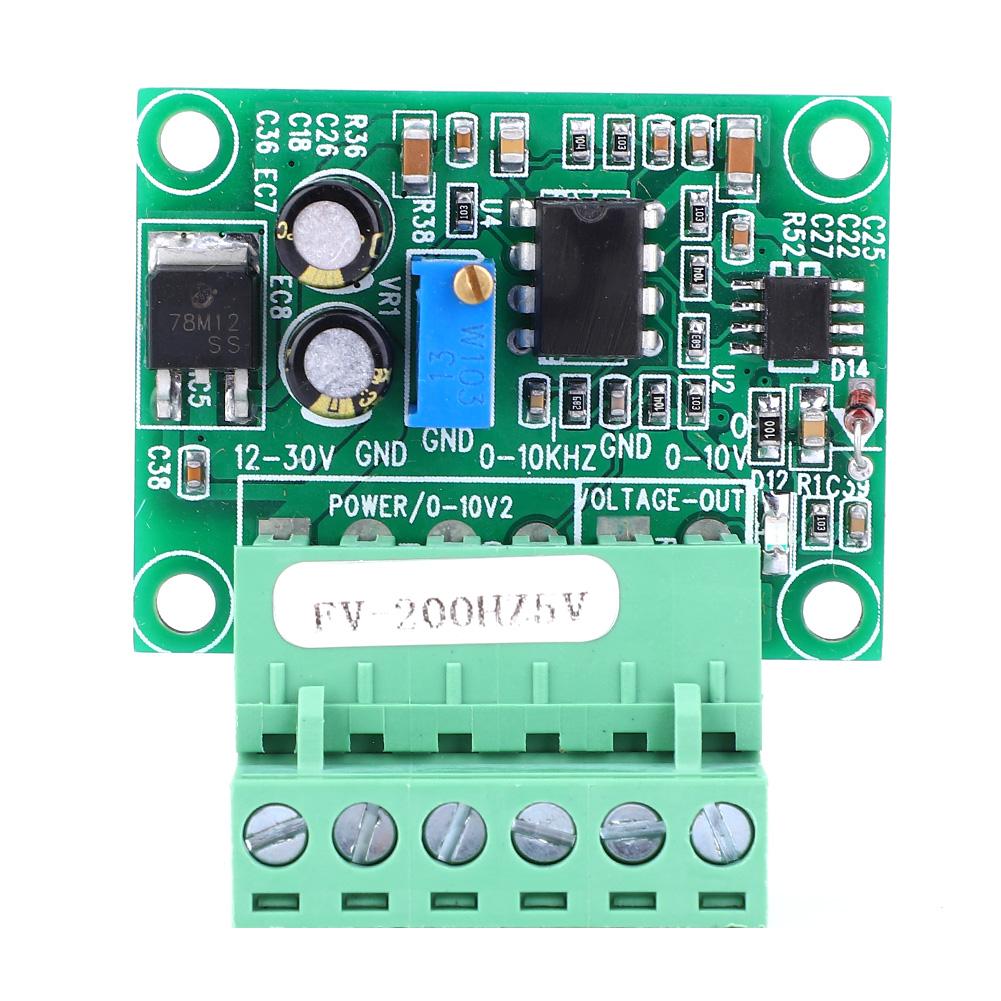

FV200Hz5V Frequency to Voltage Module 05V Voltage Digital to Analog Inverter Module… Ещё

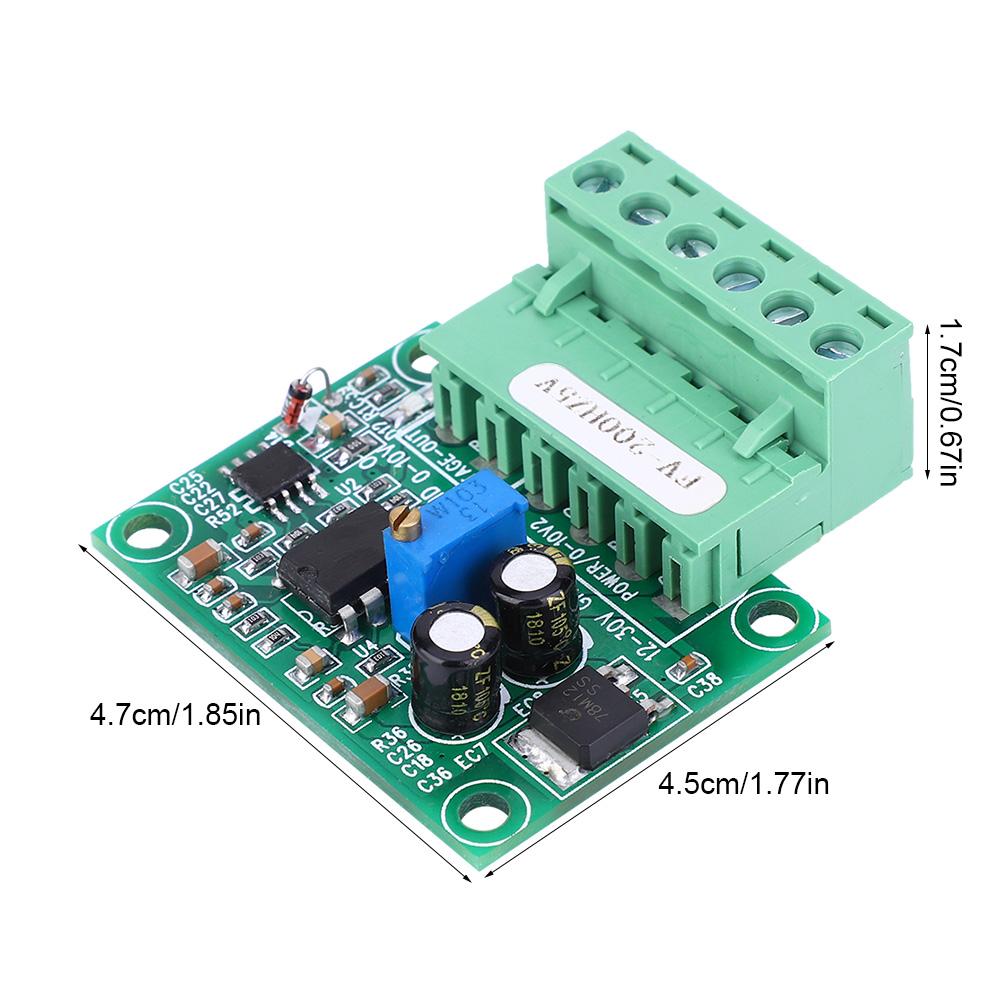

Features: 2. Can be used to Convert interface between PLC and frequency, Or movement control card and converter interface matching control occasions. 3. Input pulse level is 5V 12V 24V can be directly input, no string resistor. However, the input signal frequency should be maintained for more than 0.5 seconds. 4. The output current is 5MA. Specification: Condition: 100percent Brand New Model: FV200Hz5V Function: Input 0200Hz frequency is converted to 05V Output Current: 5MA Response Time: 0.30.5 seconds Size: Approx. 4.5 x 4.7 x 1.7cm 1.8 x 1.9 x 0.7in Package List: Precautions for use: 3. The signal input is isolated by diaphragm. Guaranteed antiinterference ability. 4. For use with PLC, support NPN type. Must have a ground wire. 5. If you need to use an encoder, the encoder should be rotated at a constant speed for more than 0.5 seconds. 7. If the signal input is turbine flow, etc., due to signal matching, an 817 diaphragm and a resistor must be added to match the flowmeter to normal function. 8. When using the correspondence, if there is a deviation, you can adjust the blue potentiometer on the board to adjust. At the time of shipment, we have adjusted the FV potentiometer to a certain correspondence. It is generally not recommended to adjust it by itself. Identification and wiring: 1. 1230VPower input positive 2. GNDPower input negative (common ground wire) 3. GNDPulse frequency input negative (common ground wire) 4. 010KHZPulse frequency input positive 5. GNDPulse frequency input negative (common ground wire) 6. 010V Analog 010V level output Correspondence & Linear Relationship: 20Hz is converted to 0.5V 100Hz is converted to 2.5V 200Hz is converted to 5V Convert the 0200Hz frequency pulse signal into an analog voltage signal of 05V. Can be used to Convert interface between PLC and frequency, Or movement control card and converter interface matching control occasions. Input pulse level is 5V 12V 24V can be directly input, no string resistor. However, the input signal frequency should be maintained for more than 0.5 seconds. The output current is 5MA. Frequency and voltage conversion module, response time is about 0.30.5 seconds.
