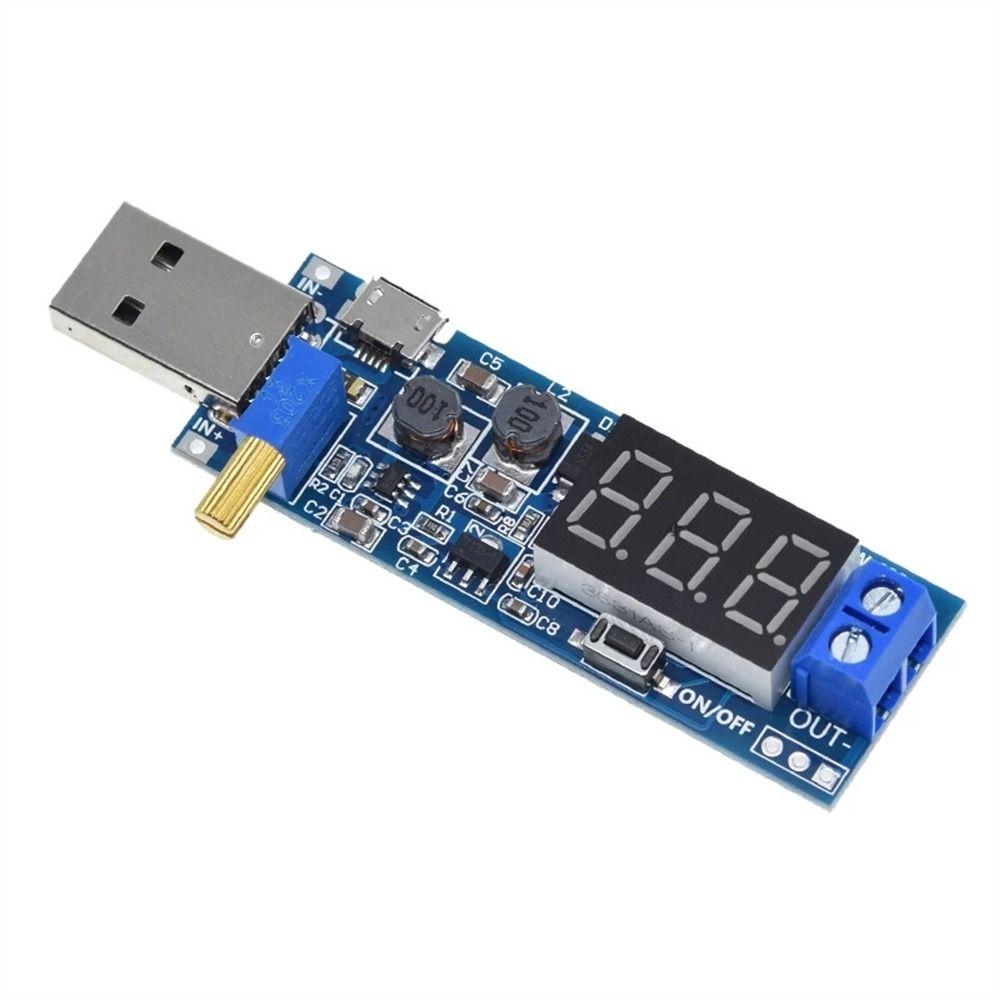

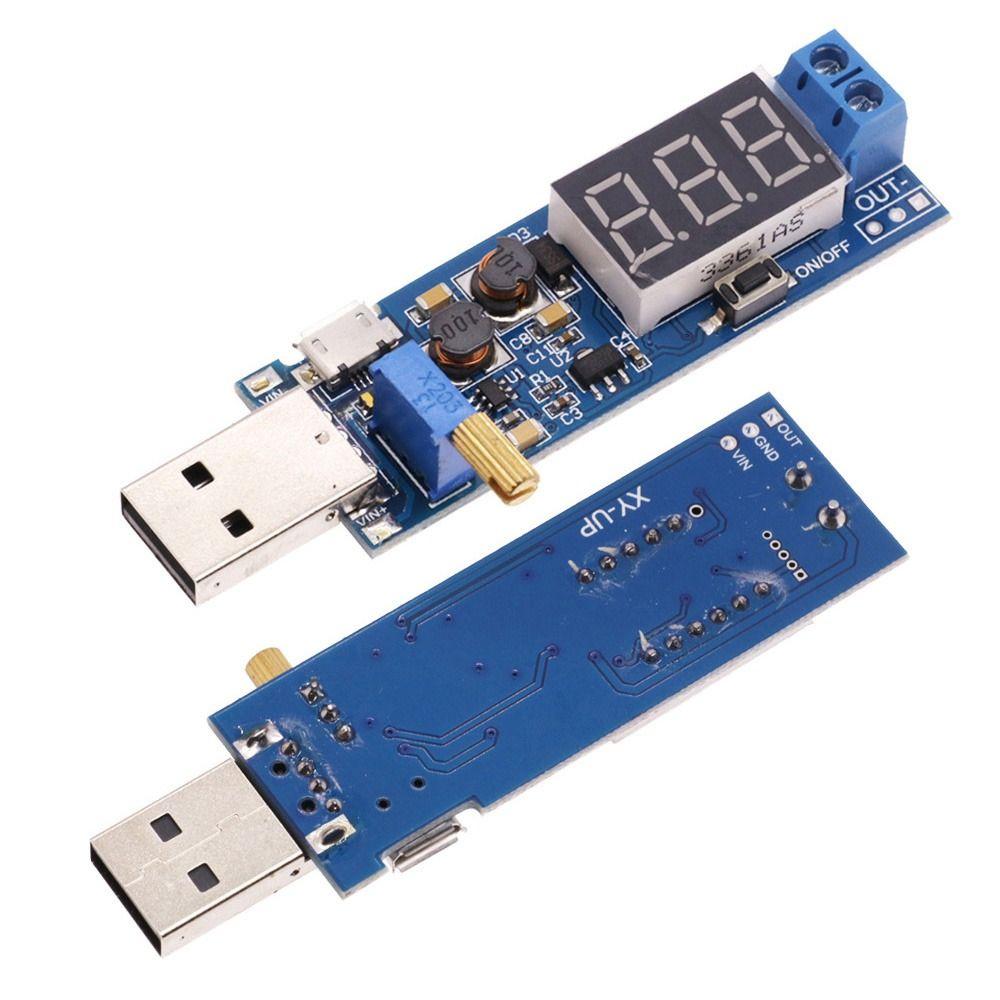

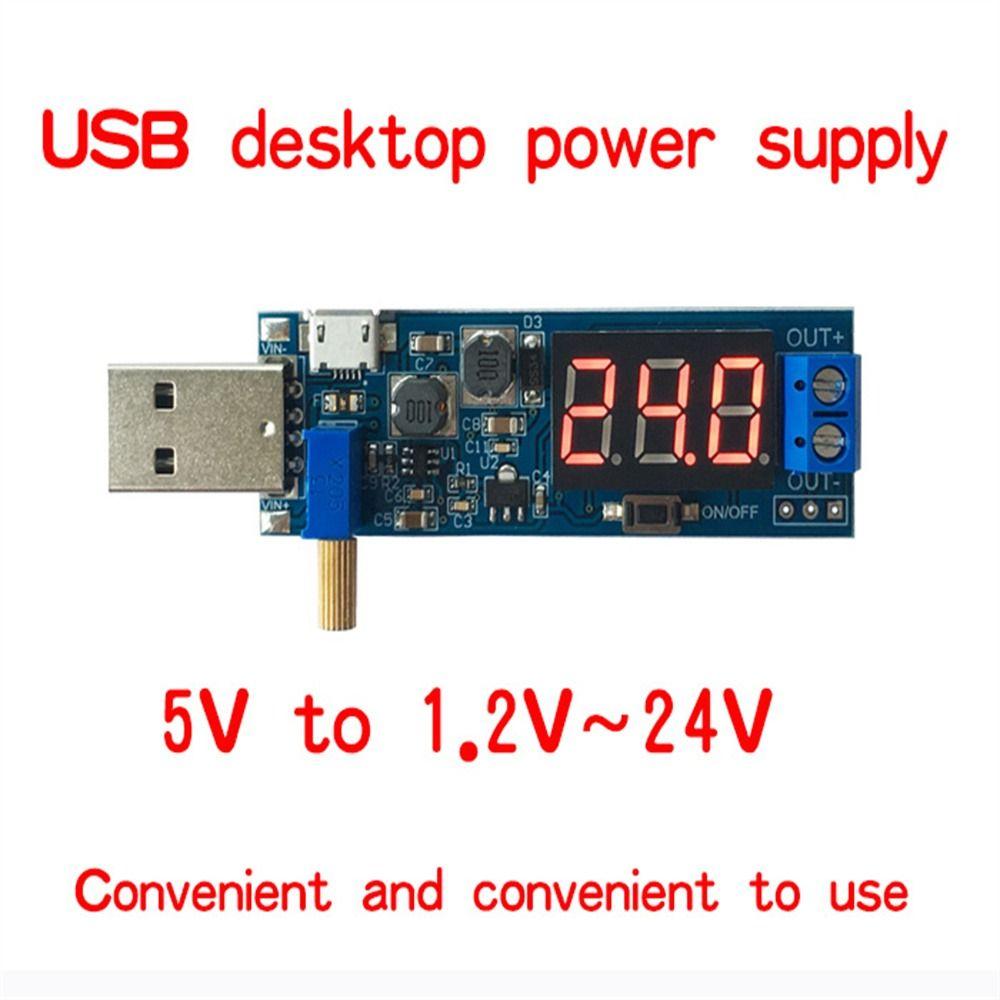

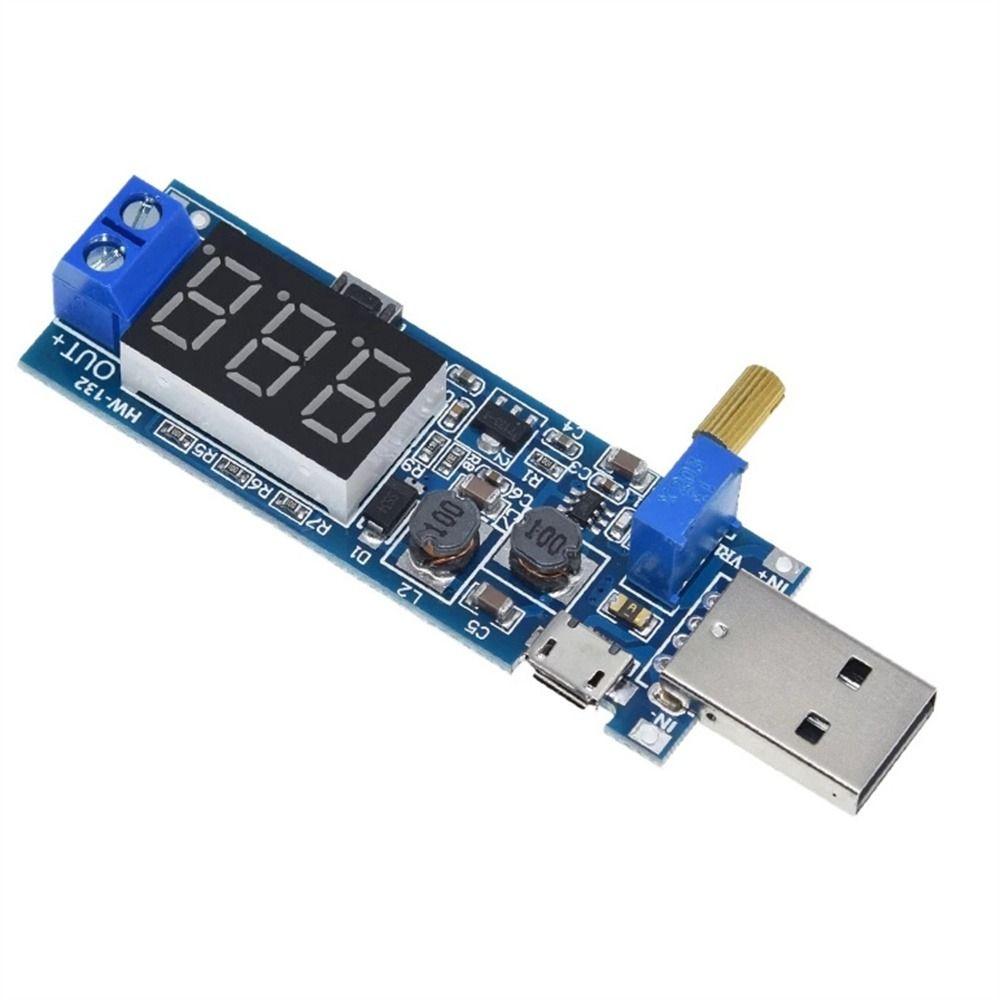

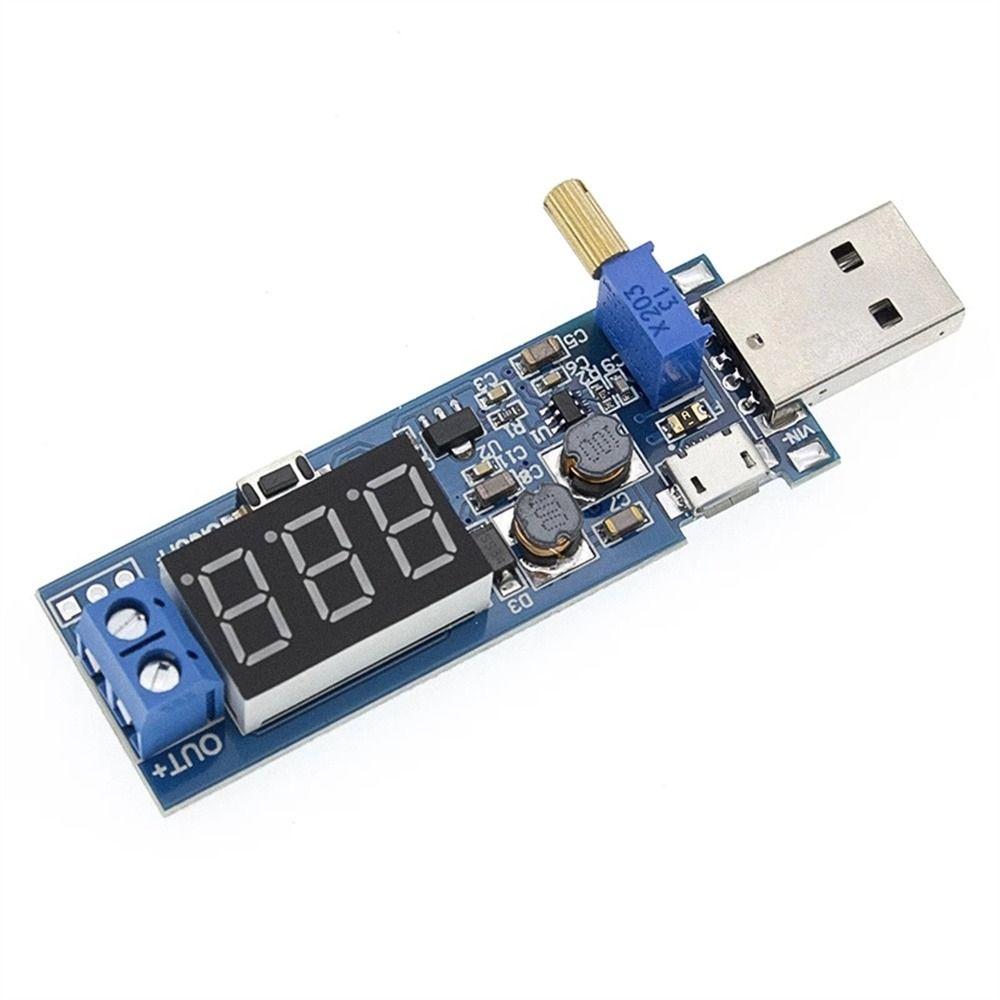

Display LED Voltmeter Power Supply Modul Voltage Stabilizing Module Power Module Voltage Regulator

Label:Yes Size:as shown Material: metal Packing List:1Pc Module Color:Black Type:USB Step UP / Down Power Supply Module Features: 1>.One button to turn off the output; 2>.Supply ON/OFF display screen;

3>.Support low power mode; 4>.Support sleep mode; 5>.Support both standard USB and Micro USB and pads input voltage; 6>.Potentiometer with rotating handle.

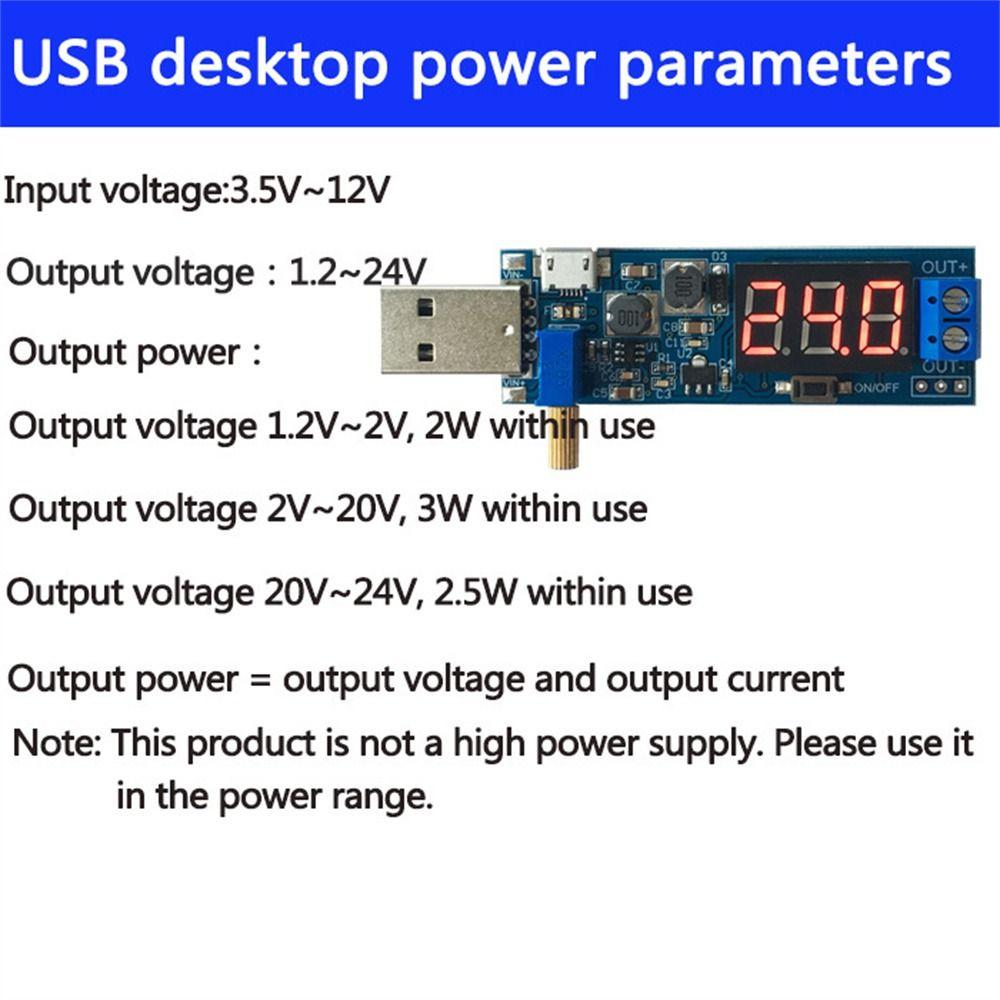

Parameters: 1>.Input voltage: DC 3.5-12V; 2>.Output voltage:DC 1.2-24V; 3>.Output power:

Input 1.2-2V,output power within 2W;

Input 2V-20V,output power within 3W;

Input 20V-24V,output power with in 2.5W; 4>.Display:3Bit digital tube display; 5>.Size:80*20*14mm.

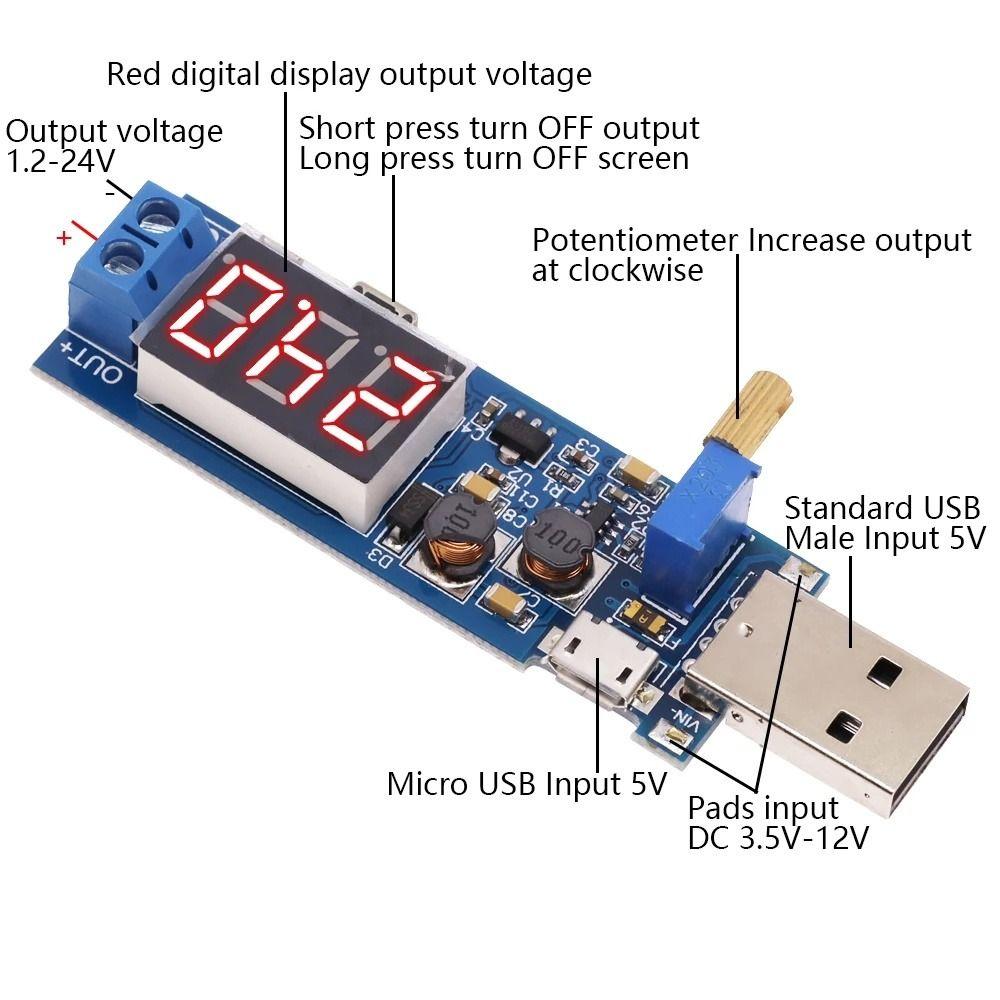

Use steps: 1>.Input voltage from Standard USB or Micro USB or VIN+' and VIN-'; 2>.Turn ON display screen; 3>.Adjust potentiometer to get the required voltage; 4>.Connect load.

Please Note: t is not a high power supply, please use it within the power range.
