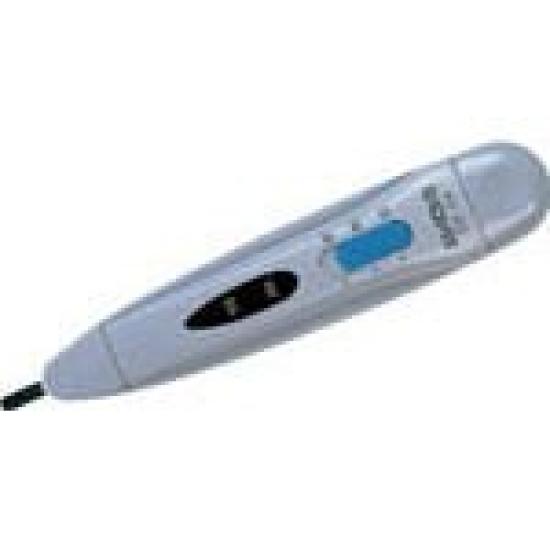

Kyoritsu Electric Low Voltage Detector DX-04… Ещё

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. Measurement voltage range: AC80V to 600V Applicable wires: bare wires and coated wires Battery used: Lithium battery CR2032 (3V) x 1 Frequency: 50/60Hz Dielectric strength: AC2000V / 1 minute (between detector and switch) ◆ Operating voltage range: AC80V to 600V ◆ Operation start voltage (bare wire/voltage to ground): The first LED lights up at a voltage to ground of 55V±15V The second LED lights up at a voltage to ground of 75V±15V The third LED lights up at a voltage to ground of 130V±15V The fourth LED lights up at a voltage to ground of 150V±15V The sound starts when the first LED lights up. ◆Frequency: 50/60Hz ◆Temperature range: 0℃ to +40℃ ◆Applicable wire: bare wire, coated wire ◆Dielectric strength: AC2000V/1 minute (detector to switch) ◆Light emission: can be seen in a place with 8000 lux ◆Sound: 50 or more phons at 50cm ◆Battery used: 1 x lithium battery CR2032 (3V) ◆External dimensions: 147×28×21.5mm ◆Weight: approx. 35g (including battery) ◆Accessories: 1 x lithium battery CR2032, instruction manual
