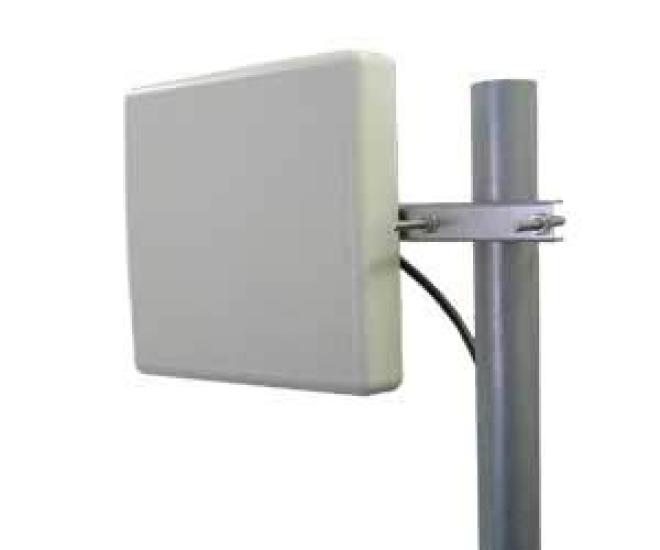

Antenna Technology Patch type planar antenna 4 patches 14dBi 2400~2500MHz SMA-J PAT214S-24… Ещё

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

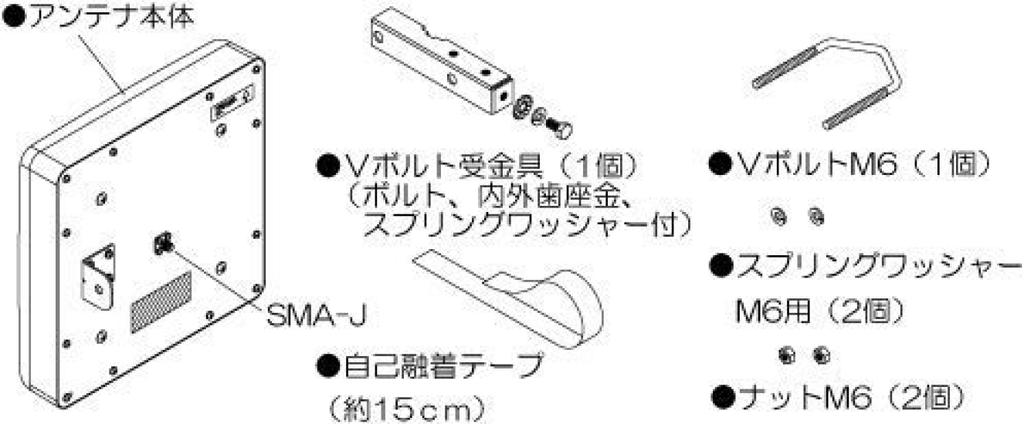

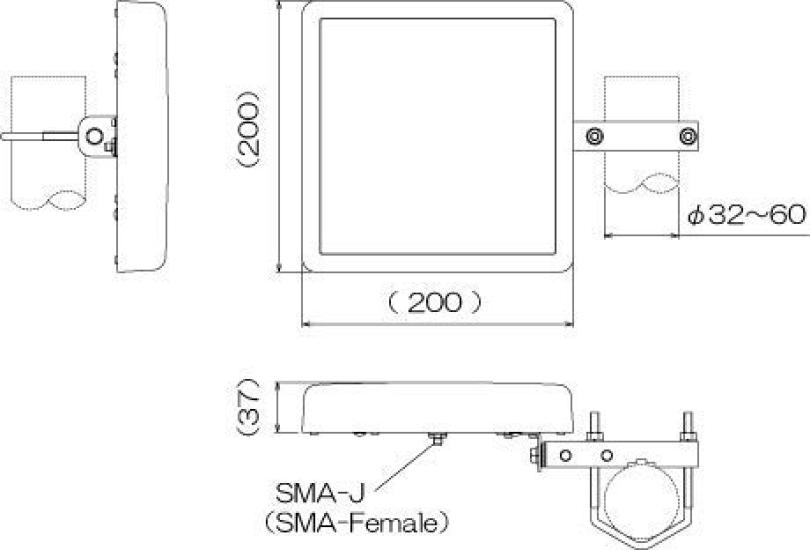

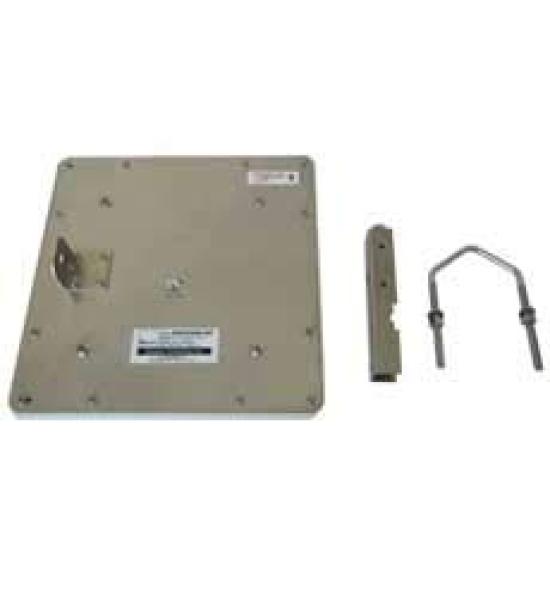

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. Patch structure with waveguide realizes miniaturization, high gain, and wide band. This antenna has a DC ground structure. It is very effective in preventing equipment failures caused by induced lightning. [Note] Not effective against direct lightning. Install a lightning rod to protect against direct lightning. The mounting hardware is made of rust-resistant stainless steel. [Main specifications] ■Model name PAT214S-24 ■Format: 4-patch planar antenna with waveguide ■Frequency range 2400~2500MHz ■Wireless LAN standard IEEE802.11g/b ■Gain nominal 14dBi ■Half width E side: approx. 30 degrees / H side: approx. 30 degrees ■Input impedance nominal 50Ω ■Standing wave ratio 2.0 or less ■Maximum input power 3W ■Connector SMA-J type (SMA-Female) ■Weight: approx. 0.7 kg (including mounting hardware) ■External dimensions: approx. 200 x 200 x 37 mm (excluding antenna and protrusions) ■Wind speed 50 m/sec ■Applicable mast diameter φ32 to 60 mm
