【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
Comes with Japanese customer technical support and instructions for safe and accurate operation.

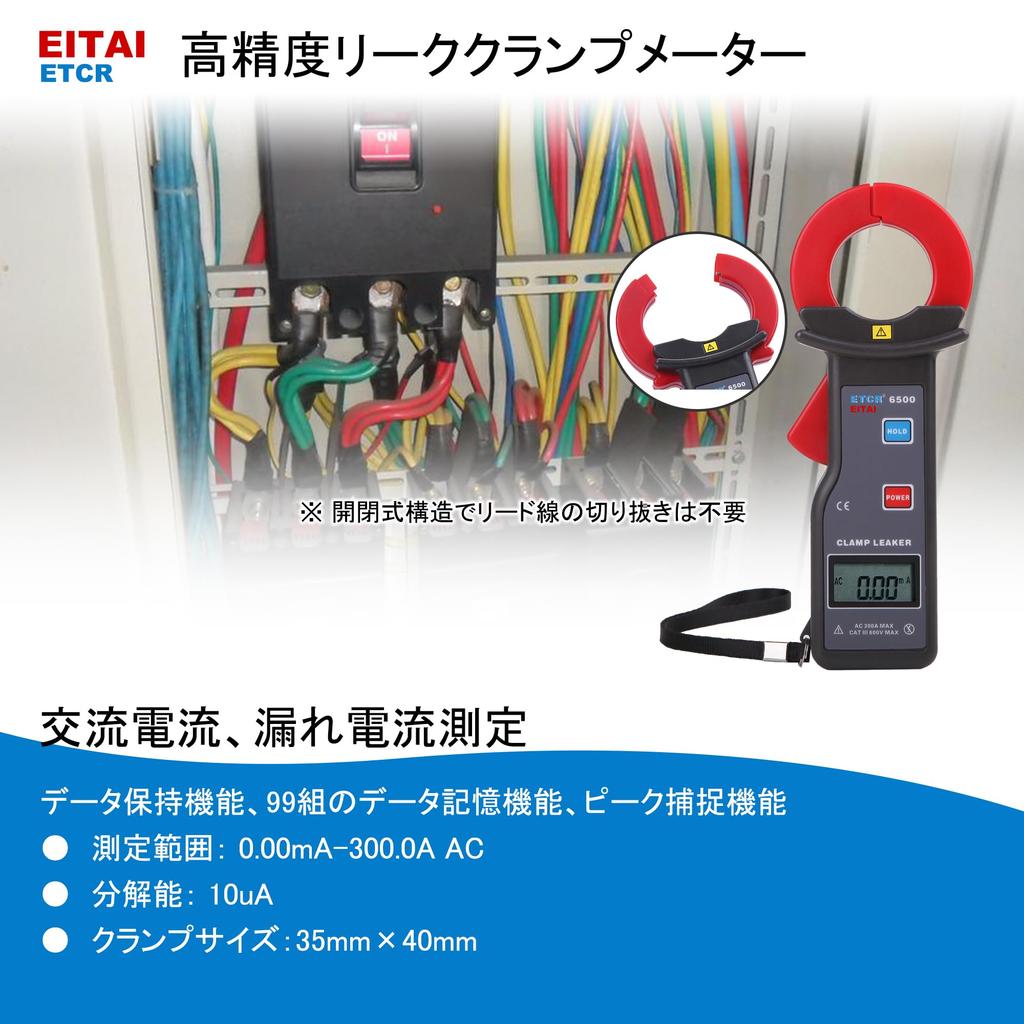

[Excellent Function] Current detection of 0.01mA-300.0A AC with ultra-high accuracy of 10uA. Applicable to a wide range of fields such as power measurement systems.

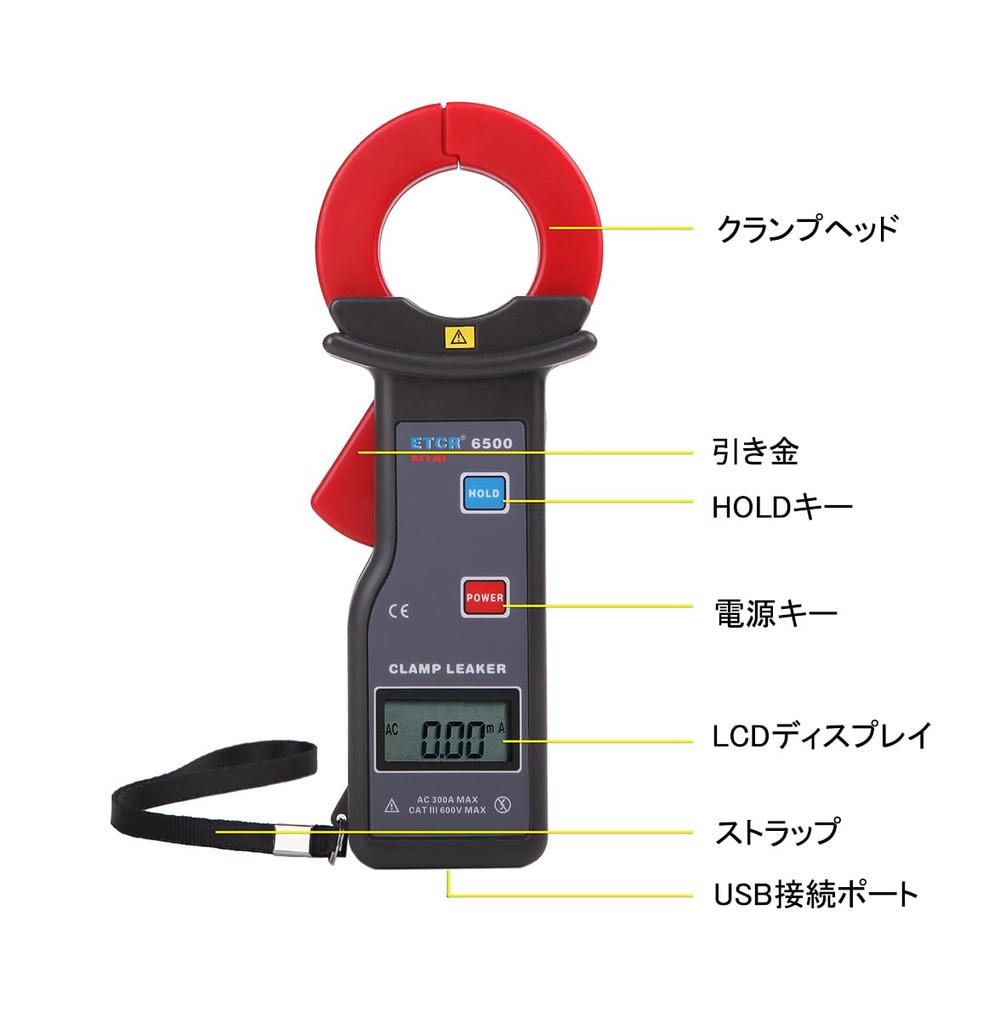

【Multi-function】Equipped with peak capture, data retention and data storage functions to ensure measurement integrity and accuracy. Equipped with a backlit LCD display, measurement results can be displayed directly for operators to see at a glance.

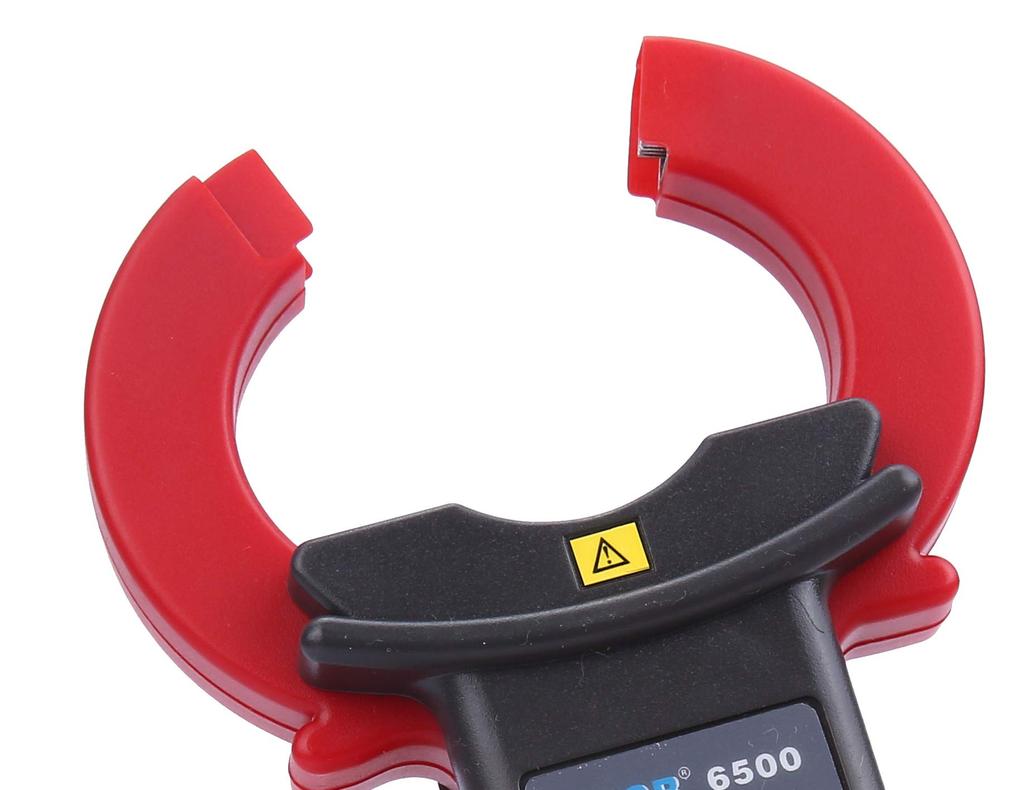

[Portable Design] The clamp meter has an open/close structure, so there is no need to cut out the lead wire. Compact, lightweight and convenient to carry. Compatible with various environments.
【High Accuracy and Stability】The ammeter clamp has a wide measurement range, stable performance and good analysis ability to provide accurate measurement results.
[Safety and Reliability] The leak clamp meter uses non-contact technology for safe operation, safer and more reliable.
Specifications: Model: ETCR6500 Leak Clamp Meter Measuring range: 0.00mA to 300.0A AC Resolution: 10uA CT size: 35mm x 40mm Body size: 184 x 70 x 37mm Body weight: 250g Function: AC leakage current measurement, AC current measurement Online AC measurement Power source: Al Ali dry battery 6LR61 9V Test mode: Clamp CT, integral method Display: 4-bit LCD monitor LCD size: 35mm × 21.5mm Sample rate: 2 times/second Frequency: 50Hz/60Hz (automatic recognition) Gear change: Auto Accuracy: 0~60A: ±1.5%rdg±5dgt 60A~200A±2%rdg±5dgt 200A~300A: ±3%rdg±5dgt Line voltage: Line test below AC600V Interface: Saved data can be uploaded to a PC, software can be monitored Peak hold: Peak capture hold function, during the test, long press POWER to display the peak without letting go Data retention: Data retention function - "DH" symbol display Overflow display: Overrun function - "OL" symbol display Automatic shutdown

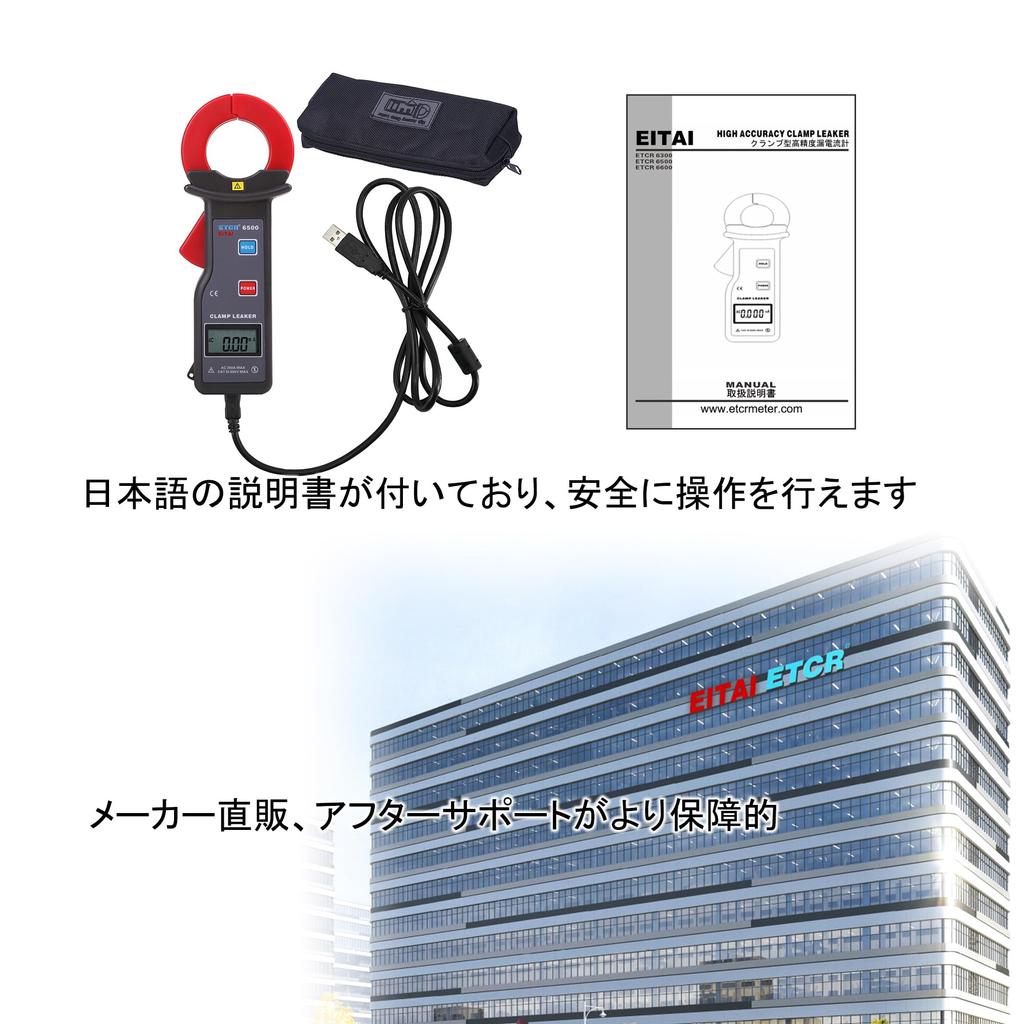

: The meter will automatically turn off after 5 minutes after turning on the power, no operation required Battery voltage: When the battery voltage drops to about 7.2V, a low battery voltage symbol will be displayed, prompting you to replace the battery Rated current: 5mA Operating temperature and humidity: -10℃~40℃, less than 80%RH Storage temperature and humidity: -10℃~60℃, less than 70%RH Insulation resistance: AC2KV/rms (between core and outer corner) Product Safety Standards: IEC1010-1, IEC1010-2-032, Pollution Level 2, CAT III (600V) Accessories: 1*Leak Clamp Meter 1*Japanese Instruction Manual 1*USB Cable 1*Meter Storage Pouch *Due to import regulations and customs reasons, this product does not include batteries, so please prepare them in advance Note: The color of the actual product may differ from the photo due to light. There may be slight deviations in product measurements.
