Feature:
1. Partially sealed electronic device designed for supporting electric generators, satisfy your needs.
2. Realize automatic adjustment of generator output voltage by controlling the excitation current of the generator exciter.
3. With high voltage stability, easy to use, automatic adjustment, convenient to operate.
4. Made of high?quality material, sturdy and durable, can have a long service time.
5. Small in size and light in weight, convenient to carry and use at any time, very convenient and practical.
Specification:

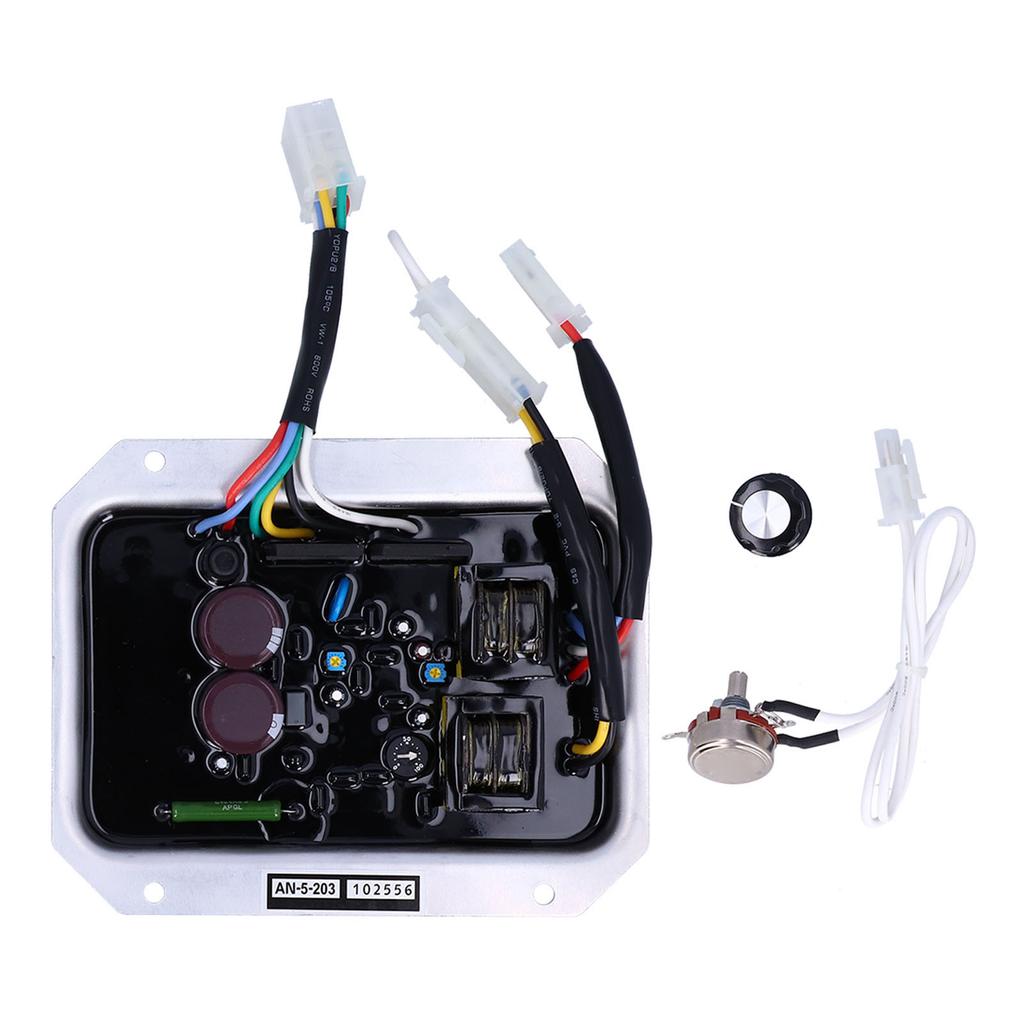

Item Type: Voltage Regulator Module
Part Number: 0601820660
Product Model: AN5203
Applicable Models: TLG18SPY, DCA13ESK, 15ESK, 25SPK, 25ESK, 25ESI, 25SPI
Auxiliary Winding Input: AC 55V220V;
Maximum Excitation Voltage Input: 120V5ADC10S
Main Winding Voltage Input: 400VAC, 50HZ60HZ
Low Frequency Protection 5060HZ adjustable;
Generator Field Resistance more than 50;
SteadyState Voltage Adjustment Rate less than 0.5percent ;
Voltage Adjustment Range more than 15percent ;
The Lowest Residual Excitation Voltage more than 5V30Hz;
When the external potentiometer is 1K Ohm 1W, the voltage is finetuned by 12percent ; when the external potentiometer is not used, the connecting piece is shortcircuited..
Package List:
1 x
Voltage Regulator Module 1 x Potentiometer1 x Knob Cap
Note:
Installation, connection, and inspection must be carried out by personnel with professional knowledge. Install the regulator in the generator or prevent it from being easily touched by others. In the running state, please do not touch the regulator to avoid dangerous accidents.Partially sealed electronic device designed for supporting electric generators, satisfy your needs.
Realize automatic adjustment of generator output voltage by controlling the excitation current of the generator exciter.
With high voltage stability, easy to use, automatic adjustment, convenient to operate.
Made of high?quality material, sturdy and durable, can have a long service time.
Small in size and light in weight, convenient to carry and use at any time, very convenient and practical.
