1 Pair Bridge Wireless CPE 5.8G Network Signal Amplifier

Description: This is an outdoor high performance 300 Mbps 5.8G CPE with an operating frequency of 5G. It supports point-to-point and point-to-multipoint wireless connections. It has better anti-interference performance than 2.4G products. It can be managed through the web interface. Features: Compliant with 5.8GHz IEEE 802.11a, IEEE 802.11n standard. Support CSMA/CA, CSMA/CD, TCP/IP, PPPoE, DHCP, ICMP, NAT protocol. Transmission distance: 3 km (visible unobstructed environment). Low interference: Most wireless devices currently work at 2.4G frequency. 5G frequency makes it better anti-interference performance. Transmission speed is up to 300 Mbps, built-in 16 DBI directional antenna, can significantly improve the transmission and reception performance of wireless signals. Support PoE power supply (50 meters) power supply, easy to install, cost saving. Support 64 / 128 bit WEP encryption and WPA - PSK, WPA 2 - PSK security protection. Good compatibility and strong anti-adjacent channel interference; it can be automatically adjusted to the optimal transmission speed according to the actual signal strength and transmission distance. Web user interface (remote configuration). Specifications: Condition: Brand New Material: ABS plastics Color: White Packing Size: 28*28*21cm/11*11*8.3in Weight: Approx.1732g/61.1oz Hardware Specification: Chip Solution: CPU: AR9344 RF: AR9344 Compliance with standards: IEEE802.3u MDI/MDIX 10/100Mbps, IEEE802.11b/g/n DDR memory: 64Mbyte FLASH flash: 8Mbyte POE power supply: POE 24V (can support 50 meters network cable power supply) CPU frequency: 533MHz Wireless configuration: 2*2 (2Tx, 2 Rx) Antenna: Built-in 16dBi dual-polarized directional antenna (horizontal lobes 60 degrees vertical lobes 20 degrees ) Ethernet interface: 2 *10/100Mbps network port Reset button: 1 reset button to reset the device to factory settings Upgrade mode: Supports upgrade from the wired port through TFTP mode, supports wired or wireless connection to the device, and upgrades through the webpage. LED indicator: power indicator Power light on: power on / system start Power light off: power off / system off Wired indicator Off: The Ethernet port is disconnected. The light is on: the Ethernet port is connected normally. Blinking: Packet is being transmitted Wireless indicator (AP mode) Light off: wireless off Blinking: Packet is being transmitted Wireless indicator (client mode) Two signal lights represent the signal strength, two lights are always bright, the signal is the strongest, two lights are all flashing, and the signal is the weakest. Weakest Power supply: 24VDC 1A Wireless transmission rate: 11a: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps HT20: 6.5M, 13M, 19.5M, 26M, 39M, 52M, 58.5M, 65M, 13M, 26M, 39M, 52M, 78M, 104M, 117M 81M, 104M, 108M, 117M, 130M HT40: 13.5M, 27M, 40.5M, 54M, 81M, 108M, 121.5M, 135M, 27M, 54M, 81M, 108M, 162M, 216M, 243M, 270M, 300M Modulation method: OFDM/BPSK/QPSK/DQPSK/DBPSK RF frequency range: 5180 GHz-5825 GHz Power consumption: less than 8W (including wireless) Output power 25 degrees C (+/-2.0dB): 802.11a: 6-24Mbps 24.0 +/- 2.0dBm

36-48Mbps 23.0 +/- 2.0dBm

54Mbps 22.0+/- 2.0dBm Sensitivity: IEEE 802.11a 6Mbps less than -90dBm

54Mbps less than -71dBm

IEEE 802.11n HT 20 MCS 0 less than -86dBm

MCS 7 less than -68dBm

HT 40 MCS 0 less than -83dBm

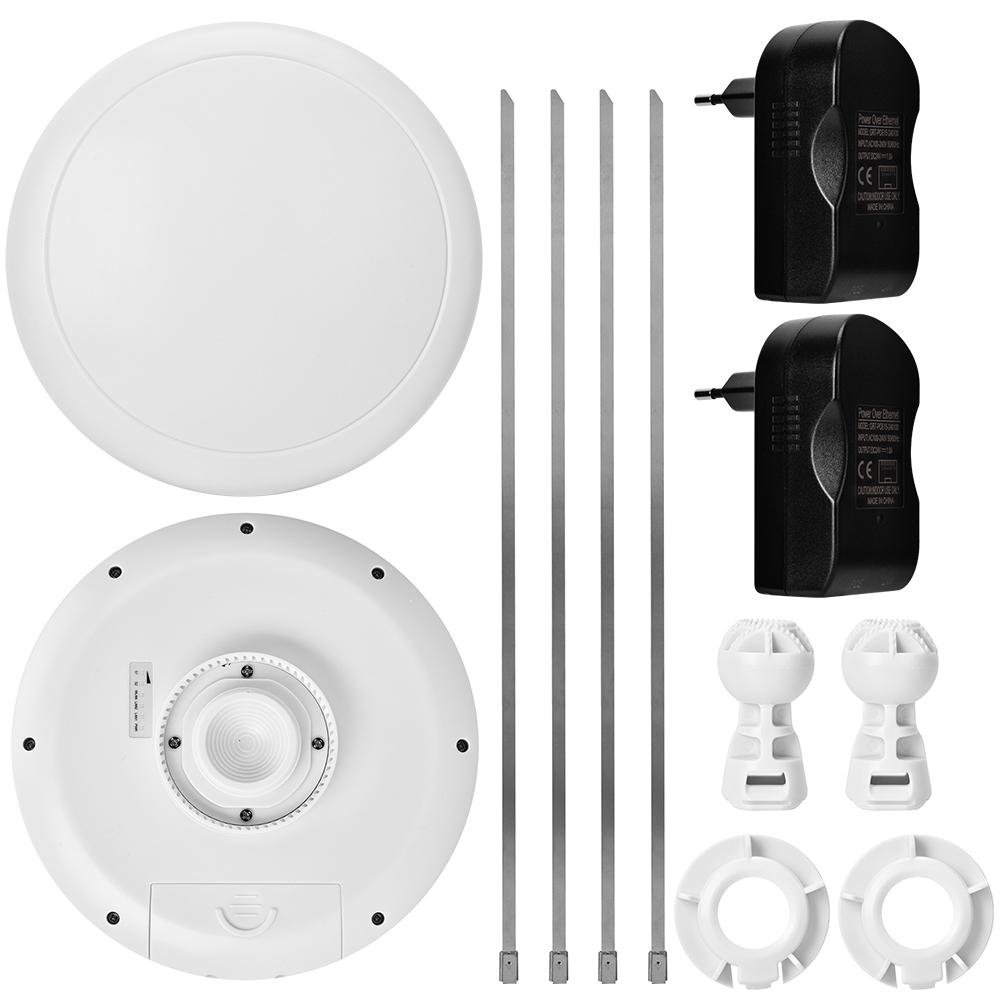

MCS 7 less than -65dBm Environmental Specifications: Operating temperature: -20~+70 celsius Operating humidity (no condensation): 10percent ~95percent RH Storage temperature: -40~+85 celsius Storage humidity (no condensation): 10percent ~95percent RH Environmental protection: RoHs Compliance Package List: 2 * Wireless Bridge 2 * 24V POE Power Supply 2 * Universal Bracket 2 * Fixed Ring 4 * Tube Clamp 2 * English Manual .

Number of LAN ports: 1 Wi-Fi version: 802.3u Wireless data rate 2.4 Ghz: 10MB/s
