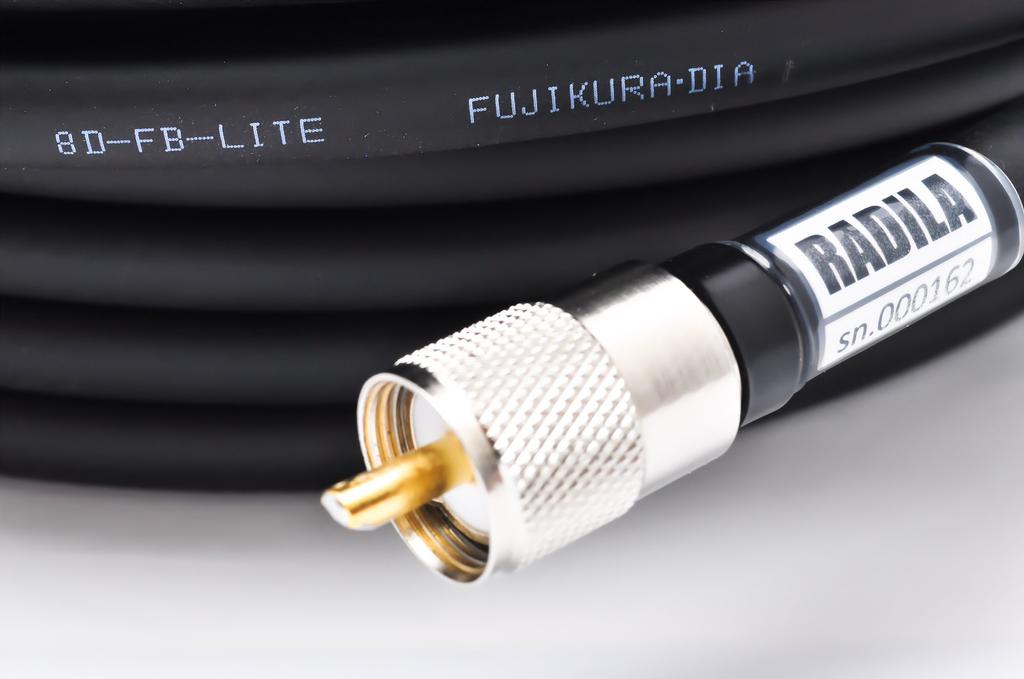

RADILA(Radio Technologies Laboratory) RADILA Coaxial SWR Low measurement data Radio Coaxial Cable 8DFB MP ML MLJ MJL MLMP MPML (Fujikura 8D-FB) (7m...

------------------------------------------------------------------------------------------------------------------ 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction. 【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary. 【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product. 【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ------------------------------------------------------------------------------------------------------------------ RADILA is a manufacturer of wireless equipment. ▸Although we are not well known, we have delivered tens of thousands of cable products to customers as a manufacturing contract for a famous wireless manufacturer. ▸In order to meet the demand for high-performance cables, we launched the RADILA brand and began manufacturing and selling original products with an emphasis on performance. ▸RADILA has many engineers who have been involved in defense technology, and RADILA's products are generously infused with defense technology know-how. ▸We deliver high-quality products to everyone in terms of materials, manufacturing technology, and quality control. Low SWR specification. ▸SWR is proportional to frequency and becomes an important factor beyond the HF band. ▸In the 145MHz band and above, connector selection is important, and especially in the 430MHz band, the SWR changes greatly depending on the connector selection. ▸For RADILA products, we collect and measure a large number of connectors from Japan and abroad, use the best ones, and independently test how to attach them to cables to derive the best performance. Low loss. ▸Loss is greatly affected by the attenuation rate of the cable as well as the SWR of the connector. ▸ Even at lengths of several meters for mobile applications, the attenuation rate is not a negligible level and is considered a problem. ▸The thickness of the cable has a limit depending on the intended use, so if the thickness is the same, it will be compatible with the type. ▸This product uses 8D-FB-LITE, which is one rank thicker than 5D. ▸The 8D-FB-LITE series manufactured by Fujikura Dia Cable Co., Ltd. has much lower loss than 5D-FB-LITE, and even exceeds the one rank thicker 10D-2V. ▸The FB-LITE series uses CA wire (aluminum clad wire) for the internal conductor, making it extremely lightweight and easy to use, with a specific gravity less than half that of regular FBs, while maintaining electrical performance. ▸In addition, the outer cover is smooth and made of matte black PVC material. ▸When bending, please draw a gentle circle with a diameter of about 20cm, as loss performance will deteriorate if you bend it. Actual measurement data attached (SWR and passing loss) ▸ Normally, cable products are inspected only to check continuity and insulation, but with RADILA products, in addition to these, SWR, passing loss, phase, etc. are measured using a VNA (vector network analyzer). ▸Measurements are performed by 100% inspection, not by sampling. ▸All products are affixed with serial numbers to ensure thorough quality control. The screws of the MP connector are metric screws. ▸ Regarding the screws of M-type connectors, the so-called M-type connectors currently in circulation in Japan include M-type connectors that use metric screws in accordance with JIS standards, and UHF connectors that use inch screws (PL259, SO239, etc.). ▸There is no difference in appearance between the two and it is difficult to tell them apart, but the difference is that once the screws are fitted together, they are tightened all the way. ▸This RADILA product uses a metric screw M type connector.
