[TV Setter Kabe Bijin Series] This TV wall hanging bracket was created in collaboration with Kabe Bijin, a patented technology that attaches metal fittings to the wall using staples. Since the metal fittings are fixed with staples, you can create a wall-mounted TV without making noticeable scratches on the wall. Recommended for people who live in rental housing or who have given up on wall-mounted TVs due to concerns about installation.
[Product Features] This is an epoch-making product that overturns the common sense in the TV hardware world that ``fixing to the wall is done with screws''. Plasterboard can be installed anywhere. The angle of the TV screen can be adjusted up to ±15 degrees up and down. Compared to screws and pins, stapler cores leave less noticeable marks when removed.

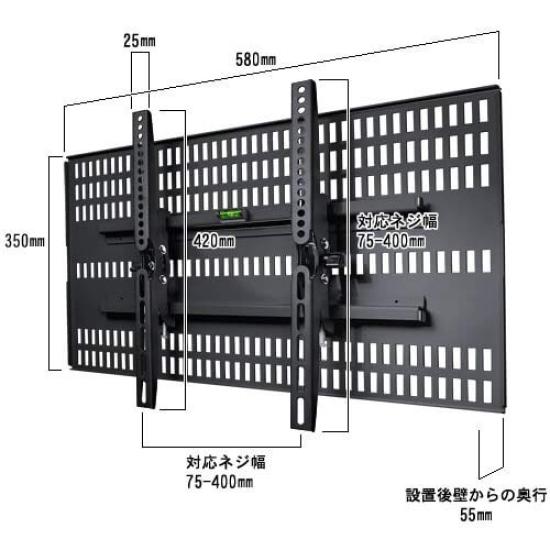

[Product specifications/Materials/Included items] W580mm x H420mm x D55mm | Metal fittings weight: 3.4kg | Main material: Steel | Product contents: Complete set of metal fittings, wall beauty film, stapler, staple guide, installation manual, set of screws (TV mounting screws [M4x12 4 each]
[Compatibility conditions] The wall must be made of gypsum board | The back of the TV must have screw holes for wall mounting | The stand must be removable (some TVs come with an integrated stand) | The back of the TV must be flat | TV size must be between 37 and 47 inches | The weight of the TV must be 20 kg or less | The spacing between the wall mounting screw holes must be within the range of vertical: 75 to 400 mm and width: 75 to 400 mm | For more information, please try the compatibility check system below.
[About detailed compatibility check] We have a "TV compatibility check system" available on our website. Please contact us for TV model numbers that cannot be selected using the compatibility check system. →https://starplatinum.co.jp/product-detail/?product_id=225
[Precautions during installation] A little trick is required when inserting the stapler. It is especially difficult to install the stapler in high or low places, so if you are unable to insert the stapler properly during installation, or if it slips or shifts, there is a video on our website showing how to do so. →https://kabebijin.net/user_data/setting.php
[Earthquake resistance testing using 3D vibration waveform inspection] At our store, we conduct tests on the main products of the TV Setter series by installing a pseudo wall that imitates an actual house on a full-fledged 3D vibration inspection machine, and reproducing the seismic waveforms from the Great East Japan Earthquake. We have installed a seismic intensity meter used by the Japan Meteorological Agency, and have confirmed that it can be used without any problems even during earthquakes of magnitude 6 or above and magnitude 7. We perform meaningful inspections from the customer's perspective that cannot be obtained with ``traction inspections,'' ``tensile tests,'' or ``vibration inspections that only detect rolling motion.''
[Special Note] Depending on the production lot of the product, specifications, packaging, etc. may be changed without notice due to improvements. |The included TV mounting screws are service items. Compatible with most TVs, but in rare cases the size may not match. In that case, please prepare it separately. ｜For safety reasons, do not install the product in areas with heavy foot traffic, vibrations, or where objects may fall on your head. ｜Staples cannot be used on rigid gypsum boards because staples will not penetrate them. ｜If you have any questions, please contact the seller STARPLATINUM (a store specializing in LCD TV wall mounts) using the [Ask a Question] link.
[Reliable warranty/insurance system] Our original TV fittings "TV Setter" series comes with a 3-year warranty. If the TV setter fittings themselves deteriorate over time and become difficult to hang on a wall within 3 years from the date on the delivery note under normal usage conditions, we will replace them with products with equivalent functionality. If an accident occurs due to our metal fittings, we have PL insurance of up to 300 million yen. *This is not a guarantee against disasters such as earthquakes or accidents caused by installation. If the TV/monitor manual specifies the installation angle (fixed at 0 degrees), circumferential spacing (ensures ventilation), or other installation conditions, please follow those instructions when installing. There is no guarantee against accidents or breakdowns caused by conditions that differ from the installation conditions, so please check the instructions carefully before installation.
[Return Guarantee] We accept returns for unopened and unused items within 30 days of receiving the item (excluding items that cannot be returned or exchanged). Please check the condition of the product immediately after receiving it. For more information, please see our "Returns and Refunds" section.
