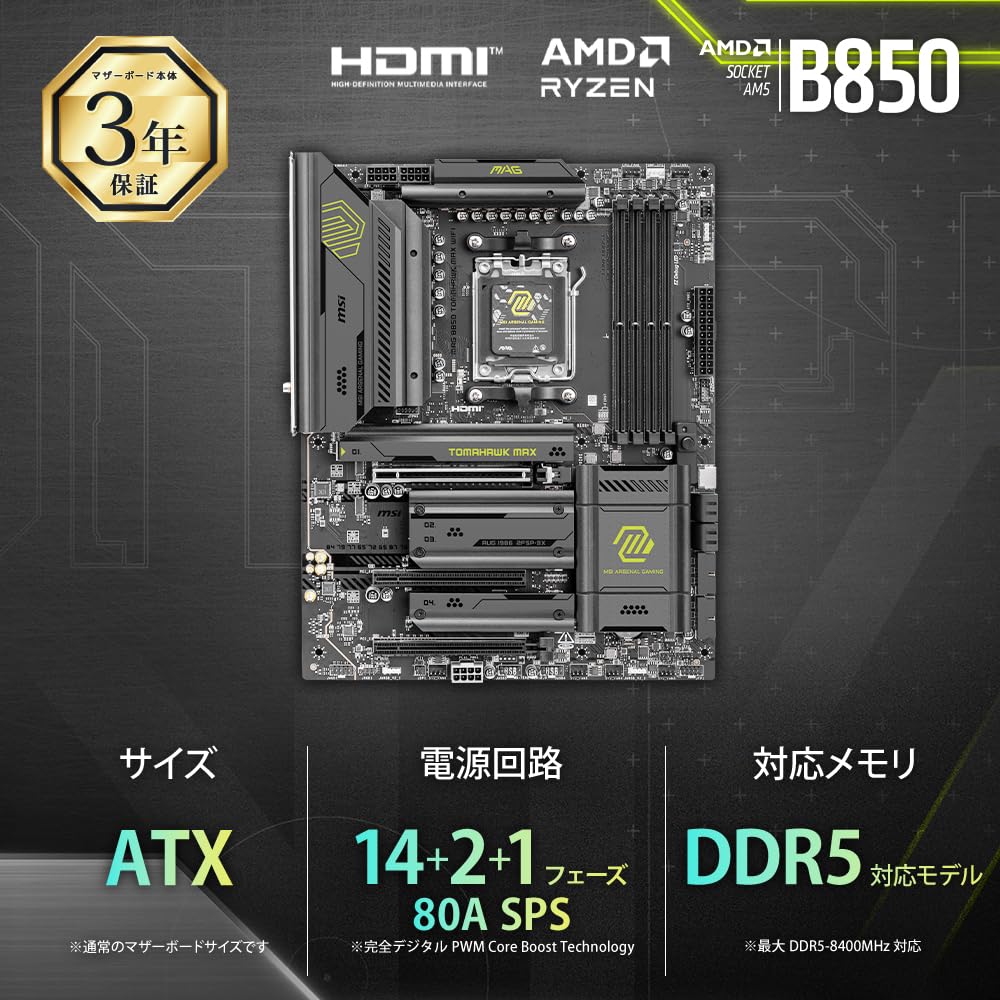

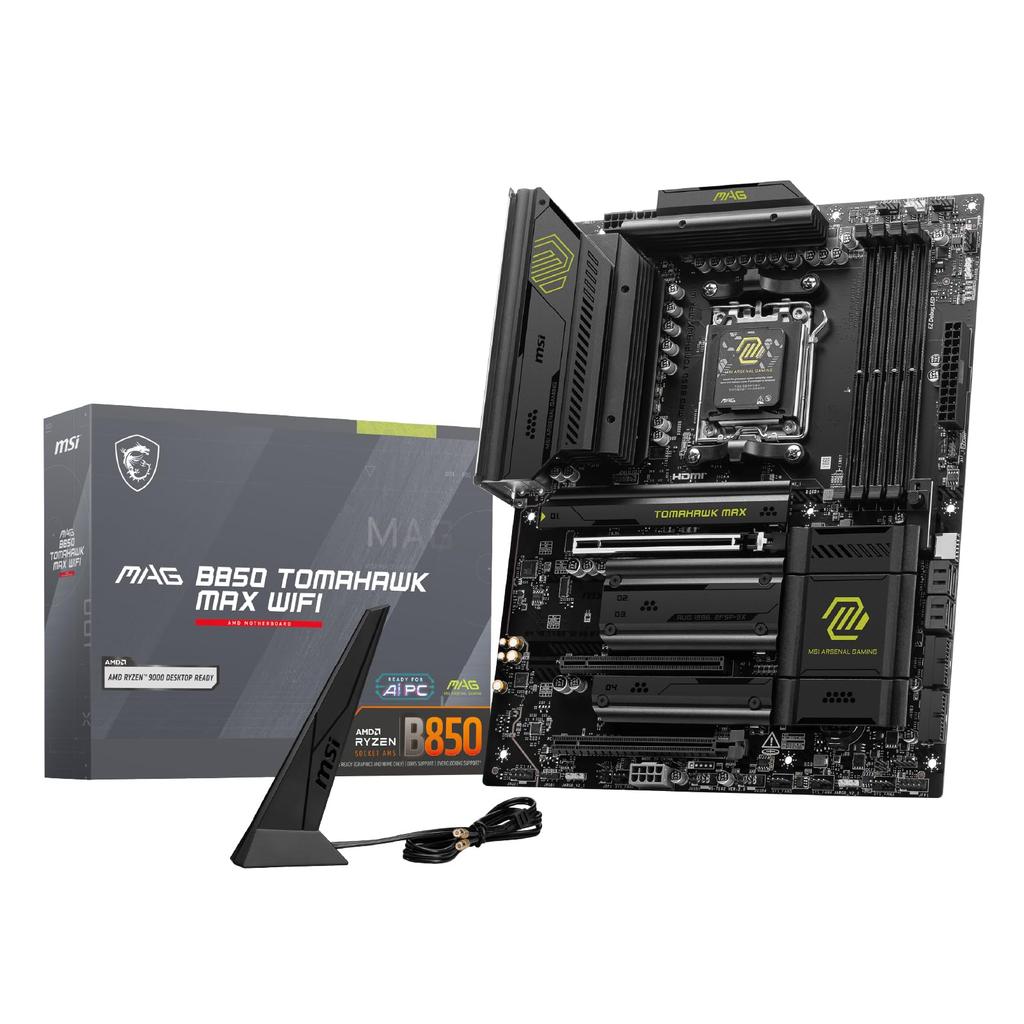

MSI MAG B850 TOMAHAWK MAX WIFI AMD Ryzen 9000/8000/7000 series (AM5) compatible ATX motherboard MB6743

[Product Infomation]

Brand : MSI Materials : Plastic

[Product Description]

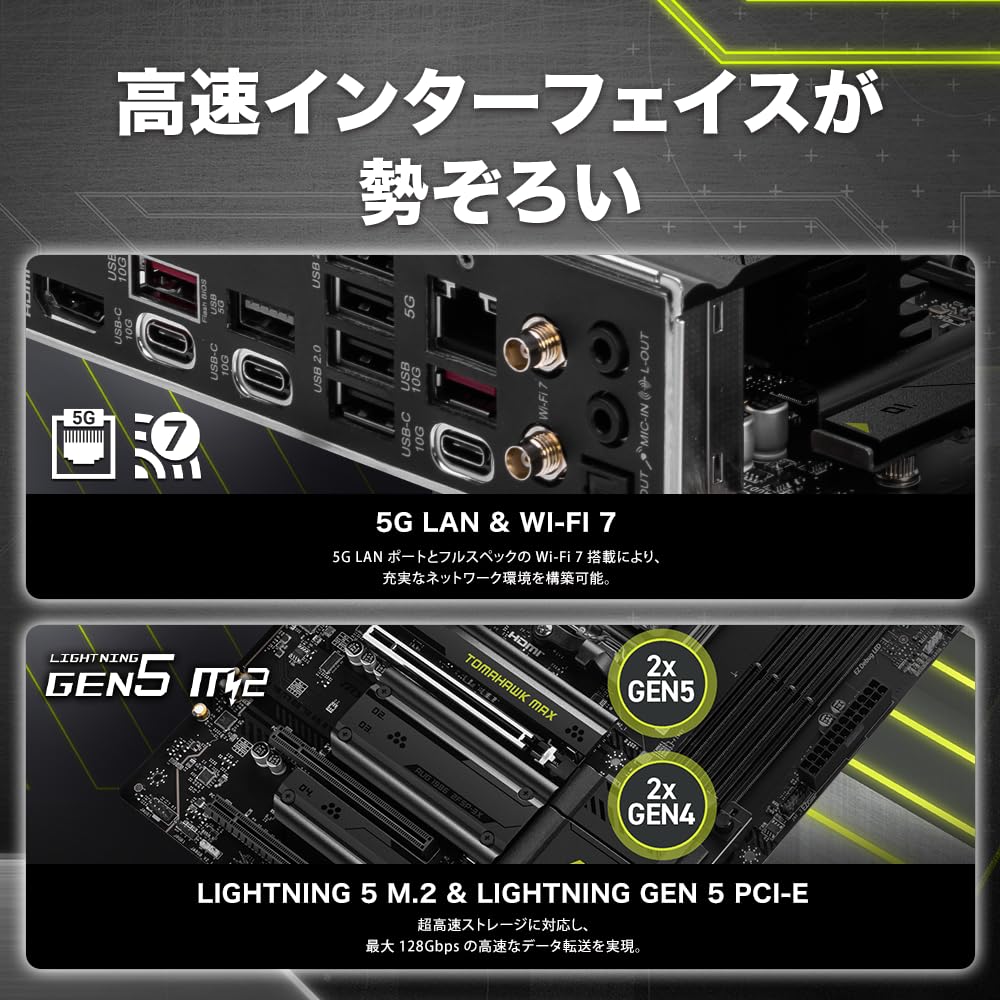

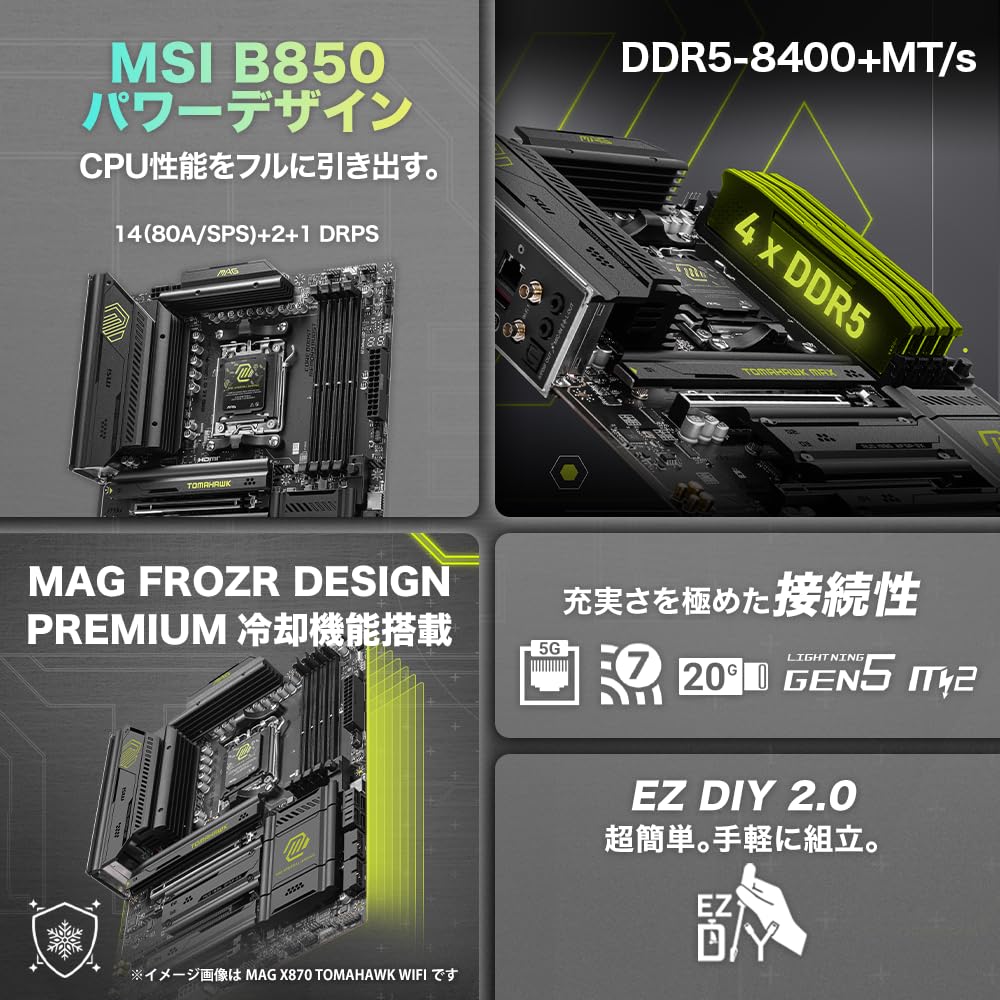

・MB6743 Japanese authorized distributor product 3 years warranty - Equipped with B850 chipset and compatible with AMD Ryzen 9000/8000/7000 series CPUs and APUs. It also supports DDR5 memory, allowing you to build a high-speed system environment. - Adopts 14+2+1 phase Duet Rail power system and 80A smart power stage (SPS) to achieve stable power supply. This maximizes the performance of high-end processors. - Equipped with extended heatsink design and 7W/mK MOSFET thermal pad to support effective heat dissipation. This increases system stability and durability ・Equipped with Wi-Fi 7 and wired 5G LAN to provide stable network connection. Wi-Fi 7 supports speeds of up to 5.8Gbps, allowing you to create a comfortable online environment with low latency.

This is an ATX motherboard equipped with AMD B850 chipset and compatible with AMD Ryzen 9000/8000/7000 series processors. ●Form factor: ATX (304.8×243.84mm) ●Chipset: AMD B850 ●CPU socket/Compatible CPU: Socket AM5/AMD Ryzen 9000/8000/7000 series processors ●Power phase: 14+2+1 80A SPS power phase ●Memory socket: 4x DDR5 UDIMM up to 256GB ●Supported memory: DDR5 4800~8400 (OC) Compatible with AMD EXPO ●Expansion slots: 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x4 slot, 1x PCIe 3.0 x1 slot ●Storage: 4x M.2 (2x PCIe 5.0 x4 compatible, 1x PCIe 4.0 x4 compatible, 1x PCIe 4.0 x2 compatible), 4x SATA3 ●Video output: 1x HDMI (2.1) ●USB (rear): 3x USB 10Gbps Type-C, 2x USB 10Gbps Type-A, 1x USB 5Gbps Type-A, 4x USB 2.0 ports ●USB (front): 1x USB 20Gbps Type-C, 4x USB 5Gbps Type-A, 4x USB 2.0 ports ●Sound: Realtek ALC4080 Codec, 7.1ch ●Network: 1x wired LAN 5Gbps LAN, wireless LAN WiFI 7, Bluetooth 5.4 ●Supported OS: Windows 11 64bit ●Accessories: Quick installation guide, EZ Wi-Fi antenna, 3x EZ M.2 Clip II, EZ M.2 ClipsⅡ remover, SATA cable, 1 to 3 EZ Conn-Cable(V2), EZ Front panel cable

[Important Note - For Overseas Customers]

Thank you for purchasing this product. Please read the following important notes carefully before using this product overseas.

1. Legislation and safety standards This product complies with Japanese safety standards. Please check compatibility with local regulations and safety standards before use in your country. Certain product categories (electronics, cosmetics, food, etc.) may require certification from the importing country.

2. About electrical products [Voltage compatible] When using electrical appliances, please note that they are designed according to Japanese voltage specifications (90-110V), so using them at a different voltage may cause malfunctions.

[Plug type] Our products use the Japanese plug type (A type or B type). Please use a conversion adapter if necessary.

[Important notes regarding transformers and adapters] A transformer adjusts the voltage to suit the requirements of the equipment. Conversion adapters only change the shape of the plug and do not adjust the voltage. Using only the conversion adapter without a transformer may damage the product.

[About responsibility] We are not responsible for any failure or damage caused by improper usage, such as operating the product without a transformer.

3. Language and manual Product instructions and displays may only be in Japanese. The English version of the manual can be downloaded from our website.
