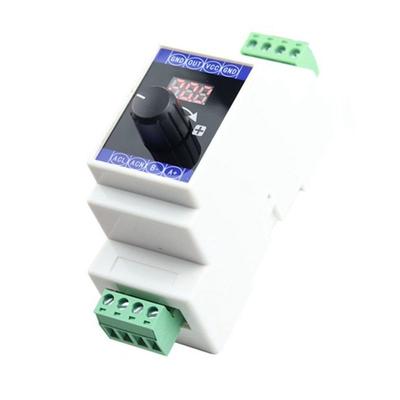

Feature:
1. Terminal port power supply, terminal port power supply voltage range: DC5?25V, anti?reverse connection and anti?surge protection, maximum power consumption: 24V50mA
2. It can be powered by MICRO USB port, supply voltage range: DC4?6v, maximum power consumption: 5V250mA; it can be powered by mobile phone charger, computer USB, and power bank.
3. Voltage type, current type output and display mode can be switched with one button through the SET button: the knob adjusts the size of the analog signal.
4. Voltage type output load impedance requirement>2K Ohm , current type output load impedance requirement<500 Ohm
5. One analog output, voltage type (output range: 02?10V) or current type (output range: 04?20mA) can be selected
6. This Signal Generator is the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research.
Specification:
Item Type: Signal GeneratorMaterial: ABSPurpose: signal generator
Terminal port power supply voltage range: DC525V
(Maximum power consumption: 24V50mA:)
MICRO USB port supply voltage range: DC46V
(Maximum power consumption: 5V250mA)
Voltage output range: 0210V
Current output range: 0420mA
Indicator light description:V (red): bright, the output is 010V voltage signal: flashing, output 210V voltage signal.
mA (green): bright, output 020mA current signal: flashing, output 420mA current signal..
signal
instruction
MICRO USB
Power supply voltage range: DC46V, can use mobile phone charger, computer USB, power bank to supply power.
PWR
Connect to DC 5~25V power supply
GND
Power and signal source
GND
Power and signal source
Vo
Voltage type analog output interface
mAo
Current type analog output interface
Package List:
1 x
Signal Generator
Note:
1. Do not place the product in an environment that is too corrosive, humid and high temperature!2. Please supply power according to the operating voltage, using other voltages may cause fire and product damage!Terminal port power supply, terminal port power supply voltage range: DC5?25V, anti?reverse connection and anti?surge protection, maximum power consumption: 24V50mA
It can be powered by MICRO USB port, supply voltage range: DC4?6v, maximum power consumption: 5V250mA; it can be powered by mobile phone charger, computer USB, and power bank.
Voltage type, current type output and display mode can be switched with one button through the SET button: the knob adjusts the size of the analog signal.
Voltage type output load impedance requirement>2K Ohm , current type output load impedance requirement<500 Ohm
One analog output, voltage type (output range: 02?10V) or current type (output range: 04?20mA) can be selected
