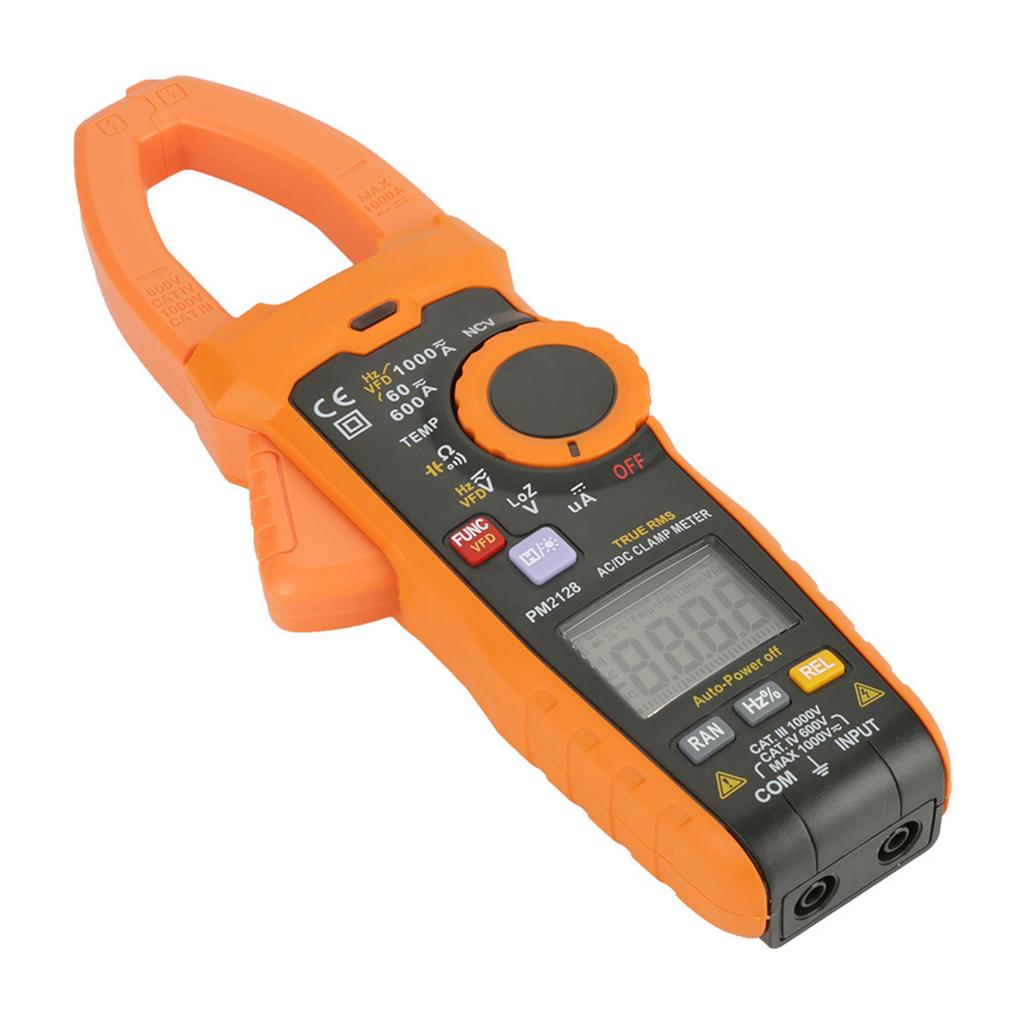

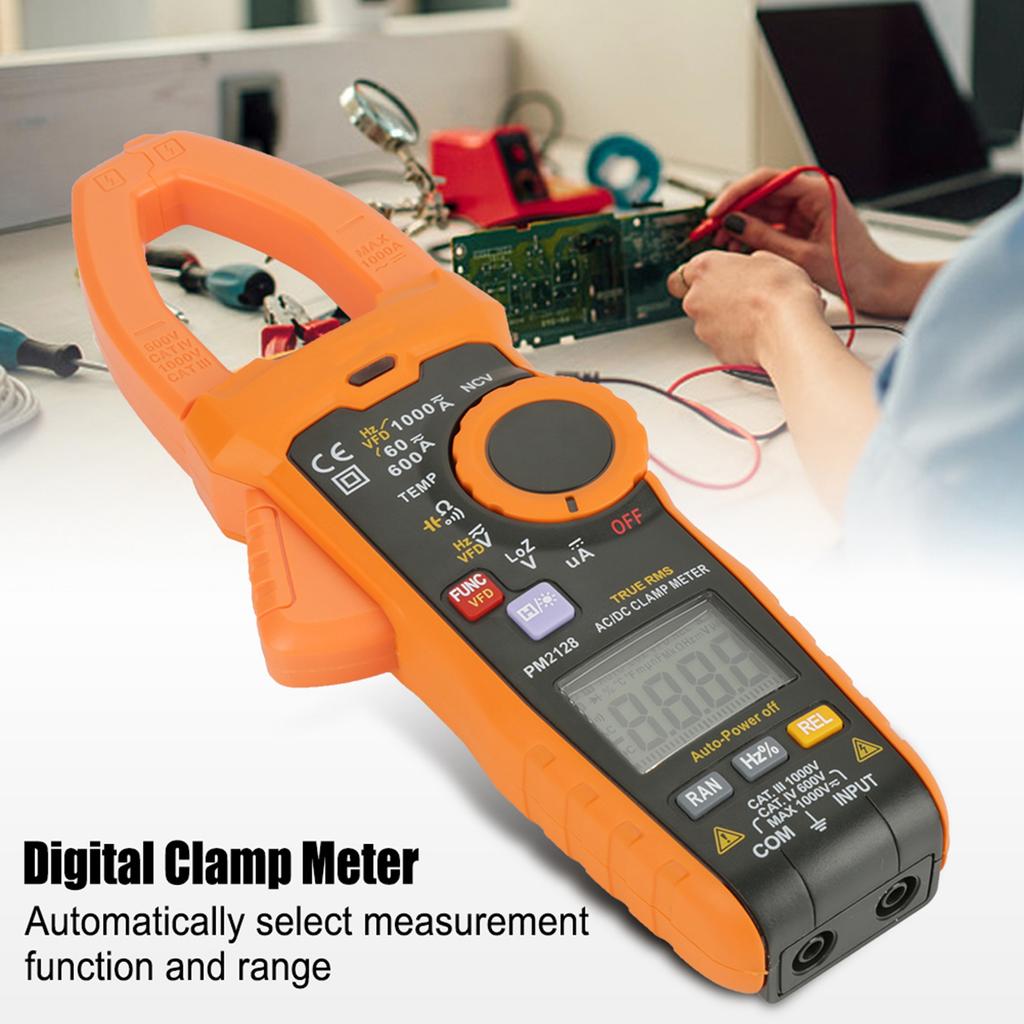

PEAKMETER PM2128 Handheld Digital ACDC Voltage Current Clamp Meter Resistance Capacitance

Features: 1. Automatically select measurement function and range. 2. Noncontact voltage detection expands use environment. 3. LCD display screen can show the measurement data accurately in real time. 4. With backlight display and flashlight, convenient to measure at darkness. 5. Provides data hold, continuity test, auto power off, analog bar and other functions. 6. Can also measure resistance, capacitance, temperature. Specification: Technical Parameters Range Accuracy DC Voltage 6V60V600V1000V +(0.5percent +5) AC Voltage (45~1000Hz)

(45~65Hz) 6V60V600V1000V +(0.8percent +5) 6V60V600V +(0.8percent +5) DC Current (40~65Hz) 60A600A1000A +(2.5percent +8) AC Current 60A600A1000A +(3.0percent +10) Resistance 6K60K600K6M Ohm 60M Ohm +(0.8percent +3) Continuity <30 Ohm Frequency 60Hz1000Hz +(1.0percent +5) Temperature 201000 celsius 4 degrees F1832 Fahrenheit +(1.0percent +2) Capacitance 60nF60mF +(4.0percent +3) Low resistance voltage measurement DCV:1000V ACV:1000V +(1.0percent +10) +(2.0percent +20) AC uA 200uA +(0.8percent +3) Characteristics DIsplay 6000 Voltage Measuring Frequency 1kHz Clamp Measuring Frequency 1kHz Flashlight Yes Backlight Yes Date Hold Yes Noncontact Voltage Detection Yes Continuity Test Yes Auto Power Off 10min AutoManual Measurement Yes Relative Value Measurement Yes True RMS Yes DC uA Measurement Yes Inverter Measurement Yes Analog Bar Yes Lowpass Filtering Yes Automatic Identification of Current, Voltage and Resistance Yes General Parameters Brand PEAKMETER Model PM2128 Battery 3 x 1.5V AAA Batteries (NOT included ) Item Size 235x68x50x45mm9.25x2.68x1.97x1.77in Clamp Wodth 35mm1.38in Weight Approx. 596g Safety Rating EN610101, EN610102032, EN61326, CAT.III1000V Package Includes: 1 x Clamp Meter 2 x Test s 1 x Thermocouple Probe 1 x Black Bag Note: 1. Due to the difference between monitors and light effect, the pictures may not reflect the actual color of the item. Please take the real one as standard. 2. Please allow slight error due to manual measurement. Thanks for your understanding. .Automatically select measurement function and range. Noncontact voltage detection expands use environment. LCD display screen can show the measurement data accurately in real time. With backlight display and flashlight, convenient to measure at darkness. Provides data hold, continuity test, auto power off, analog bar and other functions.
