Product Description:
brand new high quality
Made of high quality material,
630-088 EIM (formerly 630-465) interface 630-465 for Genset 12V
630-088 EIM formerly 630-465

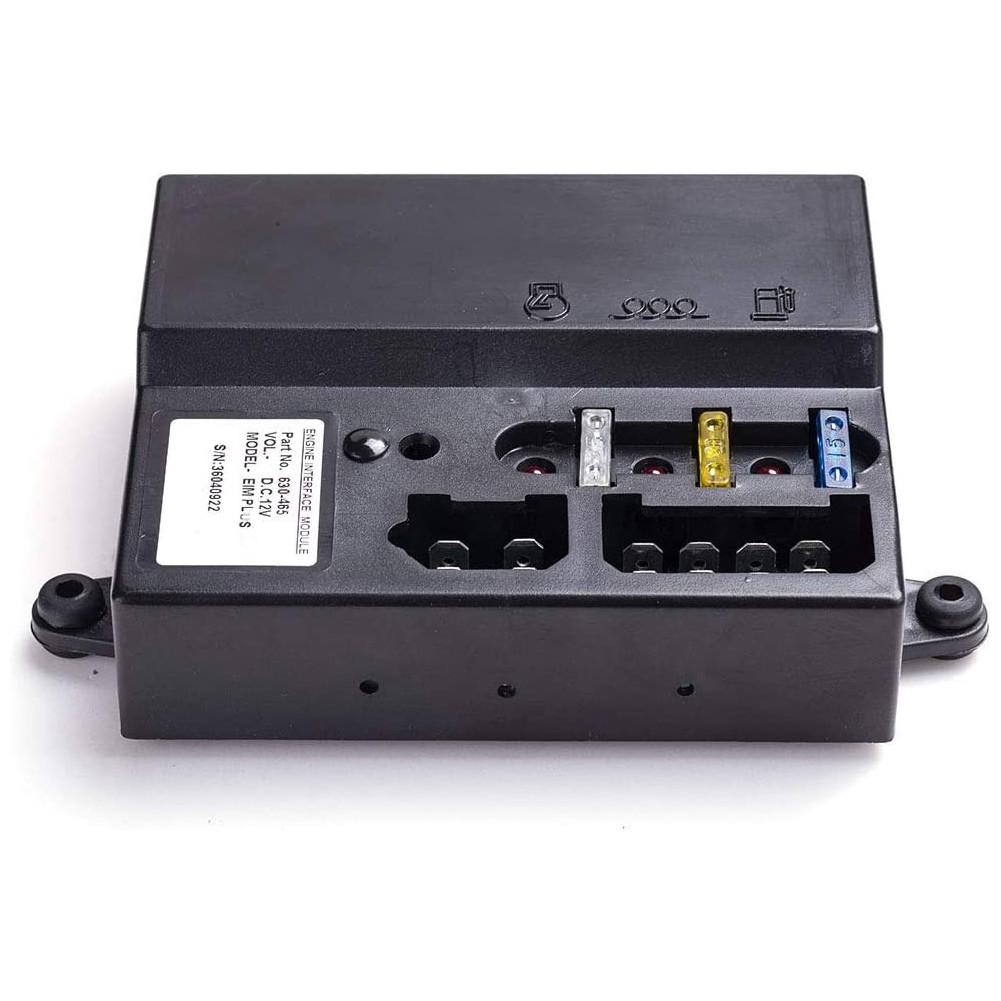

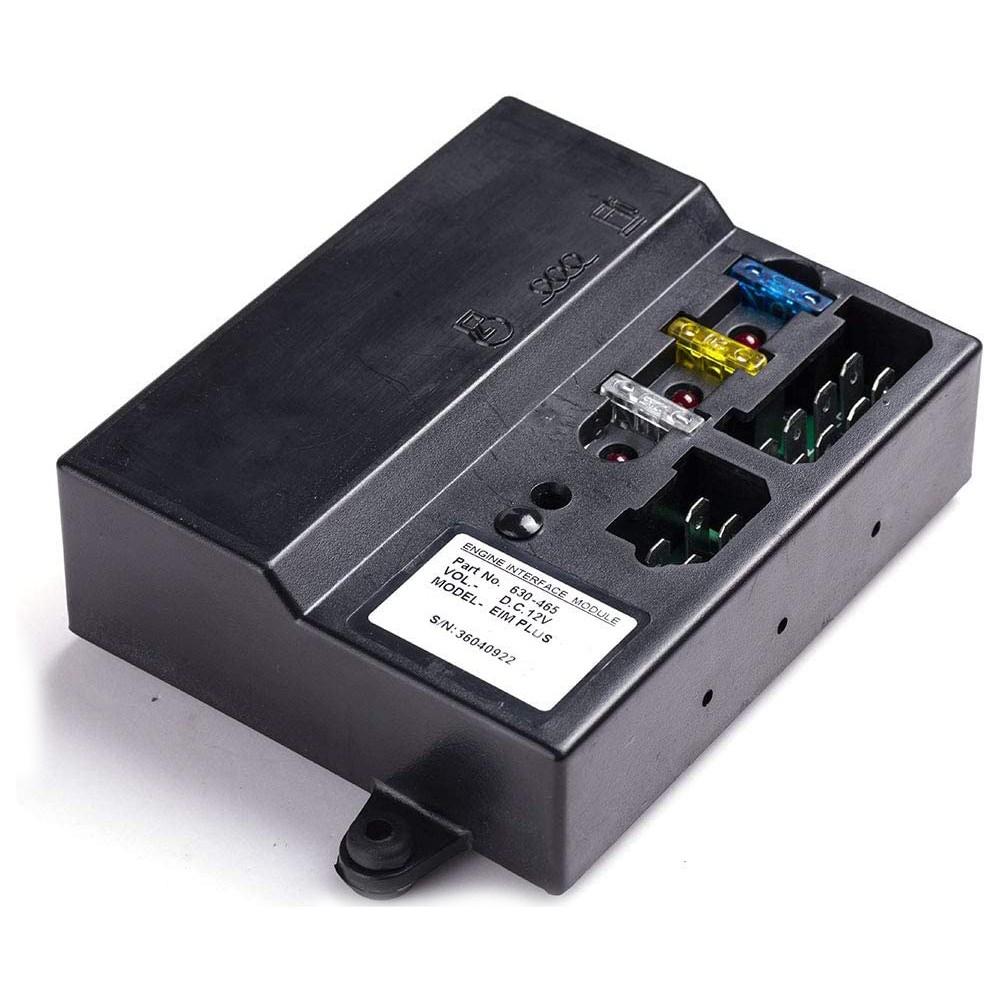

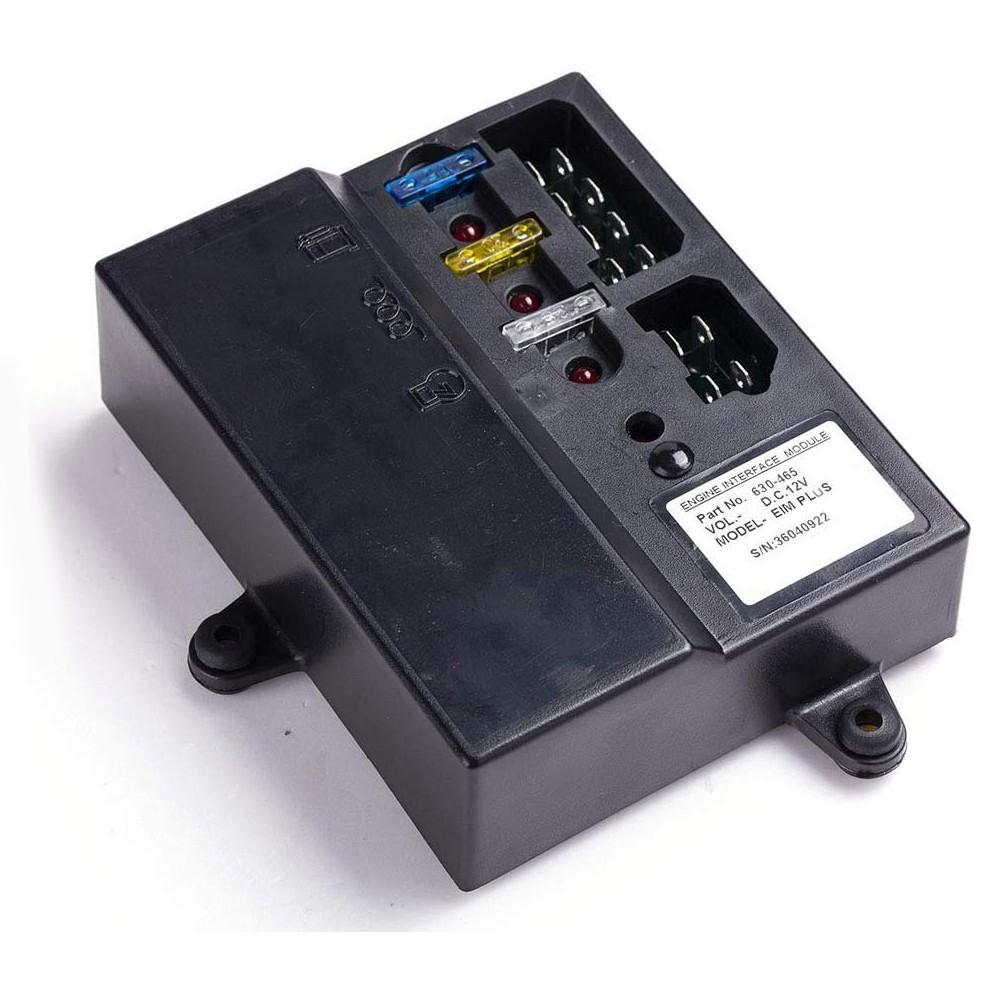

The engine interface module is a sealed engine mounted module that provides switching relays for the starter motor solenoid, glow plug and fuel solenoid.
Using the EIM 630-465 PLUS means that high currents such as fuel solenoid power are isolated from the control panel, allowing for individual protection of each circuit.
Engine interface module‖EIM‖PLUS‖630-465‖12V controller for generator control EIM630-465 EIM630-088 630-088
application:
630-088 EIM (formerly 630-465).
Interface 630-465 for generator set OLYMPIAN-MASSEY FERGUSON 12 V.
Generator set OLYMPIAN-MASSEY FERGUSON 12V
how to install ?
Make sure the MPU (Magnetic Pickup) is installed correctly.
Unscrew and pull out the magnetic pickup located near the engine flywheel
Check the magnetic tip and make sure it is clean and free of debris.
Screw in the MPU until the tip touches the top of the flywheel teeth.
Back the magnetic pickup 1/2 to 3/4 turn.
Turn the ten-turn potentiometer five to seven turns clockwise, or until you feel a slight click, representing the full span of the potentiometer.
Start the genset and you will notice the overspeed calibration LED illuminate.
Slowly turn the potentiometer counterclockwise until the LED just goes off.
Once the LED goes off, start slowly turning the potentiometer back clockwise until the LED starts blinking.
The engine interface module is a sealed engine mounted module that provides switching relays for the starter motor solenoid, glow plug and fuel solenoid.

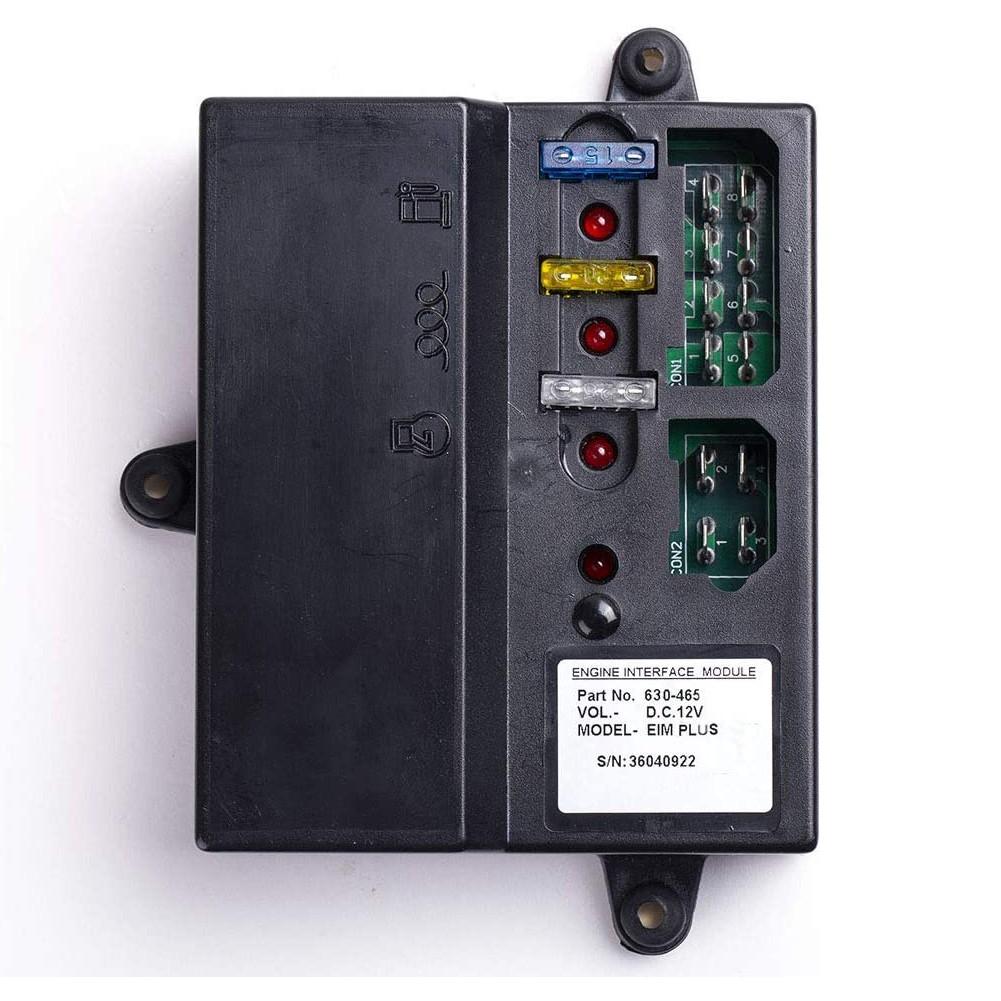

Each of these circuits is protected by individual automatic fuses mounted in the module. Individual LEDs light up when each circuit is powered, and in addition, these LEDs are of great help in finding faults.

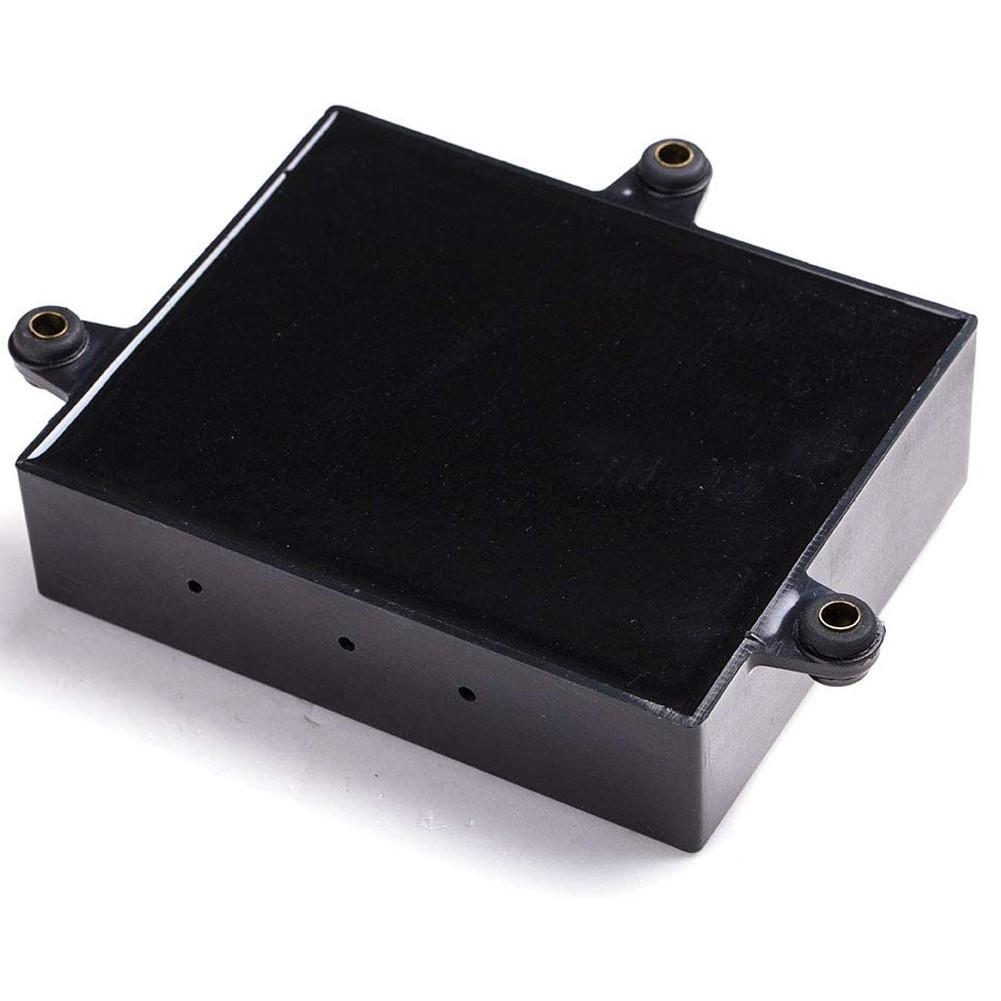

The module is mounted on the engine with anti-vibration mounts and is easily connected to the engine with a plug. Using the EIM 630-465 PLUS means that high currents such as fuel solenoid power are isolated from the control panel, allowing for individual protection of each circuit.
Package Included:
1 * generator module
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
