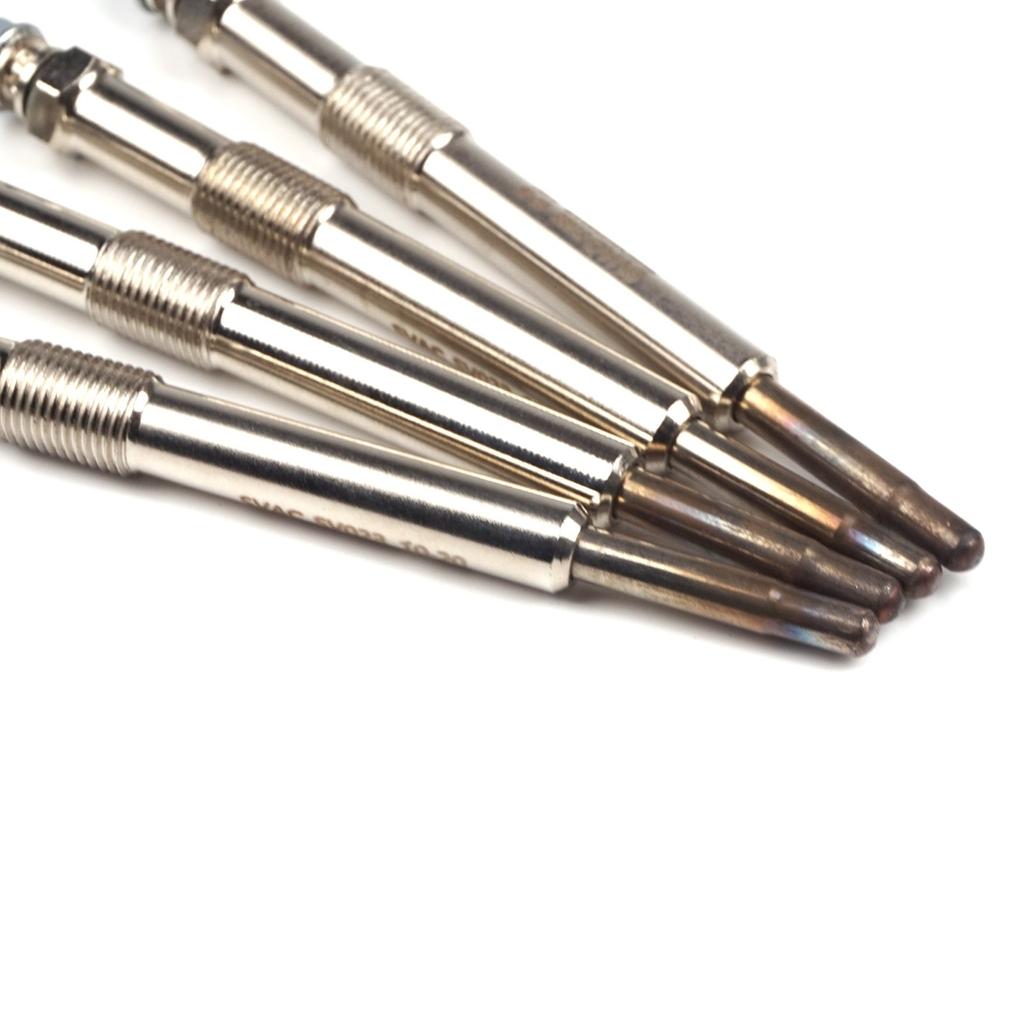

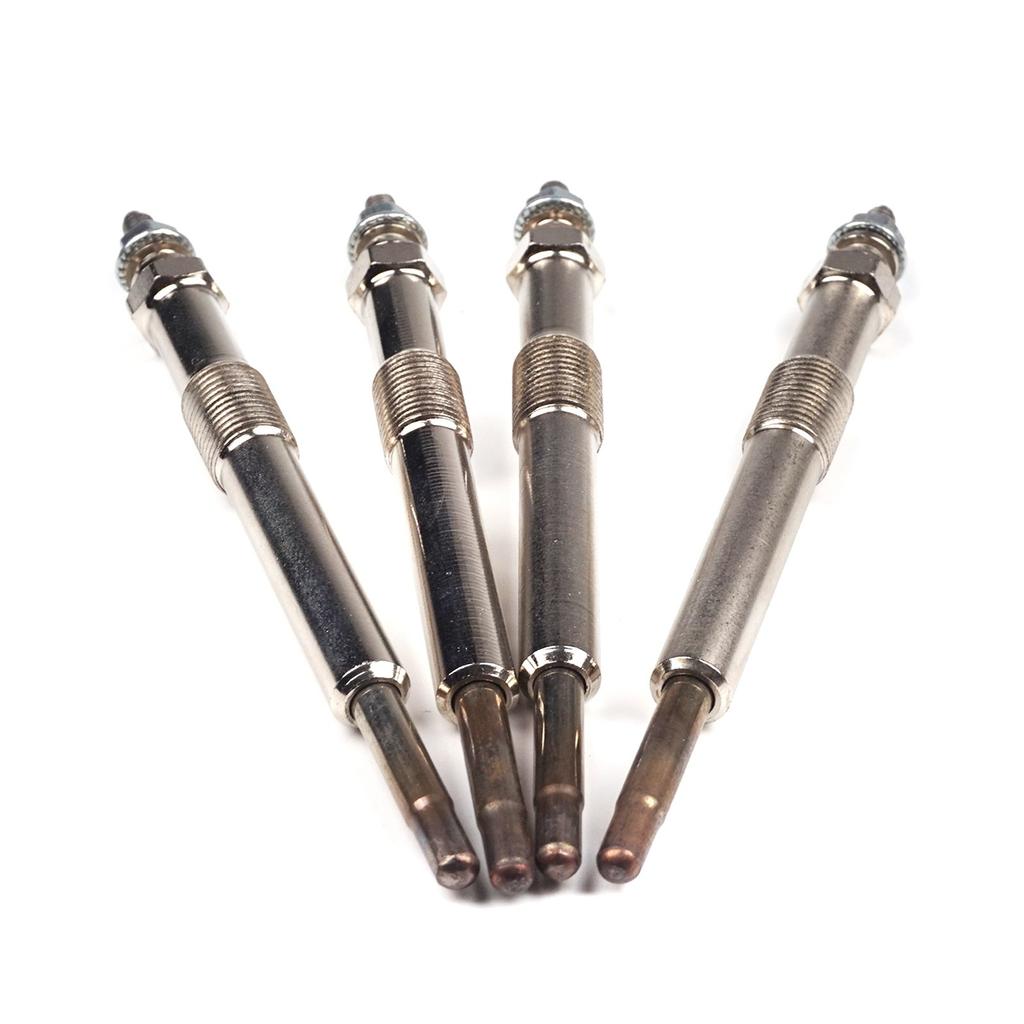

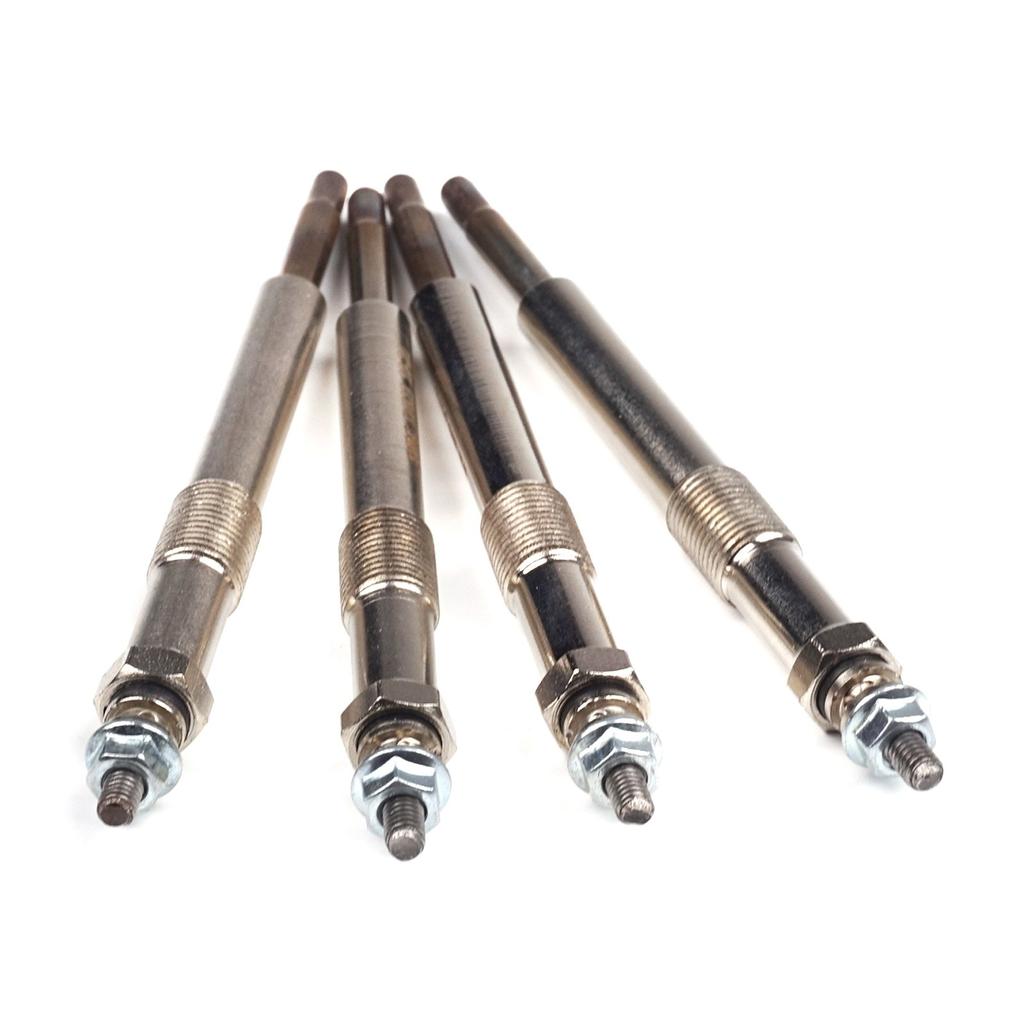

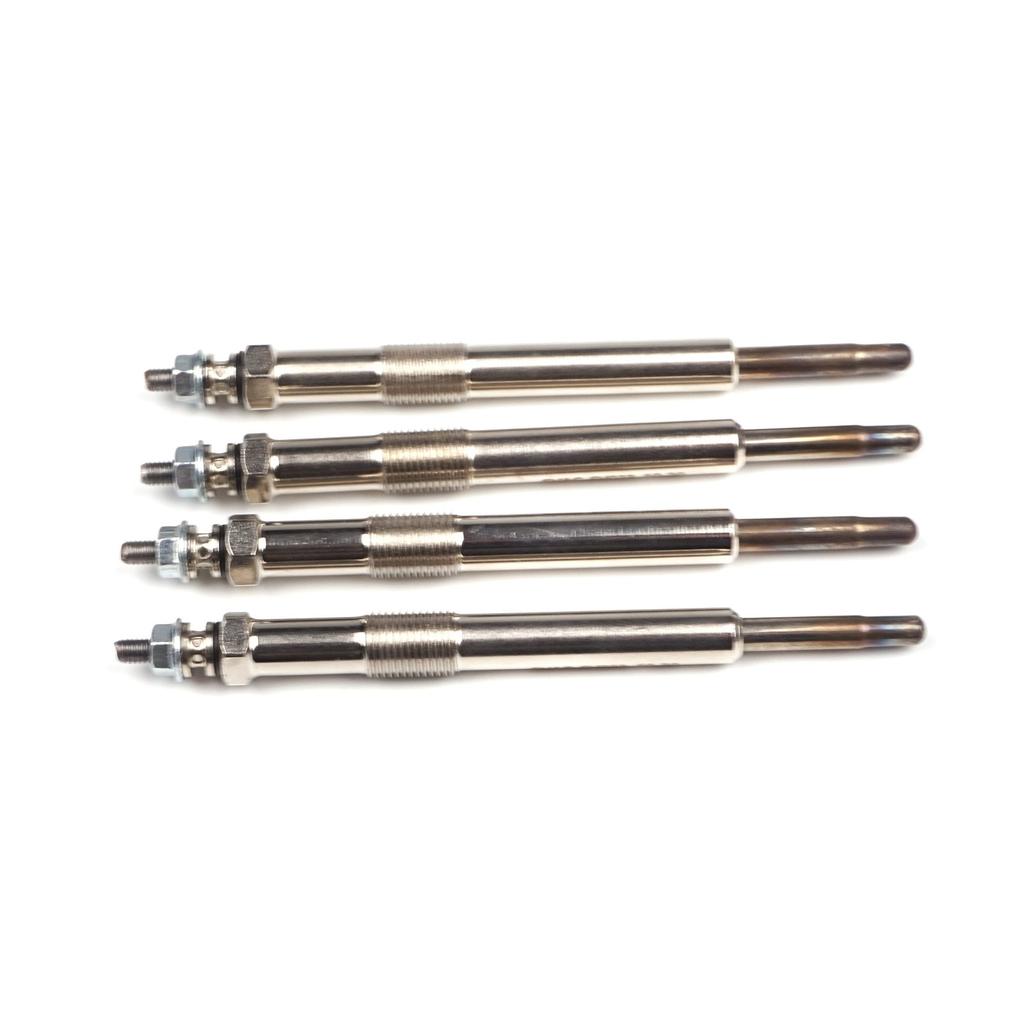

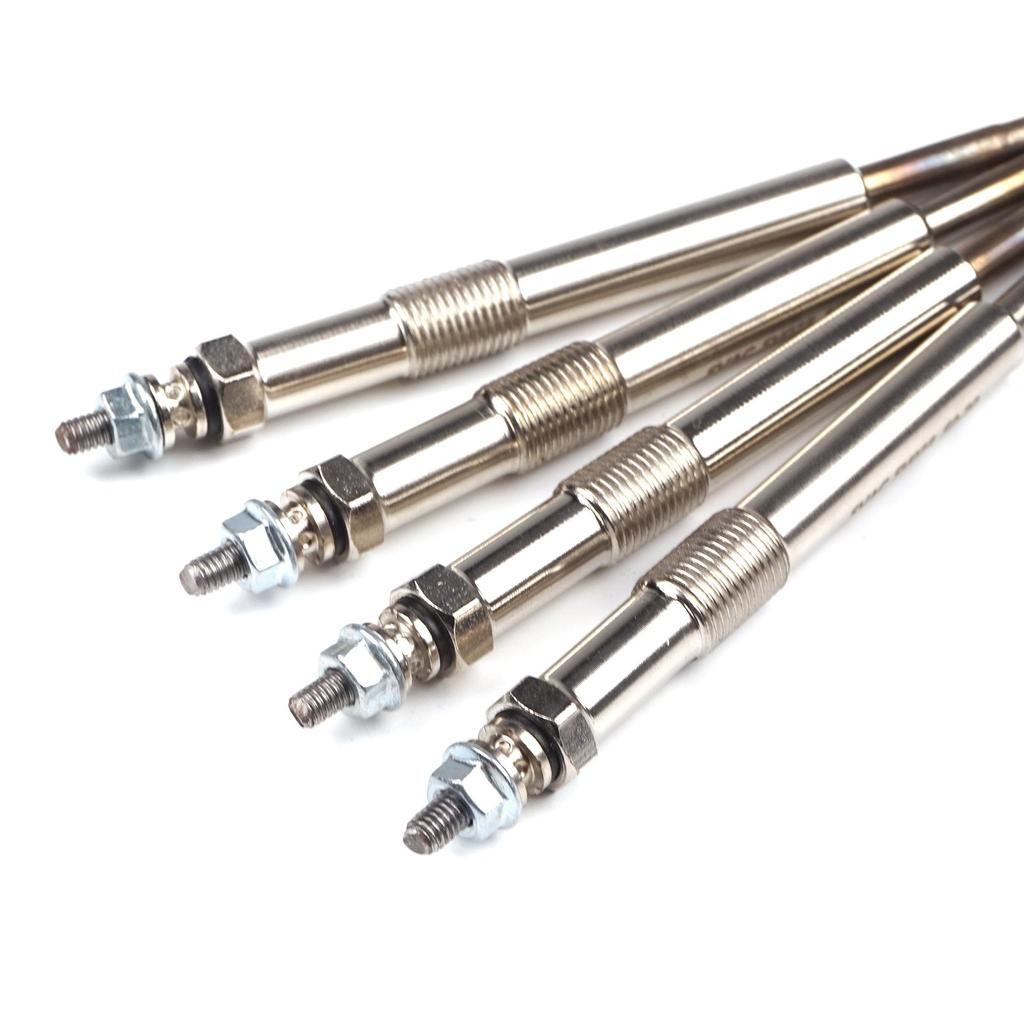

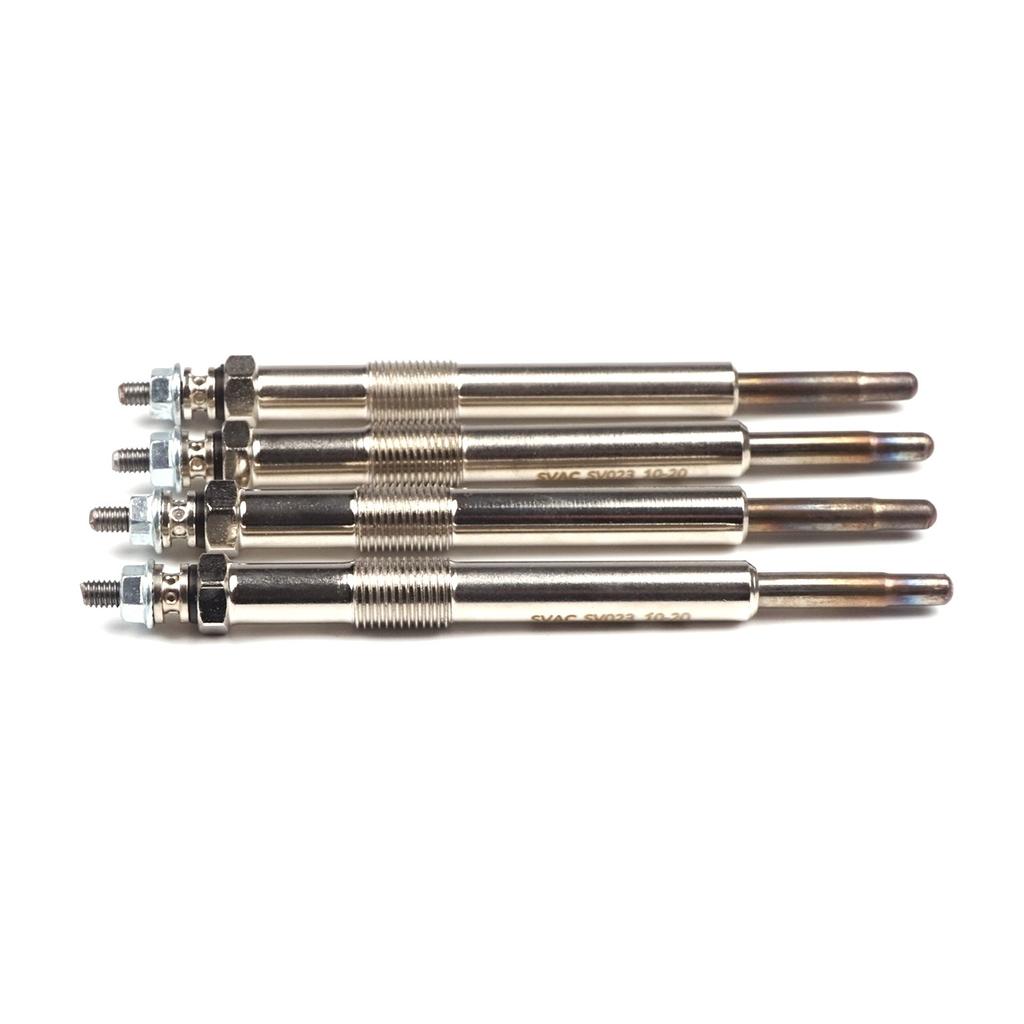

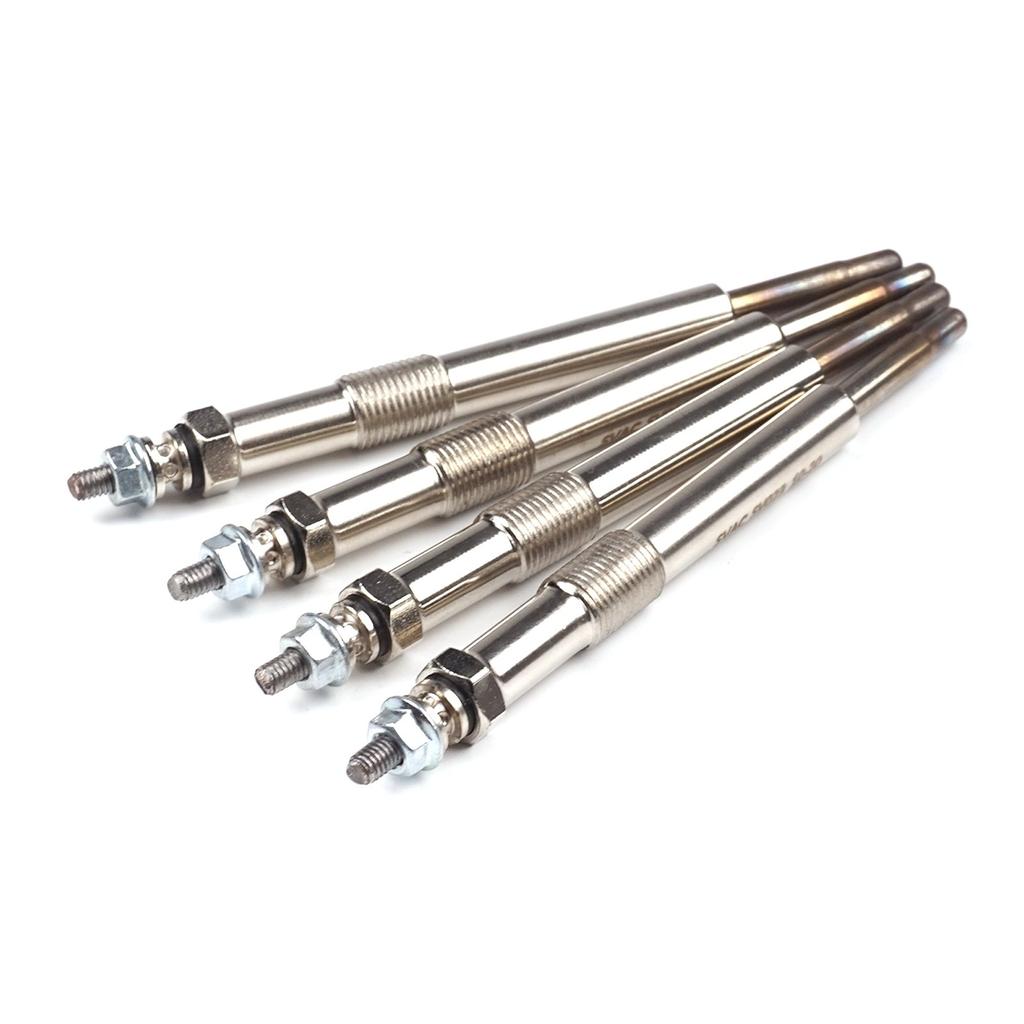

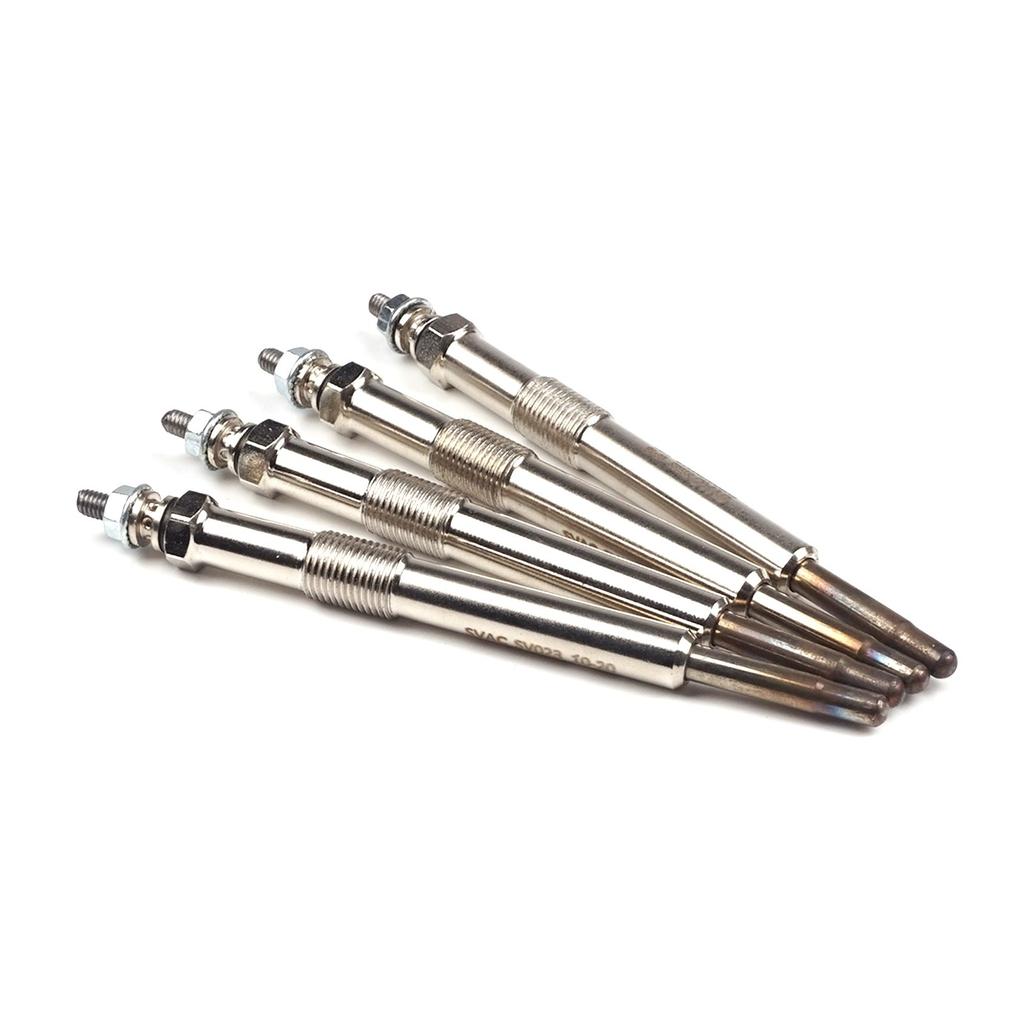

4x Diesel Glow Plugs Heater Plugs Set 11 V for Citroen C8 Ford C-Max Lancia Phedra 2.0 2.2 HDi TDCi 596064 0100226492 GN054 0250001782
Diesel glow plug (heater plug / preheating plug) for HDi / TDCi / JTD diesel engines. The glow plug heats the combustion chamber so the engine starts quickly and runs smoothly from cold. It is after-glow capable, so it keeps heating for a short time after start-up to reduce white smoke, noise and emissions. Signs of a worn glow plug: hard or slow starting in cold weather, rough idle or misfire after a cold start, white or blue exhaust smoke, a flashing glow plug warning light and fault codes such as P0380 or P0670-P0684.
Product details:
- Quantity: Set of 4 identical glow plugs (one per cylinder on 4-cylinder engines)
- Glow plug type: Pencil-type (rod) glow plug, after-glow capable
- Voltage: 11 V
- Connector: M4 thread terminal
- Overall length: 118 mm
- Fitting depth: 27 mm
- Thread size: M10x1.00
- Spanner (hex) size: 10 mm
- Tightening torque: 15-20 Nm
- Cone angle: 63°
- Condition: Brand new, never used
- Fitment type: Direct replacement
Compatible vehicles:
Ford:
C-Max 2.0 TDCi 2003-On (G6DC, G6DE, G6DF, G6DA);
Focus C-Max 2.0 TDCi 2003-2007 (G6DD, G6DA, G6DB);
Focus II 2.0 TDCi 2004-On (G6DA, G6DB, G6DD);
Focus II Cabriolet 2.0 TDCi 2006-On (G6DA, G6DB, G6DD);
Galaxy 2.0 TDCi 2006-2015 (KLWA, AZWC, QXWA, QXWB);
Kuga I 2.0 TDCi / 2.0 TDCi 4x4 2008-2010 (G6DG);
Mondeo IV 2.0 TDCi 2007-2015 (KLBA, LPBA, AZBA, AZBC);
Mondeo IV Turnier 2.0 TDCi 2007-2012 (KLBA, LPBA, AZBA, AZBC);
S-Max 2.0 TDCi 2006-2014 (KLWA, AZWA, AZWC, QXWA);
Citroen:
C4 I 2.0 HDi 2004-2011 (RHR (DW10BTED4), RHF (DW10BTED4));
C4 Coupe 2.0 HDi 135 FAP / 2.0 HDi 2004-2011 (DW10BTED4, RHR (DW10BTED4), RHF (DW10BTED4));
C4 Picasso I 2.0 HDi 138 2006-2013 (RHJ (DW10BTED4), RHR (DW10BTED4));
C4 Grand Picasso I 2.0 HDi 138 2006-2013 (RHJ (DW10BTED4), RHR (DW10BTED4));
C5 II 2.0 HDi / 2.2 HDi 2004-On (RHR, (DW10BTED4), 4HX (DW12TED4, FAP));
C5 II Break 2.0 HDi / 2.2 HDi 2004-On (RHR (DW10BTED4), 4HX (DW12TED4, FAP), for OE no.: 5960 F4);
C5 III 2.0 HDi / 2.0 HDi 140 2008-On (RHF, RHR (DW10BTED4), RHF (DW10BTED4));
C5 III Break 2.0 HDi 2008-On (RHR (DW10BTED4));
C8 2.0 HDi / 2.2 HDi 2002-On (RHM, RHT (DW10ATED4), for OE No.: F960 F4, 03);
Jumper 2.2 HDi 2002-On;
Peugeot:
307 2.0 HDi FAP 135 2003-On (RHR (DW10BTED4));
307 CC 2.0 HDi FAP 135 2005-2009 (RHR (DW10BTED4));
307 Break 2.0 HDi FAP 135 2004-2008 (RHR (DW10BTED4));
307 SW 2.0 HDi FAP 135 2004-2008 (RHR (DW10BTED4));
308 2.0 HDi 2007-2014 (RHR (DW10BTED4));
308 CC 2.0 HDi 2009-2014 (RHR (DW10BTED4));
308 SW 2.0 HDi 2007-2014 (RHR (DW10BTED4));
407 2.0 HDi FAP 135 2004-On (RHR (DW10BTED4));
407 SW 2.0 HDi FAP 135 2004-2010 (RHR (DW10BTED4));
508 2.0 HDi 2010-On (RHF (DW10BTED4), RHR (DW10BTED4));
508 SW 2.0 HDi 2010-On (RHR (DW10BTED4), RHF (DW10BTED4));
607 2.0 HDi 2005-On (RHR (DW10BTED4));
807 2.0 HDi (RHK (DW10UTED4));
Expert Tepee 2.0 HDi 120 / 2.0 HDi 120 4x4 / 2.0 HDi 140 2007-On (RHK (DW10UTED4), RHR (DW10BTED4));
Fiat:
Scudo 2.0 D Multijet 2007-On (RHK, RHR, RHH);
Ulysse 2.0 D Multijet 2006-On (RHK, RHR);
Lancia Phedra 2.0 JTD / 2.0 D Multijet 2002-2010 (RHK, RHR);
Also listed for (cross-reference data):
Peugeot:
406 Coupe 2.2 HDI 1997-2005;
406 Saloon 2.2 HDi 1995-2005;
Boxer 244 Van 2.2 HDi 2001-On;
406 Estate 2.2 HDI 1996-2004;
Citroen:
Dispatch II MPV (VF7) 2.0 HDi 2007-2016;
Jumpy Van 2.0 HDi 2007-2016;
Relay I Van (244) 2.2 HDi 2002-On;
Relay I Minibus (244) 2.2 HDi 2002-On.
Replaces OEM / reference numbers:
Volvo: 3 072 506 9, 8 653 698
Suzuki: 09900F8Q01000, 18550-67G00, 1855067G10, 18550-67G11
Citroen: 5960 64, 5960 65, 5960 F4
Fiat: 9651583680
Ford: 12 31 944, 1 313 809, 1473356, 3M5Q 6M090 AB
Cross reference: Bosch 0 250 001 782, 0 250 202 048, 0 250 202 135, GLP055; Beru 0 100 226 492, GN 054; NGK DP 56, Y1005J; Denso DG-181; Hidria H1 992; HKT B-131
Other references: GX117
Fitment notes:
- 3-, 5- and 6-cylinder engines need 3, 5 or 6 plugs respectively.

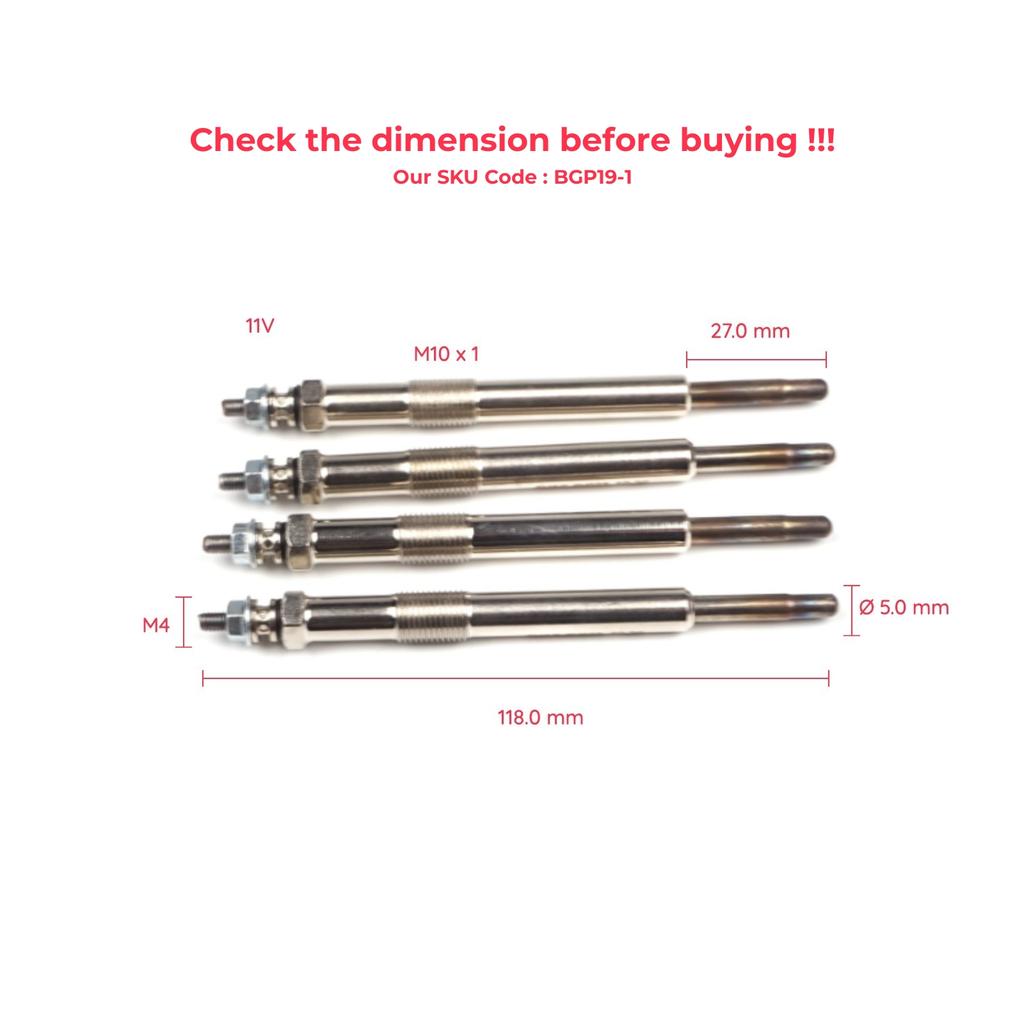

- Glow plugs are engine-specific: compare thread size, overall length, voltage and connector with your plug and with our dimension photo before ordering.
- We recommend replacing all glow plugs at the same time. Apply anti-seize grease to the thread and tighten to the specified torque only.
- Check the OEM number on your part, or confirm with your VIN before ordering.
This is a quality aftermarket replacement part, not a genuine vehicle manufacturer part. OEM and brand numbers are for reference only. Please compare your part with our photos and check the part number before ordering.
ESC is warranted that his products comply with all applicable laws, and are offered only if they comply with Joom’s policies and EU Product Safety and Compliance laws.
Country/Region of Manufacture: Turkey
Ship from: Turkey
Replacement parts for OEM: GX117,596064,GN054,0100226492,0250202048,Y1005J,B131,0250202135,DP56,Y-1005J,0100226492,Citroen
Warranty: 1 Year
