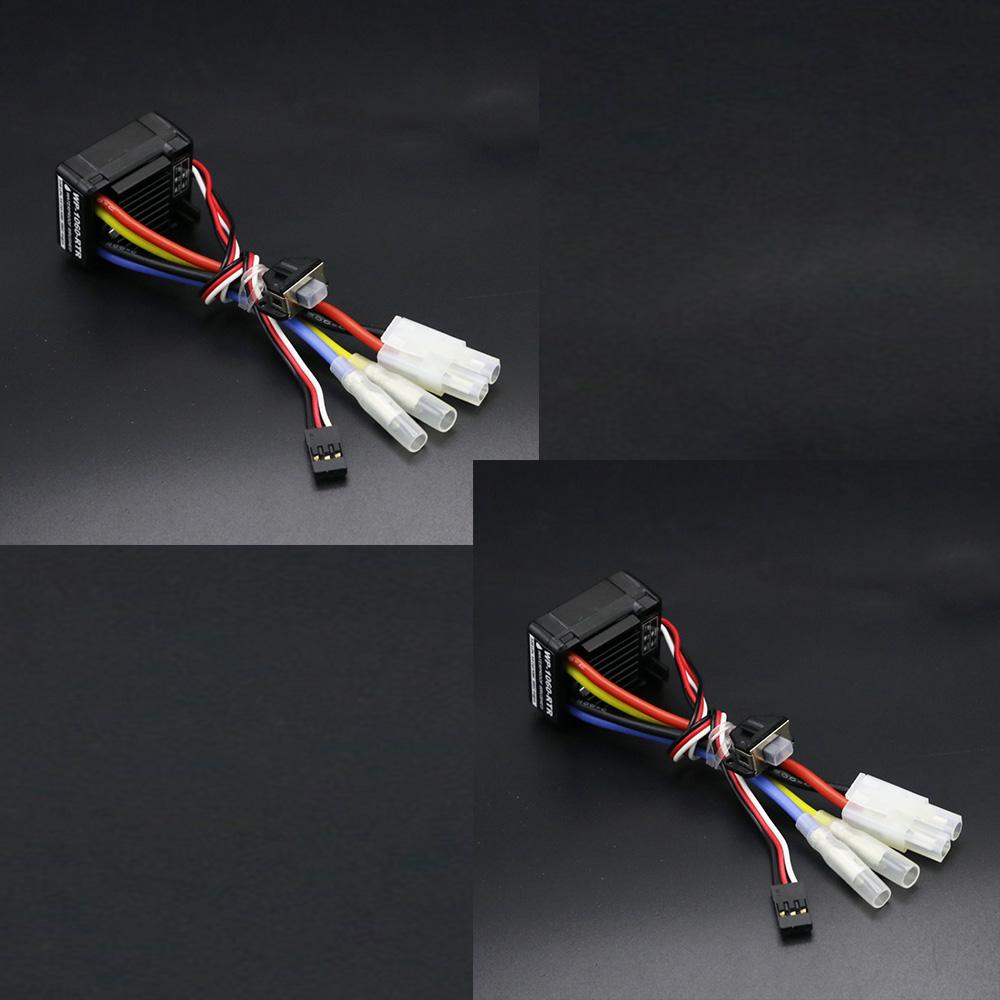

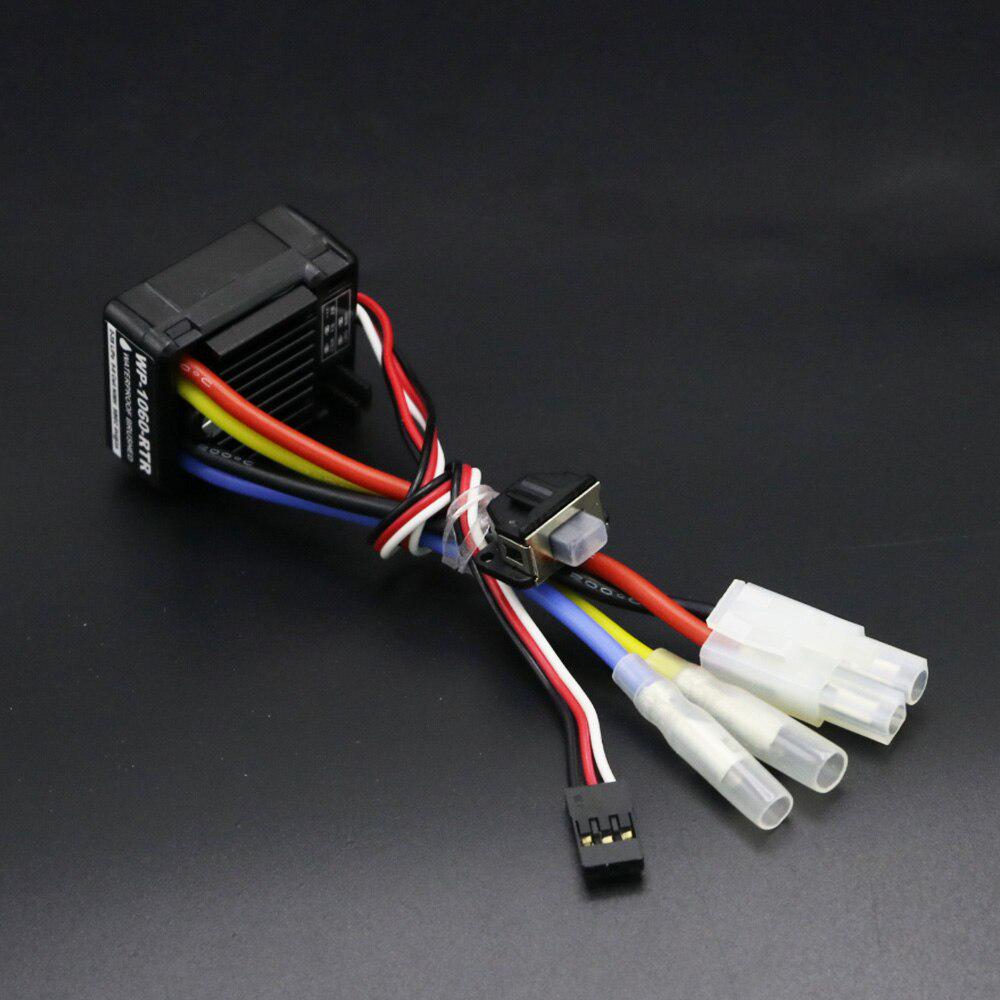

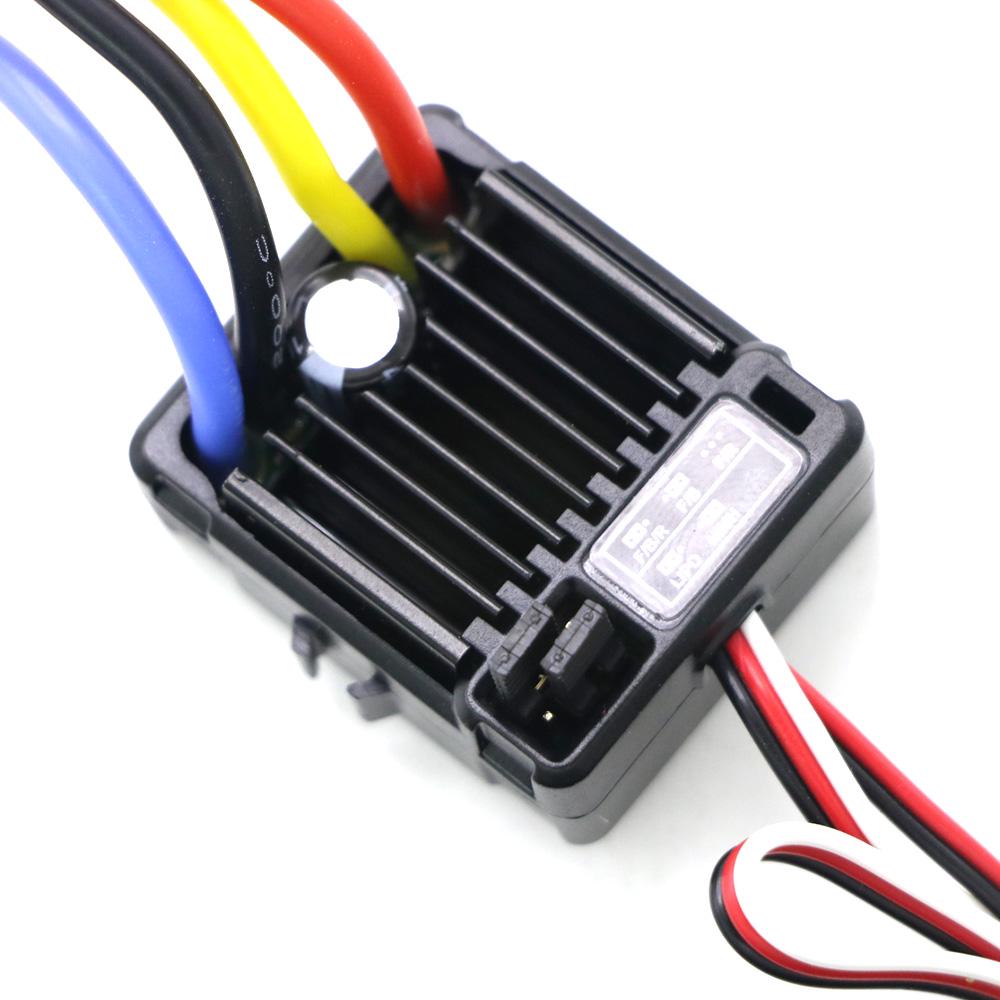

Waterproof 1060 60A Brushed Electronic Speed Controller ESC For 1:10 RC Car

1.1 One-piece design (built-in electrolytic capacitor), completely waterproof and dustproof, adapt to various climates; 1.2 With "one-way / two-way / two modes of operation, for a variety of models 1.3 High quality materials with strong current withstand capability; 1.4 Strong BEC output capability, surpassing other competitive products; 1.5 Automatic throttle stroke calibration, easy to use, especially suitable for novices; 1.6 Using the jumper cap to set the ESC parameters, it is simple and clear; 1.7 With multiple protection functions such as lithium voltage protection, over temperature protection, and throttle signal loss protection;

Basic parameters: forward 60A, reverse 30A Scope of application: 1/10 ratio, using 540 or 550 brushed motor models, such as 1/10 electric room / electric / big / short card BEC output: 5V 2A Voltage input range: 2~3S lithium battery (with lithium battery protection, using jump stitch adjustment) or: 5~9cell nickel-hydrogen battery Motor T number range (under standard 540 motor): 2S lithium battery condition: >12T brush or RPM<30000 3S lithium battery: >18T with brush or RPM<20000 ESC size: 36.5*32*18mm
