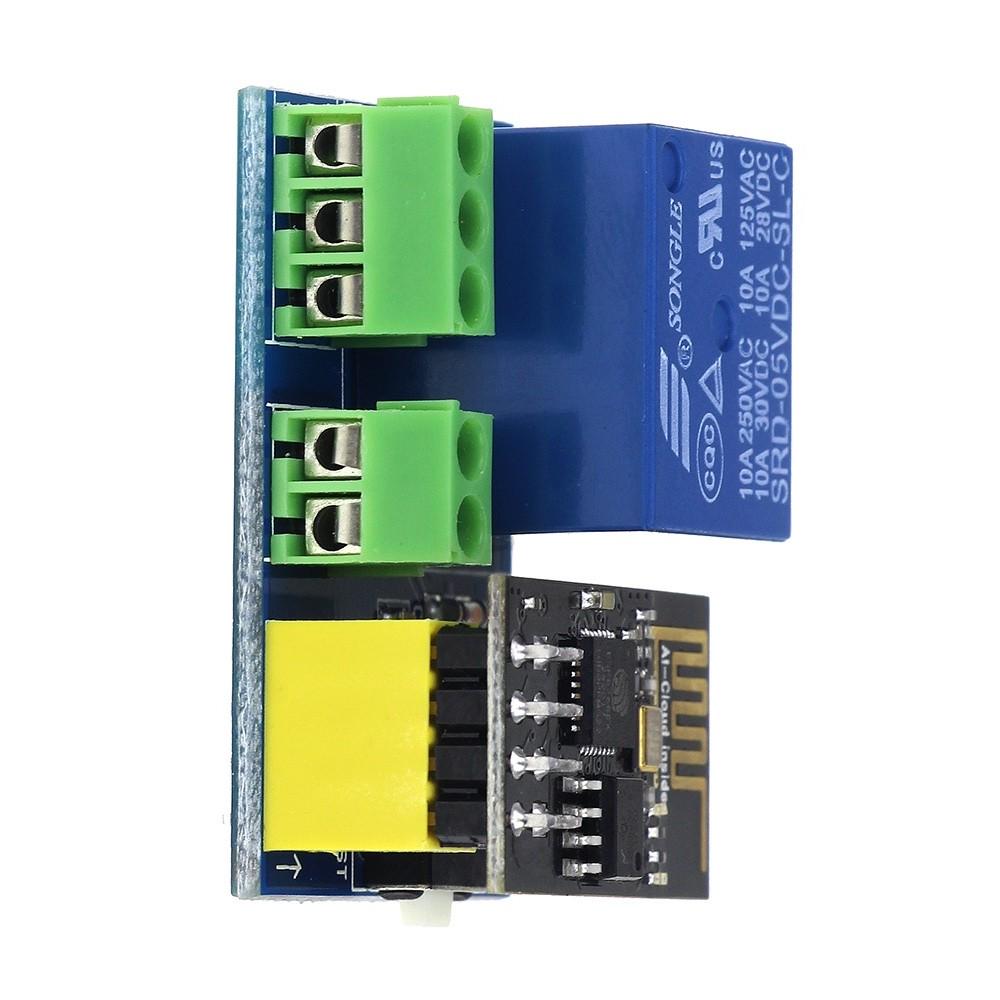

Quality Smart APP ESP-01 Wireless WIFI Module ESP8266 WiFi Relay Module 5V

Load: 10A/250VAC 10A/30VDC, the relay pull 100,000 times Package Include: 1PCS ESP8266 5V WiFi Relay Module Communication: WIFI (ESP8266 module) Product size: 45 * 28mm Operating voltage: DC5V Serial communication parameters: 9600,8,1,0,0 Description: Transmission distance: the maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module) ESP8266 module has a timeout mechanism, when the phone for some time (the default 180S) did not give instructions to the module, the module will kick off the phone, the computer can send AT + CIPSTO = to modify this time (Time range 0-7200), such as: AT + CIPSTO = 3600. USB to TTL module RX, TX, GND pins were connected to the module RX, TX, GND pin, IN +, IN- 5V power supply, then the module can be used as a USB Relays to use, scalability. Mobile phone equipped with WiFi module; Mobile phone and WiFI module equipped with the same router, through the mobile phone APP to control the relay; this mode, the transmission distance depends on the signal router.
