Feature:
1. Support Battery Pack: The battery equalizer supports 2 to 24 series lithium battery packs, ternary lithium, lithium iron phosphate, lithium titanate, with voltages between 2V and 4.5V.
2. Large Equalization Current: The battery equalizer supports constant resistance 1 ohm discharge equalization, large equalization current, ternary lithium up to 4A, lithium iron phosphate up to 3A.
3. Voltage Display: Li ion battery equalizer displays the voltage of each string, total voltage, highest string voltage, lowest string voltage, maximum voltage difference of battery pack, average voltage, equalization voltage, battery pack string number (the accuracy of each string voltage is about 0.003).
4. Automatic Identification: Li ion battery equalizer is a one key equalization operation, no need any setting, automatic identification of the number of strings and equalization voltage, easy to use.
5. Alarm and Prompt: Lithium battery equalizer automatically stops when equalization is completed, and an alarm sound occurs to indicate the completion of equalization, high voltage (greater than 4.5V), low voltage (less than 2V) warning sound and prompt.
6. Multi Purpose: Equalizer is a good helper for lithium battery factory, electric car repair store, lithium DIY, support mixed plug, no need to start from B1, good equalization effect and fast.
Specification:

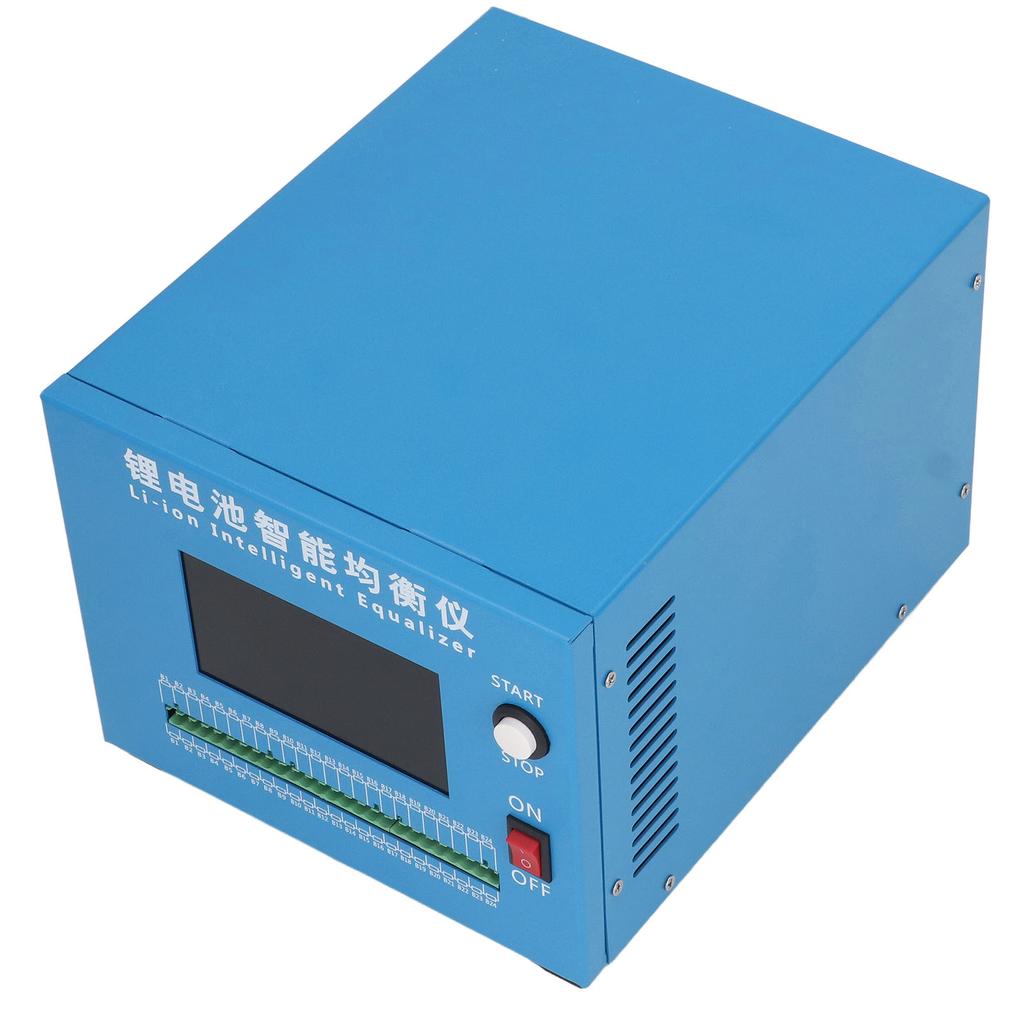

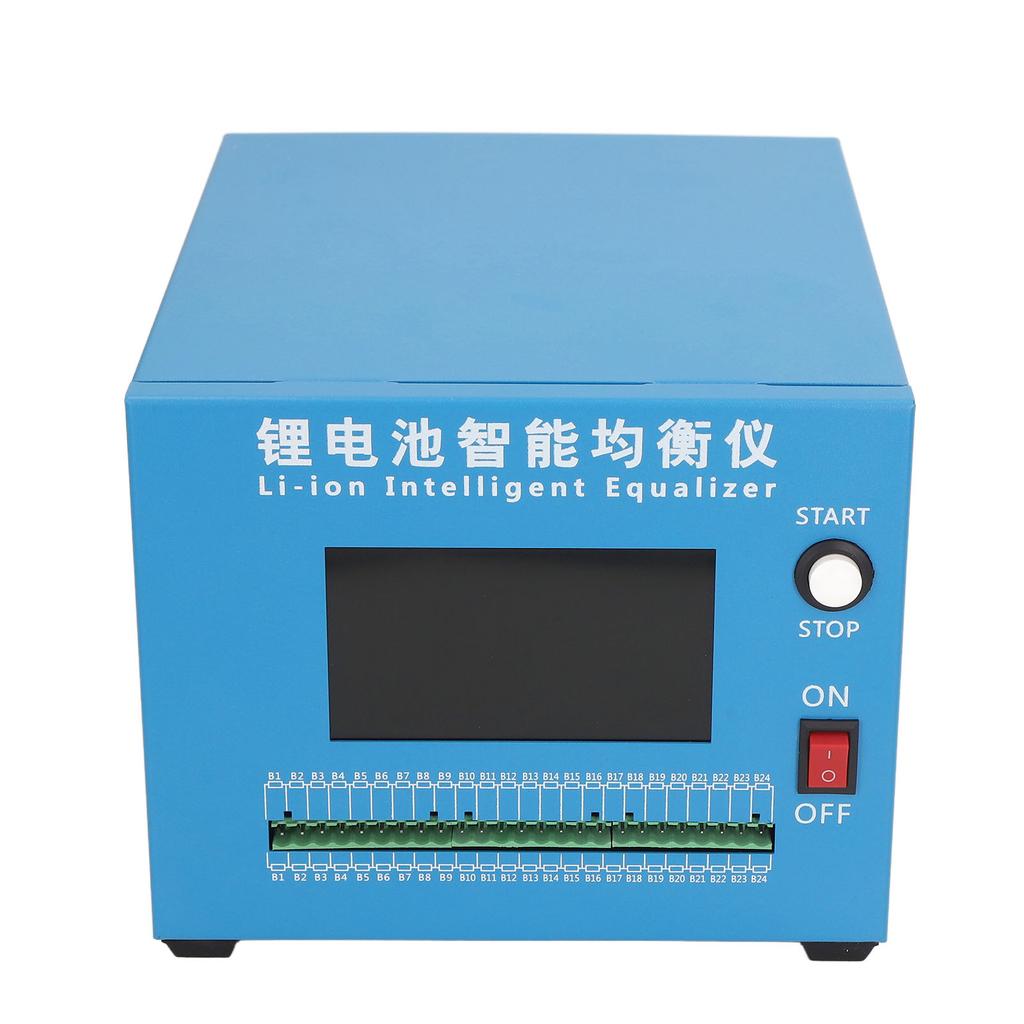

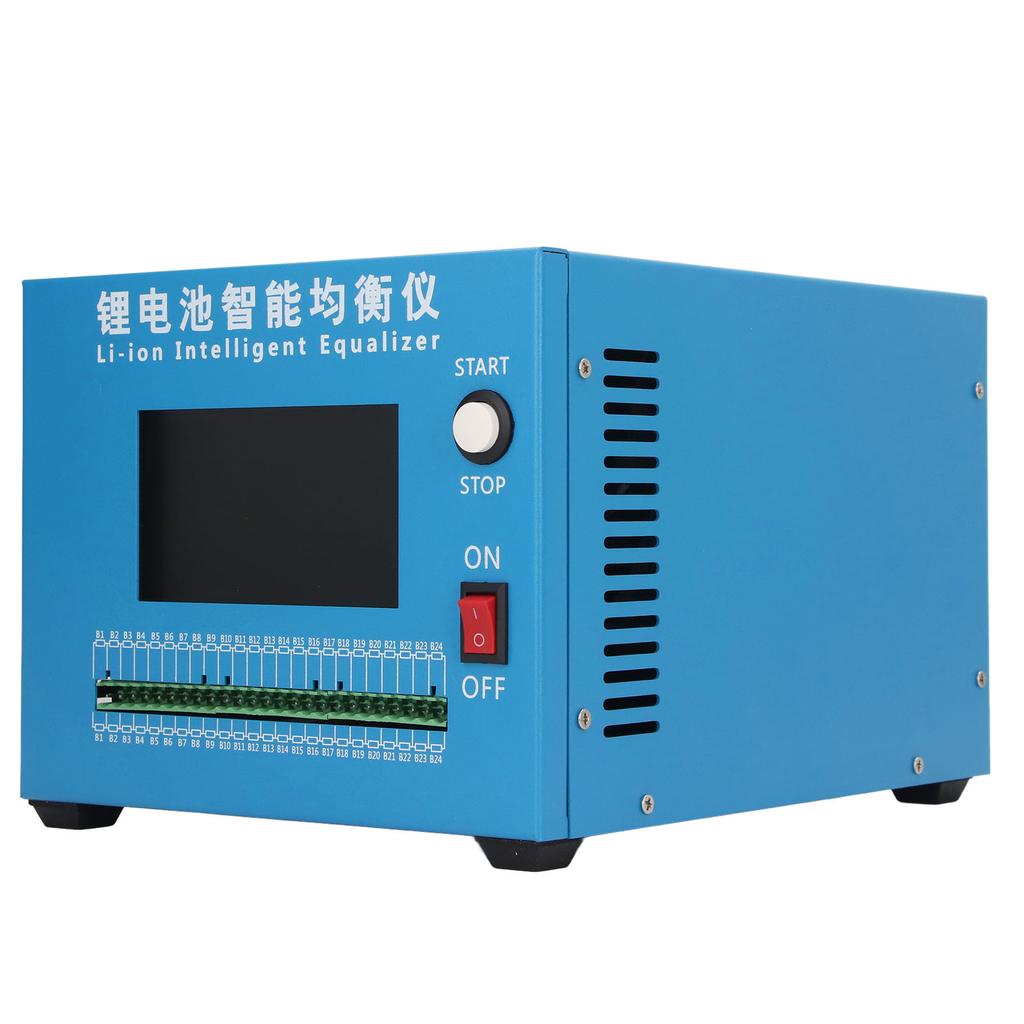

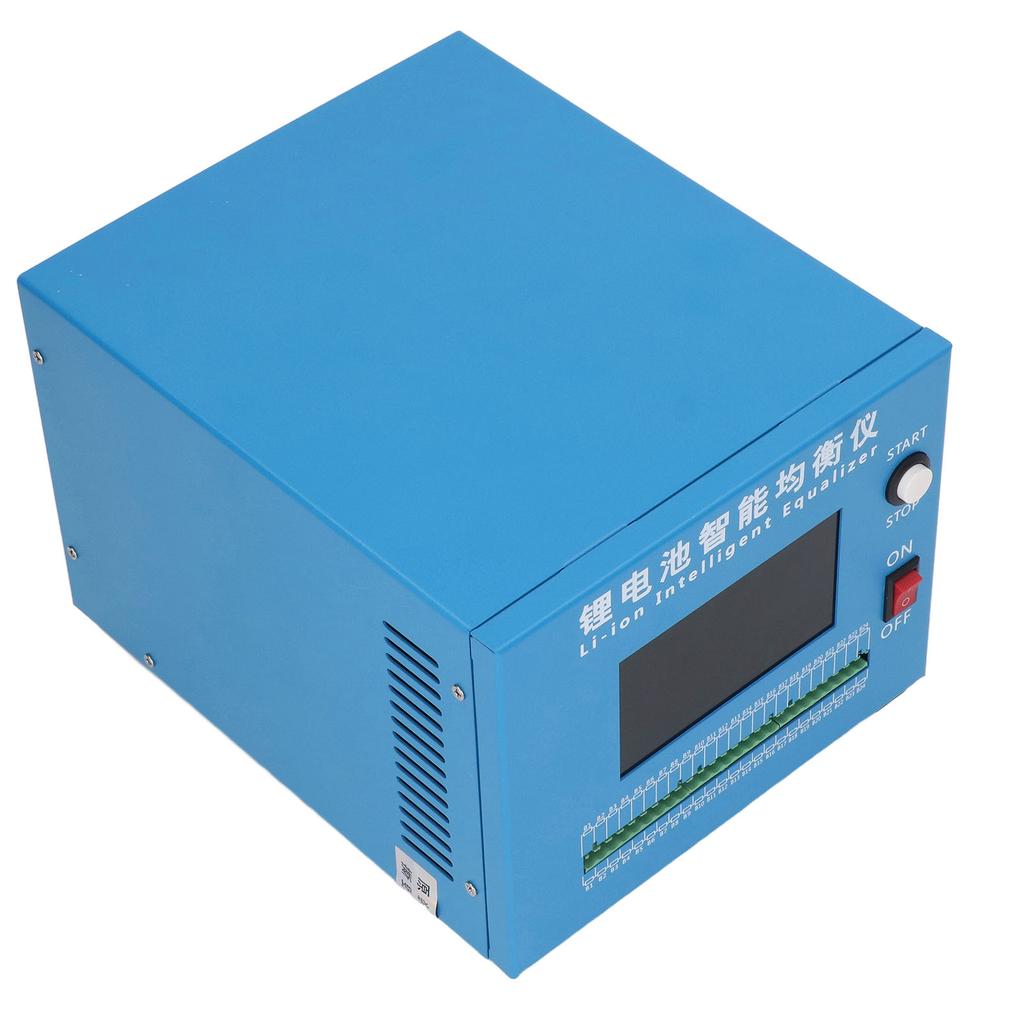

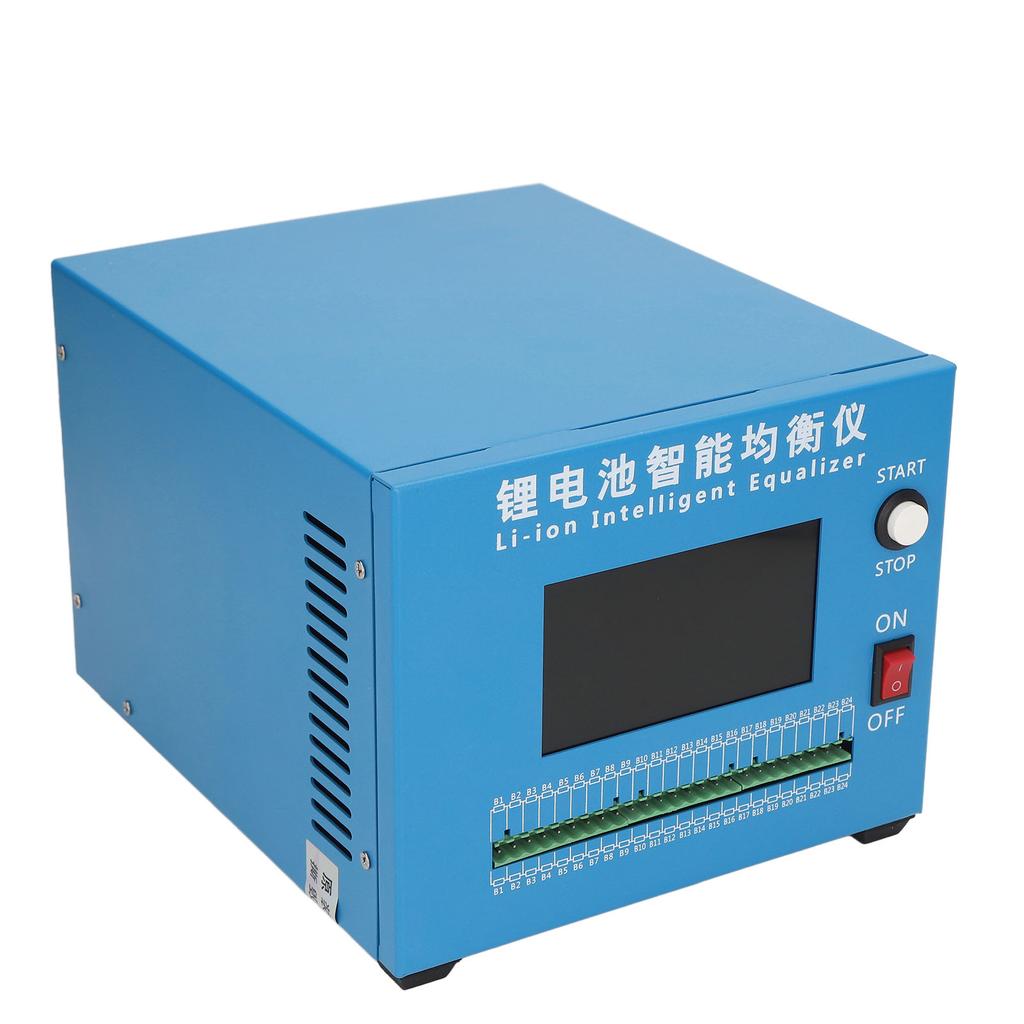

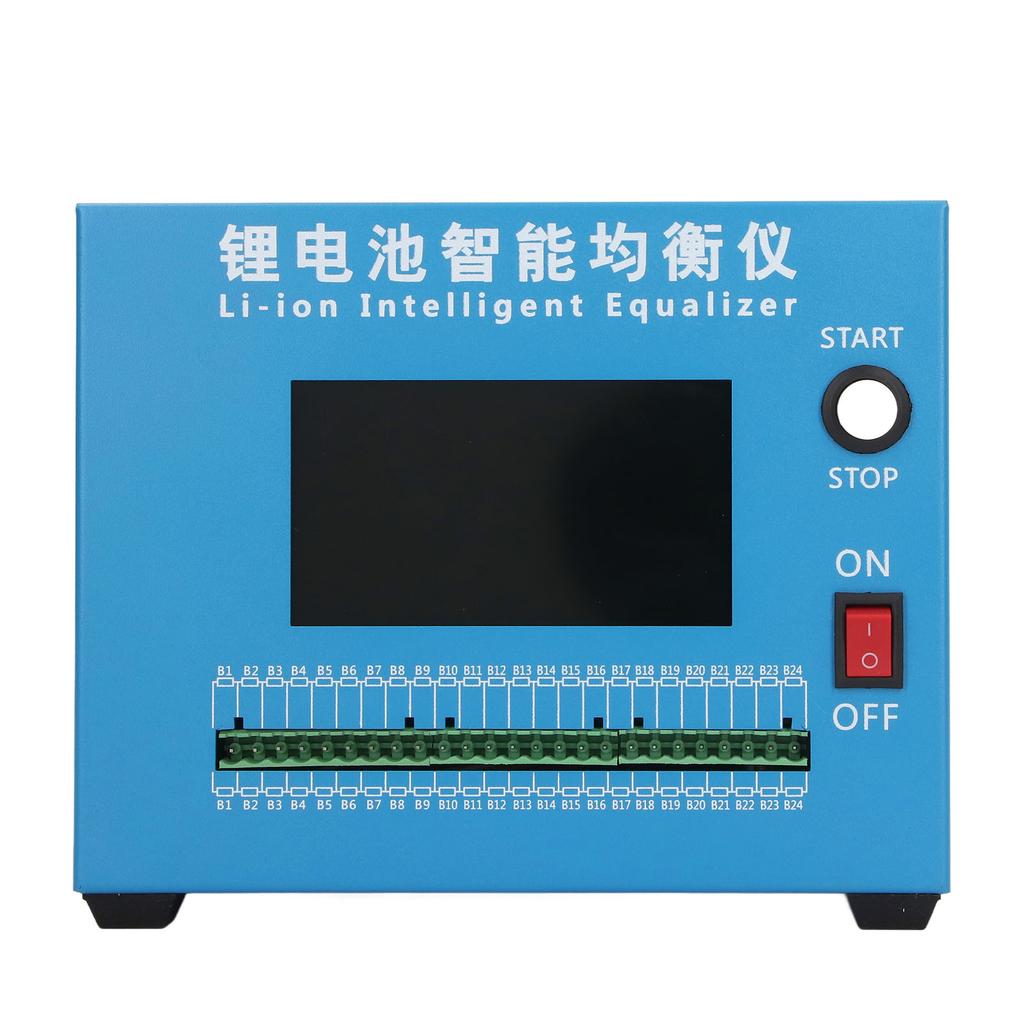

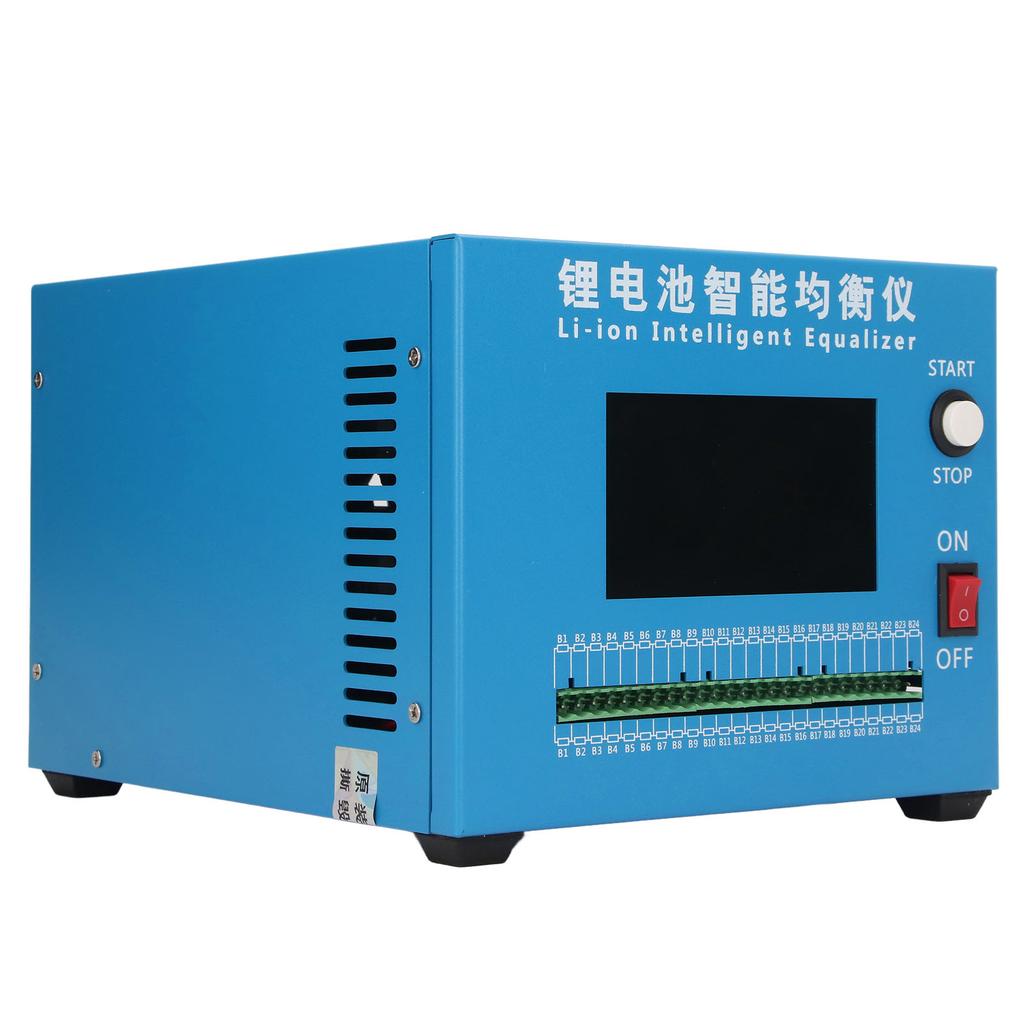

Item Type: Lithium Battery Intelligent Equalizer
Material: Alloy Steel
Use: Balance All Kinds Of Batteries (Ternary Lithium, Lithium Iron Phosphate, Lithium Titanate)
Basic Parameters.
Support String Number: 2 24 Strings
Equalization Current: Single String Current Peaking 0 5A Automatic Adjustment
Single String Voltage Collection Range: 2 5V
Voltage Acquisition Accuracy: + 5mV

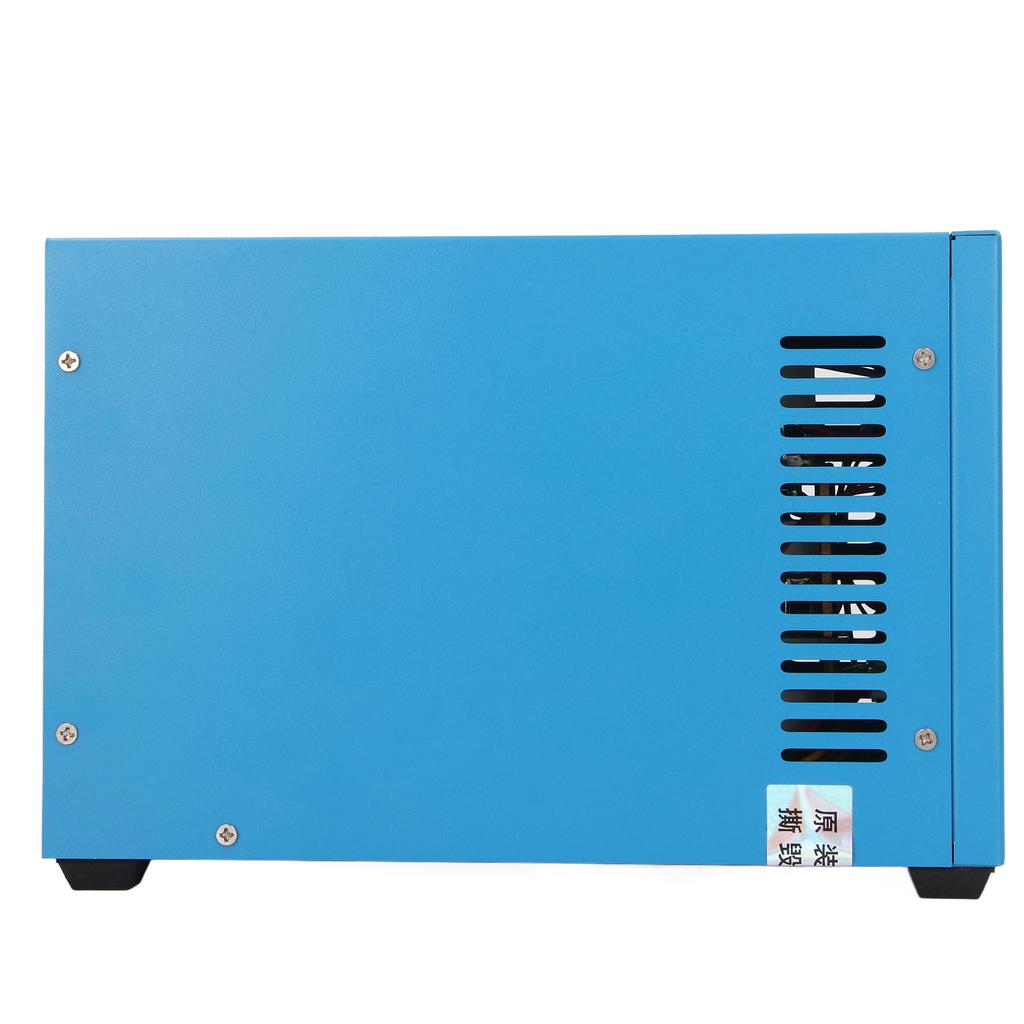

Heat Dissipation Mode: Forced Air Cooling
Operating Environment: Temperature 10 60 celsius
Humidity: 0 90percent
Input Voltage: 12V 50 Or 60Hz.
Package List:
1 x Detection Equalizer1 x Multifunctional Adapter Board1 x Power Adapter1 x Instruction Manual
Note:
1. Due to the large equalization current, the equalization line should be thick enough, otherwise it will burn off the line or other problems.2. B1 is the negative pole of the battery pack, the first string from the negative pole number, the equalization process is prohibited to connect the battery again.3. During the equalization process, be sure to pay attention to the idle channel wire accidentally touch, or damage the equipment or battery.4. If a balanced can not achieve the effect, can be repeated several times balanced effect is better, please confirm several times without error before wiring into the equalizer.
