Feature:
1. 51MP MOSS sensor 1 2.33in, high‑definition multimedia interface USB2.0 dual output camera with high‑definition multimedia interface USB2.0.
2. Horizontal and vertical cursor lines, support multi‑color, 5 horizontal vertical lines, movable. Different colors, 5 horizontal lines, 5 vertical lines, any position.
3. The computer supports multiple systems and supports for WindowsXP 7 8 10 systems. Equipped with 130X C mount zoom lens for industrial microscope cameras.
4. It adopts high‑quality aluminum alloy shell, which is sturdy, durable and long in life. It can be used for education, scientific research, laboratory, demonstration, maintenance and inspection.
5. The LED adjustable compact microscope ring light provides dense and concentrated shadow‑free illumination, the illumination direction can be changed, variable strength control, and a life span of 100,000 hours.
Specification:
Item Type: Microscope Camera
Material: Aluminium Alloy
Color: As shown in the picture
Application: Can be used for education, scientific research, laboratory, demonstration, maintenance and inspection
Model: HY 1139
Picture Format: jpg
Image Resolution: 51MP
Video format: MP4 (for memory card)
Video Recording: 1080P 60FPS
High Definition Multimedia Interface Video Resolution: 1920x1080at60FPS (for High Definition Multimedia Interface)
USB Video Resolution: 1920x1080 30FPS; 1280x720 30FPS; 640x480 30FPS; 320x240 30FPS
White Balance: Automatic Manual
Light: Automatic Manual
Exposure: Automatic manual, value can be adjusted
Direction: Left right, up down
Freeze: Support
OSD: English Chinese French Spanish Japanese German
Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position
Image Sensor: 51MP MOSS sensor 1 2.33in
Effective Pixels: 51MP
Pixels Size: 1.335micrometerx1.335micrometer
Frame Rate: 60fps
Picture Definition: Full HD
Lens: C CS
Video Format: MOV
Digital Zoom: Support
Brightness Control: Automatic manual
Color: R G BA adjustable
Films and Records: Support
Cursor:
Support multi color, adjustable size
Horizontal and vertical lines
Support multi color, 5 horizontal vertical lines, movable
Different colors, 5 horizontal lines, 5 vertical lines, any position.
Memory Card Interface: Maximum 64G (not included)
High Definition Multimedia Interface: Standard high definition multimedia interface output (Type A)
USB interface: standard USB2.0 interface (Type B)
PC Support: Support for WindowsXP 7 8 10 system
Input Voltage: DC12V
Voltage: AC100 240V
130X Zoom Lens:
Magnification: 0.12 2 times (approximately 8 times 130 times on the screen)
Working Distance: 50 200mm 1.97 7.87in
Field of View: 2.4 32mm 0.09 1.26in
Product Size: Approx. 110x40mm 4.33x1.57in(L x ID)
LED Light Parameters:
Brightness: Adjustable
Input Voltage: 100 240V, 50 60HZ
Lamp Inner Diameter: 65mm 2.56in
Total Outer Diameter: 95mm 3.74in
Working Range: 27 45mm 1.06 1.77in
Remote Control Battery Specifications: Button battery CR2025x1 (not included)
.

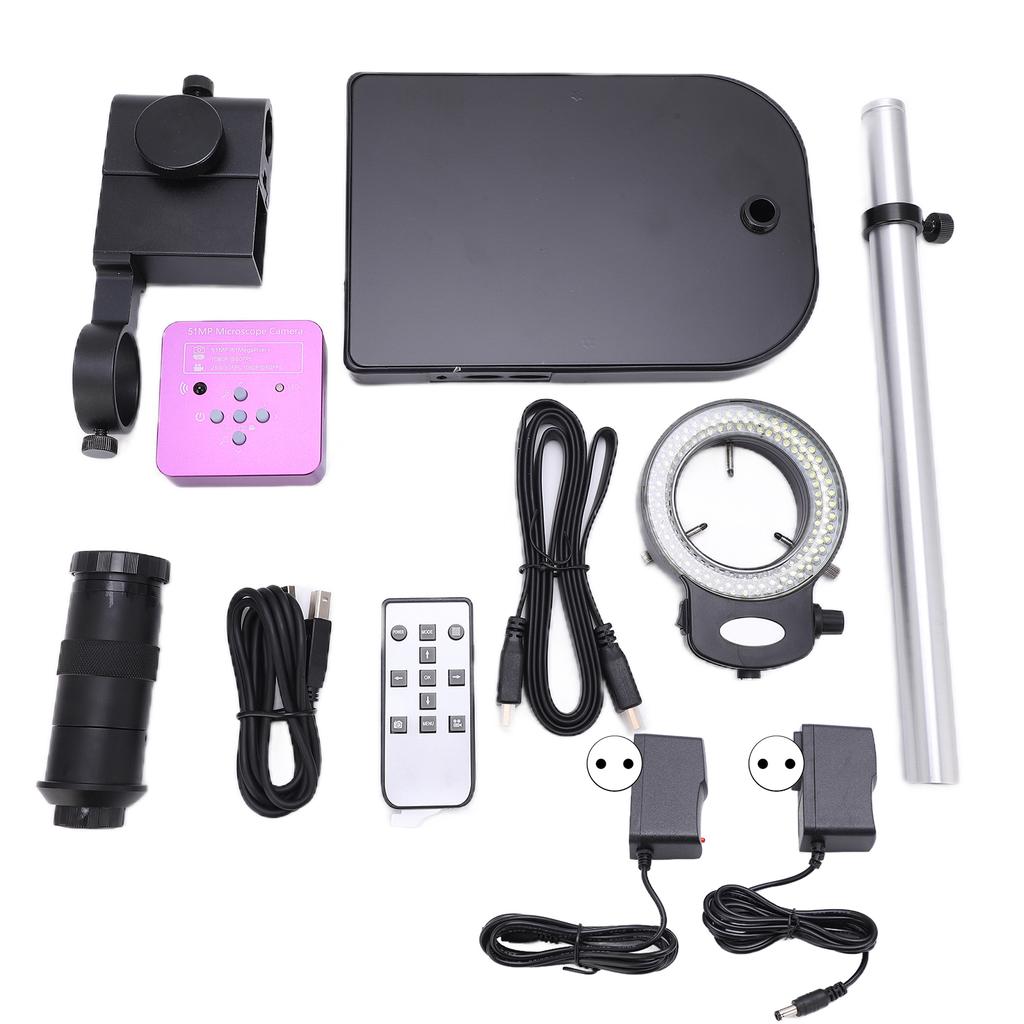

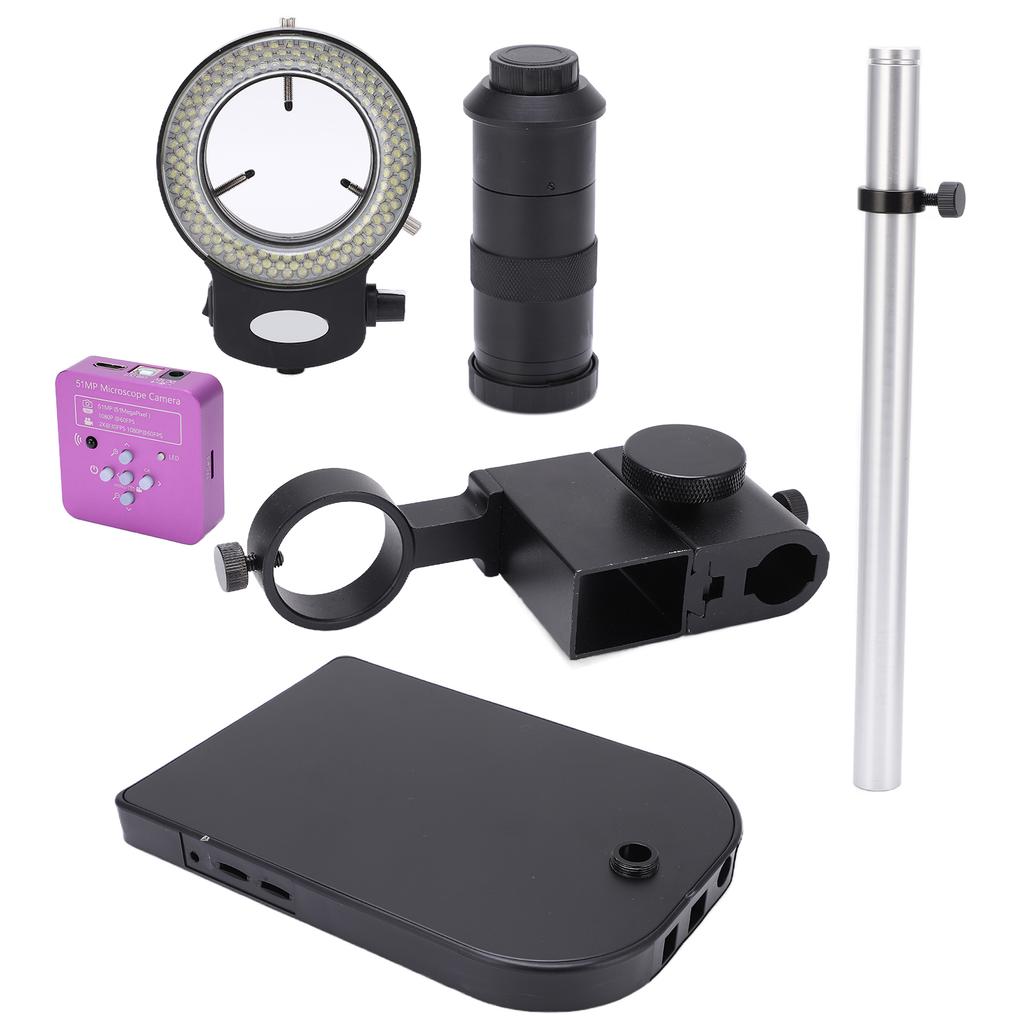

Package List:
1 x Camera1 x Lens1 x Adjuster 1 x LED Light1 x Remote Control(Battery Not Included)1 x Base1 x Bracket1 x High Definition Multimedia Interface Cable1 x USB Cable2 x Power Supply1 x Software CD1 x Manual
Note:
1. PC support: support for WindowsXP 7 8 10 system.2. For USB output, the white balance, exposure and color adjustment of the software operation can be adjusted.(The remote control cannot be operated).3. For high‑definition multimedia interface output, the function can be adjusted when connected to the monitor.(The remote control can be operated wirelessly).4. When using a USB connection, please make sure that there is no memory card in the camera. The memory card is only used for high‑definition multimedia interface output.The USB output will be saved in the PC.5. When connecting the camera to the computer, just plug in the USB cable (no power required).
