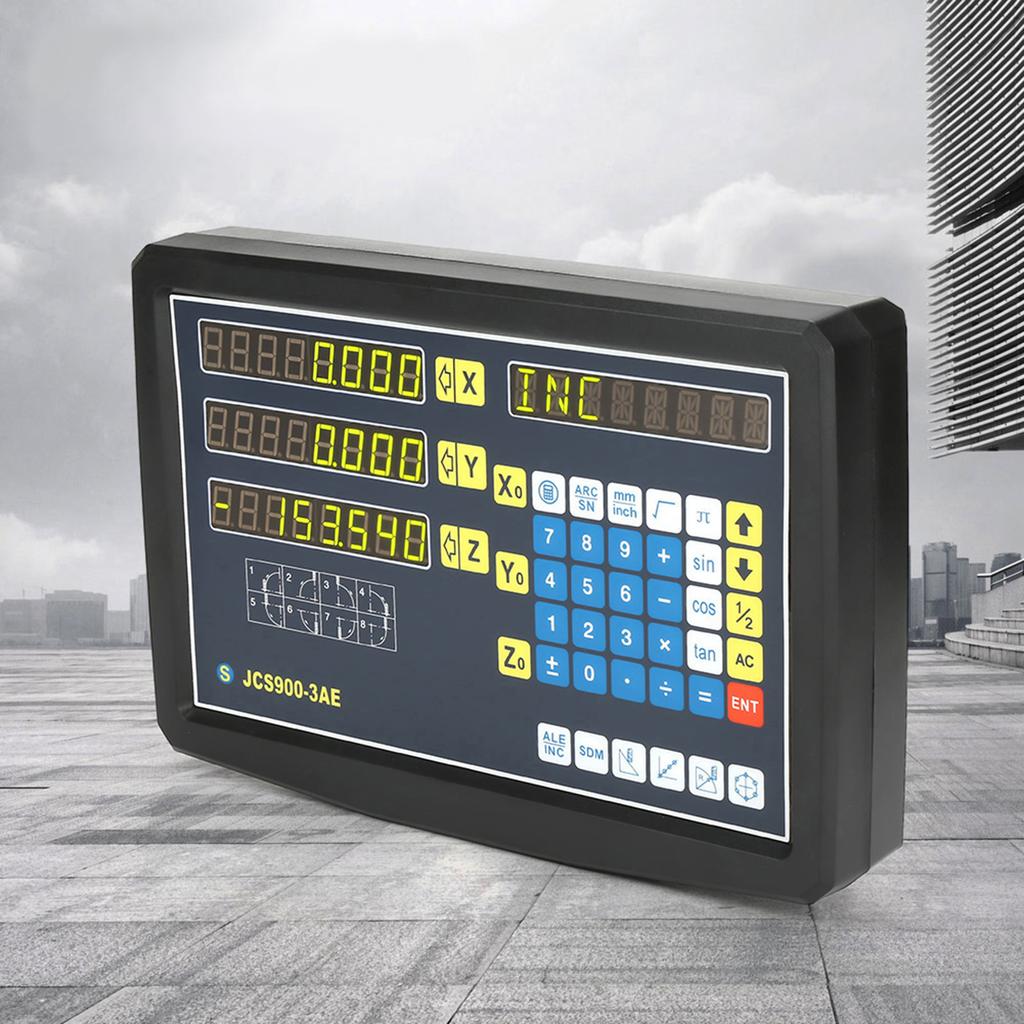

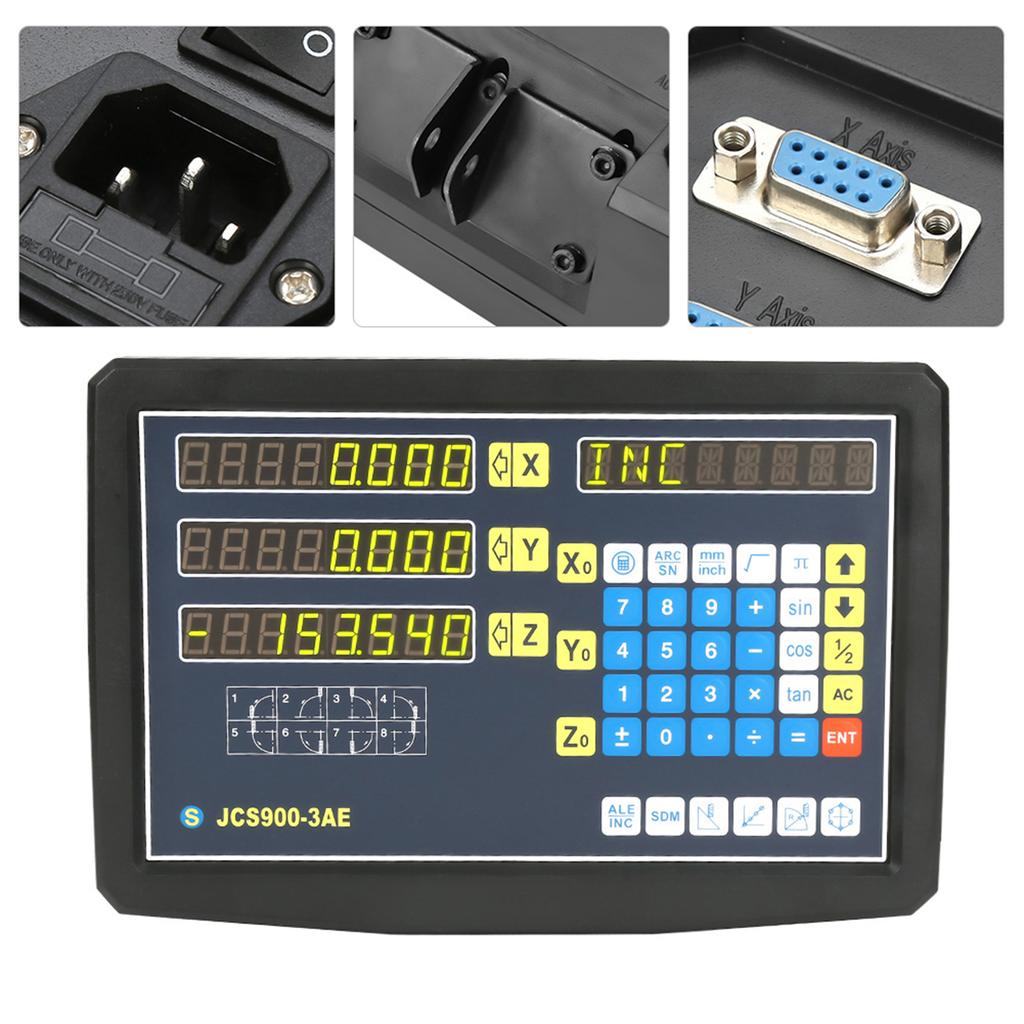

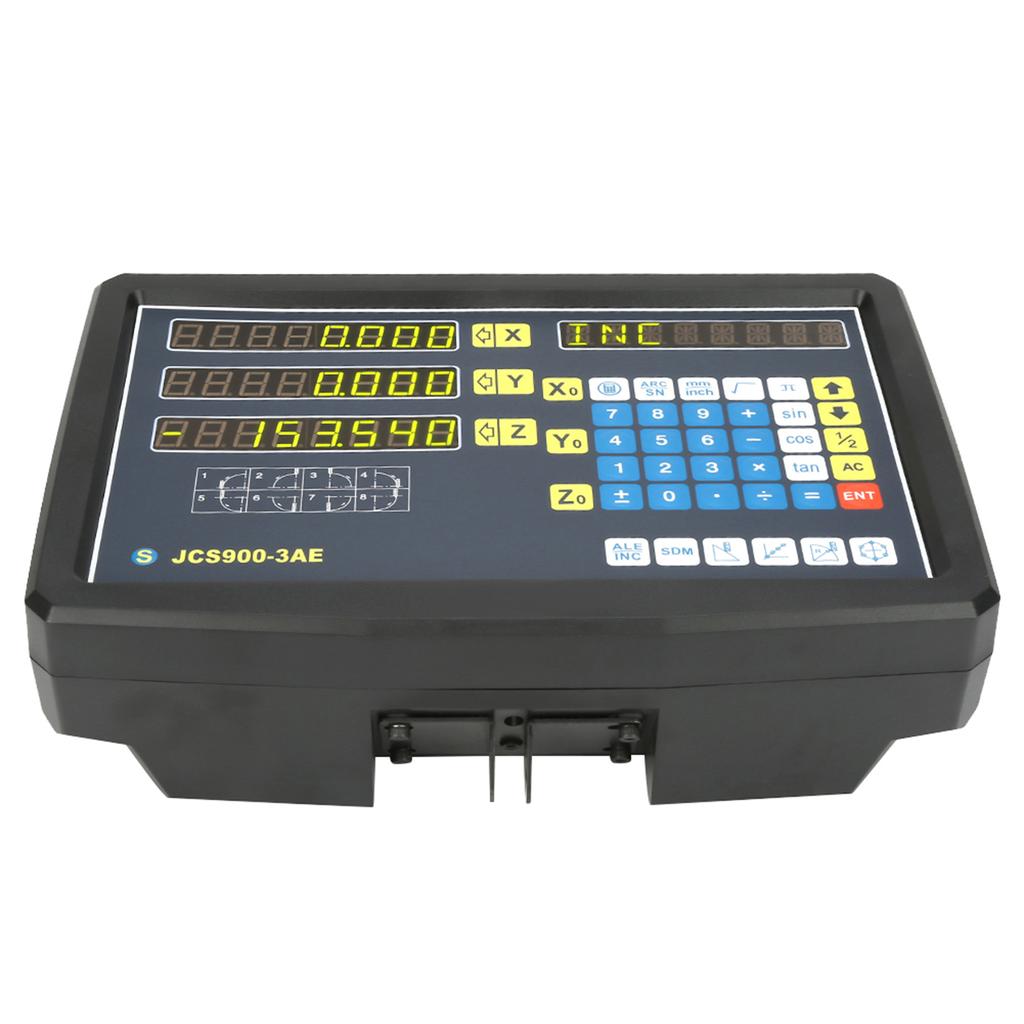

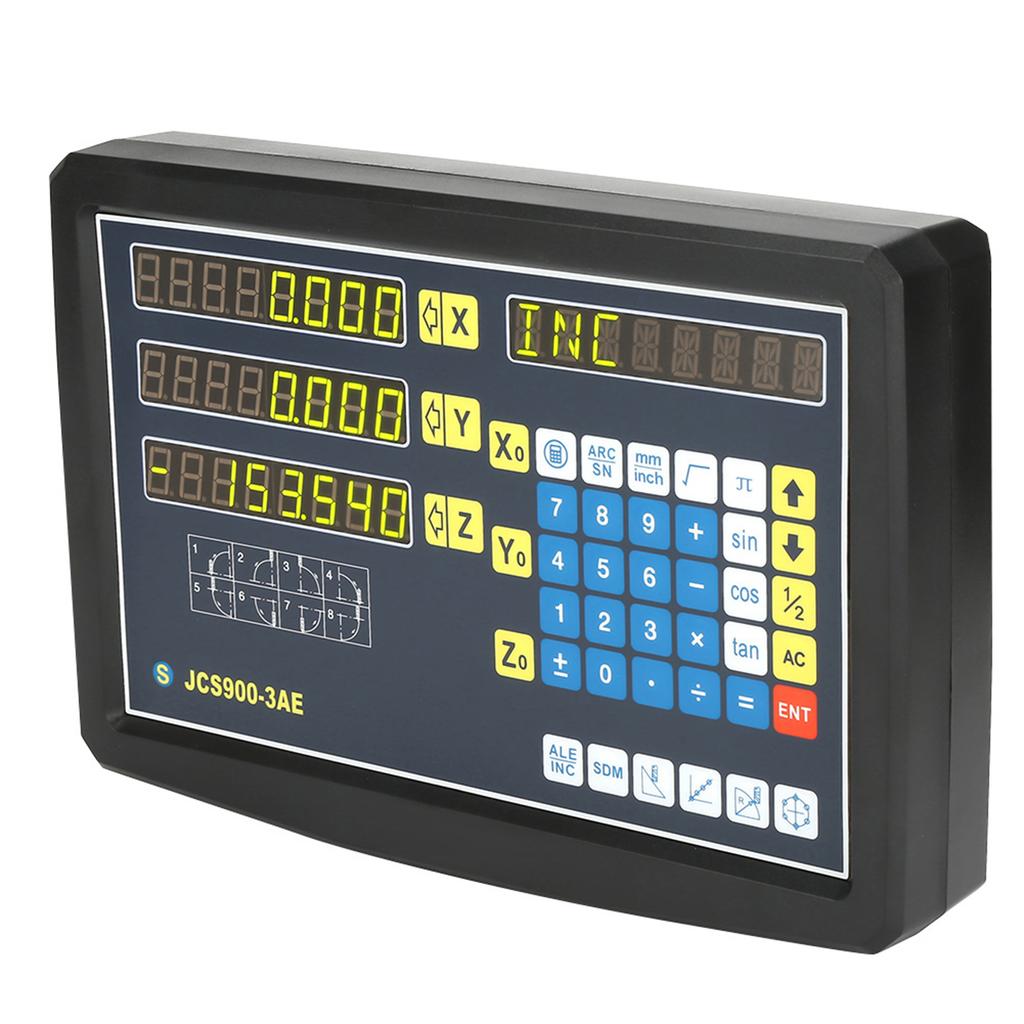

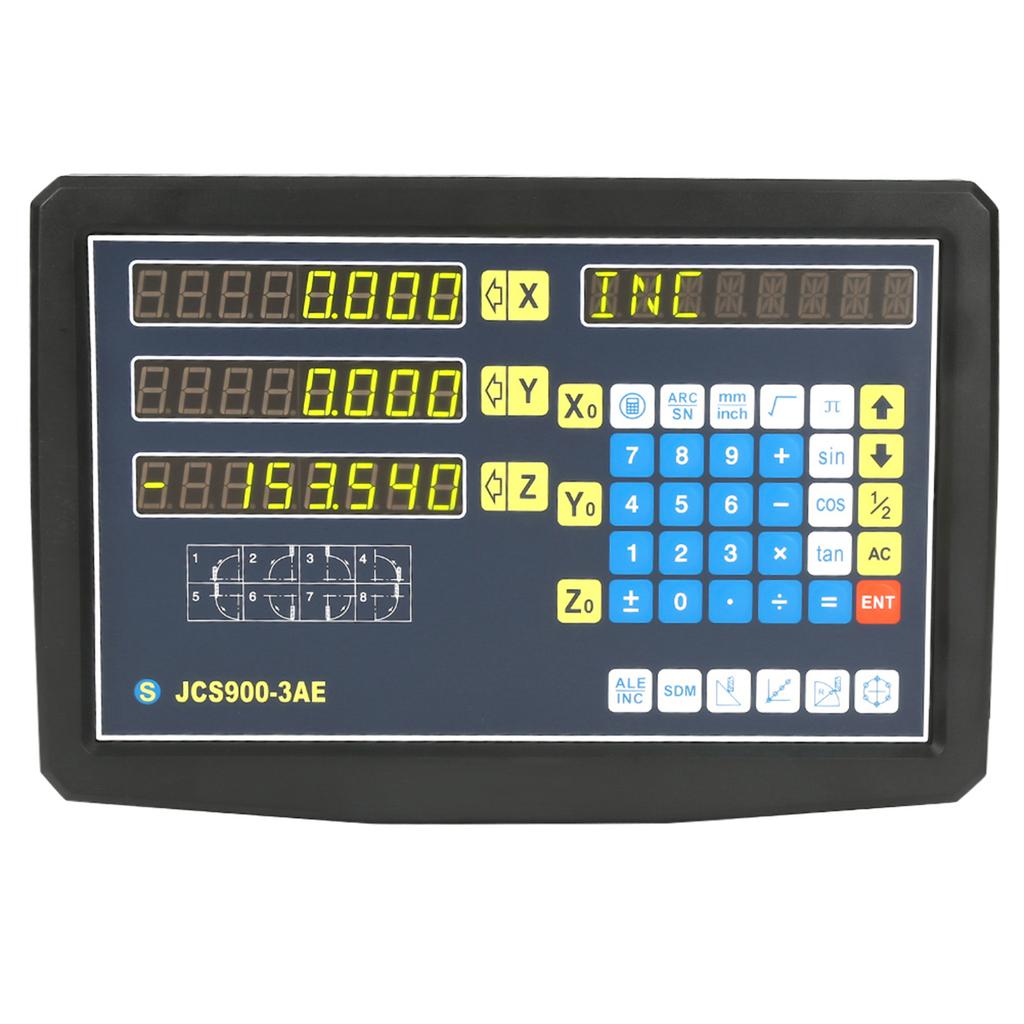

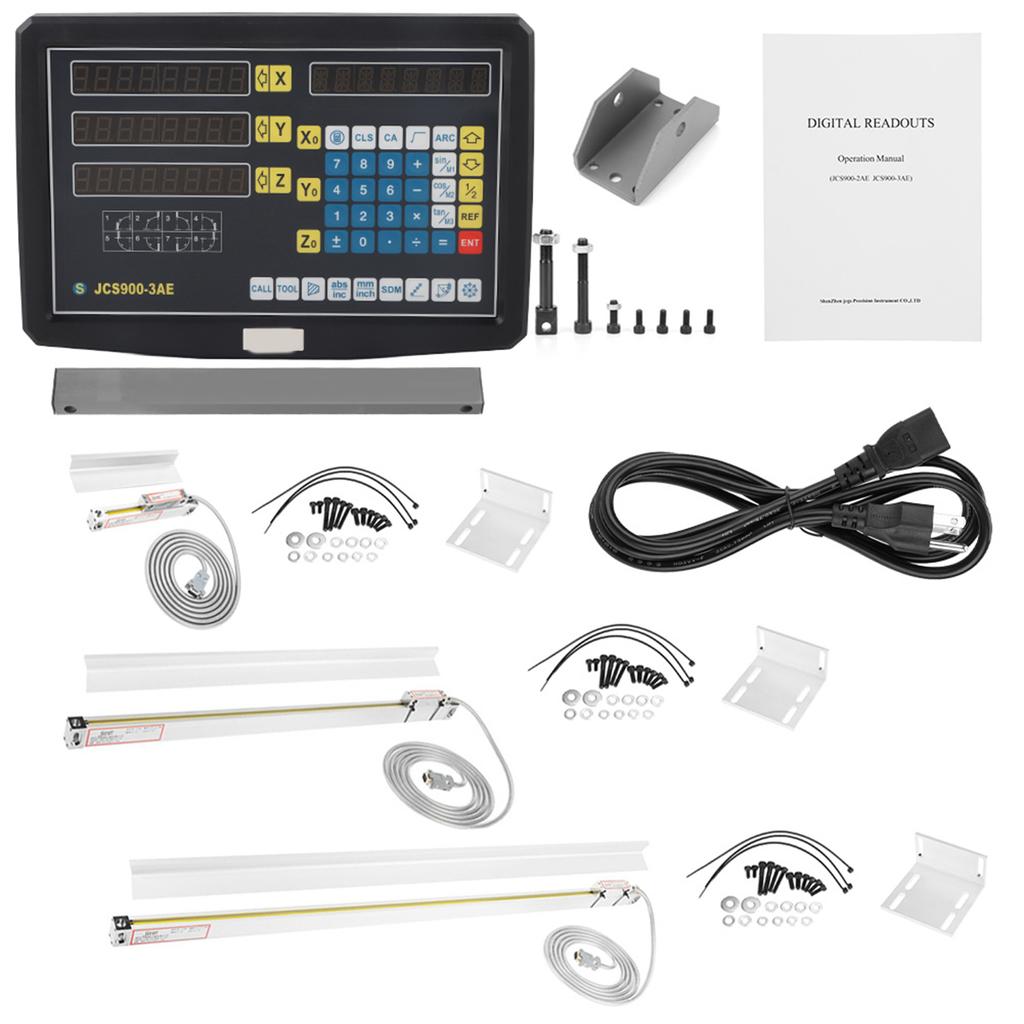

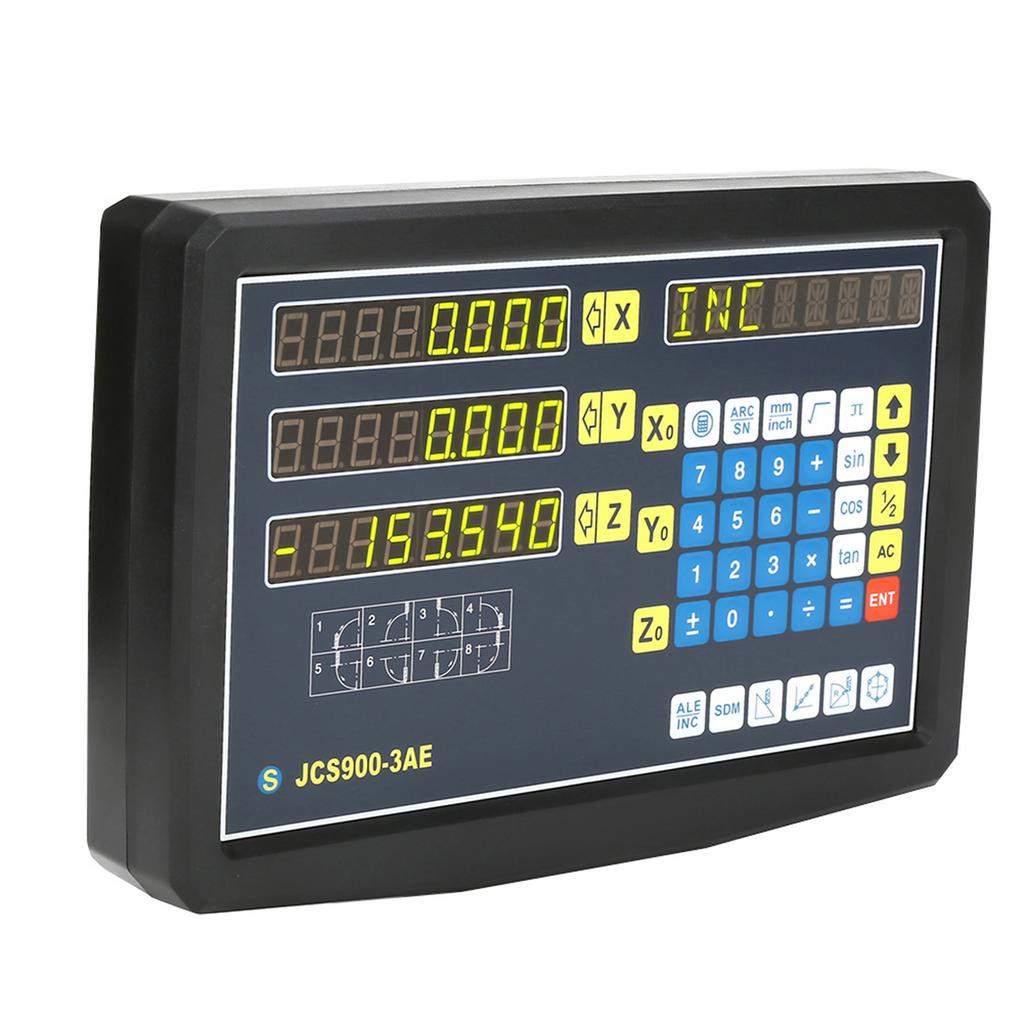

JCS900 3AE 50mm 500mm 800mm Digital Readout Linear Scale Encoder

Features: The reading head of this sensor uses ball bearing positioning and orientation for small friction, high sensitivity and long service life. The sensor uses precision metrology grating as measuring device, high measurement precision. It is practical for refinement of machine tools which have lost precision; using grating digital display machine tool can greatly improve machining accuracy and production efficiency. The sensor has sealed structure, reliable performance, easy installation, and is unmatched by any other digital display system. It can be used for linear digital display of all kinds of small and middle machine tools and other precision measuring, to achieve accurate measurement and positioning. Specification: Model: JCS900 3AE Readout: Voltage: 110 240V Plug: US plug Measuring Travel: 0 3020mm Measuring Standard: Grooved glass optical grating Working Voltage: 5V DC + 5& Working Speed: less than 1m S(1um) Accelerated Speed: less than 60m s² Referential Operating Temperature: 10 celsius less than 70 celsius Referential Operating Humidity; less than 90 RH Test Process: Increment Signal Mode: TTL Circuit Type: NPN Optical Grating Measuring System: Transmission type infrared optical measurement system, infrared wavelength is 940 nanometers Scanning Frequency: less than 28kHz Vibration Reduction: 50hz 2khz less than 180m s² Impact: 16ms, less than 600m s² Displacement Friction Resistance: less than 5N Linear Scale: Measuring Range: 0mm 50mm; 0mm 500mm; 0mm 800mm Accuracy: + 5um Resolution: 5um Weight: 6106g 215.4oz (approx.) Note: 1, Please kindly make a note if you need any plug adapter. 2, Due to different batches, the color of accessories may differ from picture, please take the real ones as standard. Package list: 1 * Digital Readout 3 * Linear Scales (50mm, 500mm, 800mm) 1 set * L shape Connection Plates 1 * Protective Cover 1 * Holder 1 * Power Cord 1 set * Screw Accessories Note:

.
