Features:
- and high quality
- Made of high quality materials,
- Wireless power switch, socket, remote control switch, receiving module,
- Access control, electric vehicle, motorcycle, car anti-theft products, remote control door opener, door closer control
- Security, monitoring s, home security products, electric doors, alarm hosts, alarms
- Room control, rolling door, remote socket, remote LED, remote audio, remote electric door, remote garage door, remote telescopic door, remote rolling door, sliding door
- Smart home products, remote control curtains, remote control MP3, audio.
Specification:
- Model: RX470-4 (RX470-4 is an upgraded version of WL101-341, with more stable performance and faster data transmission)
- Material: plastic+metal
- Color: as picture shown
- Dimensions: 30×9×1mm
- Working frequency: 433.92MHz
- Mains input voltage range: 2.2V-5V
- Working current: type: 2.1mA (required: VDD =5V); type: 2.1mA (required: VDD =3V)
- Quiescent current: 1uA
- Temperature range: -40℃～85℃
- External antenna: 32cm single-core wire, wound into a shape

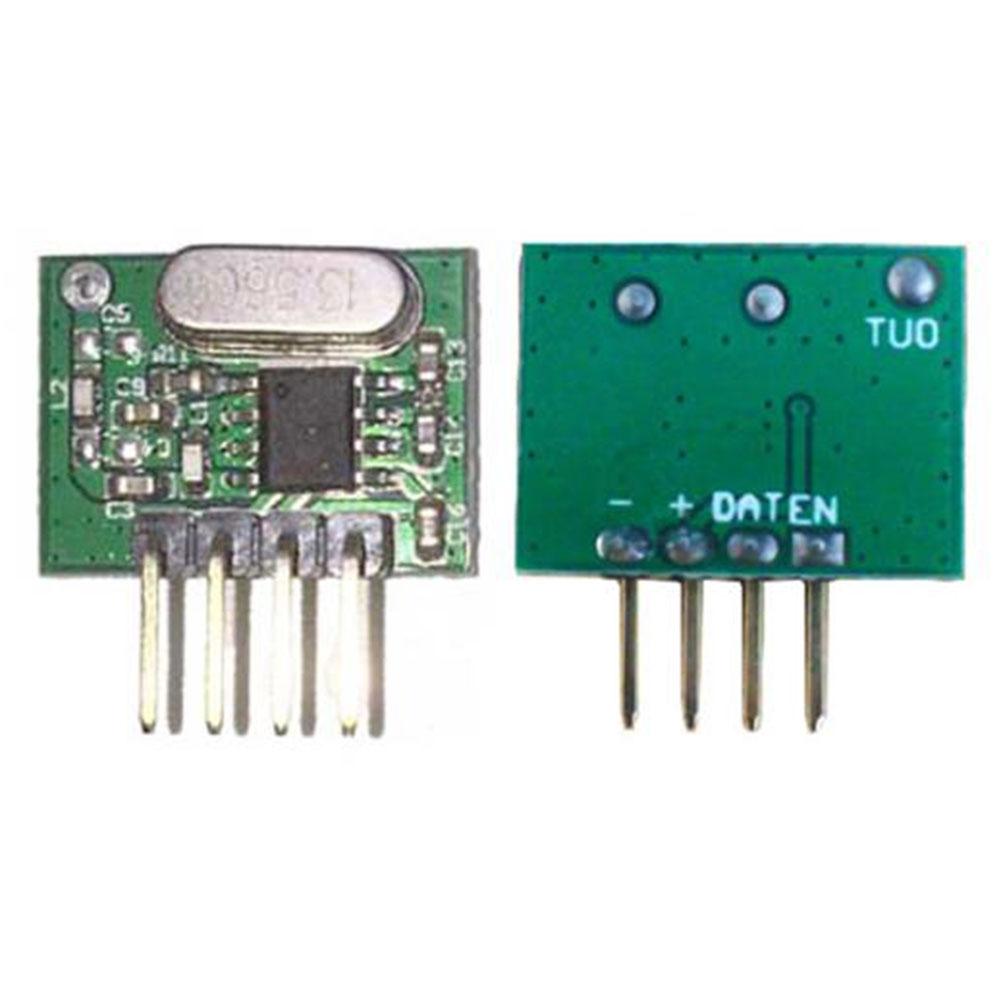

- Model: WL102-341
- Dimensions: 16×12×1mm
- Working frequency: 433.92MHz
- Mains input voltage range: 2.0V-3.6V
- Shutdown mode current less than 1uA
- Transmission rate: up to 20KHz
- Launching distance: 20-100 meters
- External antenna: 25cm ordinary multi-core or single-core wire
- Temperature range: -45℃～85℃

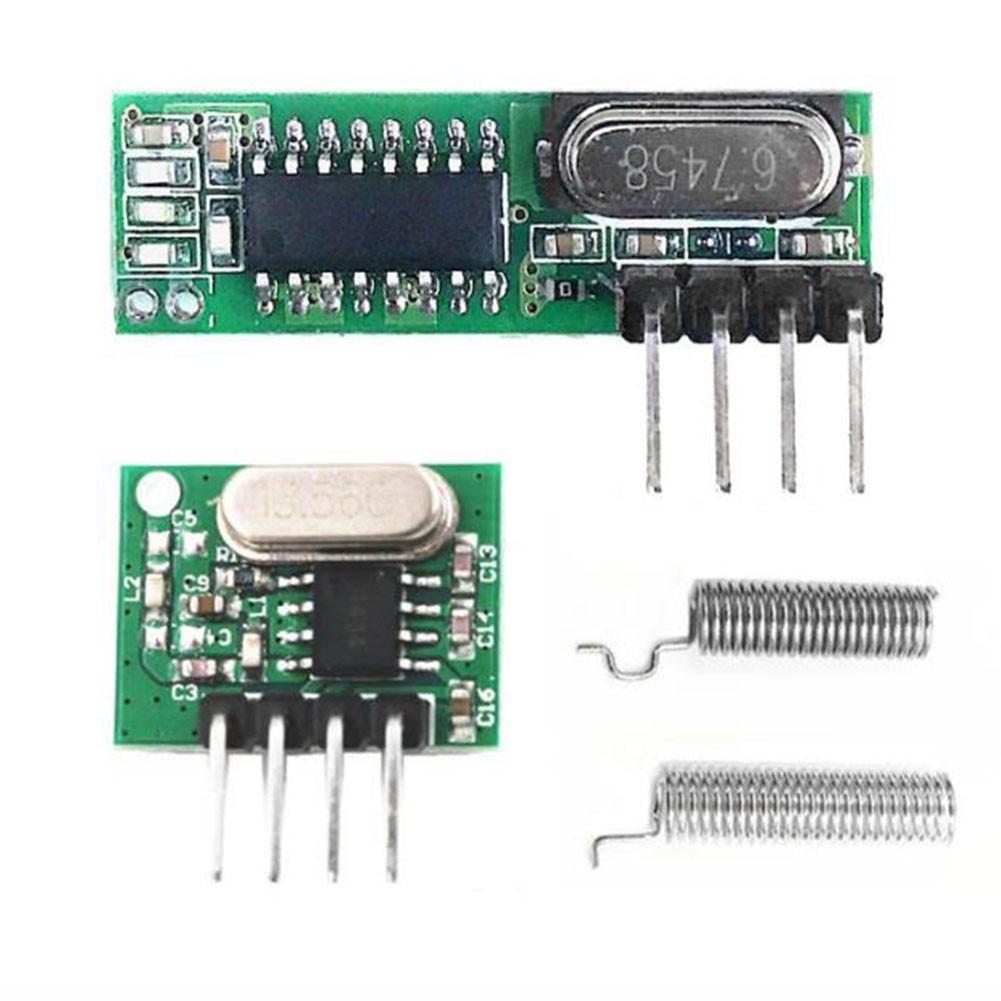

Package includes:
1*receiving module (RX470-4)
1*Transmitter Module (WL102-341)
2*Antennas (short antenna for transmitter; long antenna for receiver.)
Notes:
1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture.
2. Please allow a slight deviation between the data and the manual measurement.
