【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
------------------------------------------------------------------------------------------------------------------
4K Ultra HD Video Quality: The 4K HDMI USB camera uses a 1/2.8-inch IMX415 color CMOS image sensor, providing 4K resolution with excellent noise reduction, color reproduction, and low image latency. Preview within approximately 8 seconds after opening the software.
Simultaneous USB and HDMI Output: USB Type-C power supply, simultaneous Type-C and HDMI display output. HDMI output can be connected to an HDMI monitor to capture on-screen video shows for education, or connected to an HDMI video capture card for live streaming of small activities.

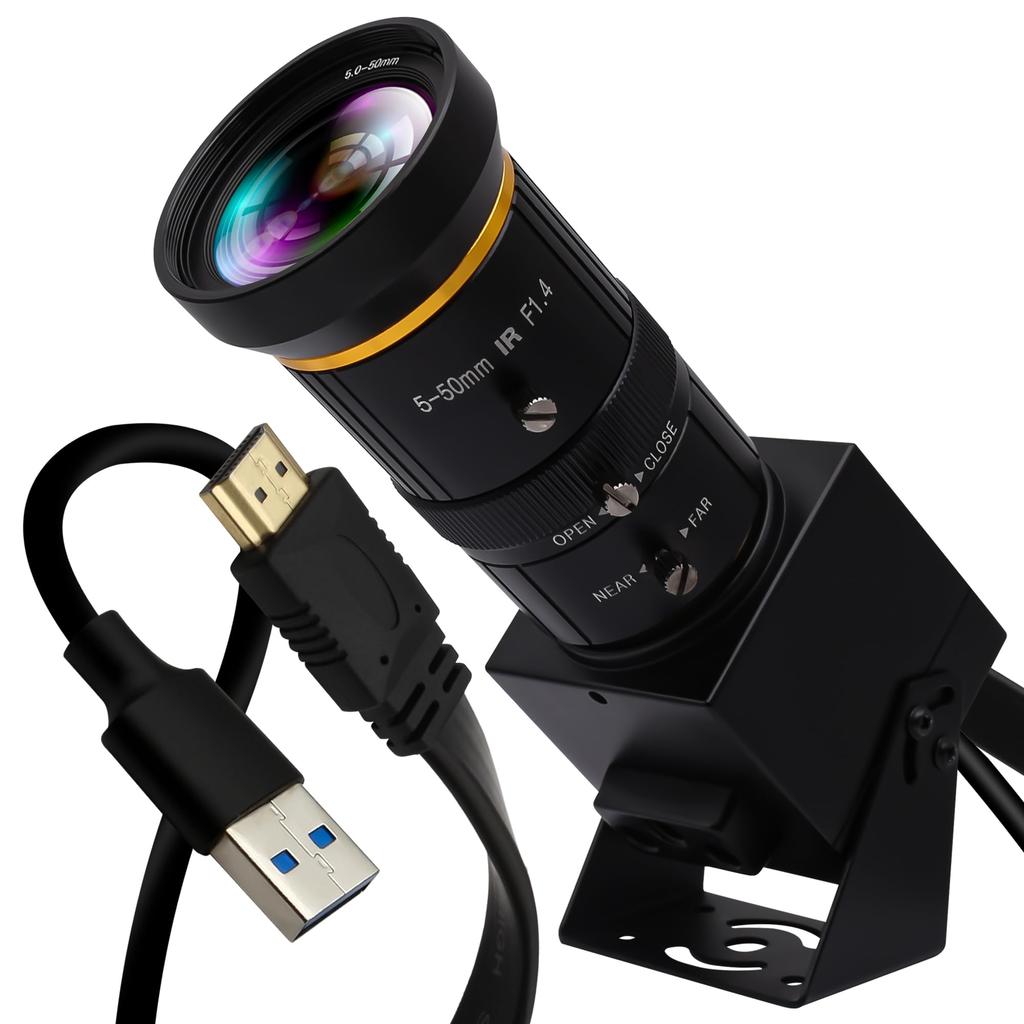

5-50mm 10X Manual Zoom Lens: The 4K 5-50mm varifocal USB camera is excellent, with an excellent range and depth of field from 5-50mm, allowing you to get very close to some objects, almost macro. Manual focus allows you to control zooming in and out, adjusting focus and aperture size to get the best brightness for your subject, and locks them into place using the screw on the lens.
Video Format: Improved compression efficiency, lower bandwidth requirements, and improved video quality. H.264/MJPEG/YUY2 are optional, and the camera can drive 3840x2160 MJPEG 30fps/H.264 30fps. Capture ultra-high-resolution live images up to 3840x2160 30fps, and deliver Full HD video 1080p 30fps for high-quality live streaming and video calling on Windows, Mac OS, Linux, and Android.
Widely Applicable: Webcam with UVC-free driver, wide compatibility with third-party software and operating systems, compatible with instant messaging applications such as Skype, MSN, Facebook, live streaming, etc. Fits multiple OS including Windows, Linux and Mac-OS.
specification:
Model: ELP-USB4KCAM01H-CFV(5-50)-J
Sensor: 1/2.8 inch IMX415
Maximum resolution: 3840(H)X2160(V)
Sensitivity: 0.65V/lux-sec@550nm
Pixel size: 1.45μmx1.45μm
Video compression: MJPEG/YUY2(YUYV)/H.264/
Resolution and Frame Rate:
3840x2160 MJPEG 30fps/ H.264 30fps/ 30fps
2560x1440 MJPEG 30fps/ H.264 30fps/
1920x1080 MJPEG 30fps/ H.264 30fps/ YUY2 5fps
1280x720 MJPEG 30fps/ H.264 30fps/ YUY2 10fps
1024x576 MJPEG 30fps/ H.264 30fps/ YUY2 15fps
960x540 MJPEG 30fps/ H.264 30fps/ YUY2 15fps
640x480 MJPEG 30fps/ H.264 30fps/ YUY2 30fps
640x360 MJPEG 30fps/ H.264 30fps/ YUY2 30fps
Center definition: 1000LW/PH(center)
S/N ratio: 30dB
Minimum illuminance: 0.2Lux
Shutter Type: Electronic Rolling Shutter/Frame Exposure
Connection port type: USB 2.0 interface & HDMI v1.4 interface
AEC: Supported, AWB: Supported, AGC: Supported
Adjustable parameters:
Brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation, exposure
Lens parameters: 180 degree fisheye lens
Power and Interface: USB Type-C power supply, simultaneous Type-C and HDMI display connection
Operating voltage: DC5V
Working current: 480-500mA

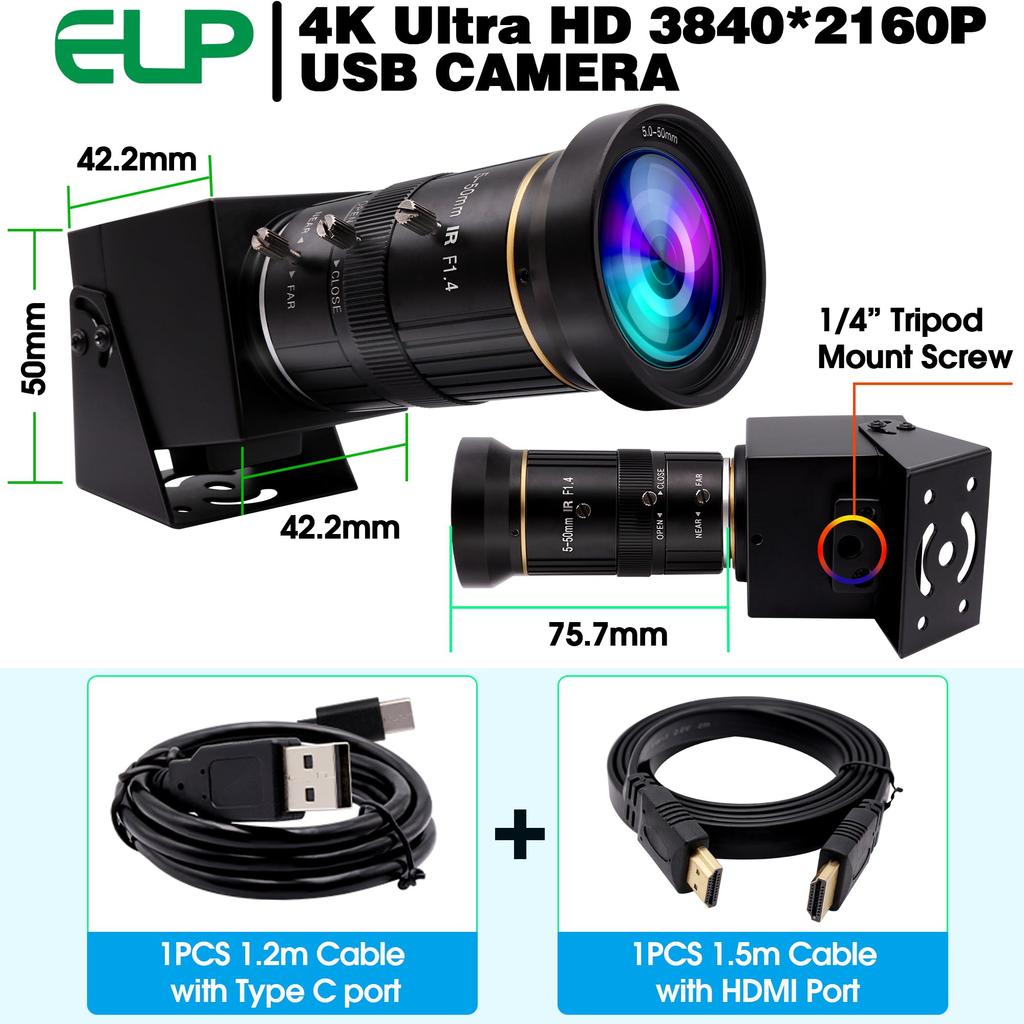

Dimensions: Double deck, 38mm x 38mm
Storage temperature: -20℃~85℃
Operating temperature: -10°C to 70°C
USB cable: 2 cables
(One 1.2m cable with Type-C port, one 1.5m cable with HDMI port)
Request operating system: Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC MAC - OSX 10.4.8 or later, Android 5.x or later
