Features:
Difference between Version 8 and Vetsion 9: Speed: Version 8 supports up to 10M, while Vetsion 9 supports up to 20M.
Stability: Version 9 driver chip with voltages adaptived capability, when corded correctly, can automatically adapt to the targeted board voltages. 1.8-5.5V can be debugged, while the Version 8 can only debugging 3.30V , debugging 5V stability is poor.
Version 8 can easily lose firmware. Many V8s have hunging up and need to rewrites the firmware. The Version 8 no longer supports some of the new CPUs, while the Version 9 supports almost all ARM CPUs.
For embeddedlu system development engineers, electronics enthusiasts and related technicians.
Suitable for laboratory research and development, product testing and field debugging and other environment.
Specifications:
Model: Vetsion 9 ARM Emulator Adapter Switching Board

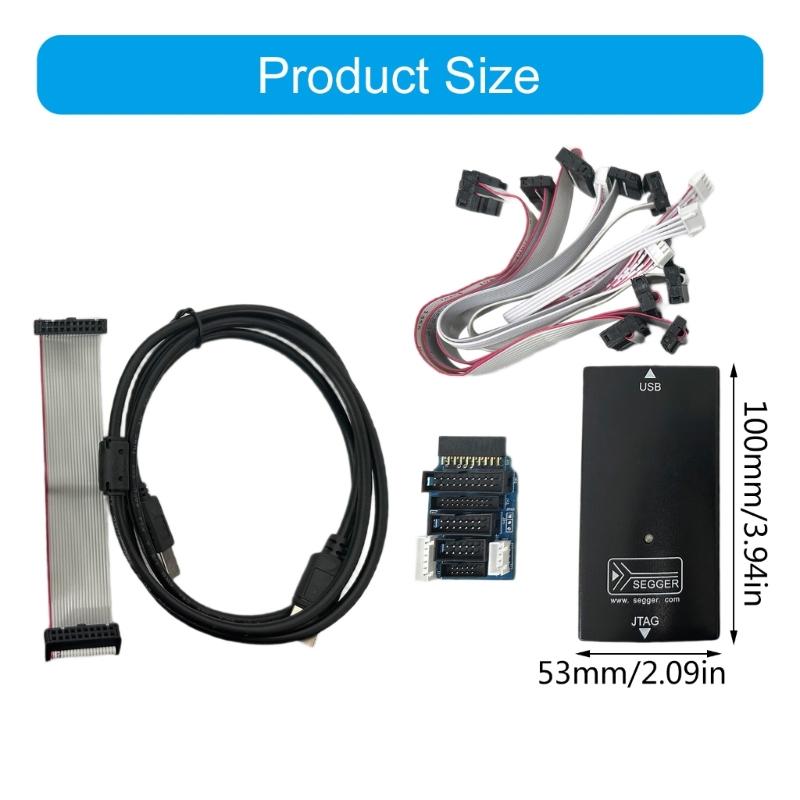

Size：about 100x53x27mm/3.94x2.09x1.06in
J Link Support for ARM Kernel:
ARM720T x ARM920T
ARM926EJ-S
ARM946E-S
ARM966E-S
ARM11

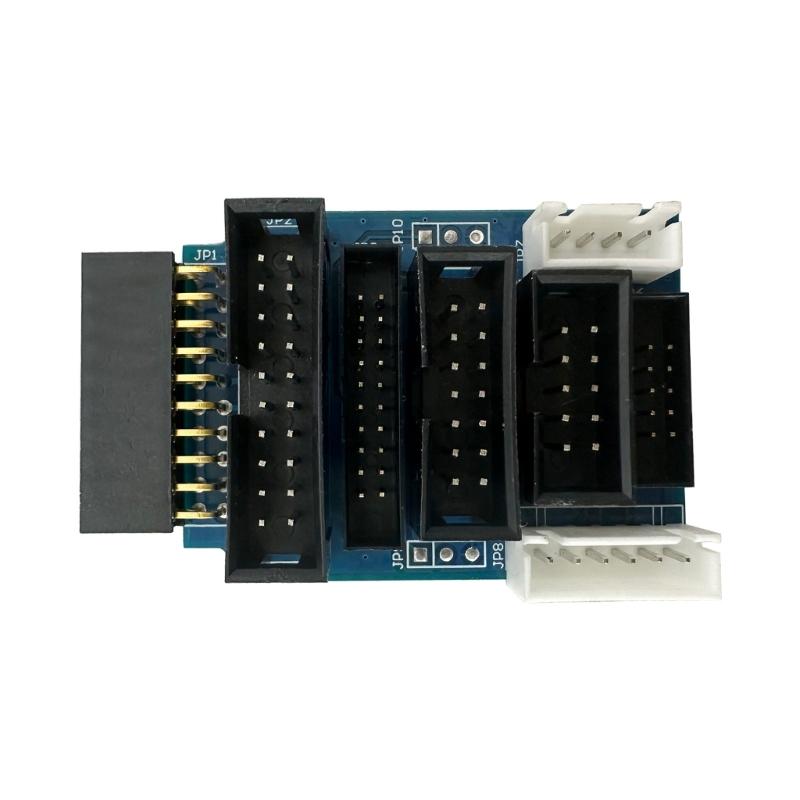

Multiiple function conversion board: Interfaced 1: 2.54pitch 20-pin corner socket (can be directly connection to the socket) Interfaced 2: 2.54pitch 20-pin straight socket Interfaced 3: 2pitch 20-pin straight socket Interfaced 4: 2.54pitch 14-pin straight socket Interfaced 5: 2.54pitch 10-pin straight socket Interfaced 6: 2pitch 10-pin straight socket Interfaced 7: 2.54pitch 6-pin straight socket Interfaced 8 Connection 7: 2.54pitch 4-pin straight socket

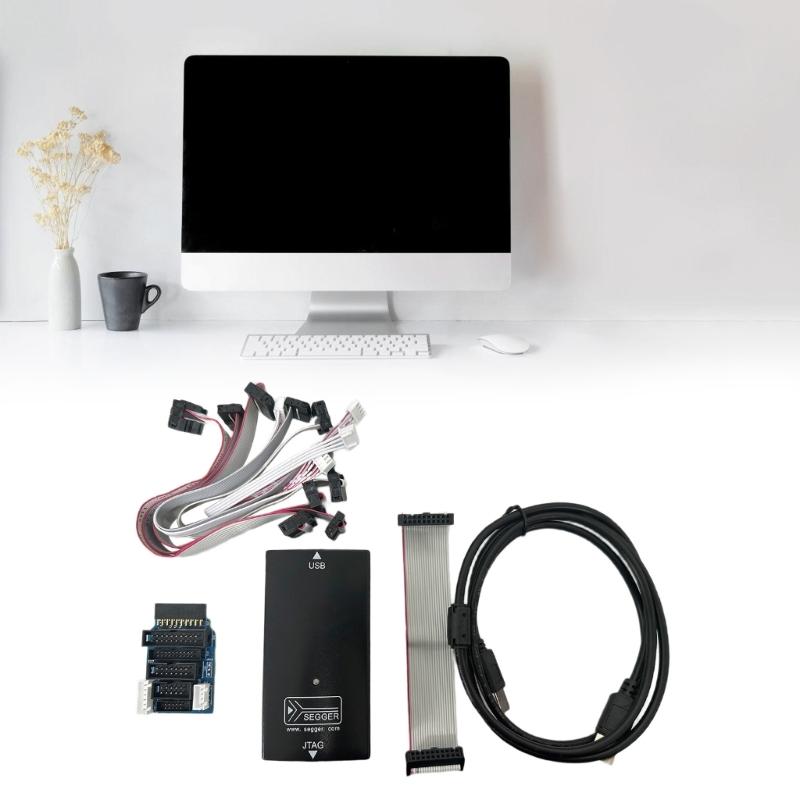

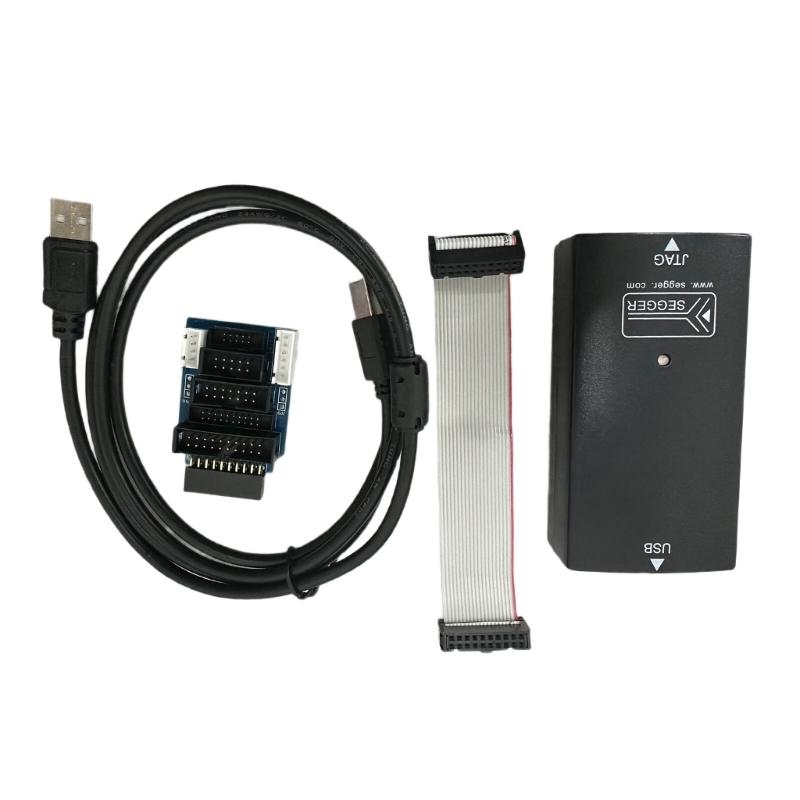

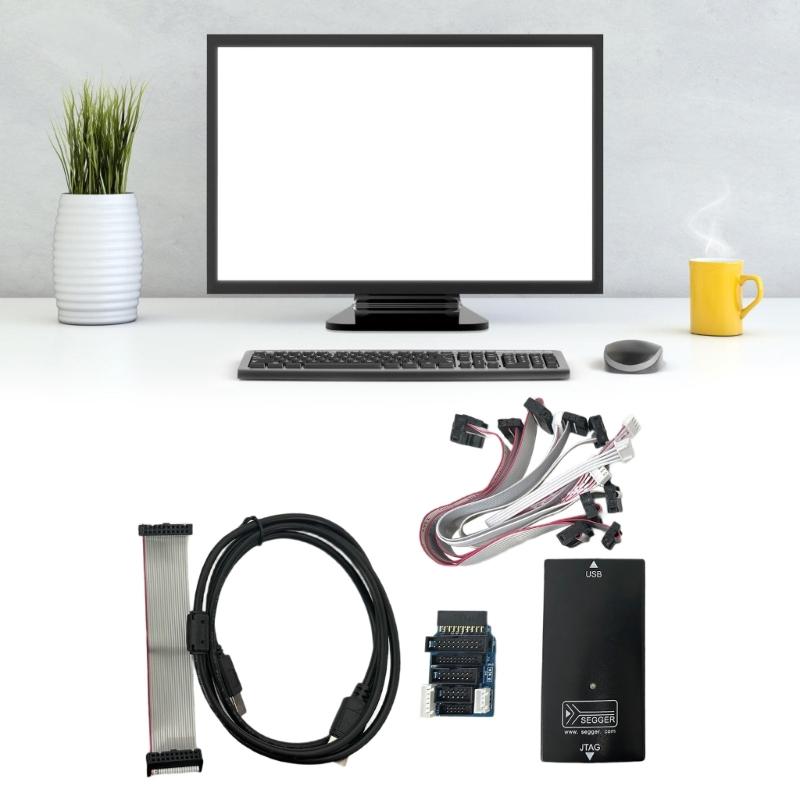

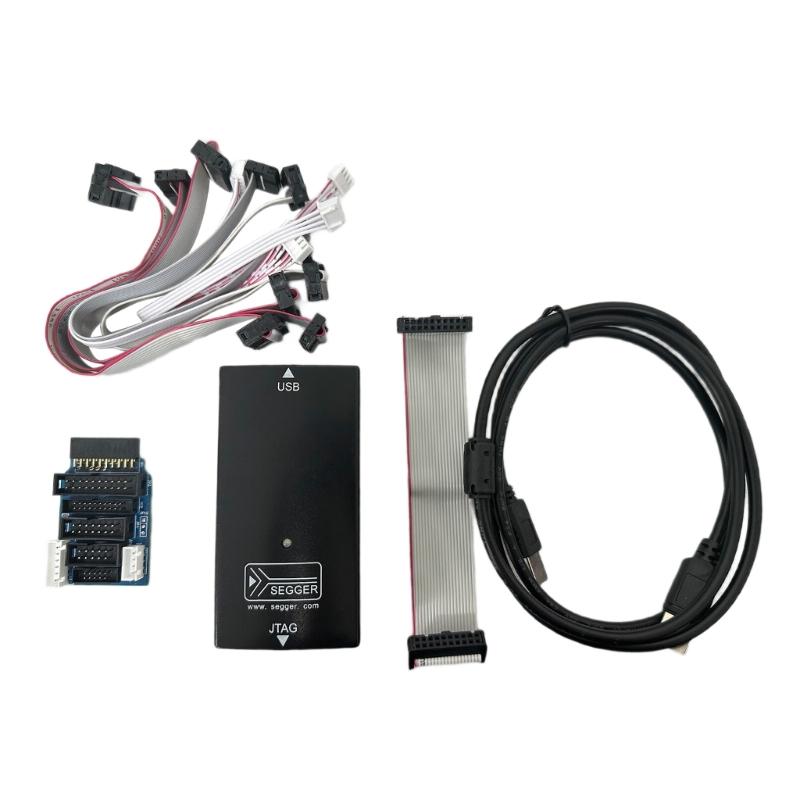

Package Includes:

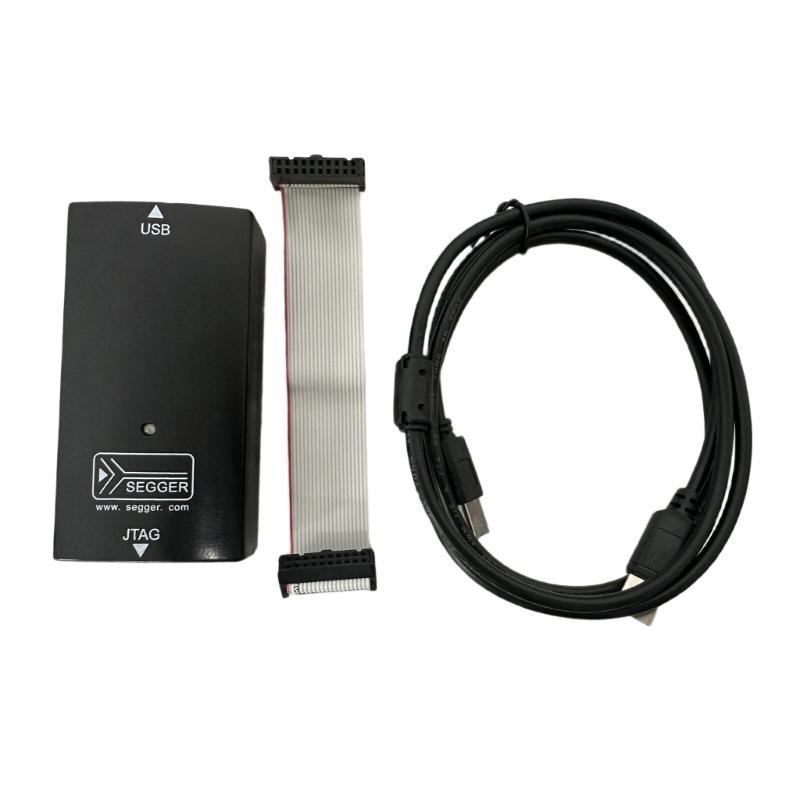

1PCSx Vetsion 9.0 Emulator
1PCSx 20P standard JTAG cable
1PCSx USB Cable
1PCSx Multiple function adapter board

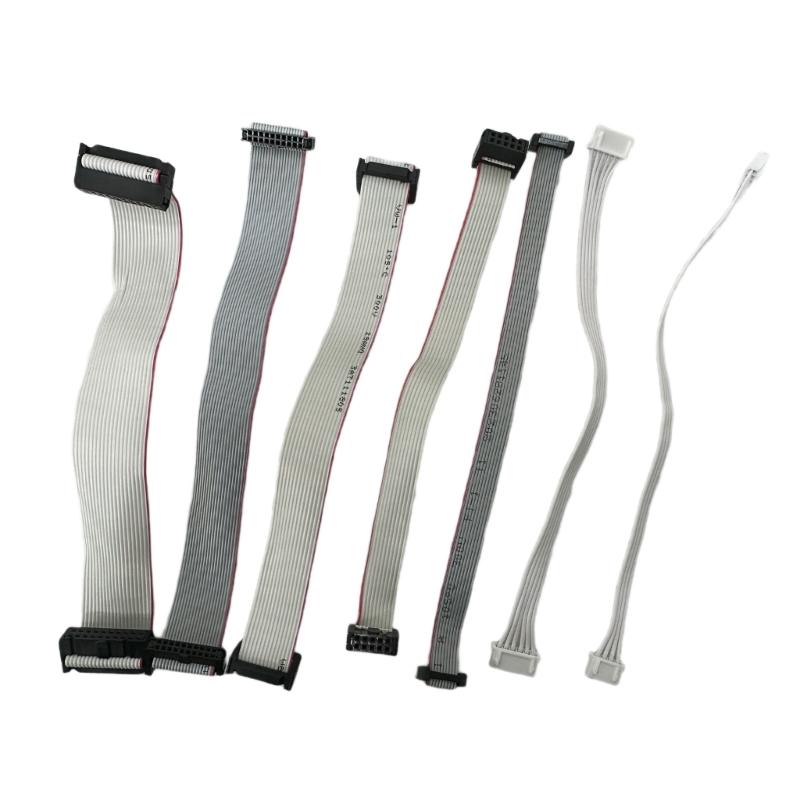

7PCSx Gray flat ribbon data cable
note:
Due to the problem of lighting effect, there might be tolerances in product, please understand.
Please allow 1cm errors due to measurement.
