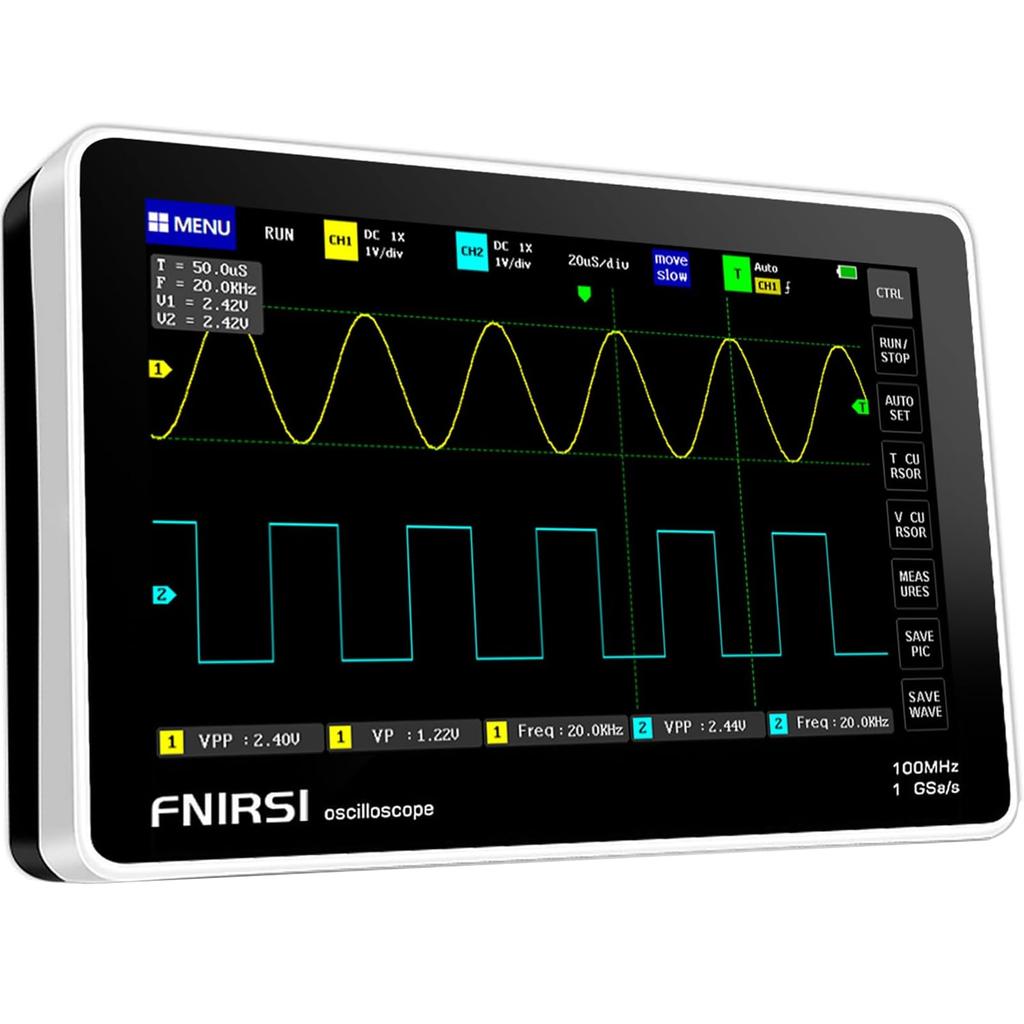

FNIRSI 1013D Oscilloscope Handheld Tablet Portable Digital Storage Oscilloscope 2 100Mhz Sampling TFT LCD Touchscreen - Oscilloscope, Kit, Channels,

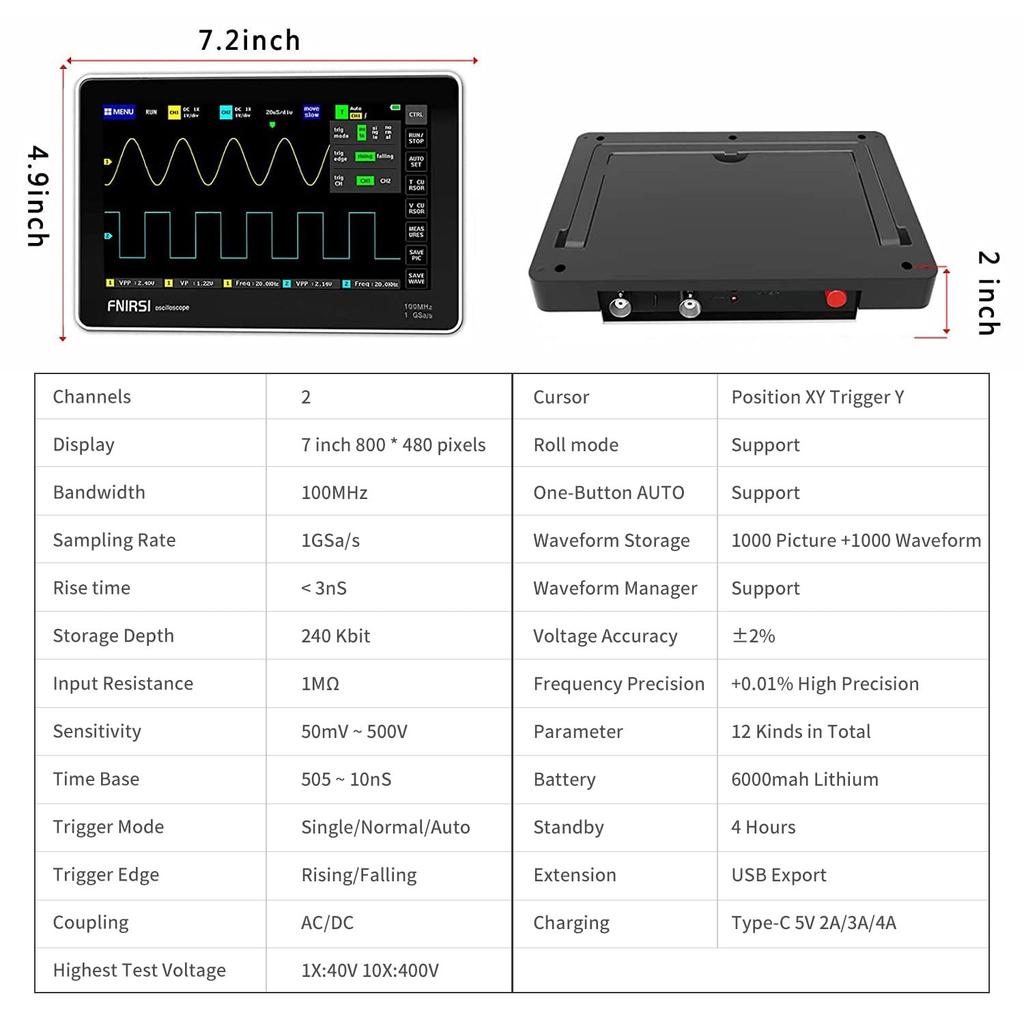

Touchscreen Oscilloscope: FNIRSI oscilloscope with 1 GSA/S sampling rate and 100MHZ*2 bandwidth. FNIRSI oscilloscope has full trigger function (single/normal/auto) and can be used for both periodic analog signals and non-periodic digital signals. Portable Design: 7-inch, 800x480 resolution, bright colors, high contrast. Ultra-thin and easy to carry. Built-in high-voltage protection module can withstand continuous voltages up to 400V. 6000mAh lithium battery, 4 hours of sustainable use. Waveform Image Manager: 1GB storage space can store up to 1000 screenshots and 1000 sets of waveform data. Waveform Image Manager supports thumbnail browsing, view, detail view, page turning, waveform zoom in, zoom out, move, etc. Easy to measure: Capacitive screen touch & gesture operation, cursor measurement, directly obtain peak-to-peak value and frequency when manually reading amplitude frequency parameters. Lissajous Graphic Display & FFT Display: The Lissajous Graphic Display function allows you to compare the amplitude, frequency, and phase of two sets of signals. The FFT Display function provides a rough estimate of the harmonic content of the signal. Material: ABS. Color: Black + White. Analog Bandwidth: 100MHz x 2. Number of Channels: 2. Maximum Real-Time Sampling Rate: 1GSa/s. Vertical Sensitivity: 50mV/div~500V/div. Horizontal Time Base Range: 50S/div~10nS/div. Maximum Test Voltage: 40V (1x probe), 400V (10x probes). Storage Depth: 240Kbit. Input Resistance: 1m. ADC Accuracy: 8bits. Coupling Mode: AC/DC. Trigger Mode: Single, Normal, Auto. Trigger Edge: Rising Edge/Falling Edge. External Trigger Voltage: 0~40V. Display: 7-inch - 800*480. Operation: Capacitive Touch Screen + Gesture. Expansion Port: USB Image Export. Power Supply: One 6000mAh Lithium Battery (Included). Product Dimensions: 184 x 124 x 50mm / 7.2 x 4.9 x 2.0 inches. Package size: 200 x 134 x 60 mm / 7.9 x 5.3 x 2.4 in. Package weight: 986 g / 2.2 lbs.
