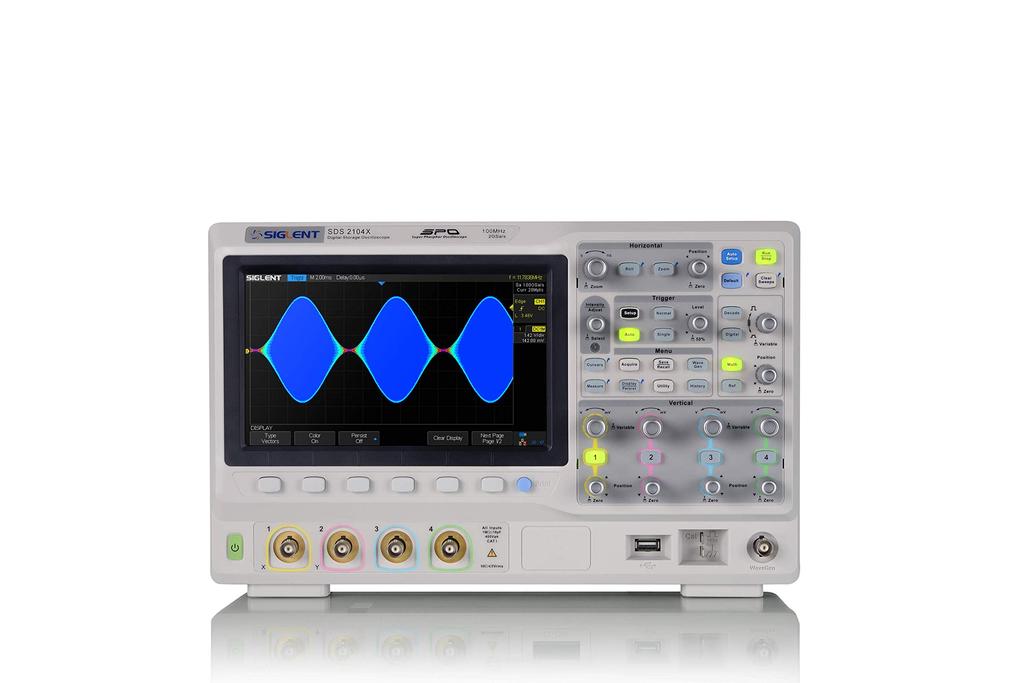

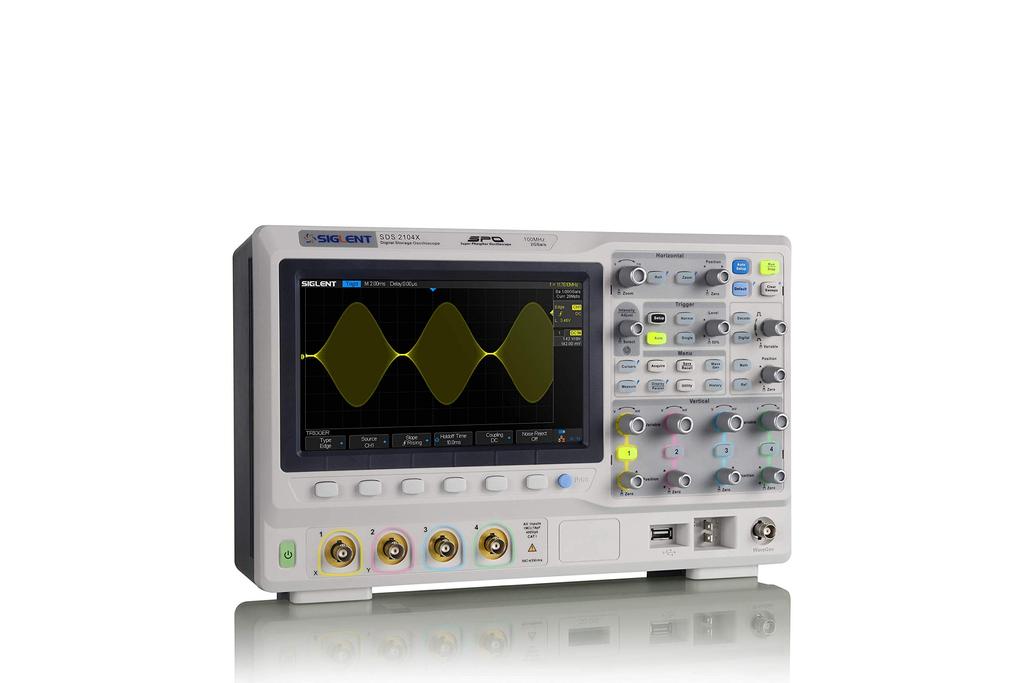

SIGLENT Digital SDS2104X Oscilloscope, 100MHz, 4-Channel, 200Mpts, 10-bit, 256-Level Phosphor,

SDS2104X Bandwidth:100 MHz; Channels 4+EXT; Real time sampling rate 2 GSa/s; Capture rate 120,000 wfm/s; Memory depth 200 Mpts/ch Large 10.1” TFT-LCD display with 1024×600 resolution; Capacitive touch screen supports multi-touch gestures Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out Built-in web server supports remote control by the LAN port using a web browser; Supports SCPI remote control commands Key Features 350 MHz, 200 MHz, 100 MHz models with real-time sample rate up to 2 GSa/s. A 500 MHz bandwidth upgrade option is available for 350 MHz models. SPO technology Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode) Supports 256-level intensity grading and color temperature display modes Record length up to 200 Mpts/ch, 400 Mpts in total for all 4 channels Digital trigger system Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported). Trigger zone helps to simplify advanced triggering Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, I2S, and MIL-STD-1553B (optional) protocols Low background noise, features 0.5 mV/div to 10 V/div voltage scales 10-bit mode provides higher resolution and lower noise Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event History waveform record (History) function for up to 90,000 triggered waveforms (frames) Automatic measurement function on 50+ parameters, supports statistics with histogram and trend Two Math traces, support 2 Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES, and formula editor Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter 16 digital channels (optional) Built-in 50MHz waveform generator (optional)
