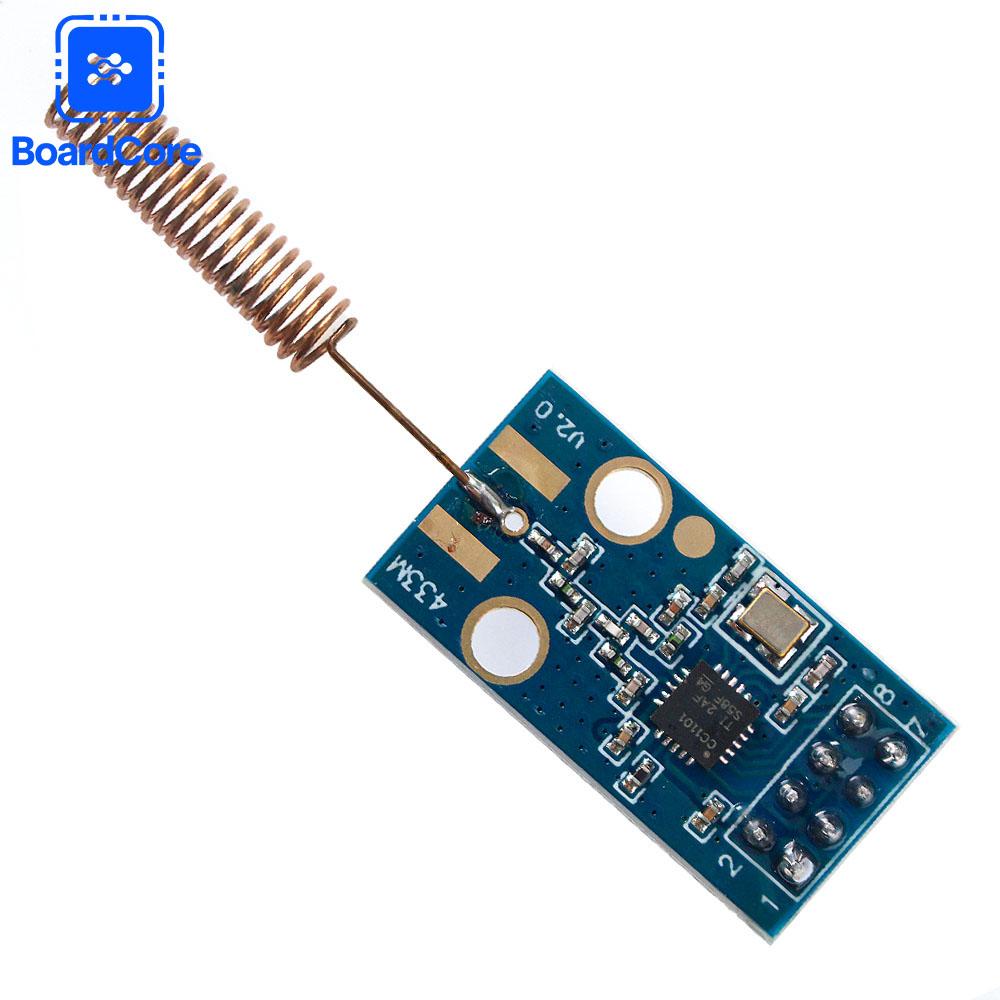

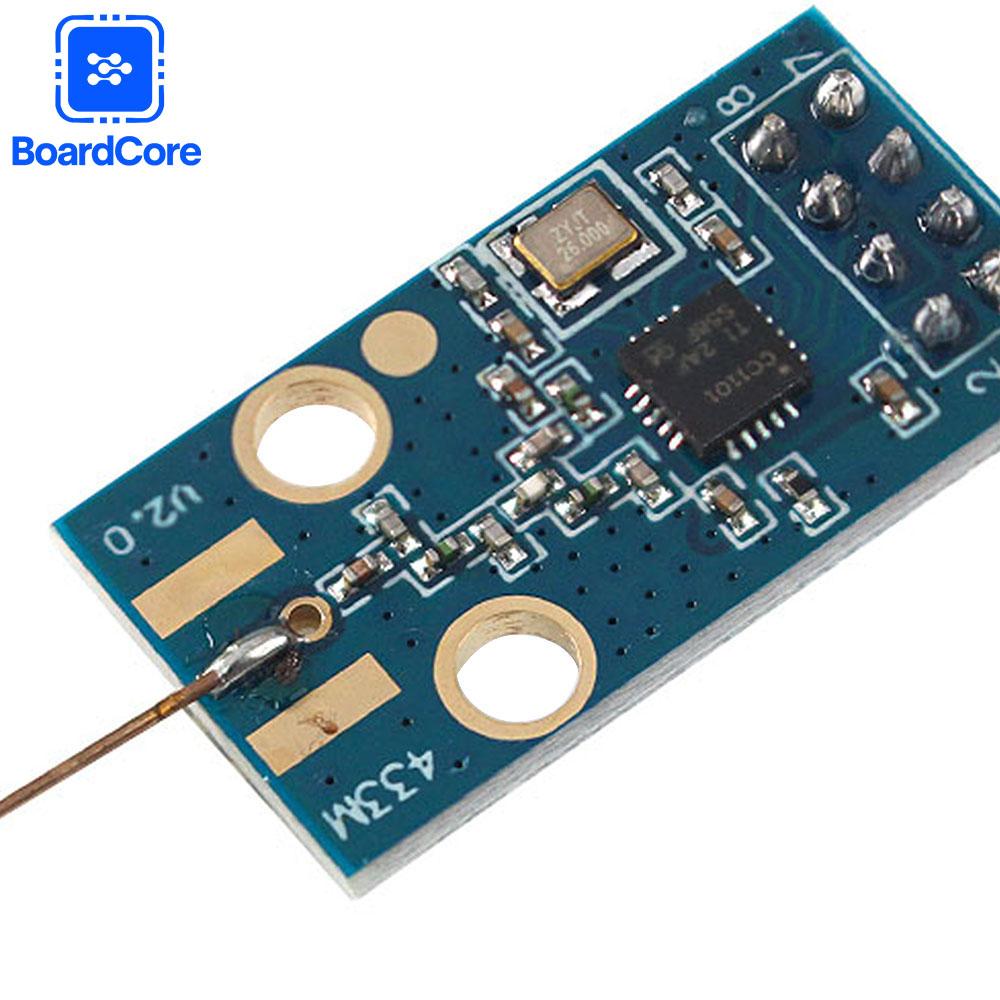

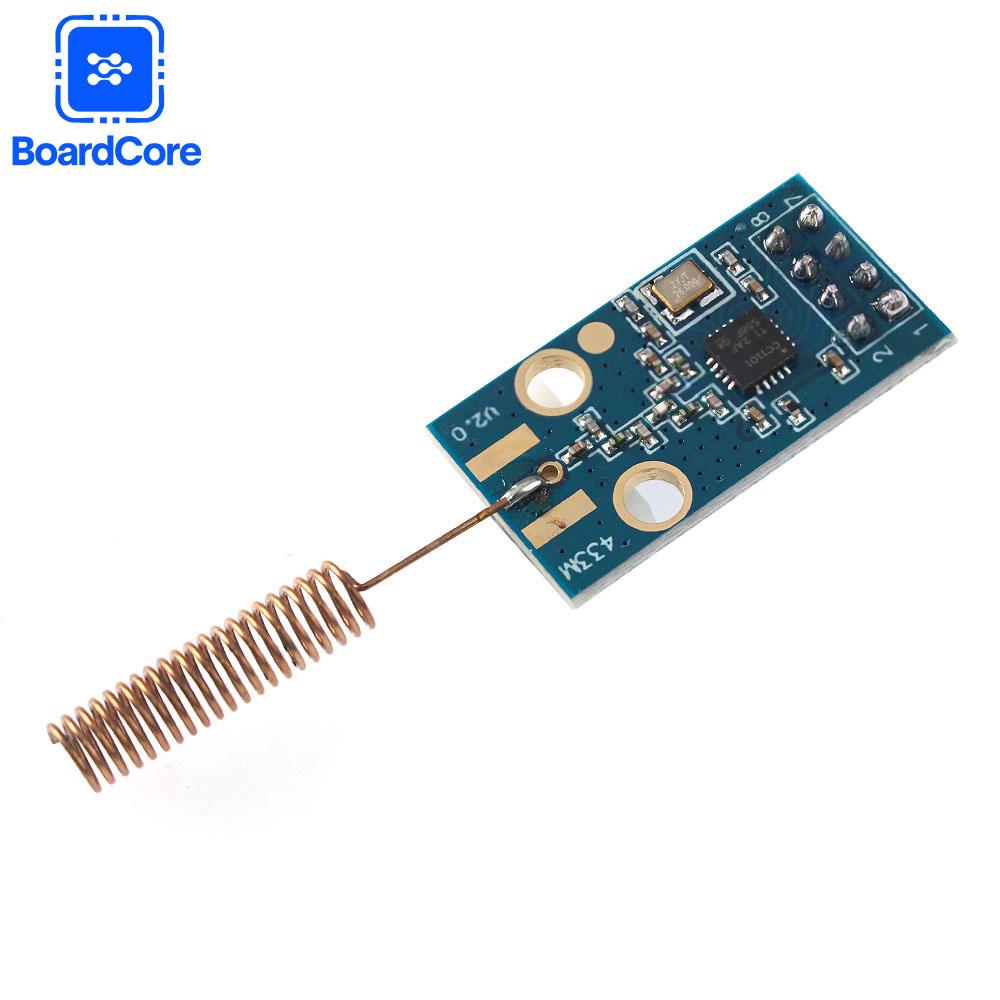

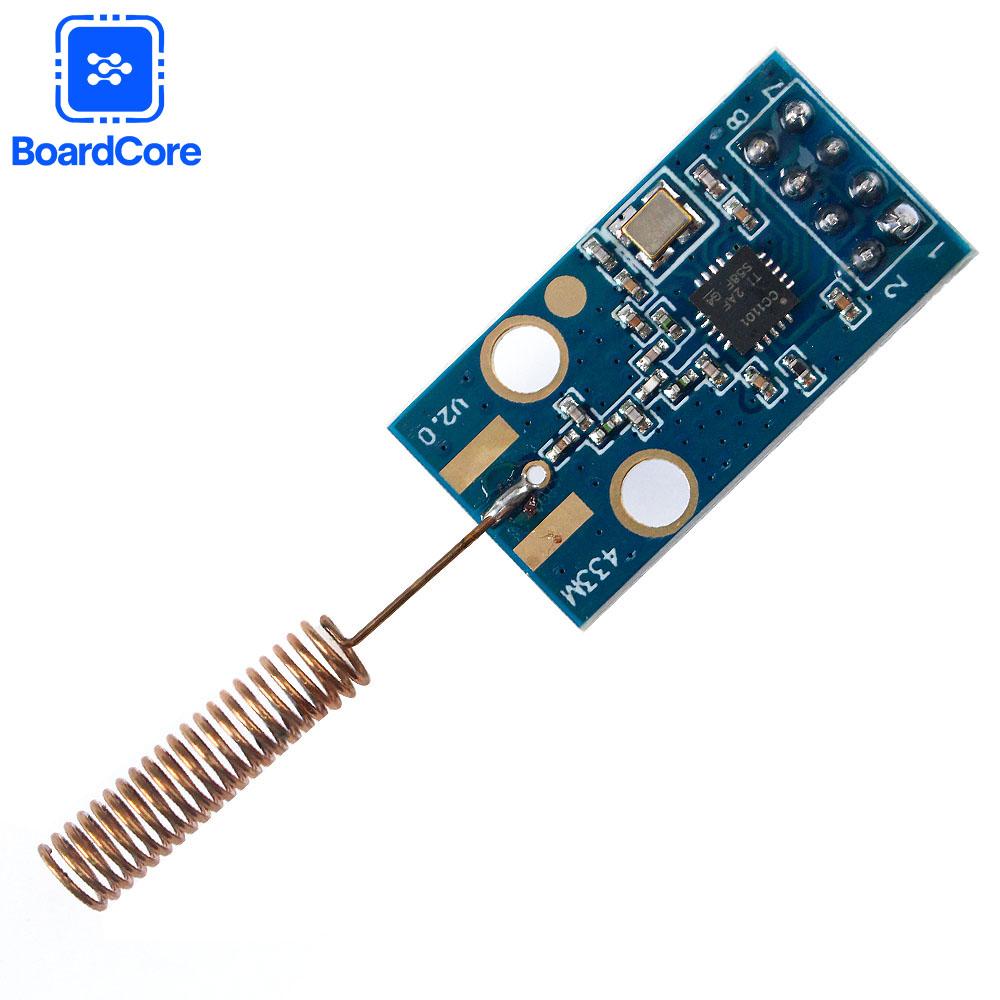

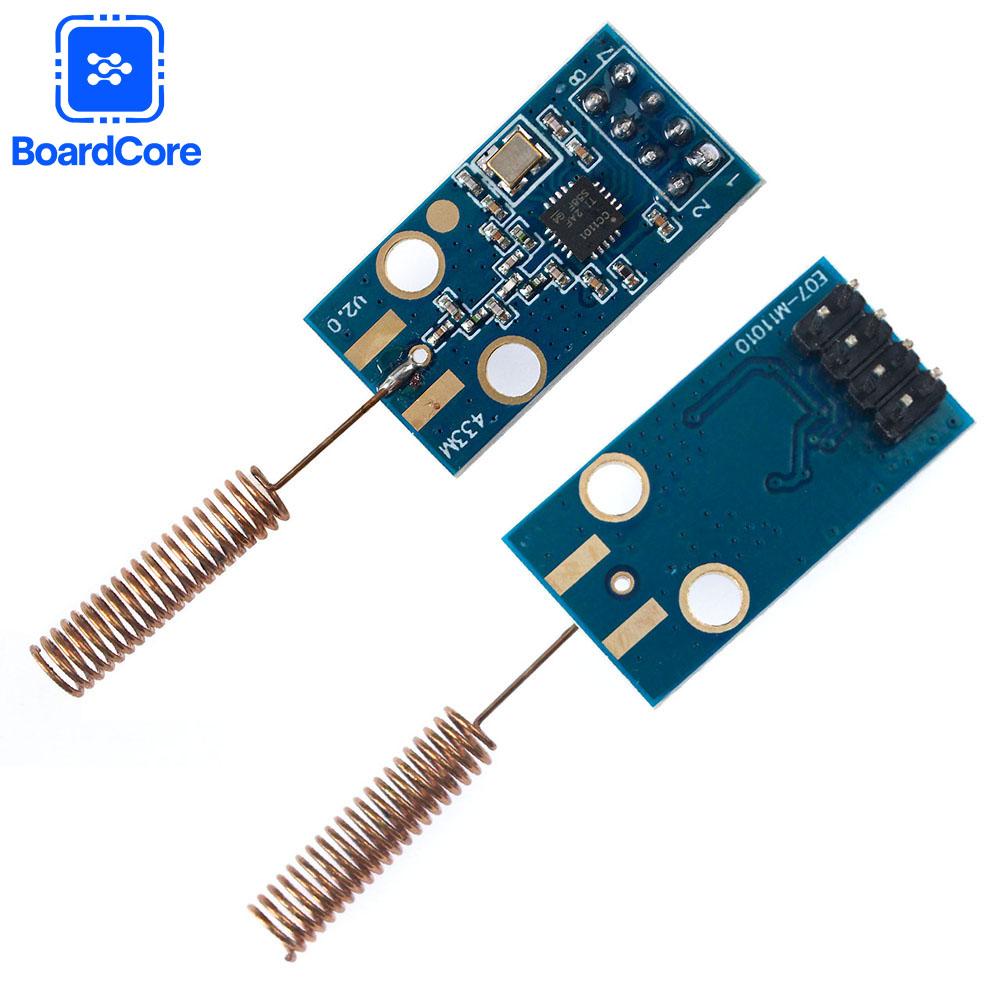

1set CC1101 Wireless Module With SMA Antenna 433MHz Transceiver Module

CC1101 Wireless Module - Professional Low-Power RF Solution

Key Specifications RF IC: TI Original CC1101 Center Frequency: 433MHz (Adjustable 387-464MHz) Transmit Power: 10dBm (~10mW) Communication Range: Up to 380m (Environment dependent) Operating Voltage: 1.9-3.6V DC

Technical Parameters ▷ Dimensions: 28×15mm (Standard 2×4 pin header, 2.54mm pitch) ▷ Weight: 4g (Ultra-lightweight design) ▷ Interface: Standard SPI (Up to 10Mbps) ▷ Data Buffer: 3-level FIFO (1-32 bytes/packet) ▷ Operating Temp: -30℃~85℃ (Industrial grade) ▷ Storage Temp: -40℃~125℃

Pin Definition GND - Power ground VCC - 1.8-3.6V power input GD00 - General-purpose data output CSN - SPI chip select SCK - SPI clock input MOSI - SPI Master Out Slave In MISO - SPI Master In Slave Out GD02 - General-purpose data output

Product Highlights ✓ Industrial-grade components with SMT process ✓ RSSI signal strength detection supported ✓ Ultra-low power consumption (TX: 29.2mA/RX: 14.7mA) ✓ Compatible with Dupont wires for easy prototyping
