2,The maximum power is 4000W, with a long-term resistive load of 2000-2200W and an inductive load of 1800-2000W. It can be used in general household appliances or small factories
1,AC 10-110V/10-220V continuously adjustable, zero hysteresis, zero latency, superior heat dissipation.Gently rotate knob cap, can adjust flexibly, do not need to add any elements, the product is practical, convenient
3,With a peaks voltage absorption circuit. It effectively protects high-power thyristors against surges and spike peaks. Multiple protections with RC absorption.

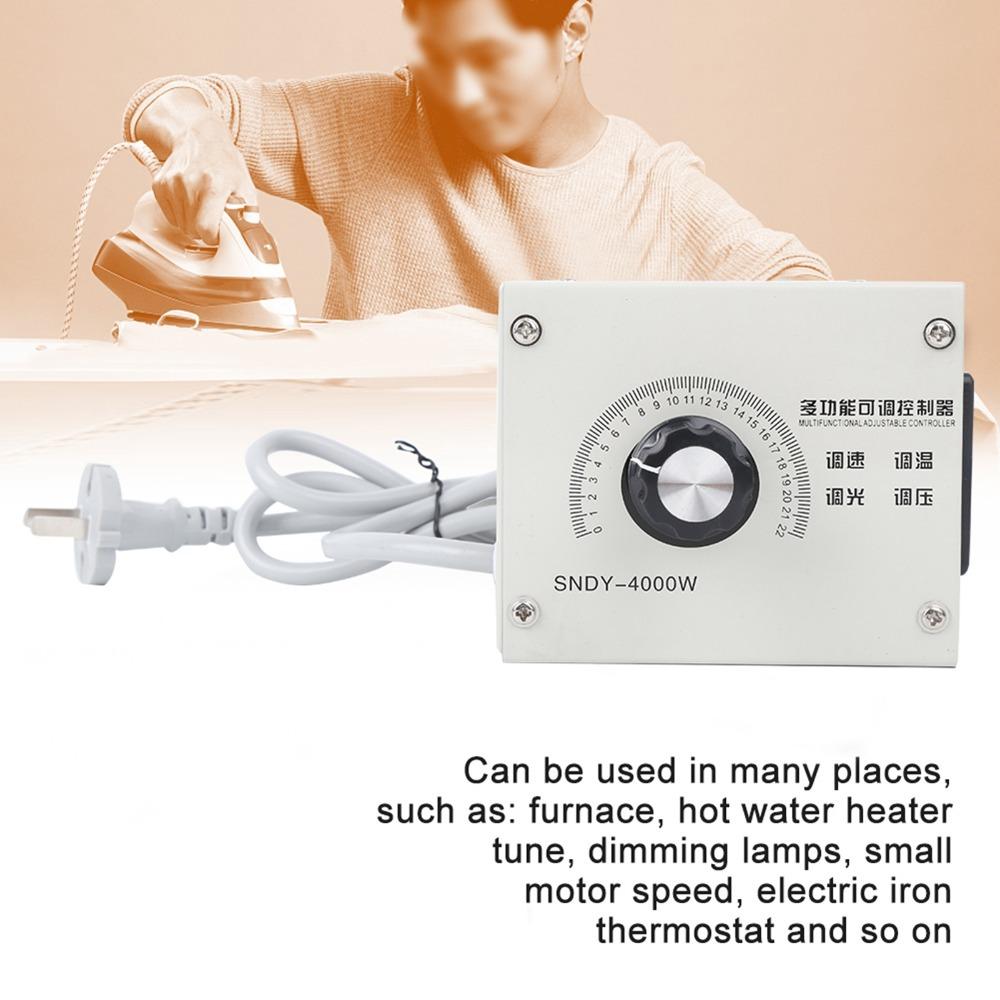

5,Can be used in many places, such as: furnace, hot water heater tune, dimming lamps, small motor speed, electric iron thermostat and so on, so as to achieve dimming, thermostats, voltage regulating effect
4,The metal casing has the characteristics of high temperature flire retardance, no deformation and no , which can effectively avoidance high temperature, heavy pressure.
Specifications:

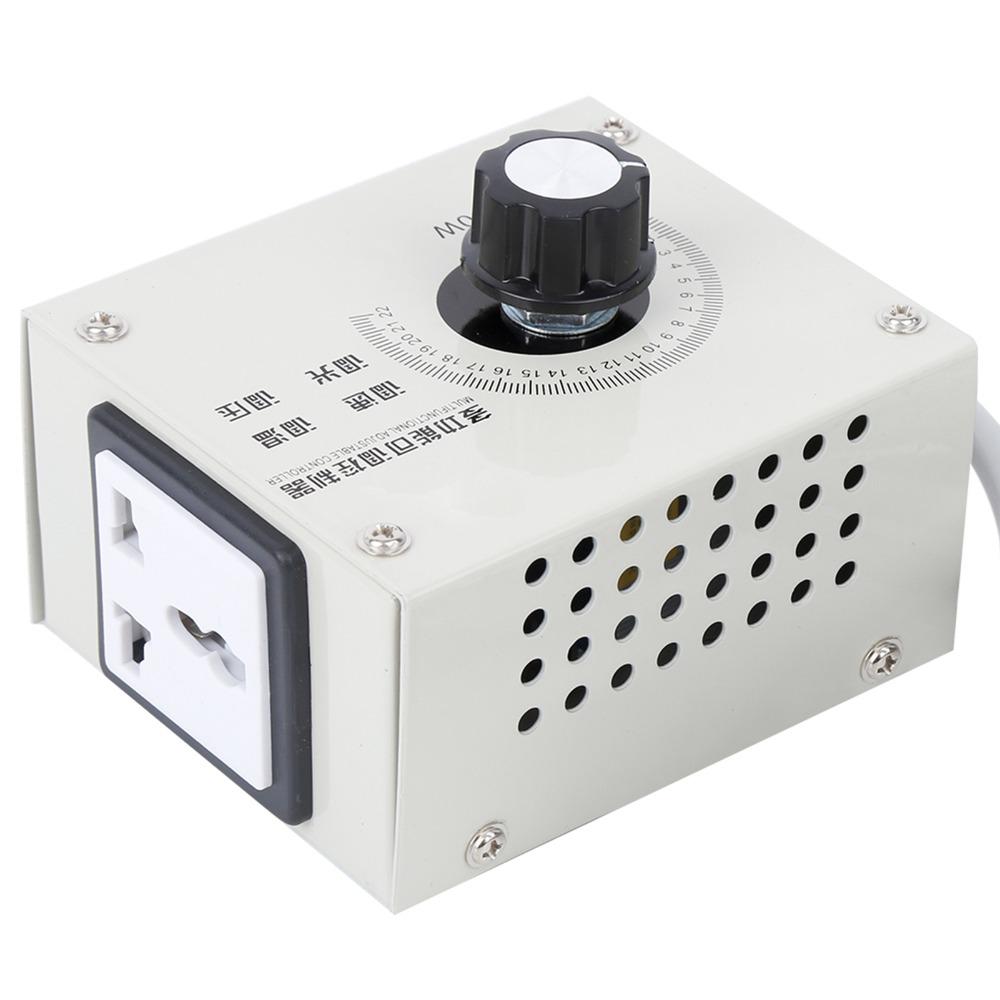

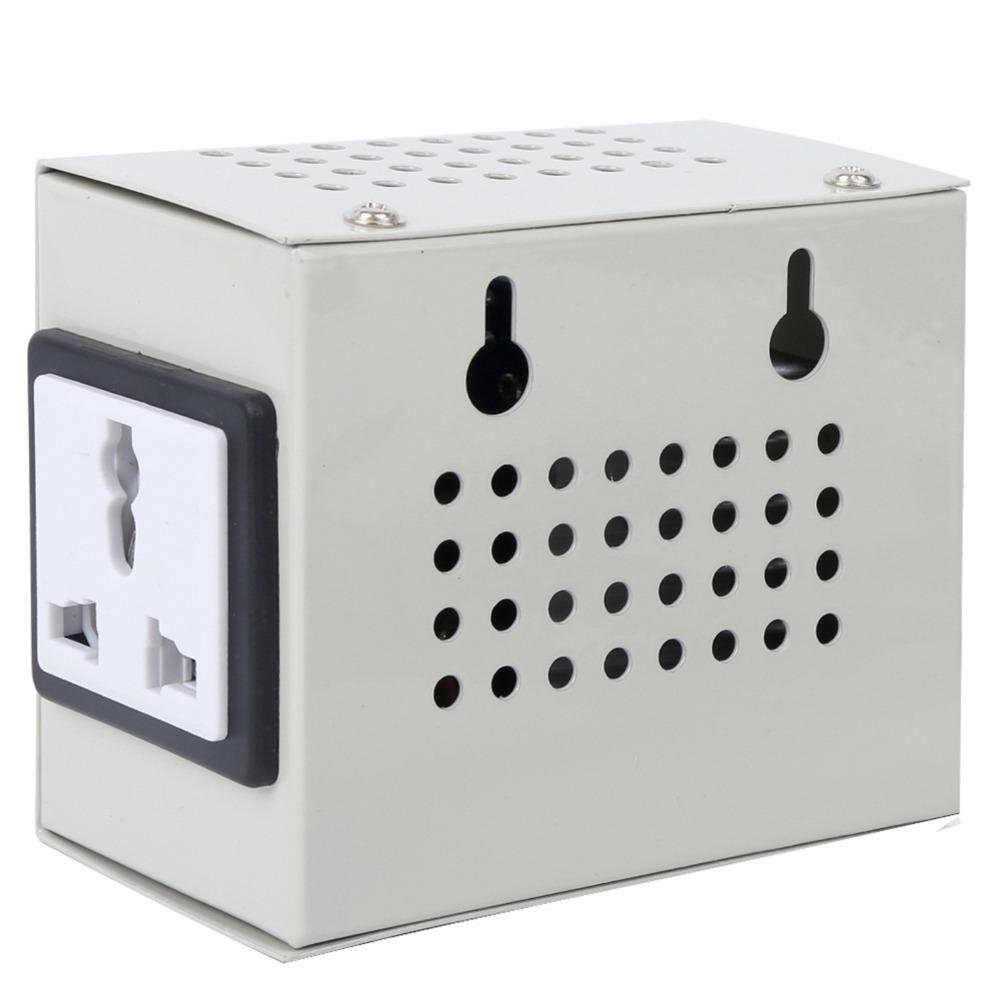

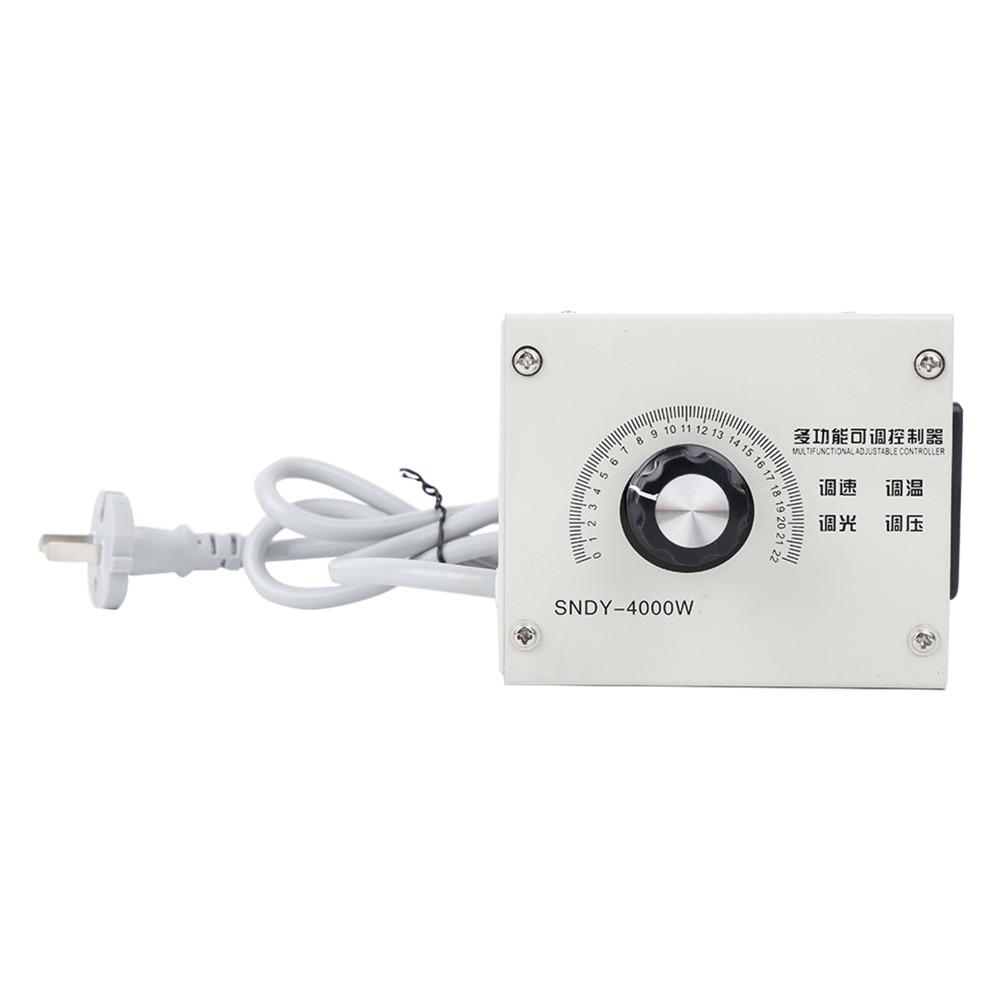

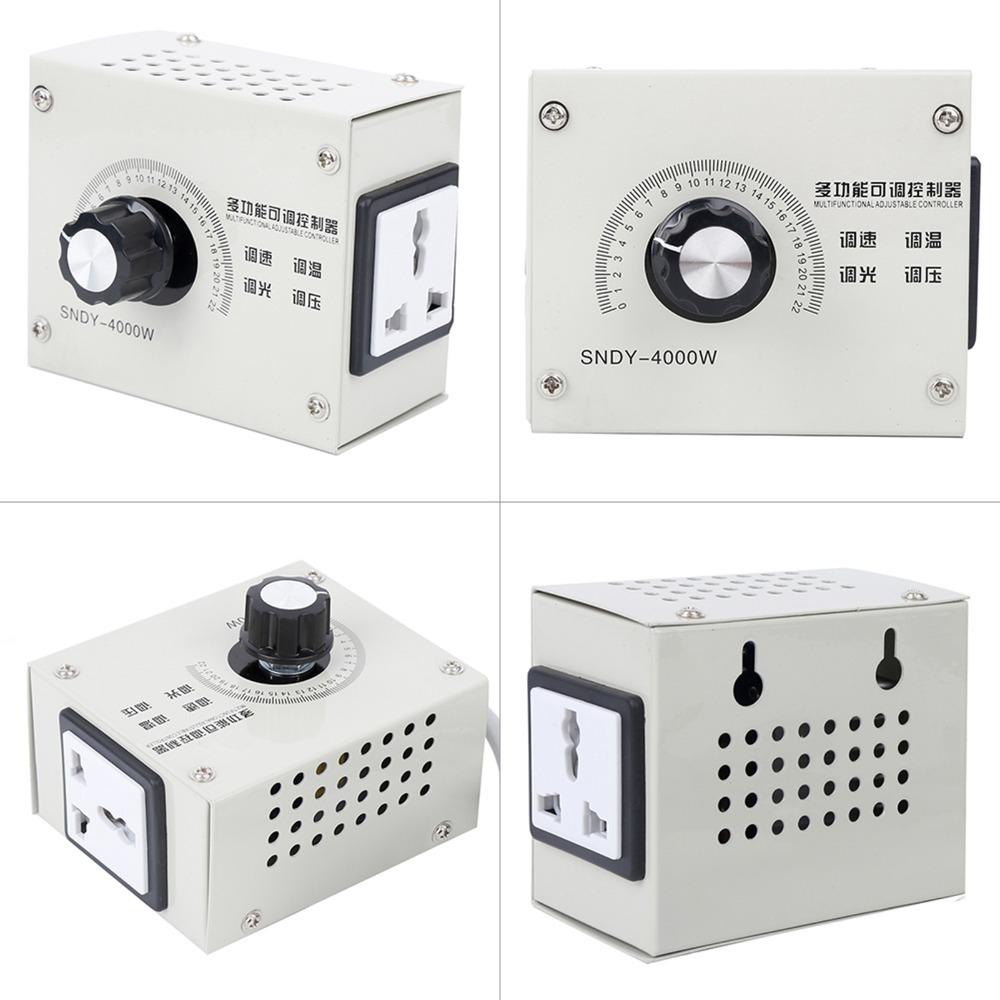

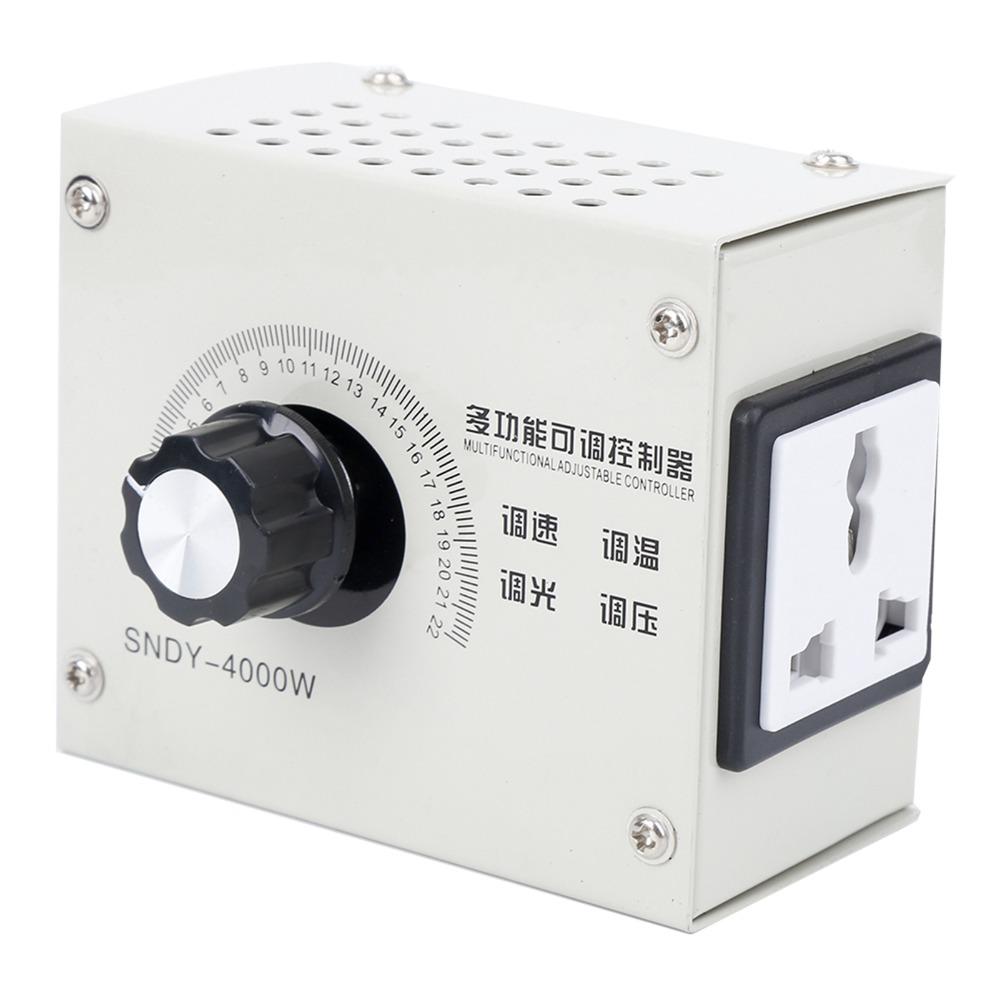

Product Name: Silicon Controlled Voltage Regulator

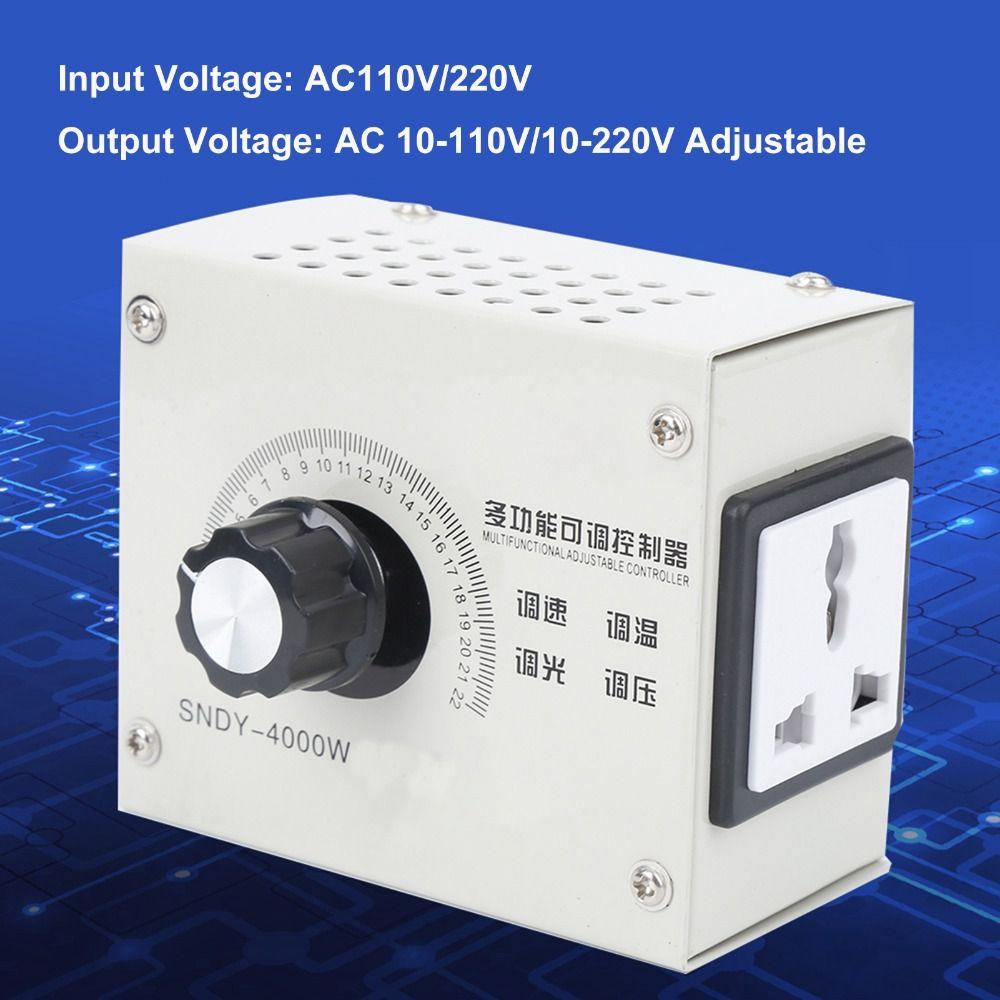

Input Voltage: AC110V/220V
Output Voltage: AC 10-110V/10-220V Adjustable
Maximum power: 4000W(Note that this is short-time limiting power )
Long - term Load: Resistive Load 2000-2200W, Inductive Load 1800-2000W
Voltage Regulation Range: Input 110V (10-110V), Input 220V (10-220V). No-load is virtual voltage.
Rated Current: 9A
Limit Current: 18A
Product Features: Zero hysteresis, zero delay, with peaks voltage absorption circuit. Effectively protects high-power silicon controlled rectifiers from surges and spikes

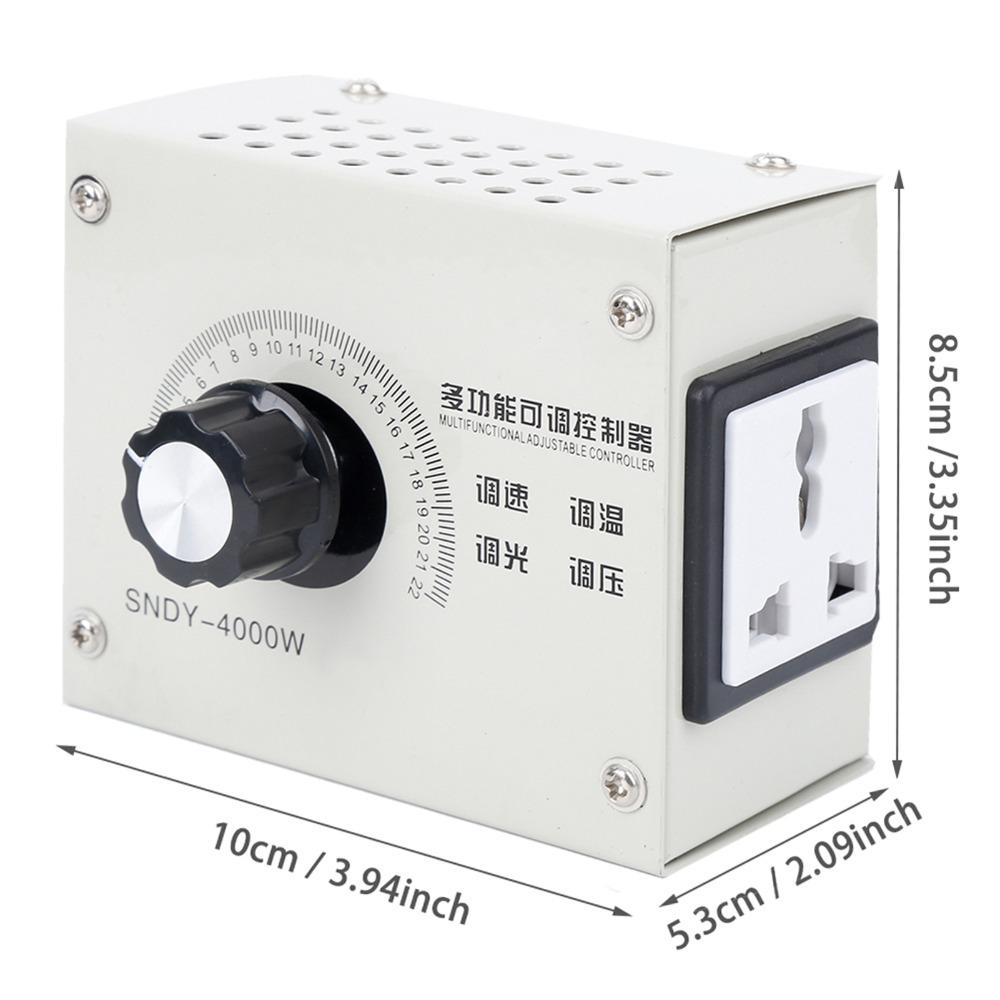

Size:100 * 85 * 53mm/ 3.94* 3.35 * 2.09 inch
Color: White
Weight: 450g
Package Included:
1* Silicon Controlled Voltage Regulator
Use Note:
1 Product power 4000 refers to the limit power when working under limit load
2. Adjustable devices are:
Motors: fans, exhaust fans, ceiling fans, snail fans, and other fans without capacitors
Heating categories: electric heating wire, electric heating fan, kettle, electric heating pot, heating rod, etc.
Dimming type: tungsten filament lamp
Power tools: angle grinders, electric screwdrivers, hand drills, chainsaws, etc.
3. Does not support adjustment:
Electronic products with circuit boards are not supported, single-phase motors, washing machine motors, dual-value capacitor motors, asynchronous motors, water pumps, negative pressure fans, and centrifugal fans are not supported.
Note:
1. Voltage can be adjusted only under load conditions.
2. Partial line of the module back side is treated with copper. The customer of the large current application should tin plating according to the need.
