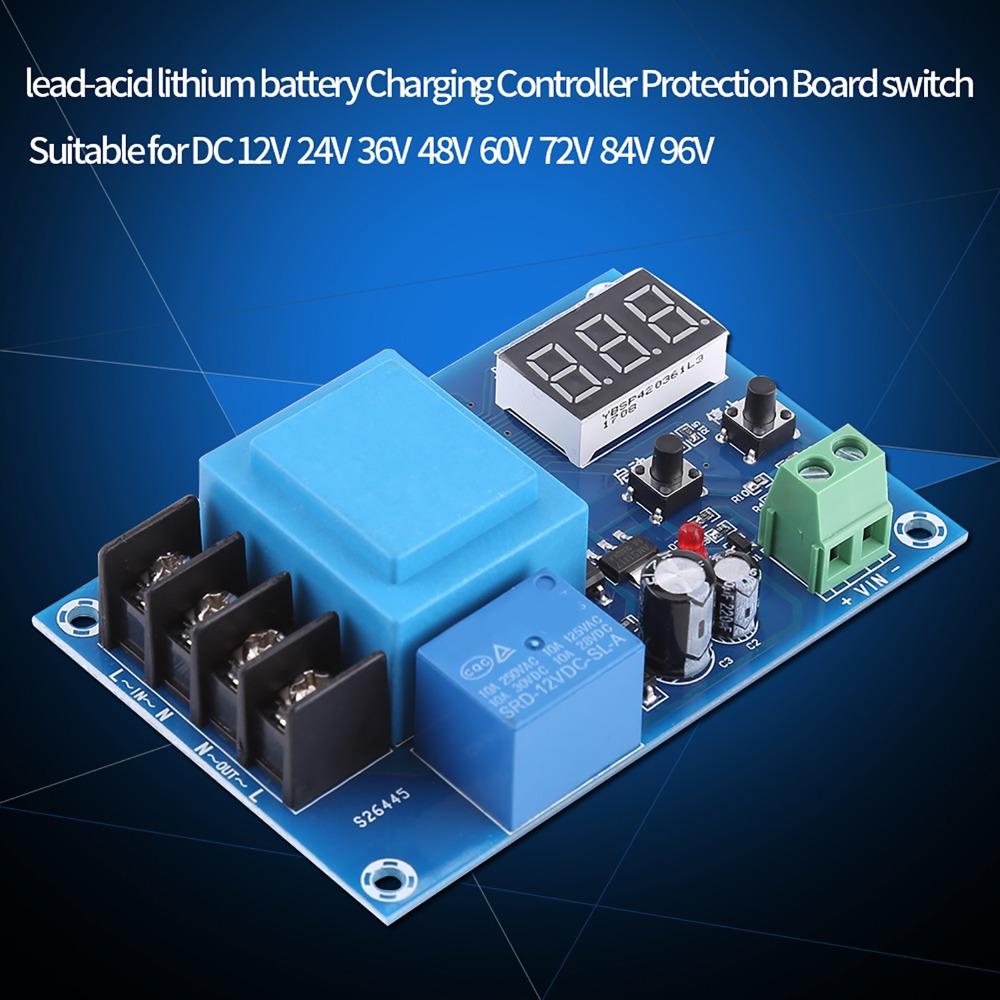

5,Wide Compatibility with Lithium Batteries:Suitable for 220V charger and control charging storage batteries of 12V, 24V, 36V, 48V, 60V, 72V, 84V, 96V, etc
1,Programmable Start/Stop Charging Voltage:Start charging voltage and stop charging voltage can be freely set, automatically cut off power to save power and extend service life of battery
4,High-Capacity Screw Terminals:Big power screw terminals with large capacity can meet many wiring requirements, maximum withstand voltage 300V, current 20A
3,Real-Time Voltage Monitoring & Overcharge Protection:Start or stop according to the set value, and monitor real-time voltage, to effectively protection storage battery from overcharge
2,Clear 3-Digit Display with 0.1V Resolution:Features a bright digital display that shows voltage values with 0.1V accuracy for precise monitoring and adjustment.
Specifications:

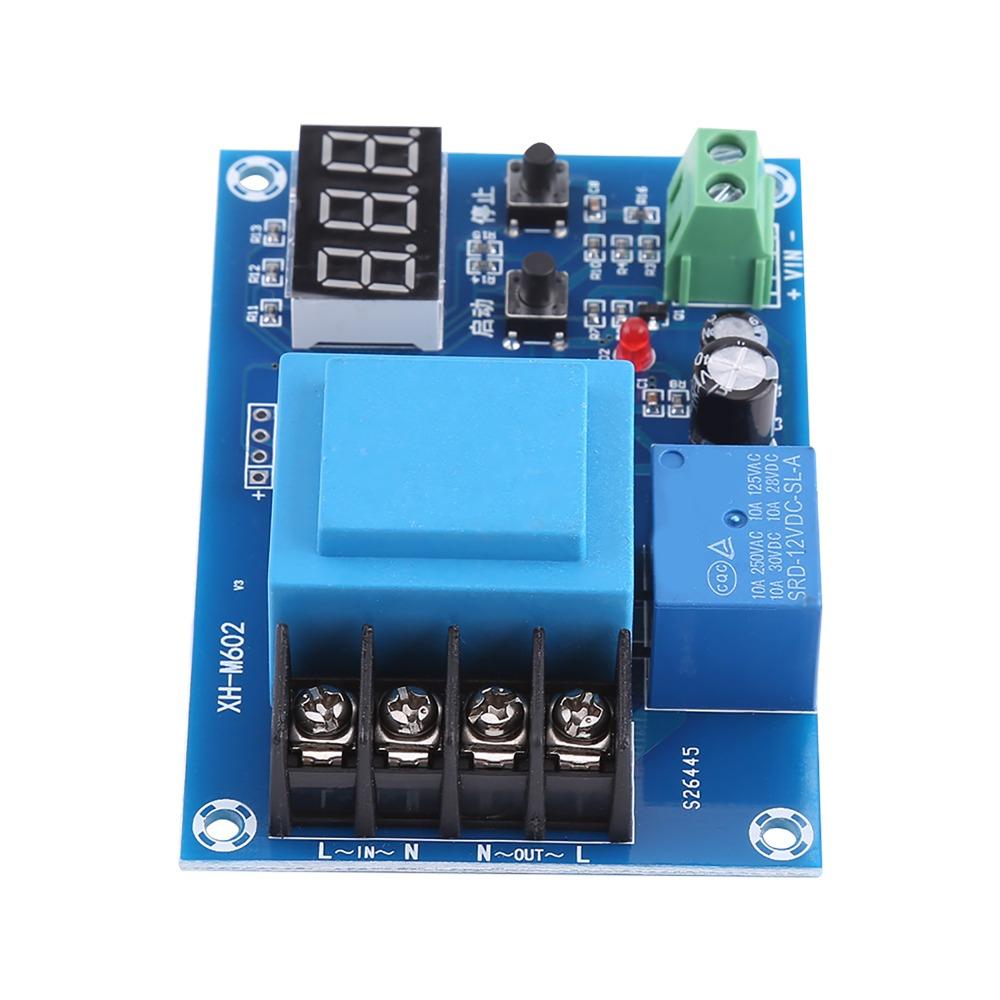

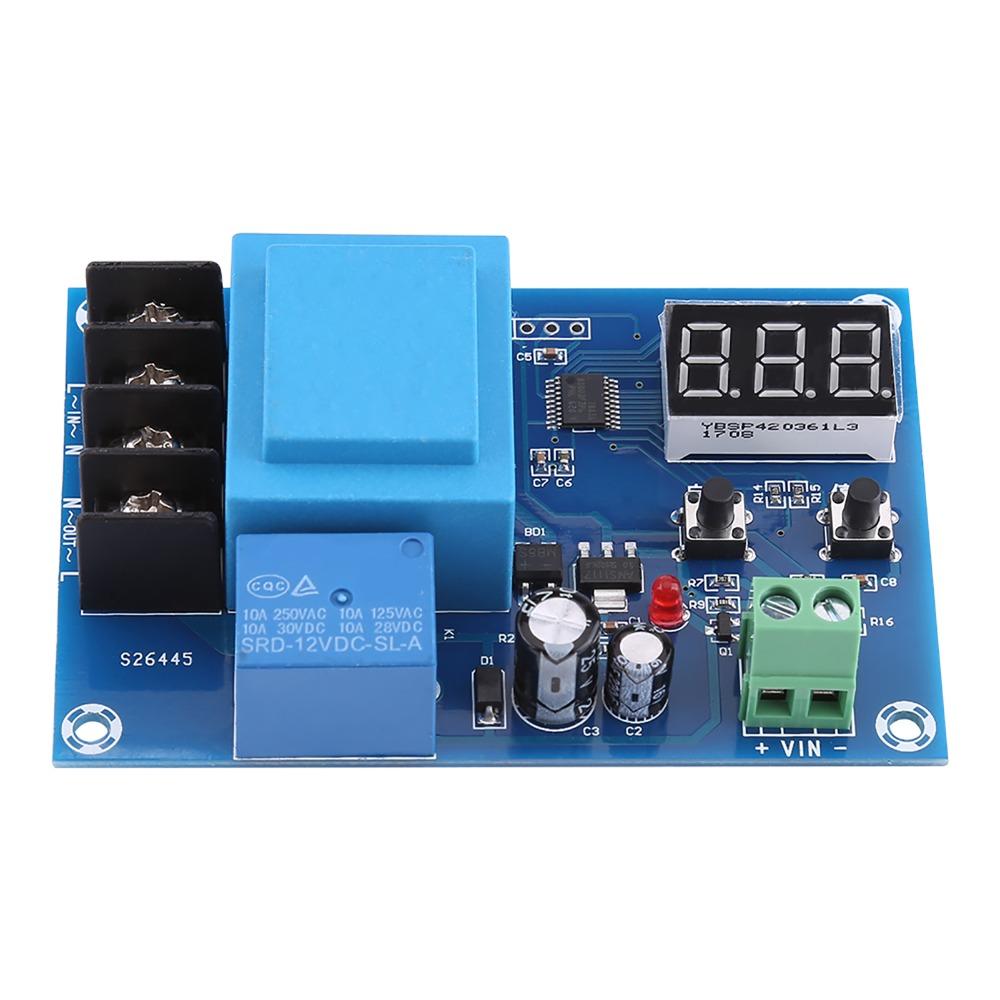

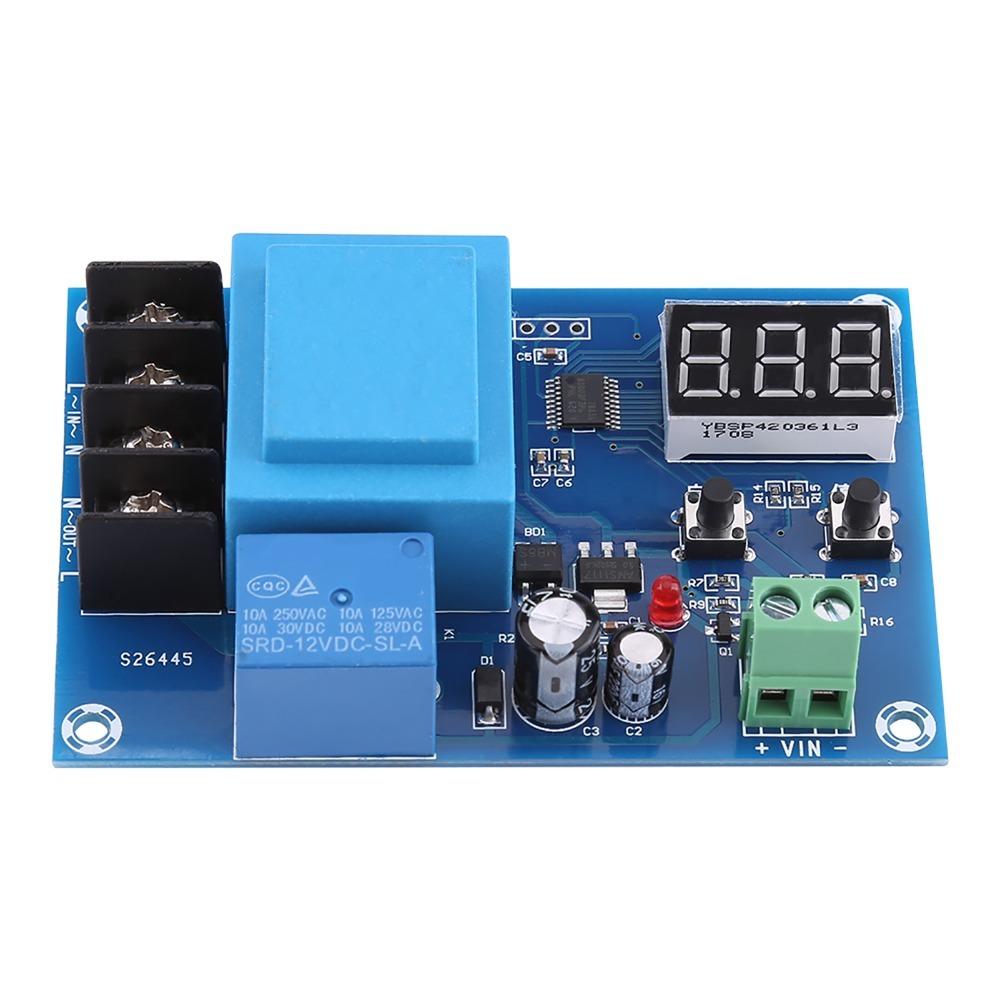

Model: XH-M602

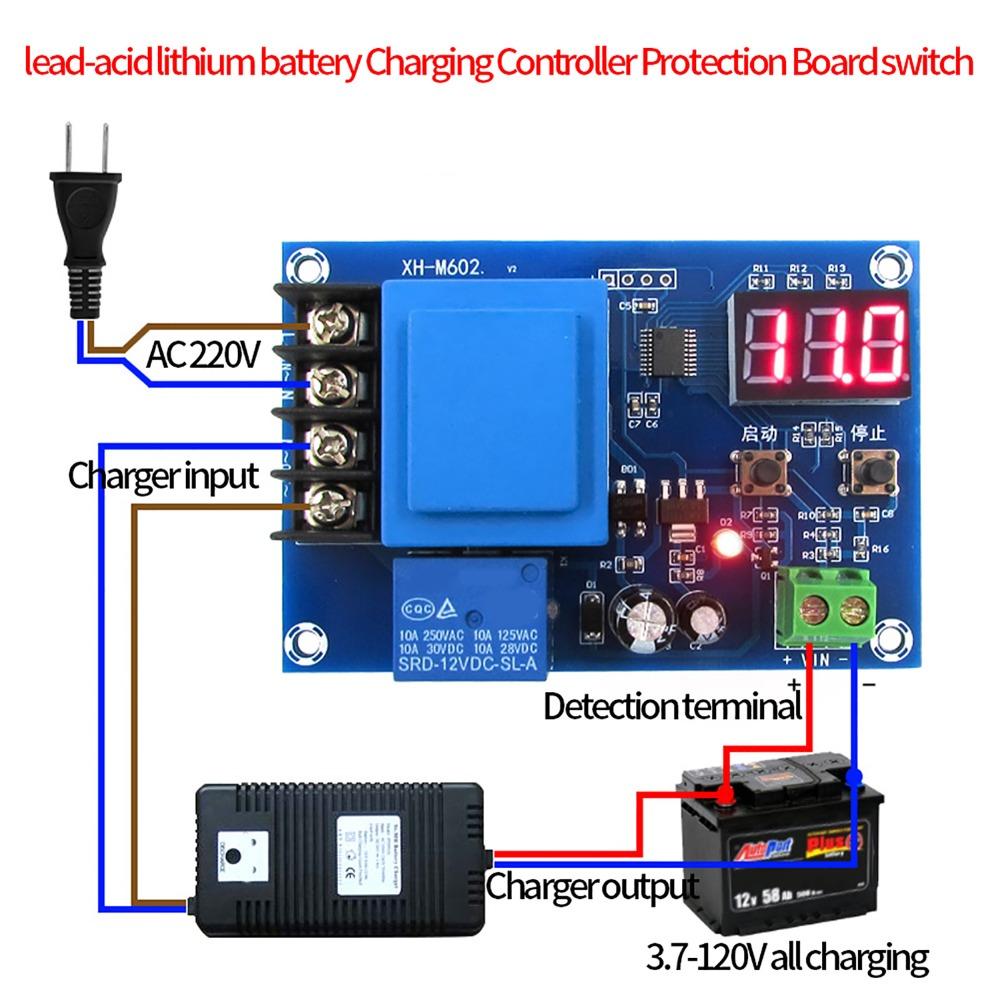

Input Voltage: AC 220V
Display Accuracy: 0.1V
Control Accuracy: 0.1V
Output Type: Switch
Voltage Error: ±0.1V

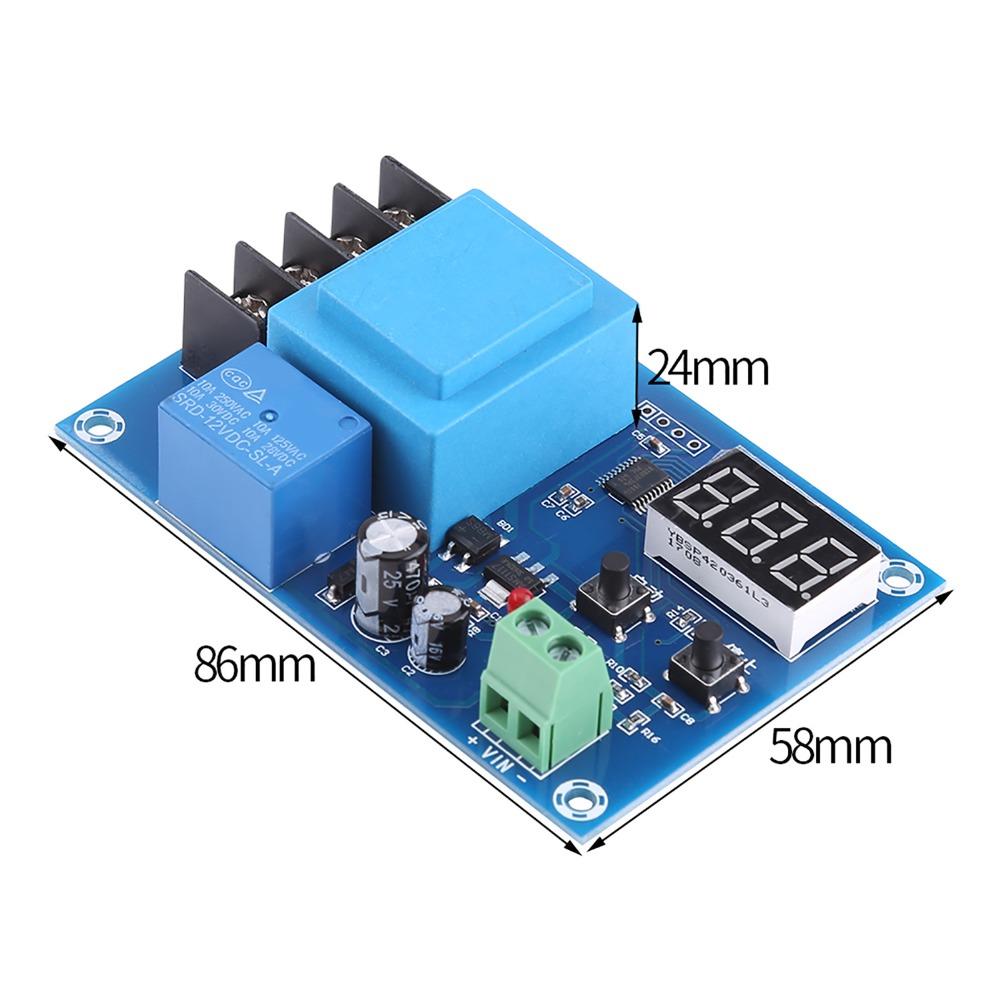

Size: 86*58*24mm(3.39*2.28*0.94in)
Color: Blue
Common Battery Charging Voltage Range (for reference only):
6V :6V~7.2V
36V :36V~46.8V
12V :12V~14.4V
48V :48V~57.6V
24V :24V~28.8V
72V :72V~86.4V
Charging voltage generally is not higher than 1.2 times that of battery voltage. For example, if battery voltage is 6 V, charging voltage is between 6V and 7.2 V.Charging current is better to be no more than 1/10 of the battery capacity.
Reference formula: Charging voltage = Rated voltage × 1.2; Charging current = Rated current × 0.1

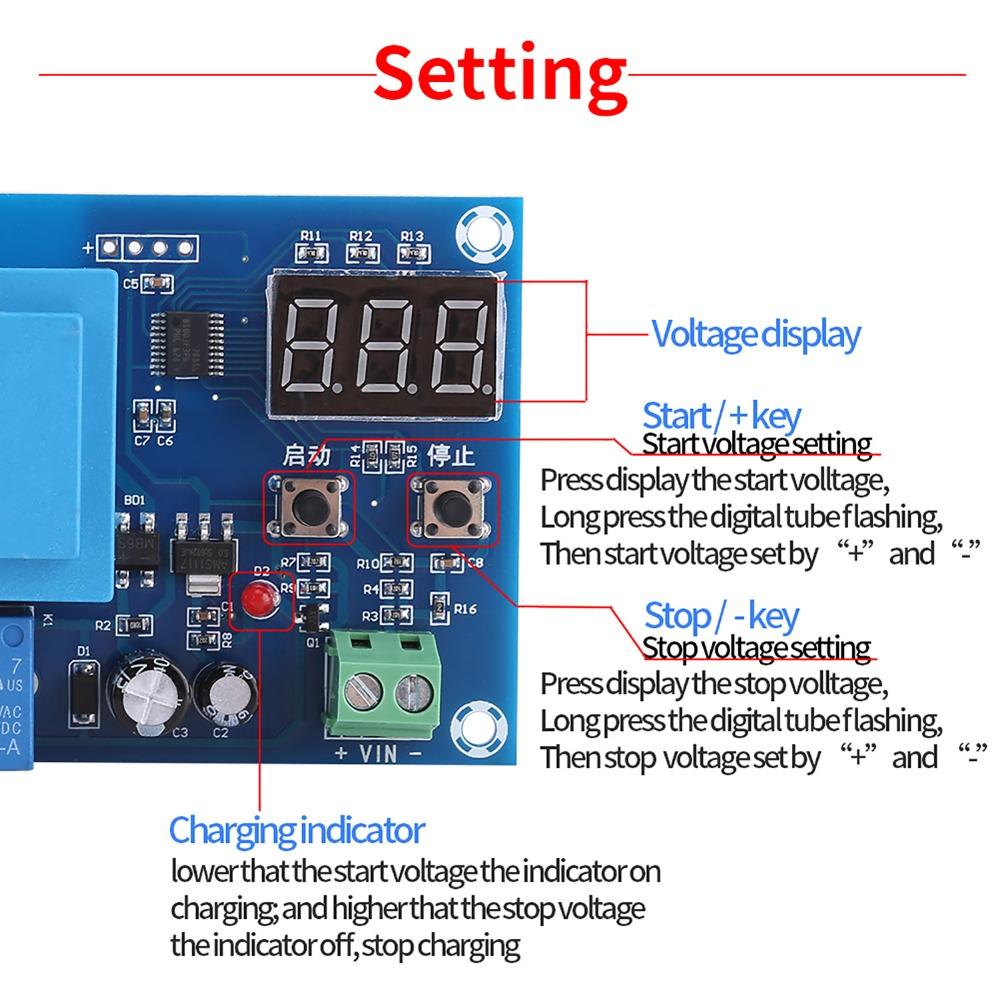

Instruction:
How to revert to Factory Settings:
Press start and stop buttons together, and display shows 888 to revert to factory settings.
Note:
1, The default start voltage is 12V, and default stop voltage is 14V. When setting voltage, if one voltage value is not able to set, you can set the other voltage value first, then set this voltage value.
2, Set start charging voltage according to test battery voltage when it need being charged(test by yourself with a voltmeter), and set stop charging voltage according to test battery voltage when it is fully charged(test by yourself with a voltmeter).
Package Includes:
1 x Protection Board
