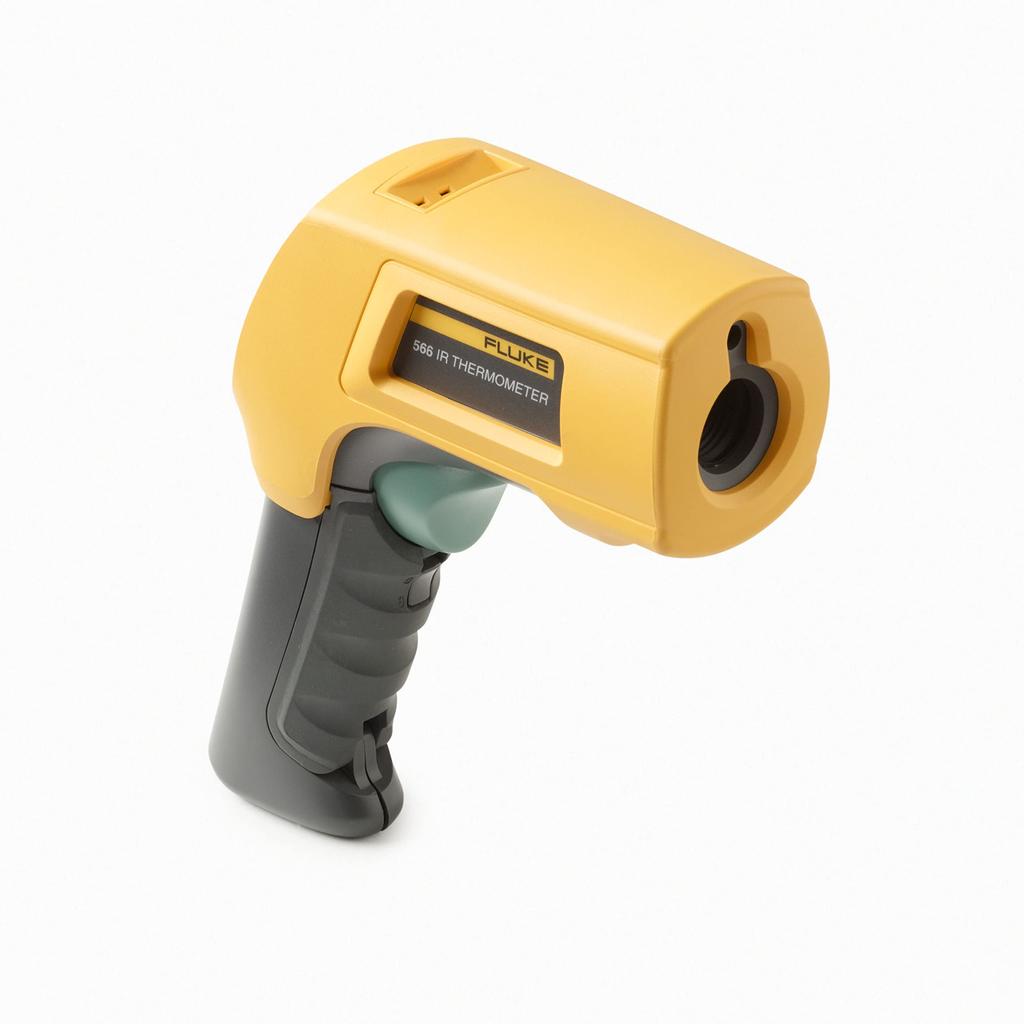

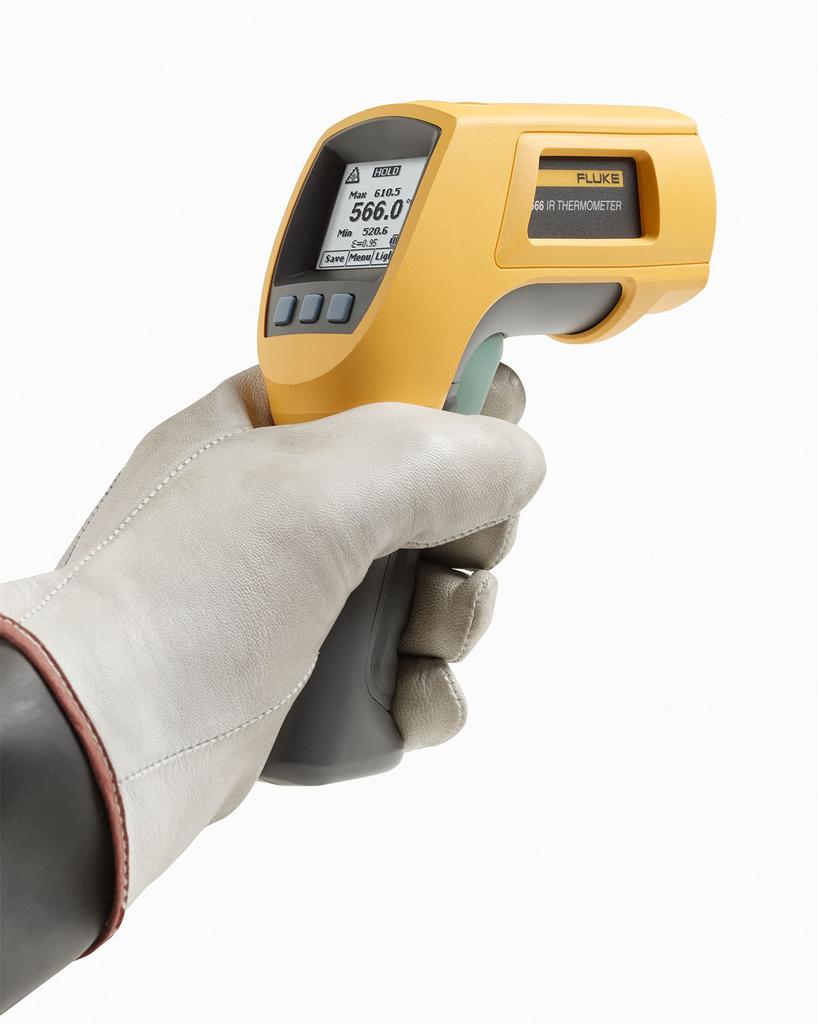

Fluke 566 Infrared Thermometer (Official Japanese Product)

Innovative Two-in-One Infrared Thermometer with Dot Matrix Display The Fluke 566 Infrared Thermometer's simple, three-button screen menu interface (available in six languages) makes complex measurements easy. Advanced features, such as adjusting emissivity, starting data logging, and turning alarms on and off, are accessible with just a few button presses.

Rugged, easy-to-use, and ergonomically designed, the Fluke 566 Two-in-One Infrared Thermometer withstands harsh industrial, electrical, and mechanical environments. These tools enable you to work more efficiently in more applications than other infrared thermometers and pyrometers can match.

Features Temperature Measurement Range: -40°C to 650°C Soft-key buttons and a dot-matrix display provide easy access to advanced features Measure small objects from a distance. 30:1 distance:spot ratio Compatible with all standard mini-connector K-type thermocouples, making your thermocouple investment more effective Adjustable emissivity, including a reliable built-in material table, allows measurement of a variety of surfaces Capture data from multiple points and download it for later recall (20 points) Easily adjust brightness with two-level backlight Audible and visual warnings immediately alert you when measurements are outside your set limits Quickly identify issues with minimum, maximum, average, and deviation functions Easily perform contact thermometer measurements with the included K-type thermocouple bead probe Troubleshoot your equipment with reliable 1% measurement accuracy Flexible interface available in six languages

General Specifications Infrared Temperature Range: -40°C to 650°C Infrared Accuracy: <0°C: ±(1.0°C + 0.1°/1°C), >0°C: ±1% or ±1.0°C, whichever is greater Screen Resolution: 0.1°C Infrared Spectral Response: 8 μm to 14 μm [Infrared Response Time] <500 ms [K-Type Thermocouple Input Temperature Range] -270°C to 1372°C [K-Type Thermocouple Input Accuracy] -270°C to -40°C: ±(1°C + 0.2°/1°C), -40°C to 1372°C: ±1% or 1°C, whichever is greater [D:S (Distance to Measurement Spot Size)] 30:1 [Laser Aiming] Single-point laser, output power ≤1 mW, Class 2 (II) operation, 630 nm to 670 nm [Minimum Spot Size] 19 mm [Emissivity Adjustment] 0.10 to 1.00 in 0.01 increments. Built-in general material table or digital adjustment Date/Time Stamp Data Storage: 20 points PC Interface and Cable: None High/Low Alarm: Audio/Two-Color Visual Min/Max/Average/Temperature Difference: Yes Display: 98 x 96 pixel dot matrix display for function menu Backlight: Two levels: Standard brightness and dim brightness Trigger Lock: Yes Switchable Celsius and Fahrenheit: Yes Power Supply: Two AA (LR6) batteries Battery Life: Continuous use: 12 hours with laser and backlight on, 100 hours with laser and backlight off Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 60°C Beaded K-Type Thermocouple Range: -40°C to 260°C Beaded K-Type Thermocouple Accuracy: ±1.1°C from 0°C to 260°C, typically -40°C to Within 1.1°C at 0°C Infrared Temperature Range: -40°C to 650°C Infrared Accuracy: < 0°C: ±(1.0°C + 0.1°/1°C); > 0°C: ±1% or ±1.0°C, whichever is greater Screen Resolution: 0.1°C Infrared Spectral Response: 8 μm to 14 μm Infrared Response Time: < 500 ms
