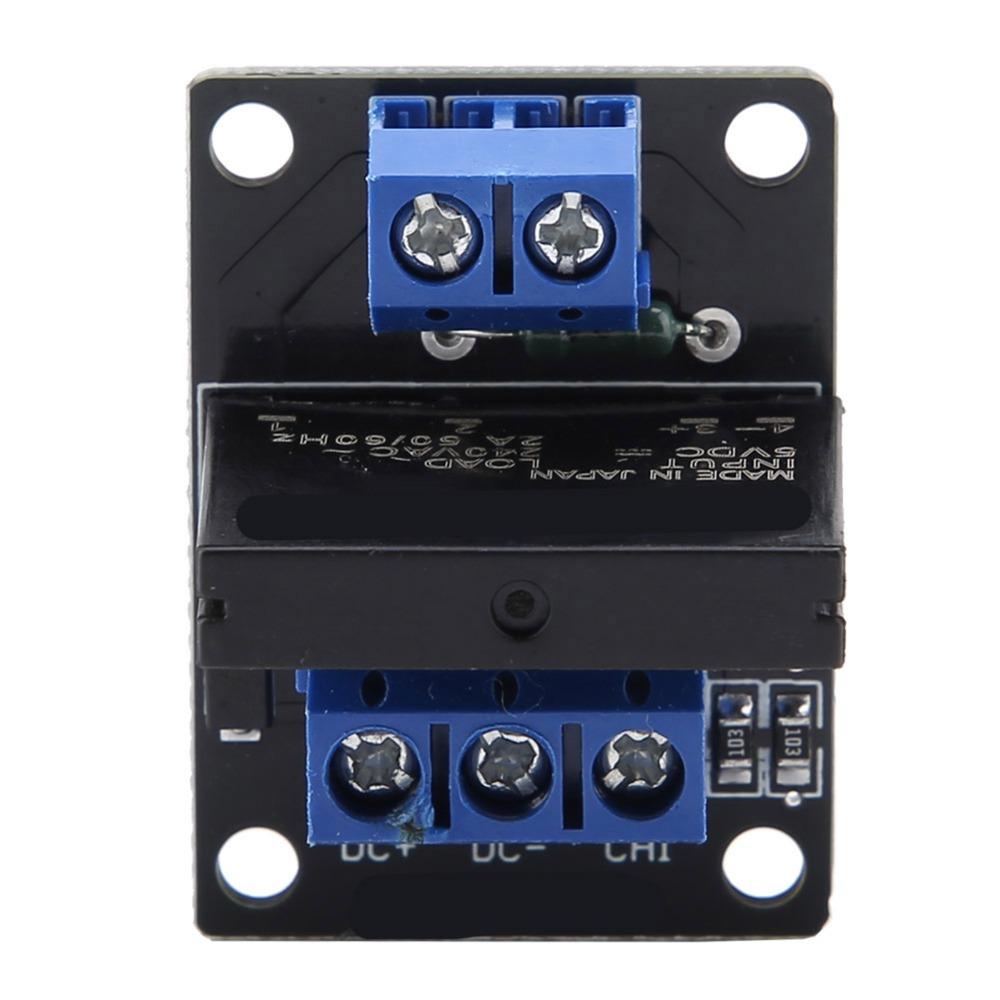

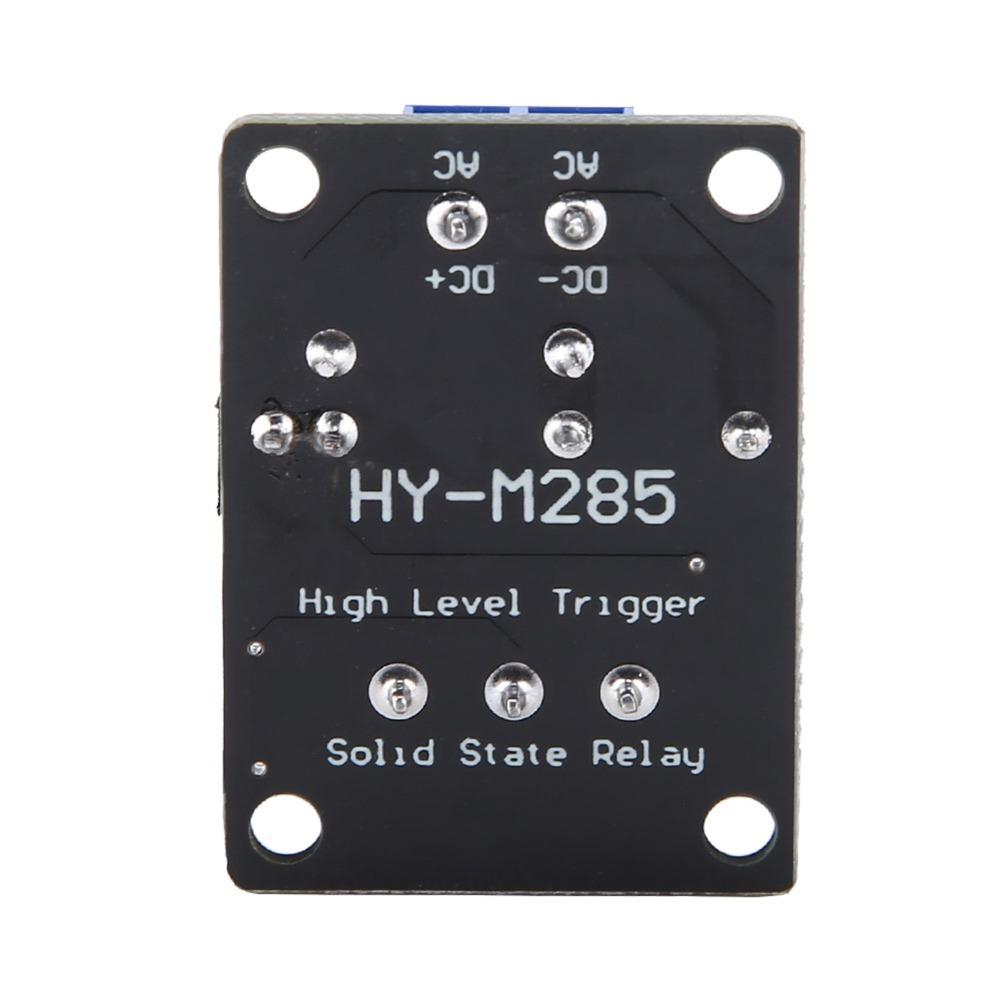

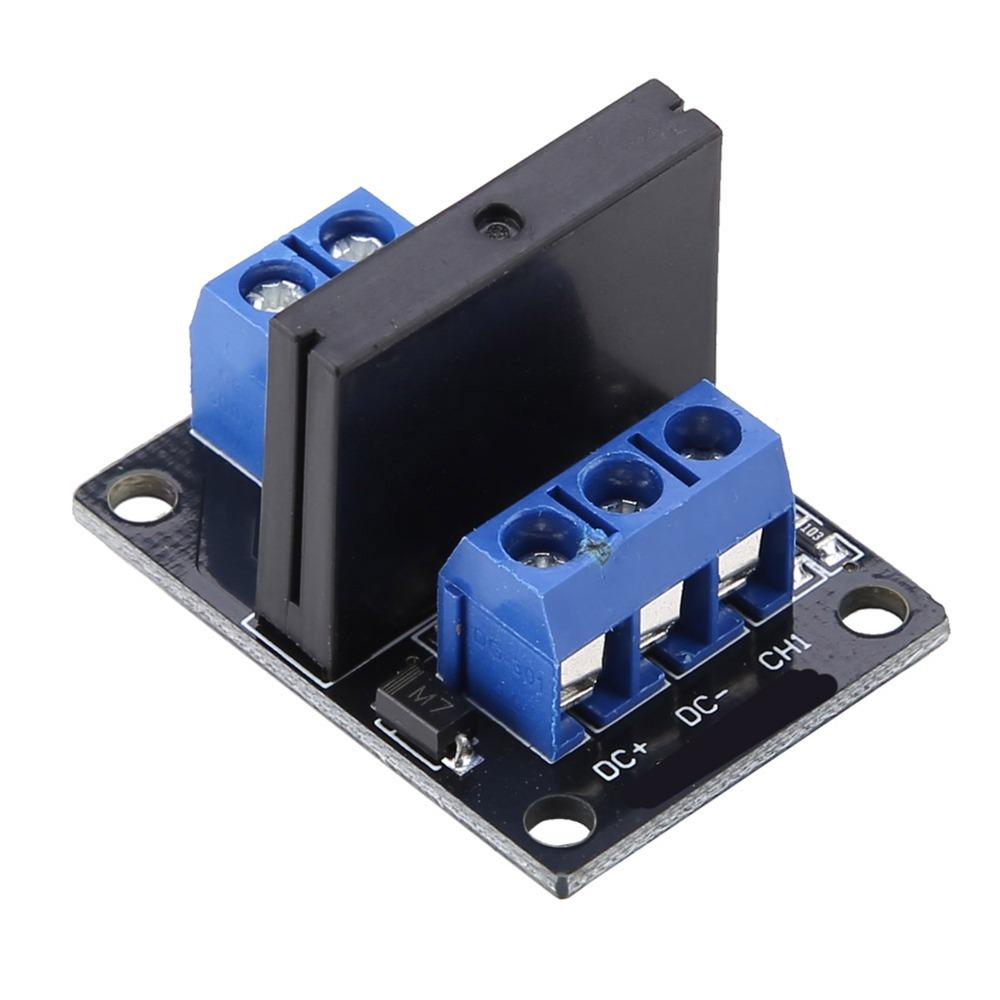

240VAC 2A 1 Channel SSR Module 1-Channel 1 Channel Solid State Relay Board AC Load Control

Current price

Price €9.90

Colour and size

12V
5V

Free delivery 26 December - 25 January

Returns & refunds

Secure payments

Our support team speaks English

Description

Label:Yes High level signal trigger mode. Adopt premium electronic components, stable performance. High sensitivity, low control power. With protective functionality to ensure the safe use of this module. Quickly switch, strong anti-interfere capability.

Specification: Supply voltage: DC 5V/12V (Optional) Trigger mode: High level trigger Size: 35*25*21mm(1.38*0.98*0.83in) Color: As picture shown Load voltage: 240VAC Load current: 2A Maximum working current: 13.8mA Module life: 10 million times Weight: Approx. 12g

Trigger voltage range(for 5V): DC3.3-5V: High level state, relay ON DC0-2.5V: Low level state, relay OFF Trigger voltage(for 12V): DC6-12V: High level state, relay ON DC0-5.5V: Low level state, relay OFF

Package list: 1 * Solid State Relay Module
