Features/Catchphrases
- This is the most commonly used vernier caliper.
- The stepped scale prevents debris from getting between the main scale and the slider.
- The vernier scale has a gentle inclination (14°) for easy reading.
- The head end of the main scale and slider serves as the zero reference point (measuring surface), allowing for step measurement.
- Standard vernier calipers can perform four types of measurements: outside, inside, depth, and step measurement.
- The carbide tip version is ideal for measuring rough-machined parts, castings, grinding wheels, and more.
Specifications
- Measuring range: 0-150mm
- Minimum reading: 0.05mm
- Instrument error: ±0.05mm
- Depth bar: Yes (φ1.9 round). This is the most commonly used vernier caliper.
- The stepped scale prevents debris from getting between the main scale and the slider. The vernier scale has a gentle inclination (14°) for easy reading.
The head end of the main scale and slider serves as the zero reference point (measuring surface), allowing for step measurement. Standard calipers can perform four types of measurements: outside, inside, depth, and step. The carbide tip is ideal for measuring rough-machined parts, castings, grinding wheels, and more.

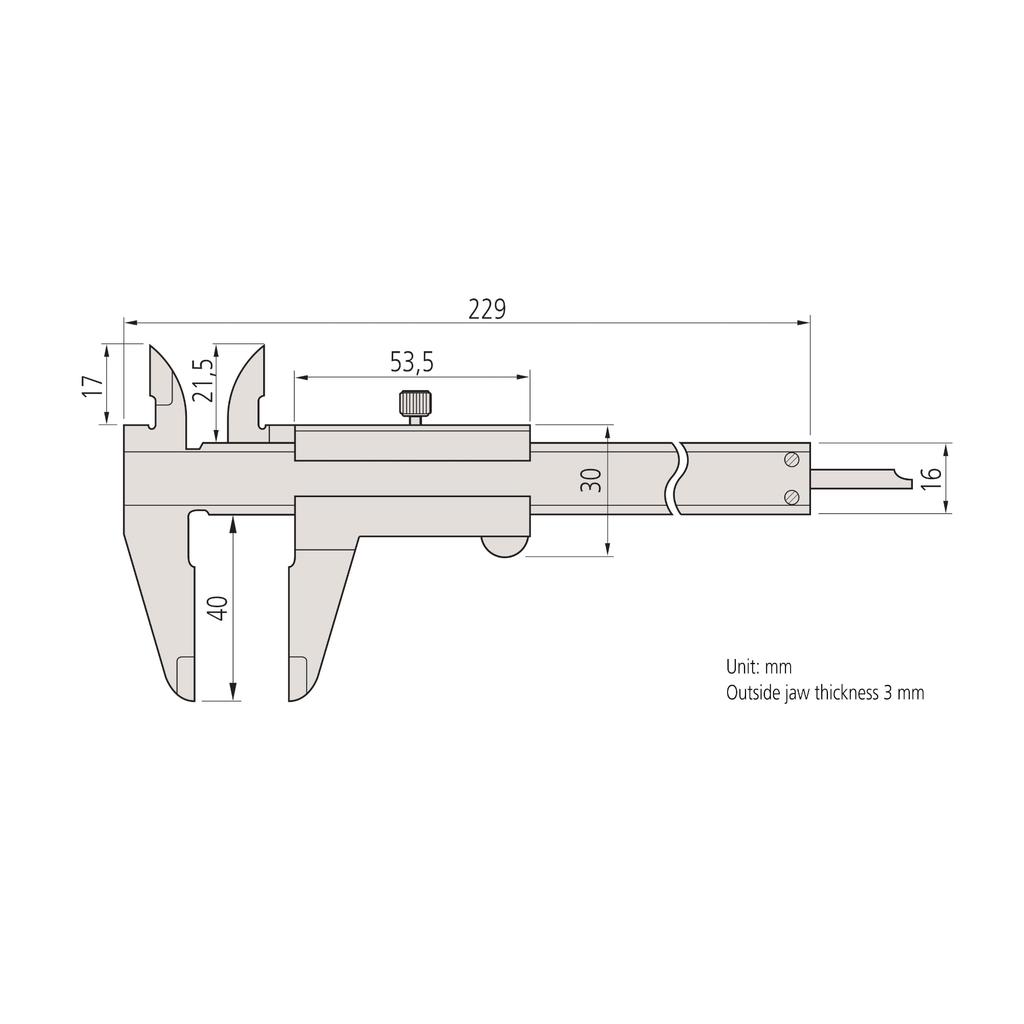

Size: Total length: 229 mm

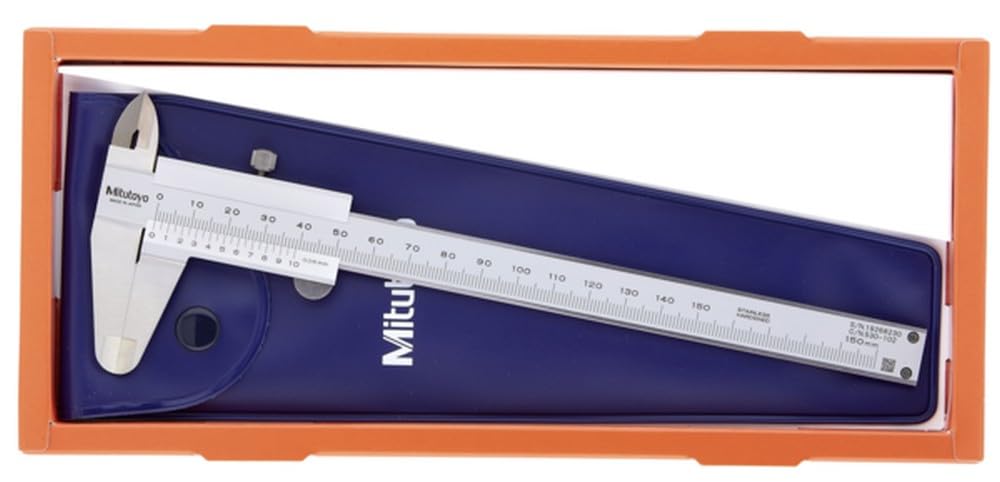

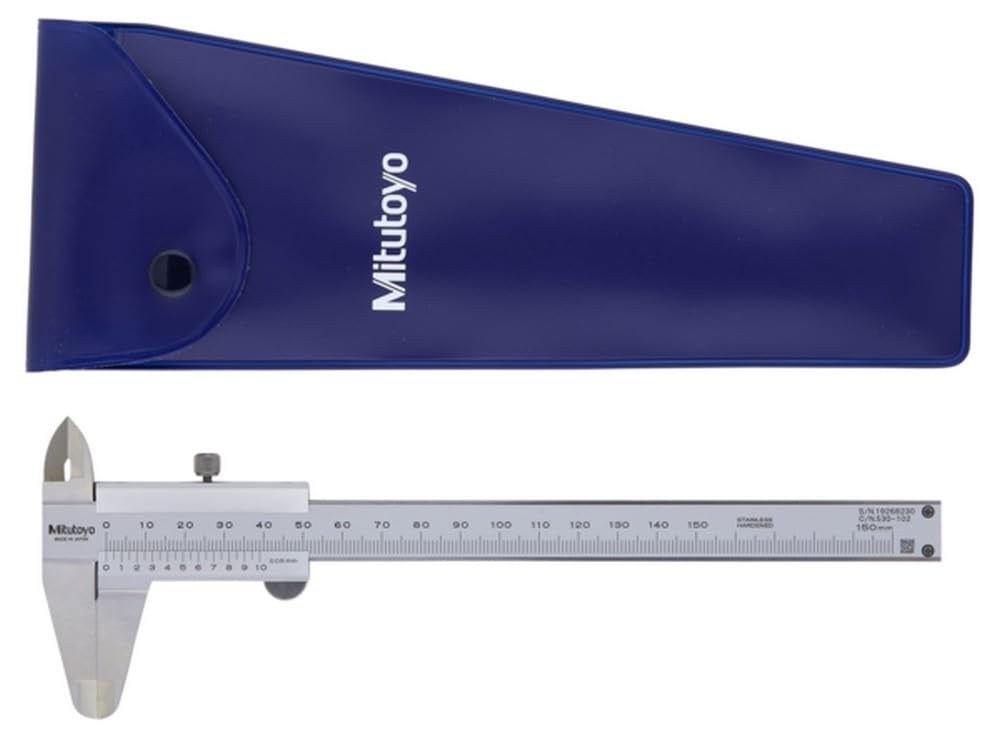

Accessories: Storage case
Notes
This product is intended for business use only.
Measuring range: 0-150 mm
