Feature:
1. EXCELLENT CLEANING PERFORMANCE: Window cleaner robot features dual spiral cleaning heads and ultra fine fiber cloths, effectively cleaning a variety of window types and addressing the hassle of cleaning high rise windows.
2. SUITABLE FOR DIFFERENT WINDOW SIZES: Designed for windows measuring 0.35 x 0.35m and larger, up to 6 x 4m, this robot can clean 1square meters in just 4 minutes, with better results on larger windows.
3. POWERFUL VARIABLE SUCTION: With advanced vacuum motor technology, the window cleaner robot provides a powerful 5600pa suction that intelligently adjusts based on the dirt level on glass, ensuring secure adhesion.
4. EFFORTLESS DIRT REMOVAL: Thanks to its exceptional suction power, the robot effortlessly removes stubborn dirt from windows, providing a thorough cleaning. (Note: Avoid using overly wet cloths as it may affect suction performance.)
5. AI SMART PLANNING: Equipped with 3 intelligent planning modes, the automatic window cleaner follows a Z shaped cleaning route, detecting window frames and suitable for various glass and windows. After completing the task, the robot automatically returns to the starting point.
6. MULTIPLE SAFETY FEATURES: Built in UPS (Uninterrupted Power Supply) system prevents drops during a 20 minute power outage. In case of a power outage, the robot can hold onto the window and alert for 20 minutes, enhancing safety and peace of mind.
7. REMOTE CONTROL: Simple usage with just a press of the start button for automatic route planning. The robot s route can also be controlled via the remote, allowing for customized cleaning as needed.
8. IMPORTANT REMINDER: The robot must be connected to power to work effectively. With the uninterrupted power supply system and built in lithium battery, the robot can provide an additional 20 minutes of power during a power outage. Remember to remove the robot from the window within 15 minutes of stopping use.
Specification:
Item Type: Window Cleaner Robot
Material: ABS+cloth+electronic components
Robot Size: Approx. 290 x 144 x 120mm 11.4 x 5.7 x 4.7in
Adapter Output: DC24V 3.75A
Main Unit Battery: Built in Lithium Battery 500mAh (Battery included with shipment)
Remote Control Battery: 2 x AAA batteries (Battery not included with shipment)
Rated Power: 90W
AC Power Cord Length: Approx. 1.2m 3.9ft
DC Adapter Cord Length: Approx. 4m 13.1ft
Safety Rope Length: Approx. 4m 13.1ft
UPS Usage Time: Approximately 20 minutes
Cleaning Speed: Approximately 4 minutes 1 square meters
Maximum Working Window Size: Approx. 6 x 4m 19.7 x 13.1ft
Minimum Working Window Size: Approx. 0.35 x 0.35m 1.1 x 1.1ft
Suction Power: 5600 Pa
Automatic Cleaning Modes: 3
Applicable Places: Household, Beauty Salons, Office Buildings, Shops, Clubs, etc.

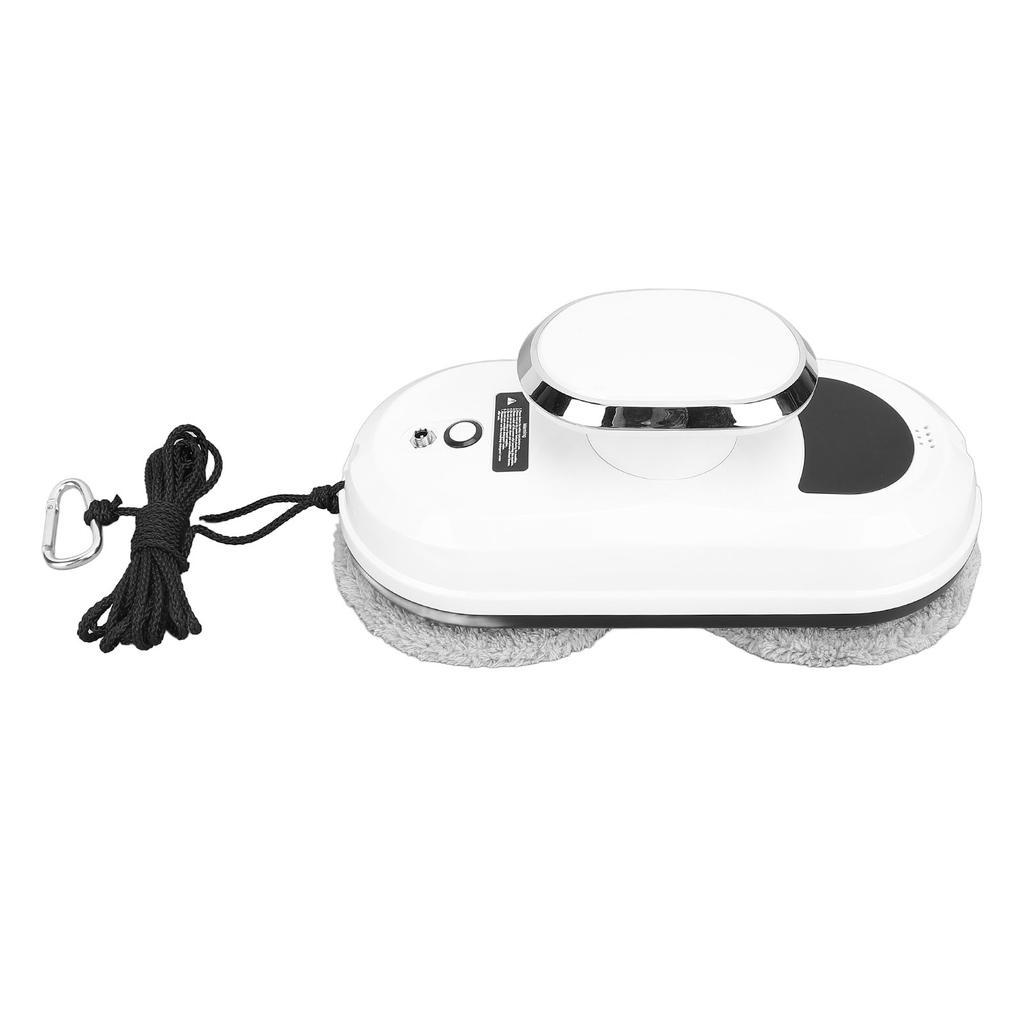

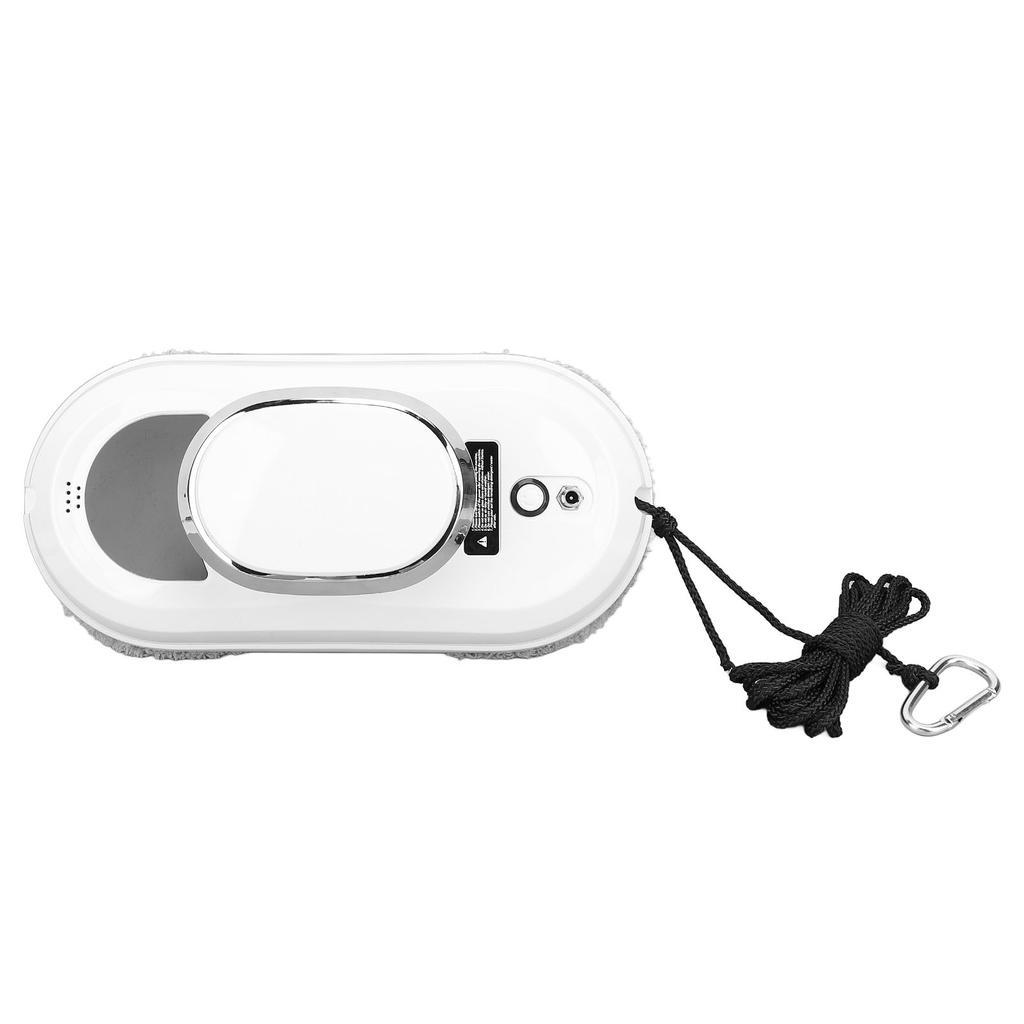

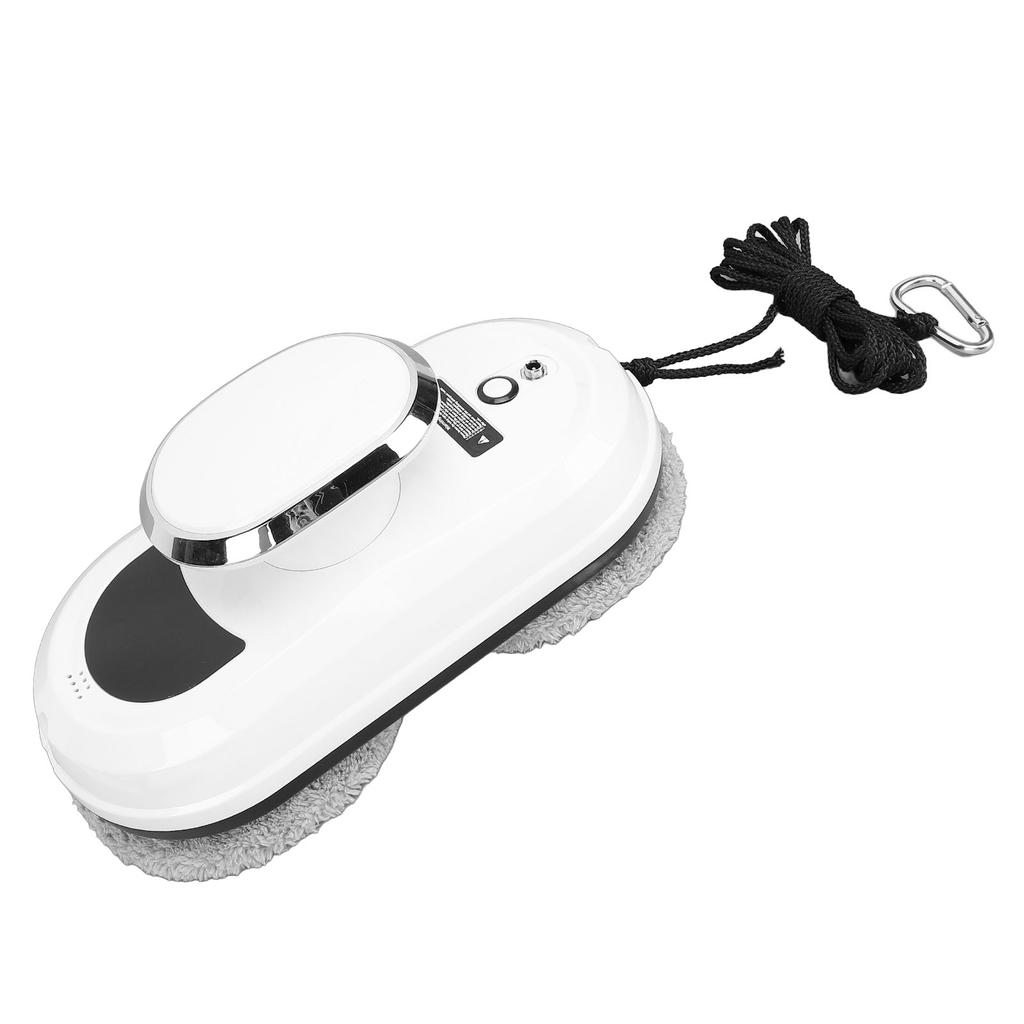

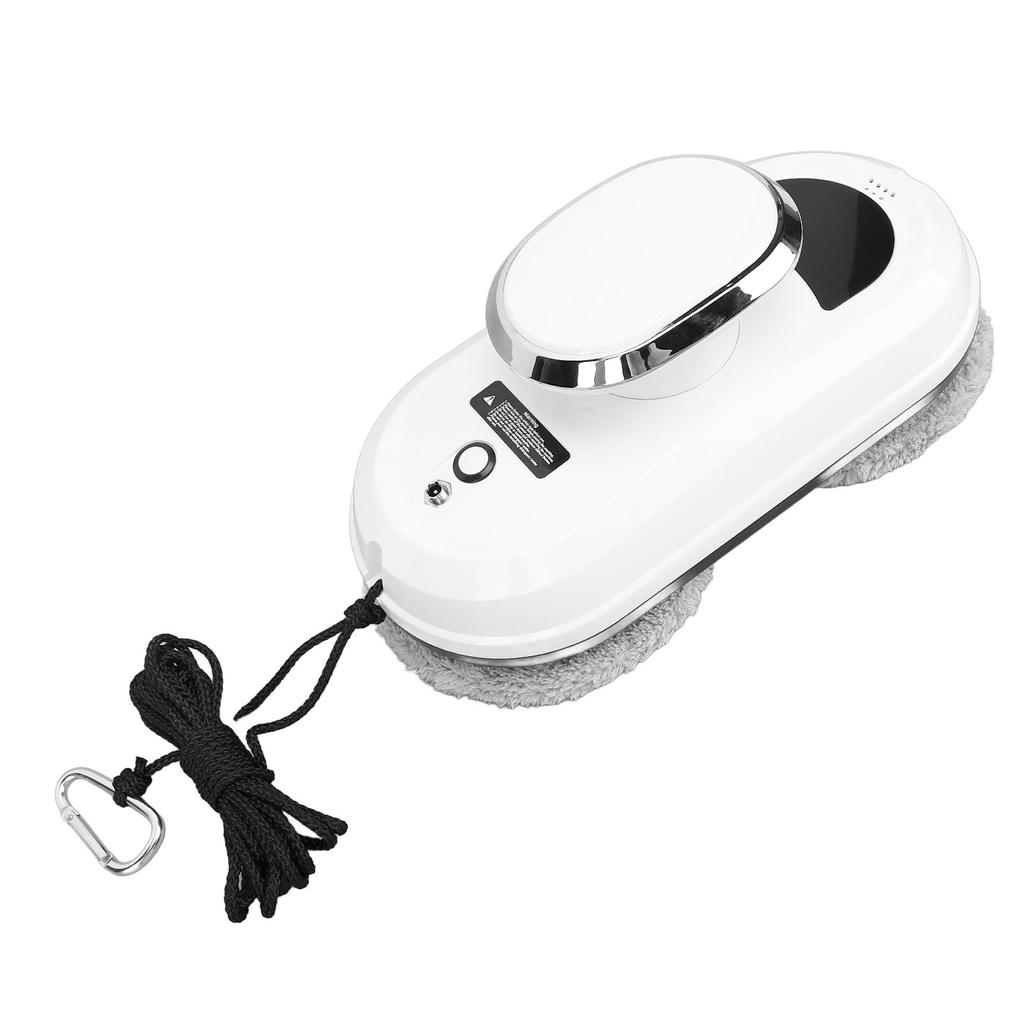

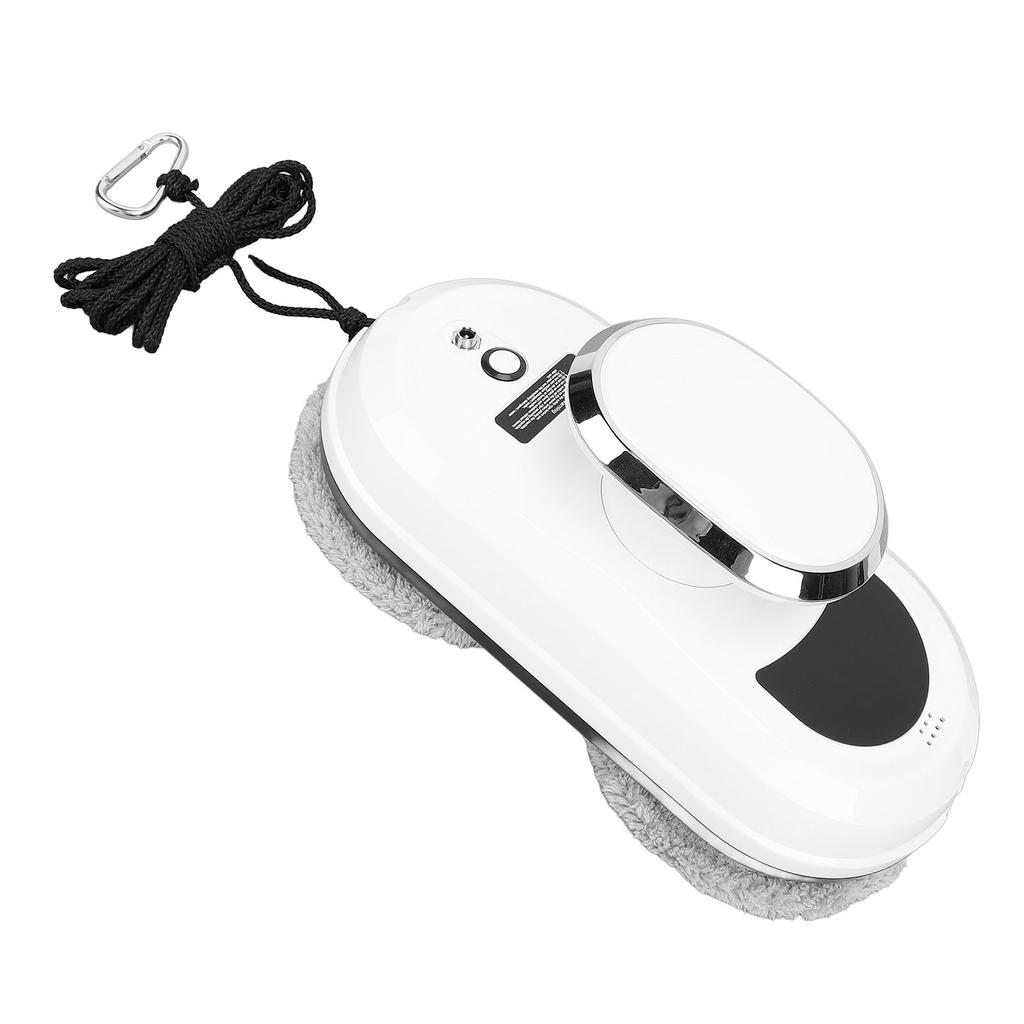

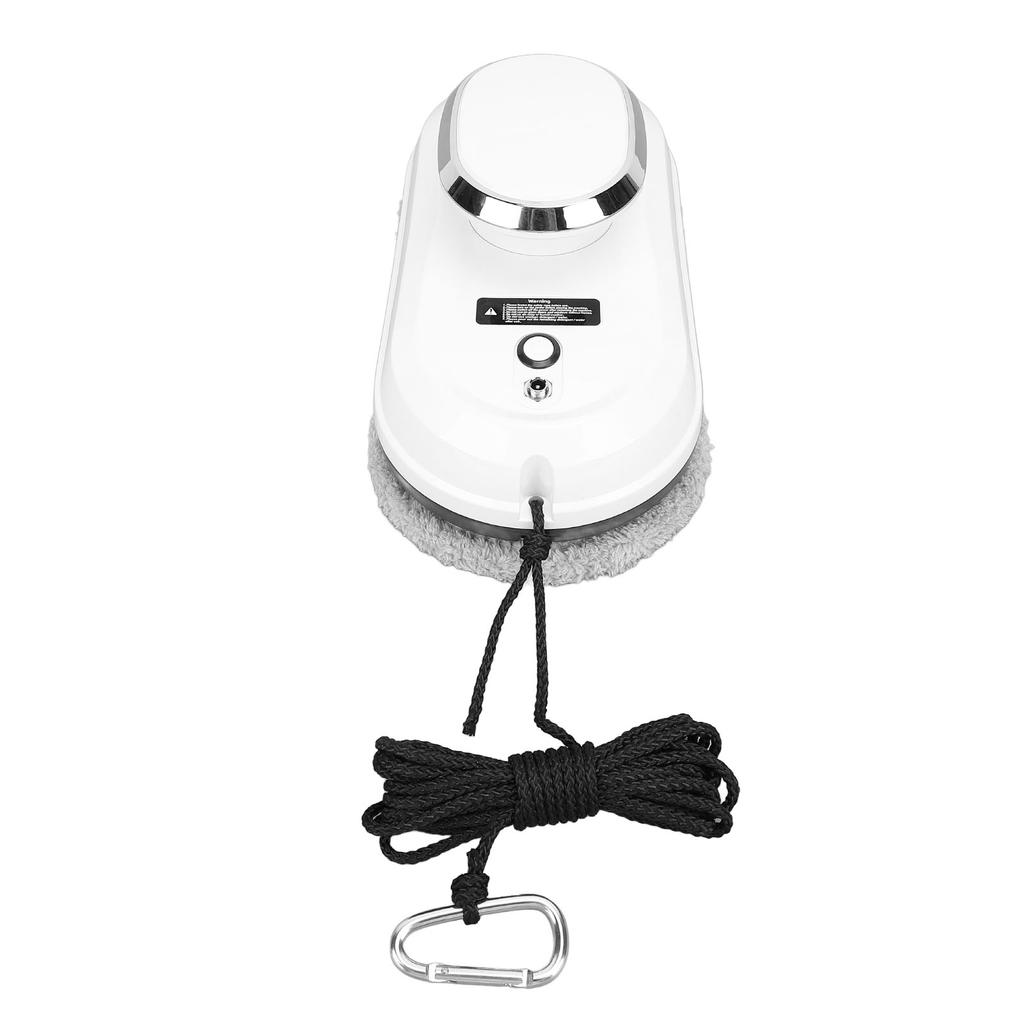

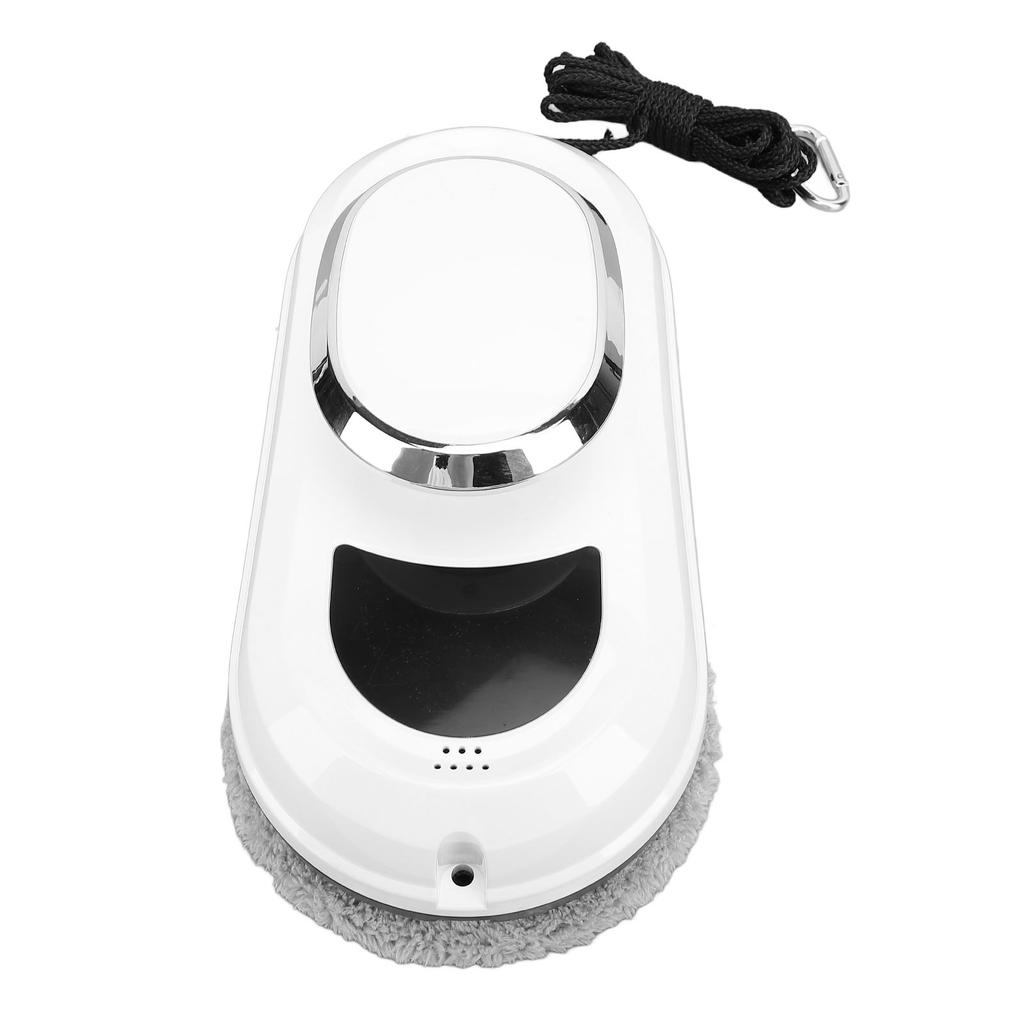

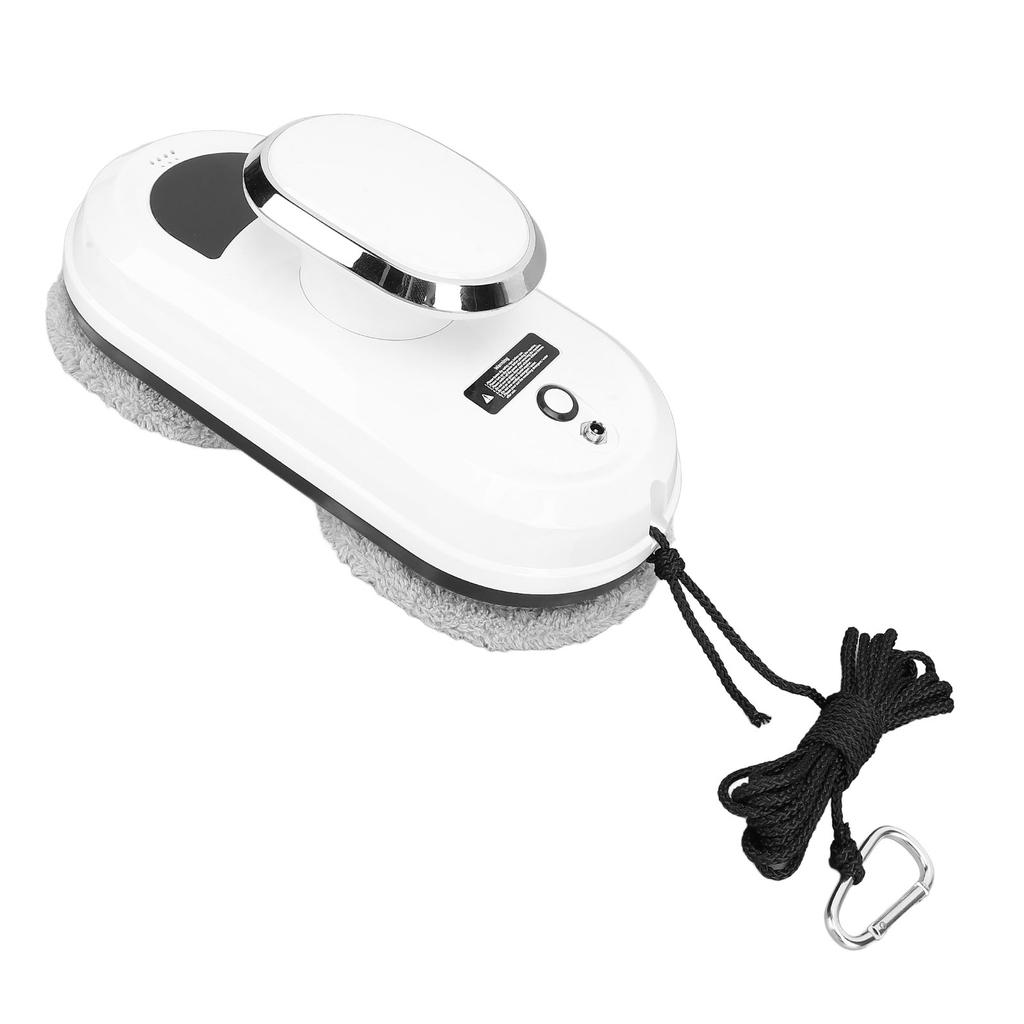

Product Description: This is a window glass cleaning robot. It features a vacuum motor that allows the robot to adhere to the glass surface and move freely on vertical glass surfaces. Equipped with an Uninterrupted Power Supply system (UPS) to provide power during power outages and prevent falls. The window cleaner robot has two cleaning wheels with functions of suction, movement, and cleaning. The cleaning wheels can adhere and move on vertical glass surfaces. The cleaning pads on the wheels are easy to detach, replace, clean, and reuse. Made from fine fiber cloth, the cleaning pads deliver excellent cleaning results. The robot is equipped with Artificial Intelligence (AI) for planning and automatic frame detection. It offers both automatic and manual cleaning modes, giving users control over the robot.
Usage Guide
1. Make sure the robot is fully charged before use (LED green light on). When charging the built‑in battery, turn off the switch and connect the power adapter. The orange light indicates charging mode, and the green light indicates fully charged.
2. Check if the safety rope and buckle are damaged. Always secure the safety rope before use and attach the safety rope to a fixed device in the home.
3. Before use, make sure the cleaning ring is fixed on the cleaning wheel to ensure the robot s good vacuum suction and spray cleaning water as required.
4. When the window cleaning robot is working, it must be connected to the power adapter to function properly.
How to Use:
2. Ensure the robot is securely attached to the glass and make sure the safety rope and power cord do not obstruct the robot s cleaning path.
3. Press the automatic cleaning button on the remote control, the robot will move from the bottom to the top of the window, then move in a zigzag motion from left to right, top to down for cleaning. After cleaning, the robot will return to the starting position at the bottom and make a beep sound.
4. If the robot stops in an inaccessible place, gently pull it back with the safety rope.
5. When disassembling the robot, please hold the safety rope with one hand, remove the robot with the other hand, and then turn off the power.
Note: The robot must be connected to a power adapter to work properly!
How to clean steps
Step 1: If the glass is dirty or dusty, clean it in the first round with a dry mat (without spraying any water) in order to remove the dust from the glass.
If water or detergent is sprayed on the cleaning pad during the first round of cleaning, the water or detergent will mix with the sand and dust, causing it to become mud.
Step 2: Install a clean and dry cleaning pad on the cleaning ring, and make sure the cleaning ring is firmly installed on the cleaning wheel. Then spray a little water or cleaner (2 to 3 sprays) on a clean mat. It can t be too wet. A completely wet cleaning mat will affect the robot s operation.
If there is sand or dust on the glass, spray water or detergent on the area, let the water or detergent soak the area, and wait 2 to 3 minutes before cleaning.
Step 3: Replace a clean and dry rag and spray water or detergent on the edge of the cleaning pad to improve the vacuum suction of the robot, thereby improving the cleaning performance.
.

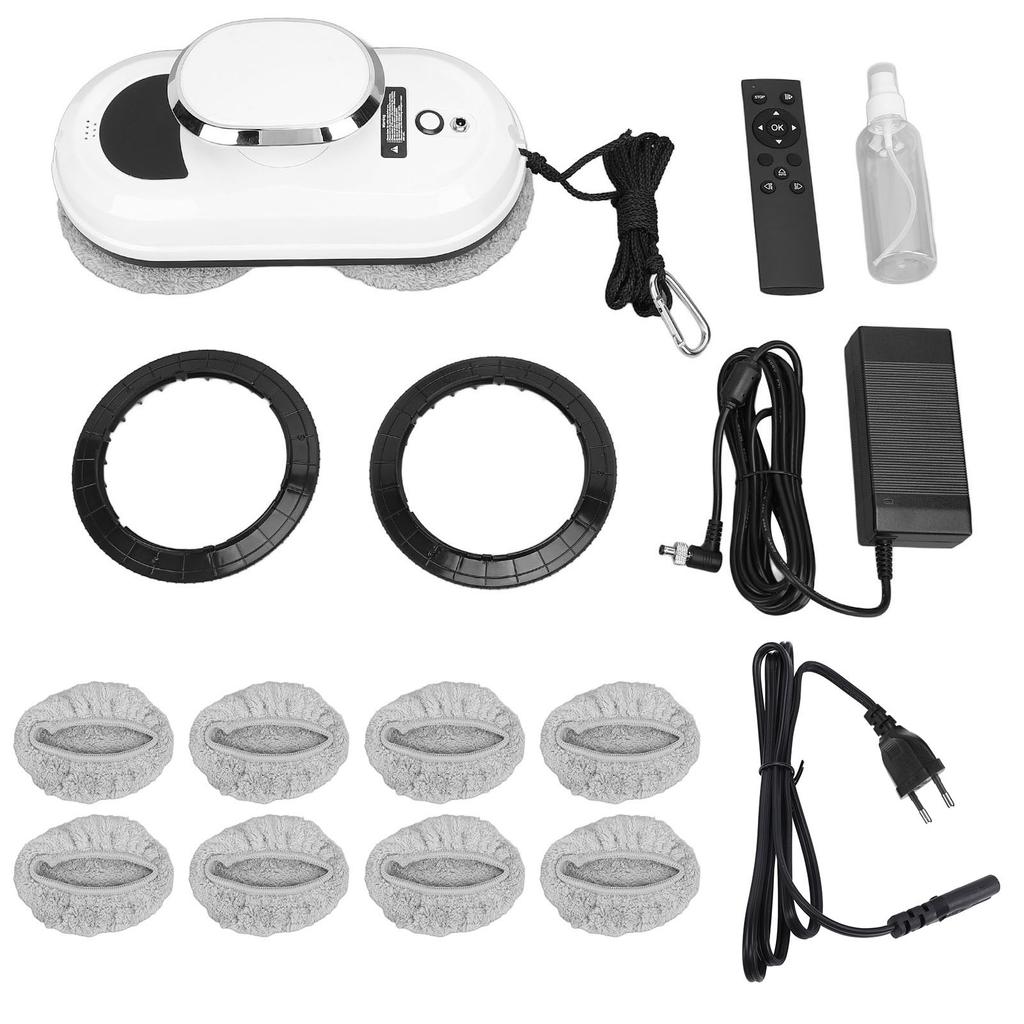

Package List:
1 x Window Cleaning Robot
1 x Remote Control
1 x Spray Bottle
8 x Replacement Cleaning Cloth
2 x Replacement Cleaning Ring
1 x Adapter
1 x Cord
1 x User Manual
Note:
1. Do not spray water on the robot or immerse the robot in water.
2. Do not use the robot in rainy or humid weather.
3. When cleaning the glass, use a spray bottle filled with water or cleaning solution.
4. New cleaning pads may leave some marks on the first use, which is normal. Clean and dry the dirty cleaning pads before use. When spraying detergent, spray it directly on the clean pad or glass.
5. If the robot experiences an accidental power failure during use, the built in UPS battery will automatically start. The battery can support the robot vacuum for about 20 minutes. When the robot experiences an accidental power failure, the robot will stop automatically and emit a warning sound. The red LED light will continue to flash. Please remove the robot as soon as possible to prevent it from falling when the power runs out.
6. If the robot stops outside an inaccessible area due to other reasons, gently pull the robot back with the safety rope. When pulling the safety rope, try to stay close to the glass to prevent the robot from falling.
