Description
Four-digit display 0.01 V/0.001 A

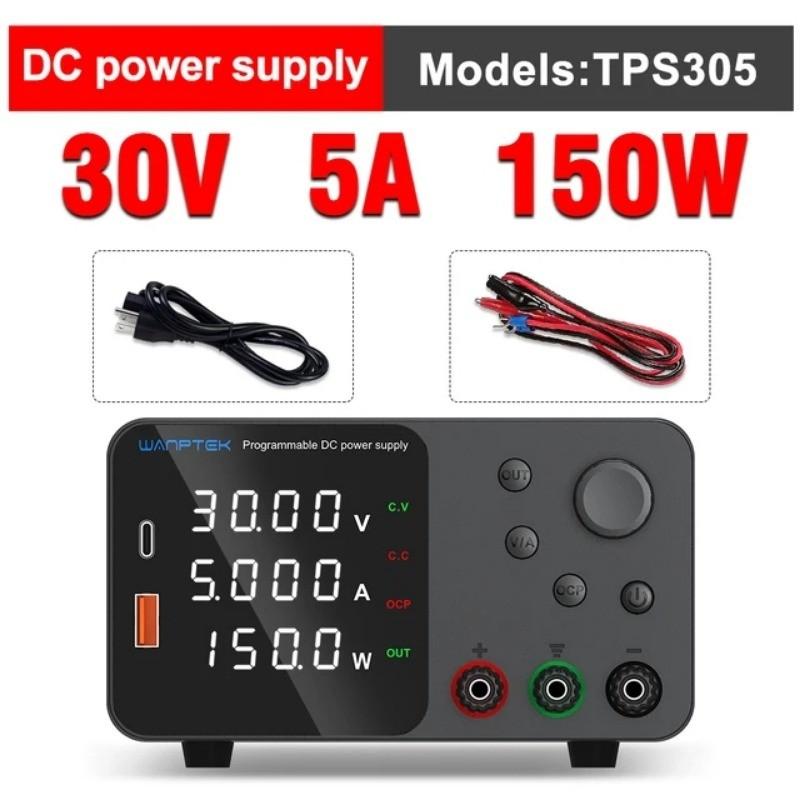

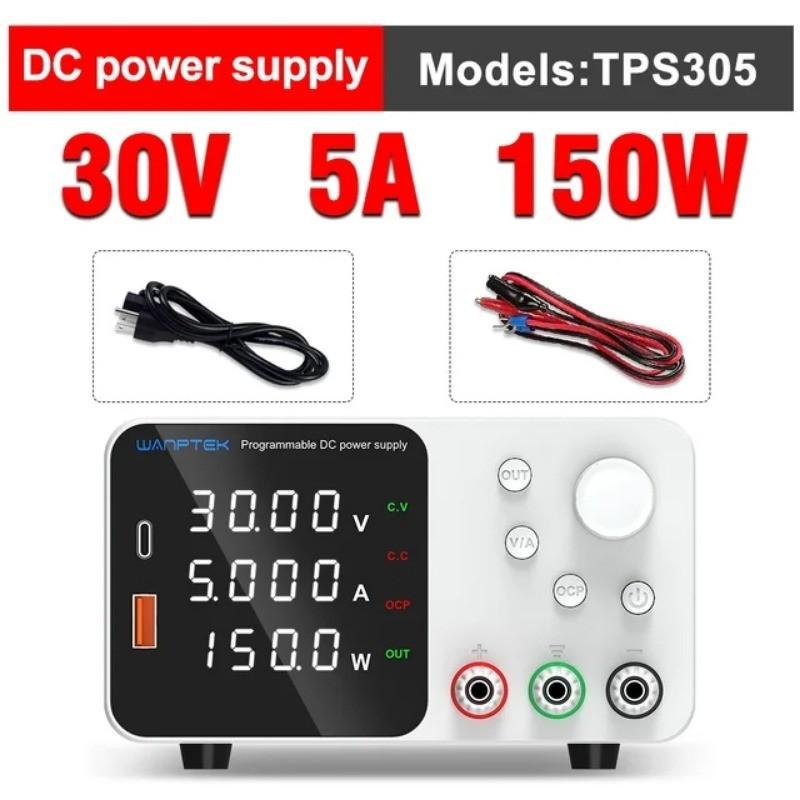

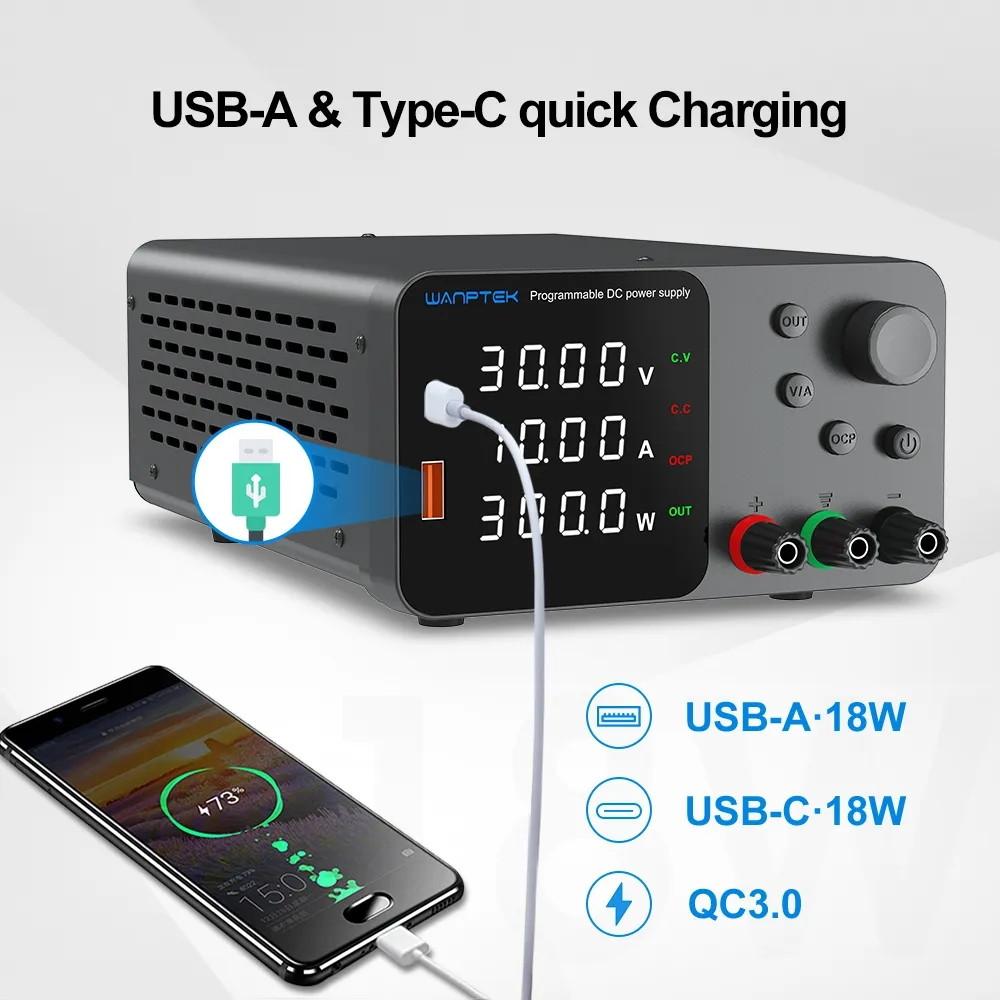

1.USB-A/USB TYPE-C TPS305 Encoder adjustment DC power supply

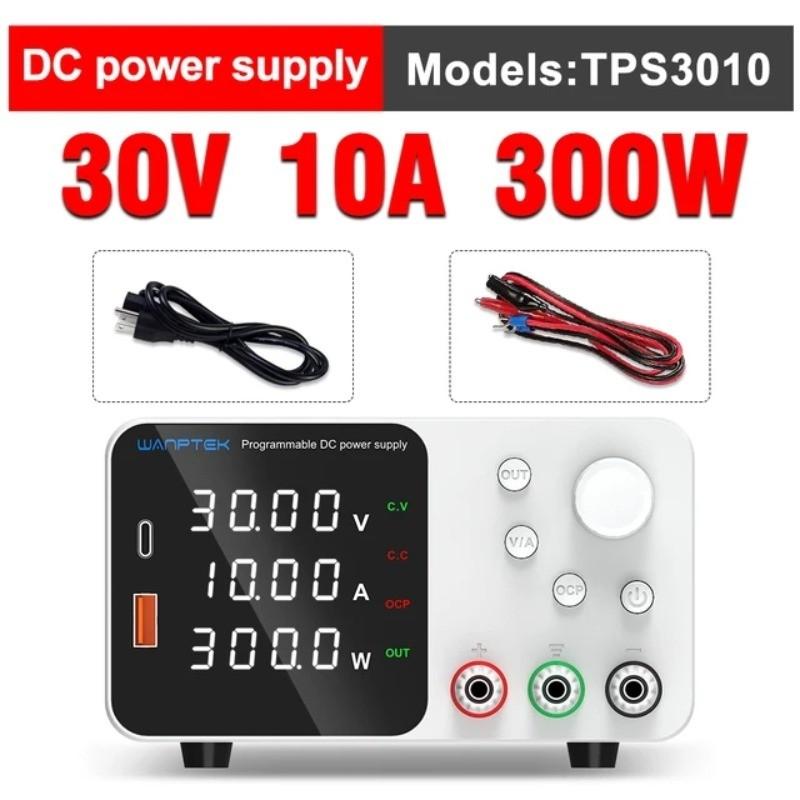

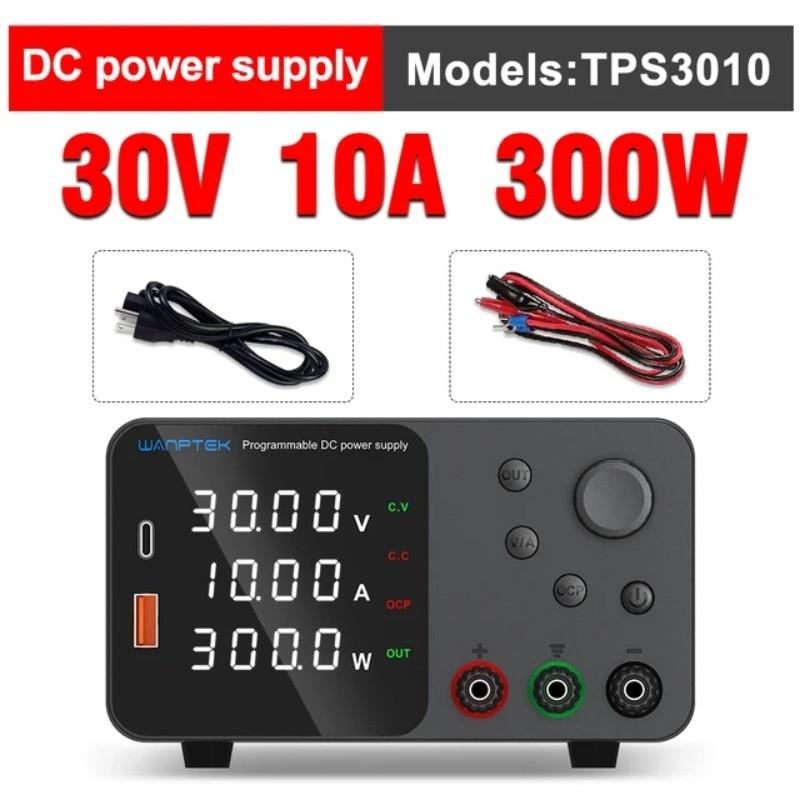

2.USB-A/USB TYPE-C TPS3010 Encoder adjustment DC power supply

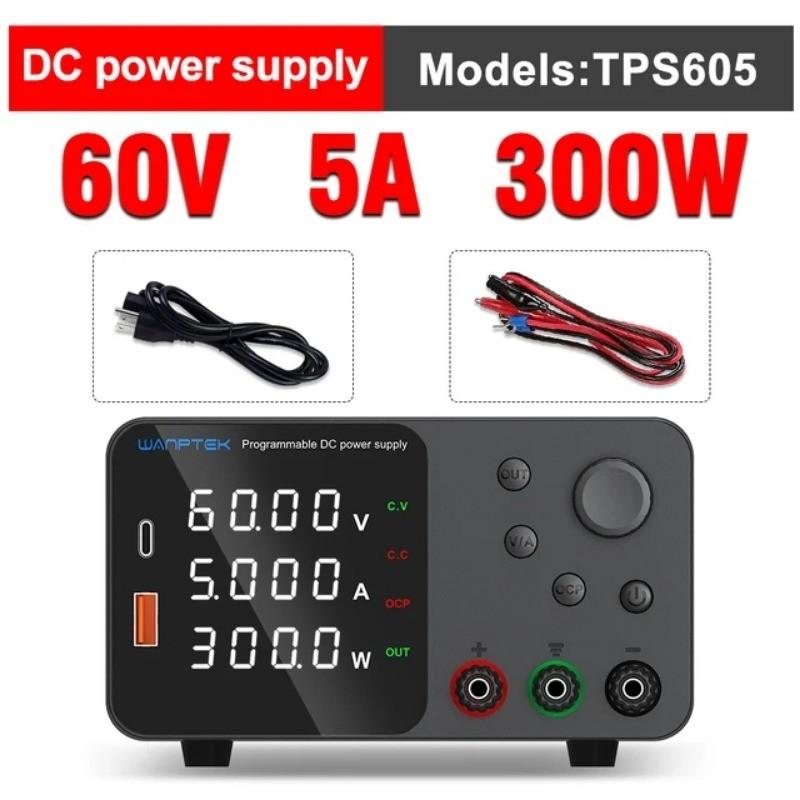

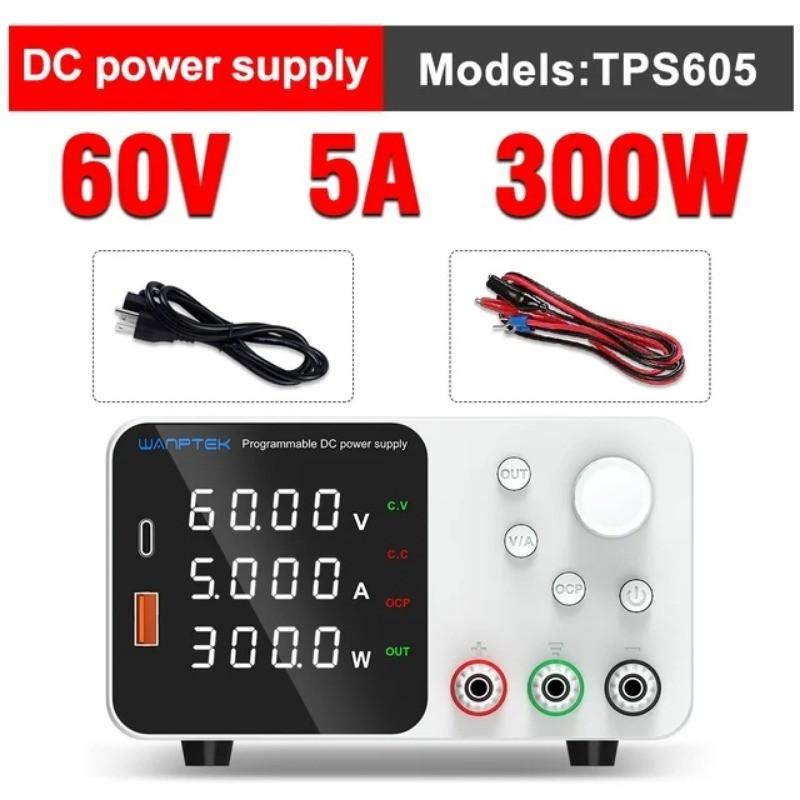

3.USB-A/USB TYPE-C TPS605 Encoder adjustment DC power supply

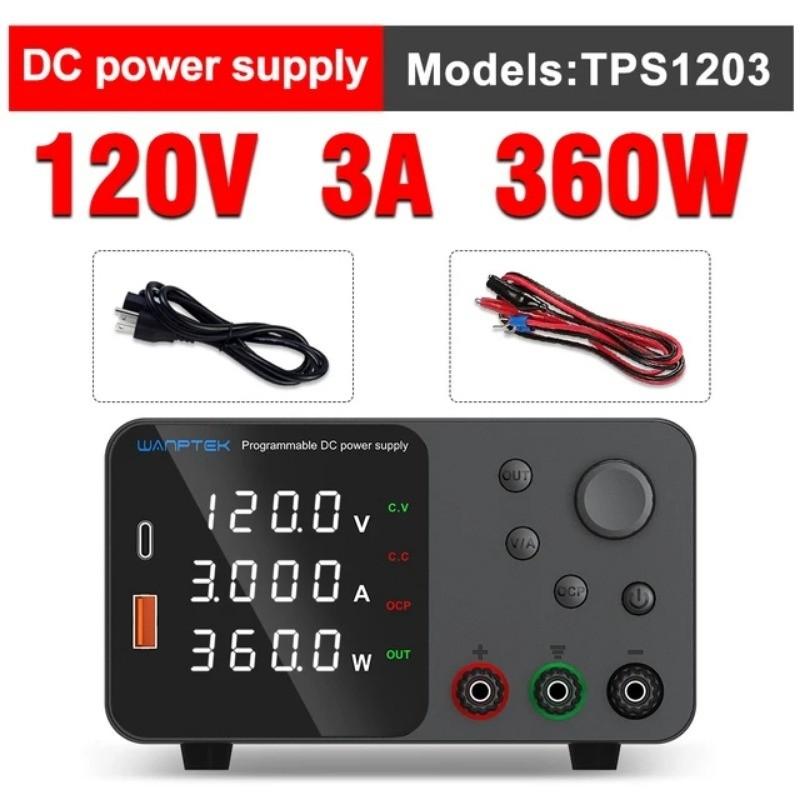

4.USB-A/USB TYPE-C TPS1203 Encoder adjustment DC power supply

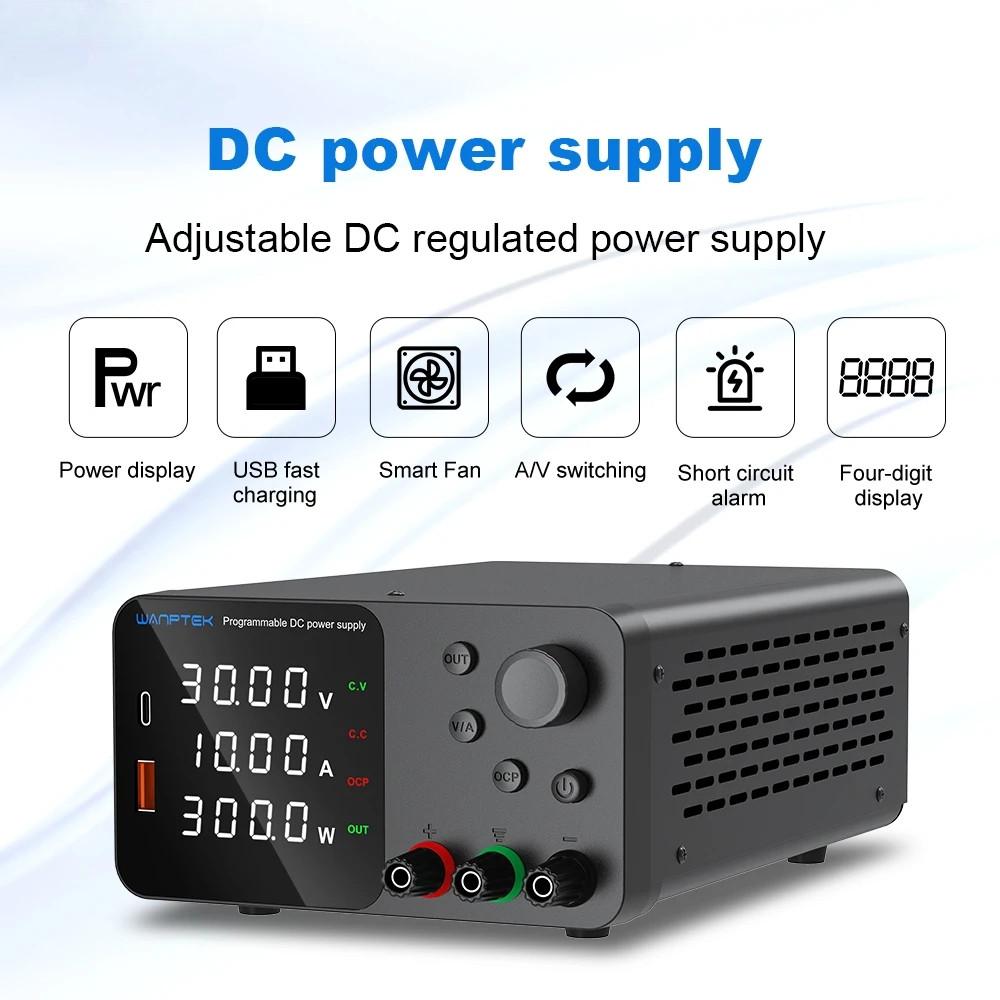

This model is a miniature switching DC power supply.
1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.
3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating

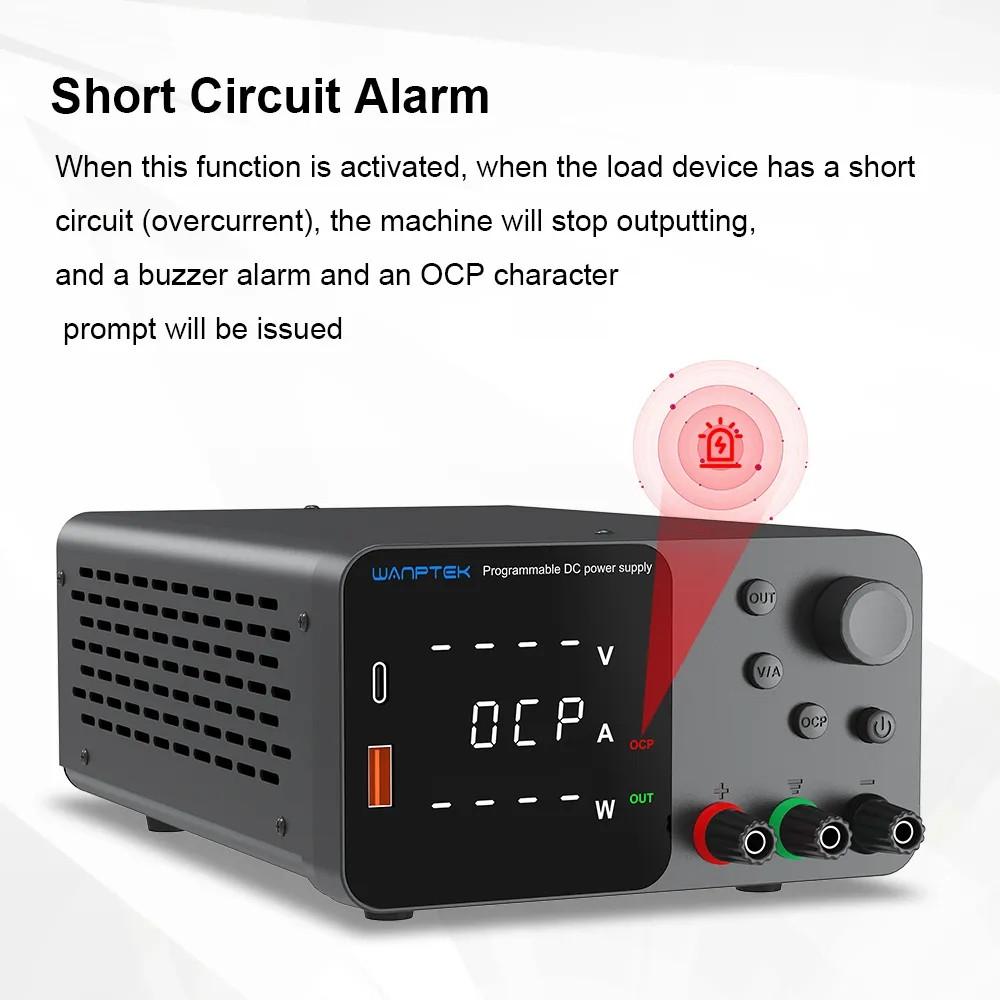

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection
7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11.AC 110v and 220V can work, rest assured to choose.
12.Encoder adjustment DC power supply

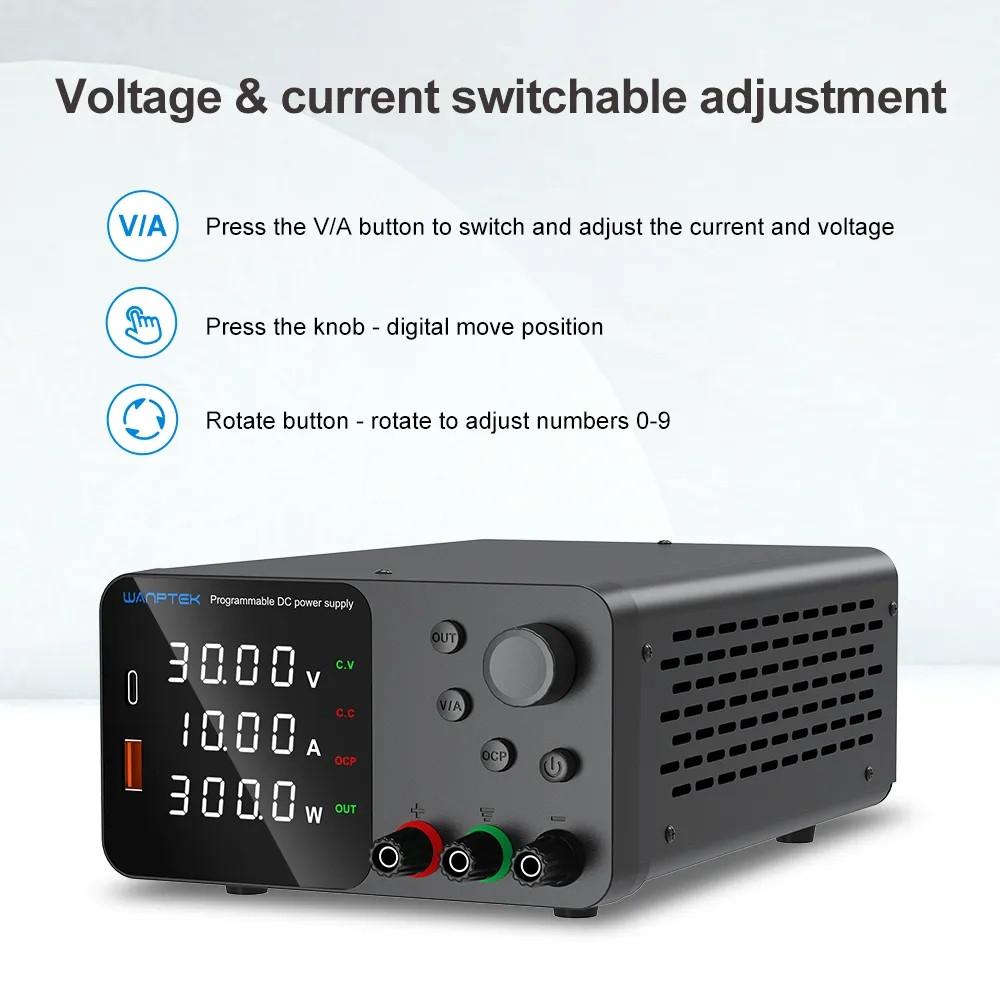

13.Voltage and current one-key conversion regulation

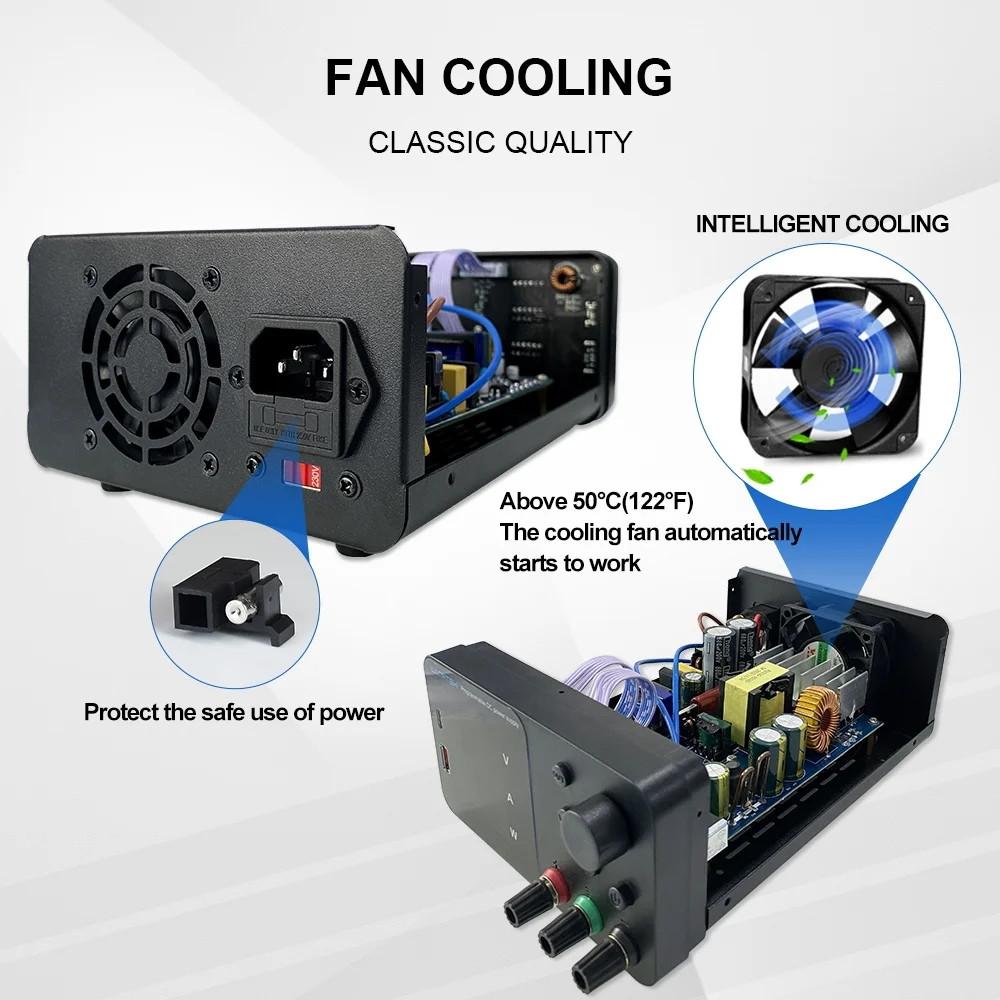

14.Built-in cooling fan,Smart turn on when temperature over 50℃
FCC & CE certified product
Output Power
150W/300W/360W
Output voltage
0~30V/60V/120V
Output current
0~3A/5A/10A
Working environment
input voltage:AC 230V/115V±10%;50Hz/60Hz
Working temperature:0℃~40℃;relative humidity:<80%RH
Storage temperature:-10℃~70℃;relative humidity:<70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability: 0.2%±3mV
Ripple voltage:≤0.5% Vp-p
0 to rated voltage continuously adjustable
Constant current CC
Current stability:0.1%±3mA
Load stability: 0.2%±3mA
Ripple current:≤0.5% Vp-p
Recovery time:≤500μS
Temperature coefficient:≤100ppm/℃
0 to rated current continuously adjustable
Display
LED digit display
Display accuracy:0.5%±digits
Display resolution: voltage 0.01V, current 0.001A,
1. Production line test.
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.

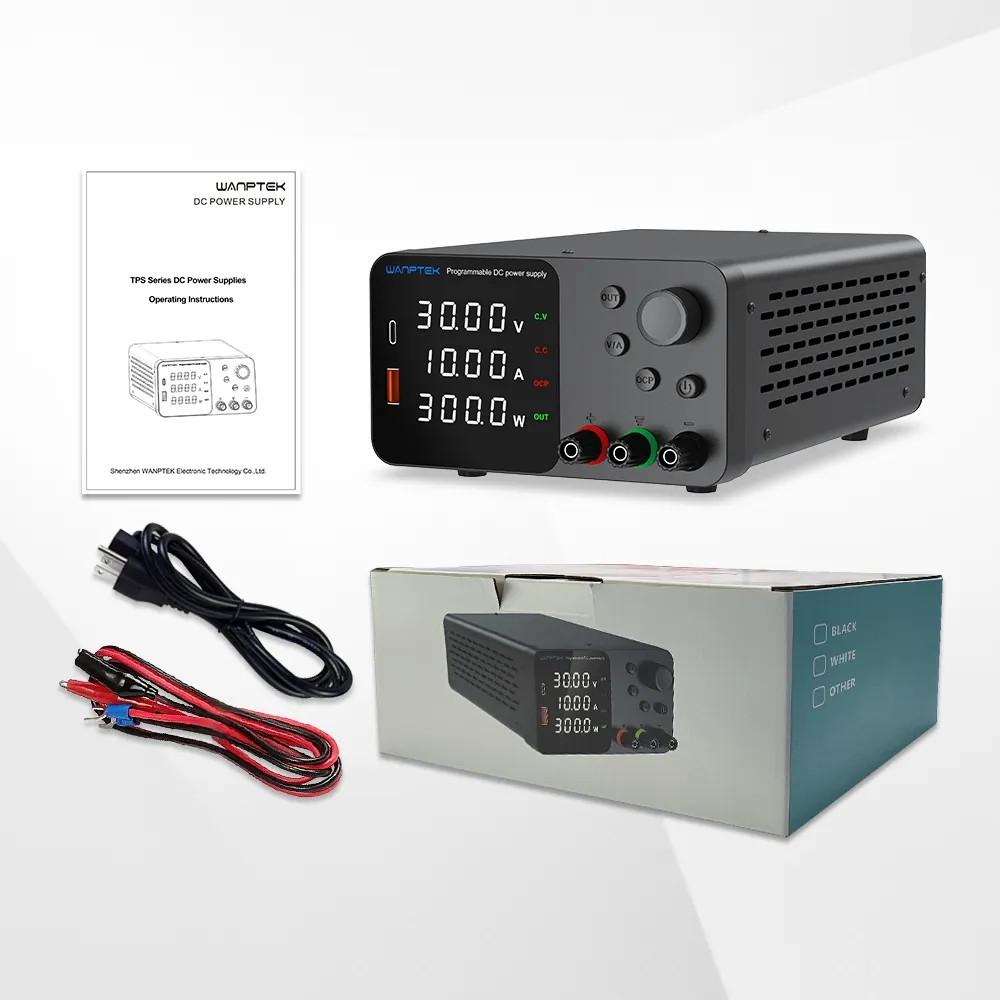

Package Included:
1x DC power supply
1x Power cord
1x Test line
1x Instructions
Note:
-Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
-Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
