Joom: Safely charging your e-bike or e-scooter
• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----

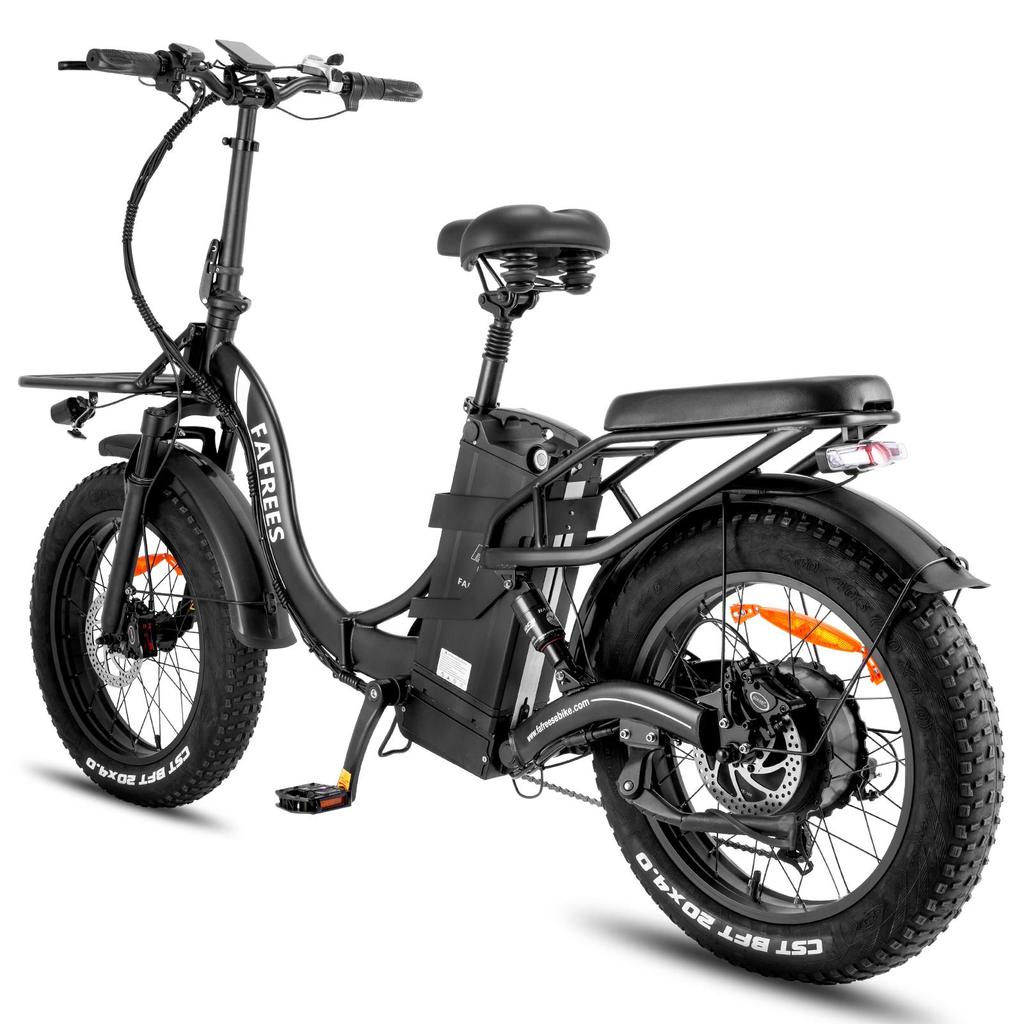

Prepare to embark on a journey like no other with our F20 X-Max foldable fat-tire eBike. With its 48V 30Ah colossal battery, a powerful 750W hub motor, triple suspension for unbeatable comfort, and a space-saving foldable design, this exceptional electric bicycle is not just a means of transportation; it's a gateway to a lifestyle filled with convenience, adventure, and endless possibilities. Crafted to perfection, it combines hydraulic disc brakes, front and rear lights with turn signals, and front and rear racks for the ultimate in safety, visibility, and practicality. Get ready to redefine the way you move and elevate your lifestyle. No destination is too far, no hill too steep, and no adventure too challenging.
TRIPLE SUSPENSION SYSTEM
Our Triple Suspension System is the linchpin of your riding comfort and control. Rear and front suspensions work together to reduce shocks and vibrations while maintaining stability and balance. The integrated Seatpost Suspension provides additional padding and stress absorption, reducing jarring and lower body strain.
750W BRUSHLESS HUB-MOTOR
With a peak output of 980W, our eBike is ready to take on the toughest challenges. Additionally, boasting a motor torque of 65 Nm, you can expect outstanding responsiveness and control. This high-torque, low-RPM motor not only propels you with power but also guarantees a remarkably quiet and serene riding experience.
48V 30AH BATTERY WITH SAMSUNG CELL
The high-capacity 1440Wh battery, with 21% higher density and 21700 Samsung cells, allows you to travel up to 140 kilometers on a single charge. For those who prefer pedal-assist mode (PAS), the eBike can go up to 180-200 kilometers. It also features removable convenience and a rapid 3A fast charge capability.
LCD COLOR DISPLAY
The high-definition LCD display offers a variety of features with easy control, and presets 3 speed levels. The large-screen shows various data such as speed, battery, mileage, and gear. With the built-in USB port, you can conveniently charge your phone while on the go. It has a cruise control function to help your riding whenever you need.
DUAL HYDRAULIC BRAKES
The hydraulic brake system with 160mm long lasting pads and ball ramp actuation system gives a silky smooth feel at the lever and incredible gripping power. It significantly reduces the braking distance to just one meter and our reaction time to one second.
TRIPLE FOLDING DESIGN
With its triple folding design, our eBike is both compact and easily portable. This design encompasses the folding of the main frame, handlebars, and pedals, enhancing adaptability and making it a versatile companion for all your journeys.
20" * 4.0" INCH FAT TIRES
4.0 fat tire with stronger friction that can adapt to a variety of riding environments like snow road, sand road, mud road, gravel road and also flat terrain.
SHIMANO 7 SPEED GEAR SHIFT SYSTEM
The Shimano 7-gear shift system facilitates responding to uphill riding scenarios, downward flat plane, or stop-and-go outdoor riding easier. When used effectively under various riding circumstances, it can help improve the battery's range by up to 15%.
LIGHTS WITH TURN SIGNALS
The front and rear lights that not only illuminate your path during low-light conditions but also enhance your visibility to other road users. The integration of turn signals, making your intentions clear to fellow riders and drivers, ensures a safer journey for all.
FRONT AND REAR RACKS
To make your daily errands or weekend getaways even more convenient, our eBike is thoughtfully designed with front and rear racks. These racks provide ample space to carry your essentials, be it groceries, a picnic basket, or camping gear.
🚴♂️ FAFREES F20 X-Max Folding Electric Fat Bike
Brand: FAFREES
Model: F20 X-Max
Type: Foldable Fat Bike
Colors: Black / Gray / White / Red
📏 Dimensions and Compatibility
Unfolded Dimensions: 186 × 126 × 63cm
Folded Dimensions: 105 × 45 × 76cm
Adjustable Handlebar Height: 116–132cm
Adjustable Seat Height: 86–106cm
Packaging Dimensions: 106 × 47 × 78cm
Tire Size: 20 × 4.0 inches
Footpath Clearance: 10cm
Suitable Height: 165–210cm
⚖️ Weight and Load Capacity
Net Vehicle Weight: 49kg
Packaging Weight: 55kg
Battery Weight: 7.5kg
Maximum Load: 150kg
🧩 Construction and Materials
Frame Material: High-tensile Steel
Tire Type: Pneumatic
Folding Design: The frame, handlebars, and pedals fold for easy transport and storage.
⚙️ Drive and Performance
Default Top Speed: 25 km/h
Power-Assisted Mode Range: 180–200 km
Electric Mode Range: 120–140 km
Maximum Gradeability: 25°
Drive: Rear Drive
🔋 Battery System
Battery Type: Samsung 21700 Lithium-Ion Cell
Rated Voltage: 48V
Input Voltage: 54.6V
Battery Capacity: 30Ah / 1440Wh
Undervoltage Protection: 39.6V
Overcurrent Protection: 30A
Battery Waterproofing: IPX4
Charging Time: Approximately 9 Hours
⚡ Motor Configuration
Rated Motor Power: 750W
Peak Power: 980W
Maximum Torque: 65N·m
Drive Type: Rear-wheel Drive (High Torque Output, Strong Climbing Ability)
🔌 Charger Specifications
Input Voltage: 110–240V
Output Voltage: 54.6V
Rated Current: 3A
🧭 Suspension and Comfort System
Front Fork Type: Hydraulic Shock Fork
Fork Travel: 50mm
Rear Shock: Dual Rear Shock Absorbers + Seat Post
Rear Shock Travel: 15mm
💡 Control and Display System
Display: LCD
Walking Assist Mode: 6km/h (Walking Assist)
Cruise Control: Supported
App Control: None
Power Assist Range: Adjustable 0–3
⚙️ Drive and Braking System
Transmission: Shimano 7-speed
Brakes: Hydraulic Disc Brakes (Dual Front and Rear Discs)
🌟 Lighting and Safety System
Headlight: LED high-brightness headlight (with horn)
Taillight: Smart taillight with brake and turn functions
Waterproof rating: IPX4, suitable for riding in all weather conditions
🚴♀️ Riding Mode
Supports three modes:
1️⃣ Human-powered mode
2️⃣ Power-assisted mode
3️⃣ Pure electric mode
Applicable temperature range: -10°C to 40°C
